I've got a chatter noise coming from the bellhousing area that disappears when I put pressure on the clutch pedal.
Unless I'm missing something I can't see a release bearing in my parts catalogue so any ideas on the usual suspects that I can throw at it?
Cheers Rob



freelance

Well-Known Member

Posts

8,676

Location

essex and beyond

• Sep 14, 2020

• #2

Probably spigot bush dry in crankshaft



H

Hicap phill

Well-Known Member

Posts

16,168

Location

Wiltshire

• Sep 14, 2020

• #3

Has yours got the release bearing built into the gearbox bell housing ?



Marmaduke

Well-Known Member

Posts

9,773

Location

Near the land of 'Me Duck'

• Sep 14, 2020

• #4

Hicap phill said:

Has yours got the release bearing built into the gearbox bell housing ?

Click to expand...

No idea cos I've never had it apart..



H

Hicap phill

Well-Known Member

Posts

16,168

Location

Wiltshire

• Sep 14, 2020

• #5

This presses onto the centre of the clutch



H

Hicap phill

Well-Known Member

Posts

16,168

Location

Wiltshire

• Sep 14, 2020

• #6

Oh was you in water up in wales??
If you parked it up it(not used it for a week) could just be a bit of rust on the main shaft not allowing the clutch plate to float back



H

Hicap phill

Well-Known Member

Posts

16,168

Location

Wiltshire

• Sep 14, 2020

• #7

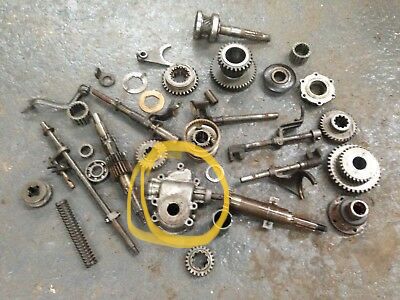

While I’m bored...

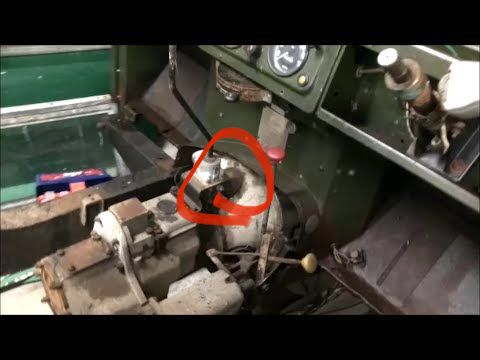

You can remover the inspection bung & have a look. Can’t remember if you have to remove the selector bracket(think 4 bolts)


(Pictures Are off the net & not my shed floor)



Marmaduke

Well-Known Member

Posts

9,773

Location

Near the land of 'Me Duck'

• Sep 14, 2020

• #8

Hicap phill said:

Oh was you in water up in wales??
If you parked it up it(not used it for a week) could just be a bit of rust on the main shaft not allowing the clutch plate to float back

Click to expand...

I was doing it before I went



Blackburn

Well-Known Member

Posts

3,105

Location

Tyneside

• Sep 15, 2020

• #9

Spring chatter on the clutch plate.



C

Colthebrummie

Well-Known Member

Posts

9,870

Location

Thatcham

• Sep 15, 2020

• #10

Hicap phill said:

While I’m bored...
You can remover the inspection bung & have a look. Can’t remember if you have to remove the selector bracket(think 4 bolts)
View attachment 219234

(Pictures Are off the net & not my shed floor)

Click to expand...

I was going to say, no wonder it's chattering if all those bits have fallen out.

Col



jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Sep 15, 2020

• #11

series 2a release bearing is stc1130 same as t/box output bearings



O

ORJIP

Member

Posts

51

Location

Stroud

• Dec 12, 2022

• #12

Hi - did you ever resolve this issue? Mine just started doing it at the weekend. Its a S3, but my thoughts are the spigot bush or release bearing/fork. Sounds quite a chatter - especially free wheeling or at low speed coming to a halt. Any input I'd appreciate it - gonna try and live with it until weather improves! Dont fancy lying on the barn floor all over again!
