Clutch adjustment

lightning

Well-Known Member

Posts

4,172

Location

High Peak

• Sep 29, 2015

• #1

Since having a new clutch fitted to our TD5 the biting point is a bit high, and the clutch pedal is the same height as the brake pedal (l believe it should be a bit lower?)
Anyway, l can't move the two locknuts on the master cylinder pushrod, so am unable to adjust the pedal position!
Can l fit a new pushrod, or is it part of the master cylinder?



jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Sep 29, 2015

• #2

you can adjust m/c rod in the pedal box



lightning

Well-Known Member

Posts

4,172

Location

High Peak

• Sep 29, 2015

• #3

That's the one l am talking about.

But it has two locknuts on the rod that have to be loosened to adjust the pedal, and they won't budge.



jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Sep 29, 2015

• #4

better spanners needed



ONE LIFE LIVE IT. D90

Active Member

Posts

953

• Sep 29, 2015

• #5

You could grind a cut out to fit over the push rod in the ring end of an old 13mm spanner IIRC (or whichever size it is). It allows abit more movement of the spanner & nut for adjustment.

HTH



jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Sep 29, 2015

• #6

ONE LIFE LIVE IT. D90 said:

You could grind a cut out to fit over the push rod in the ring end of an old 13mm spanner IIRC (or whichever size it is). It allows abit more movement of the spanner & nut for adjustment.

HTH

Click to expand...

thats what i have



lightning

Well-Known Member

Posts

4,172

Location

High Peak

• Oct 1, 2015

• #7

Can anybody confirm what size the nuts are without me having to take it apart again?
I'll order a couple of brake pipe spanners with cut outs already in, that should do it.



L

LeftFoot

Active Member

Posts

249

• Oct 1, 2015

• #8

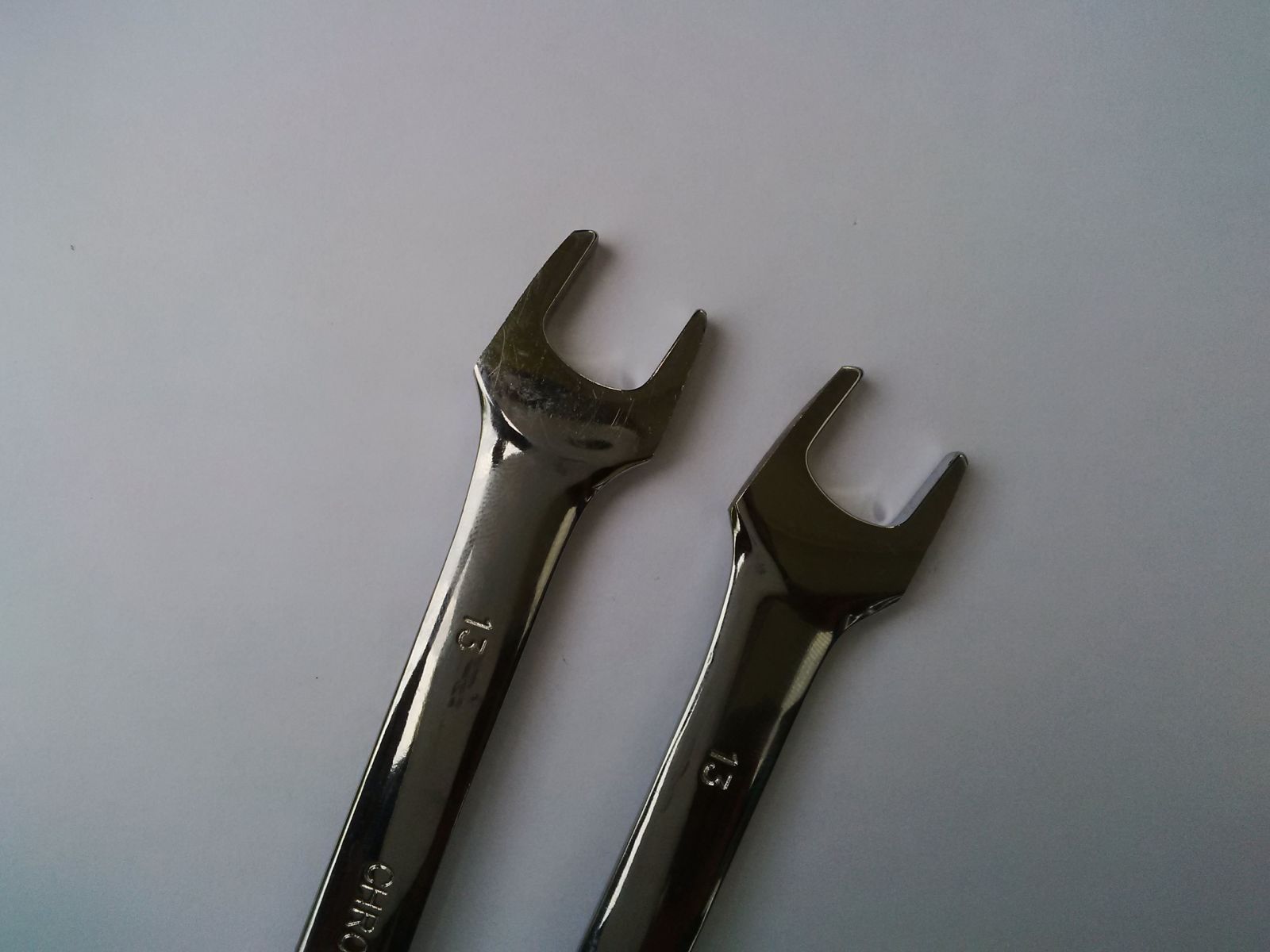

See attached. Couple minutes on a grinder.



Flossie

Well-Known Member

Posts

11,102

Location

Shropshire

• Oct 1, 2015

• #9

It's been a few years since I did mine but I seem to remember that if you get someone to press the pedal abit, it puts the nut in an easier position to turn?
Something to consider also is releasing the bonnet prop and folding the bonnet up against the screen, makes it easy to get right in there with your 13mm spanners.



lightning

Well-Known Member

Posts

4,172

Location

High Peak

• Oct 10, 2015

• #10

Well l took the advice on here and used a couple of 13mm brake pipe spanners.

I had to release the pedal (from the master cylinder) and then wedge it down with a piece of wood to get at both nuts.

But they released easily.
