Hi people I'm a newbie on this site trying to find out a bit about changing the nearside brake cable on the electronic braking system and what is involved
Changing a brake cable on my disco 3 electronic braking system
- Thread starter Dogface
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Pawl
Well-Known Member
- Posts
- 568
- Location
- West Midlands, UK
It's good that you're having a "go" yourself.
However, do you mean "electric parking braking system" - as the braking system is hydraulic ?
However, do you mean "electric parking braking system" - as the braking system is hydraulic ?
It's quite involved to change the cables on EPB module. It's not for the faint hearted that's for sure. It involves removing the EPB module from above the rear diff. Also both rear brakes need to be stripped, so the cables can be removed. The module then needs stripping down so the replacement cables can be fitted (do both while it's apart). The module then needs to be refitted to the vehicle, and a calibration should to be done with a diagnostic device.

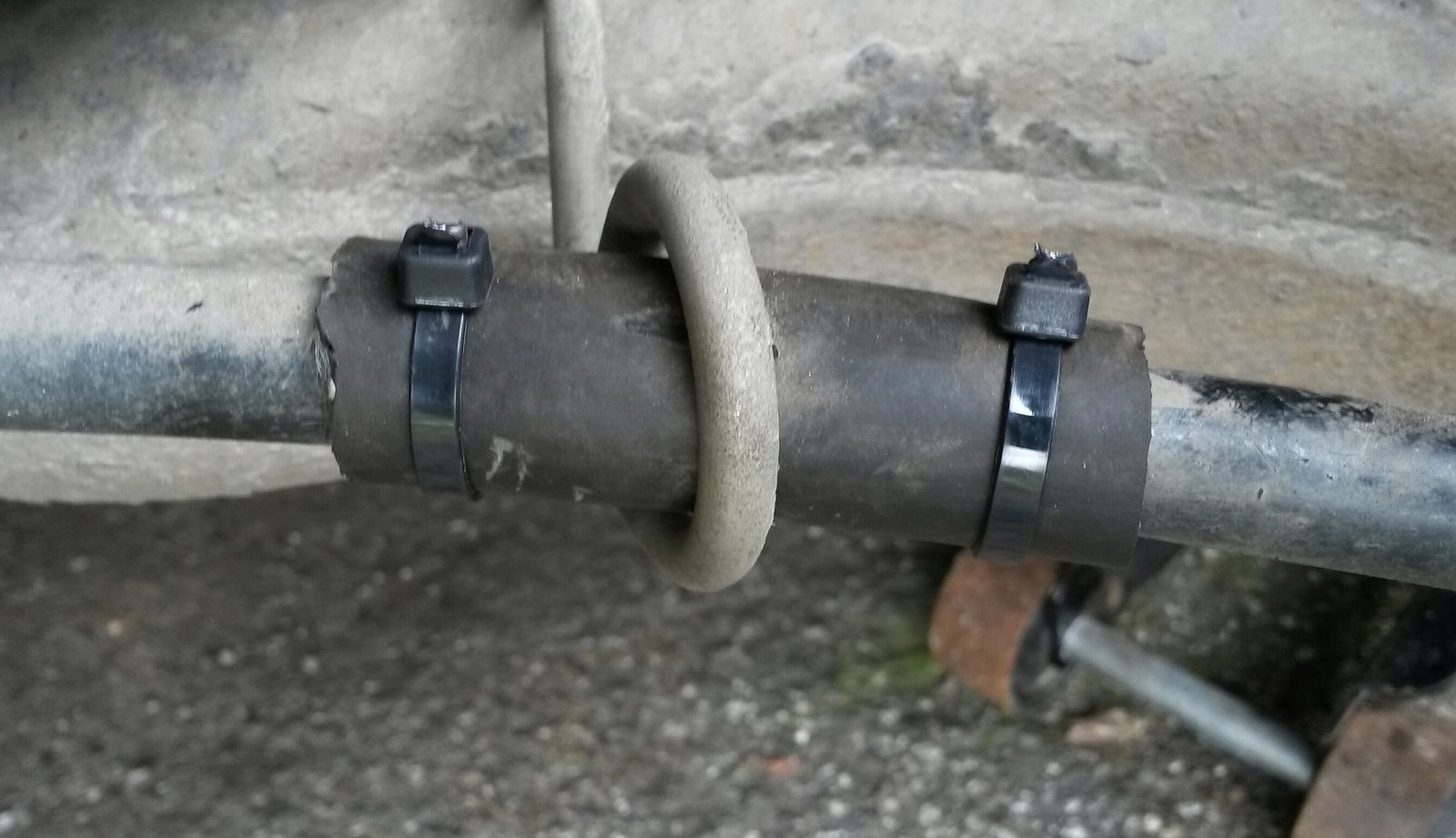

Has it rubbed through on the stainless clip?
Weirdly mine wore the clip until it was razor thin, but no damage to the cable!
Might check them again.
We use that hose trick all the time at work, but I use sidecutters to cut the ties and not a tame rat with blunt teeth
Dogface
New Member
- Posts
- 2
- Location
- North Yorkshire
No the problem I had was a freak don't know exakly how it happened but I think the adjuster came adrift some as mashed up the inside of the roter and tour the end off the cable heance the need to replace cable on near side got all I need on order just wanted to know if any one had changed one
