Centre Console loom colours on Freelander 1 TD4

Hi all

I removed the centre Console on my Freelander to get to the solenoid spring for the gear and like an idiot I forgot to take a photo of the looms.

Does anybody have a photo of the looms going in to centre console or know the colour codes ?

(Ac, heated seats etc)

If it is to plug the switches back onto the wiring connectors, they are configured only to fit the right plugs so should be simple.

Guess it is a Freelander 1 ??

If you have cut the plugs off then it is a more involved answer !!!

As Andy says, they only go 1 way, but I took pics when I got it all out, as I didn’t know that at the time!
Pics, with wire colours…

Absolute legend thanks Freddy

andyfreelandy said:

If it is to plug the switches back onto the wiring connectors, they are configured only to fit the right plugs so should be simple.

Guess it is a Freelander 1 ??

If you have cut the plugs off then it is a more involved answer !!!

Click to expand...

Thanks didn't realise they only got the correct plugs !

I haven't cut them !!!

Freddie17 said:

As Andy says, they only go 1 way, but I took pics when I got it all out, as I didn’t know that at the time!
Pics, with wire colours…

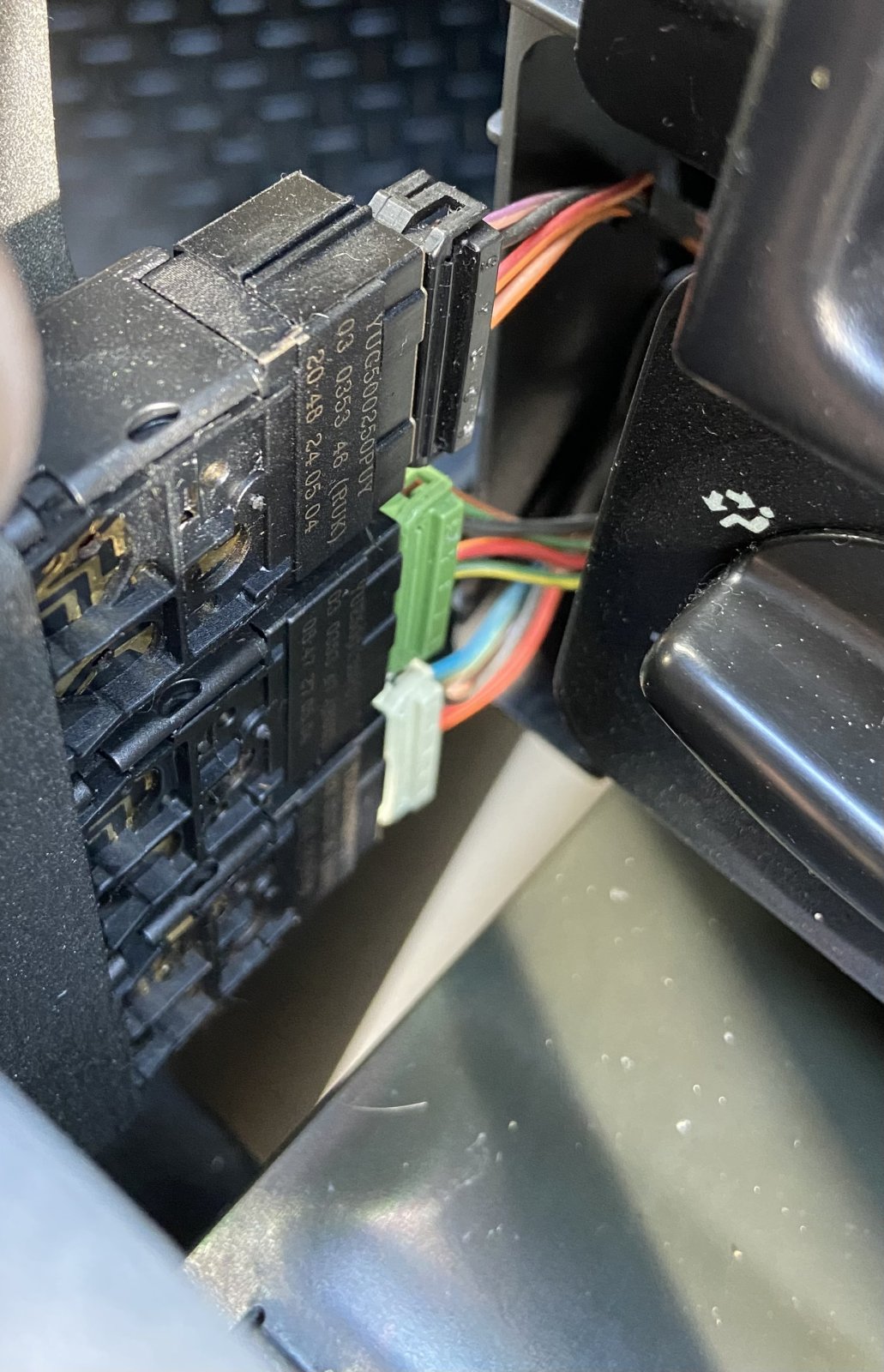

View attachment 324353

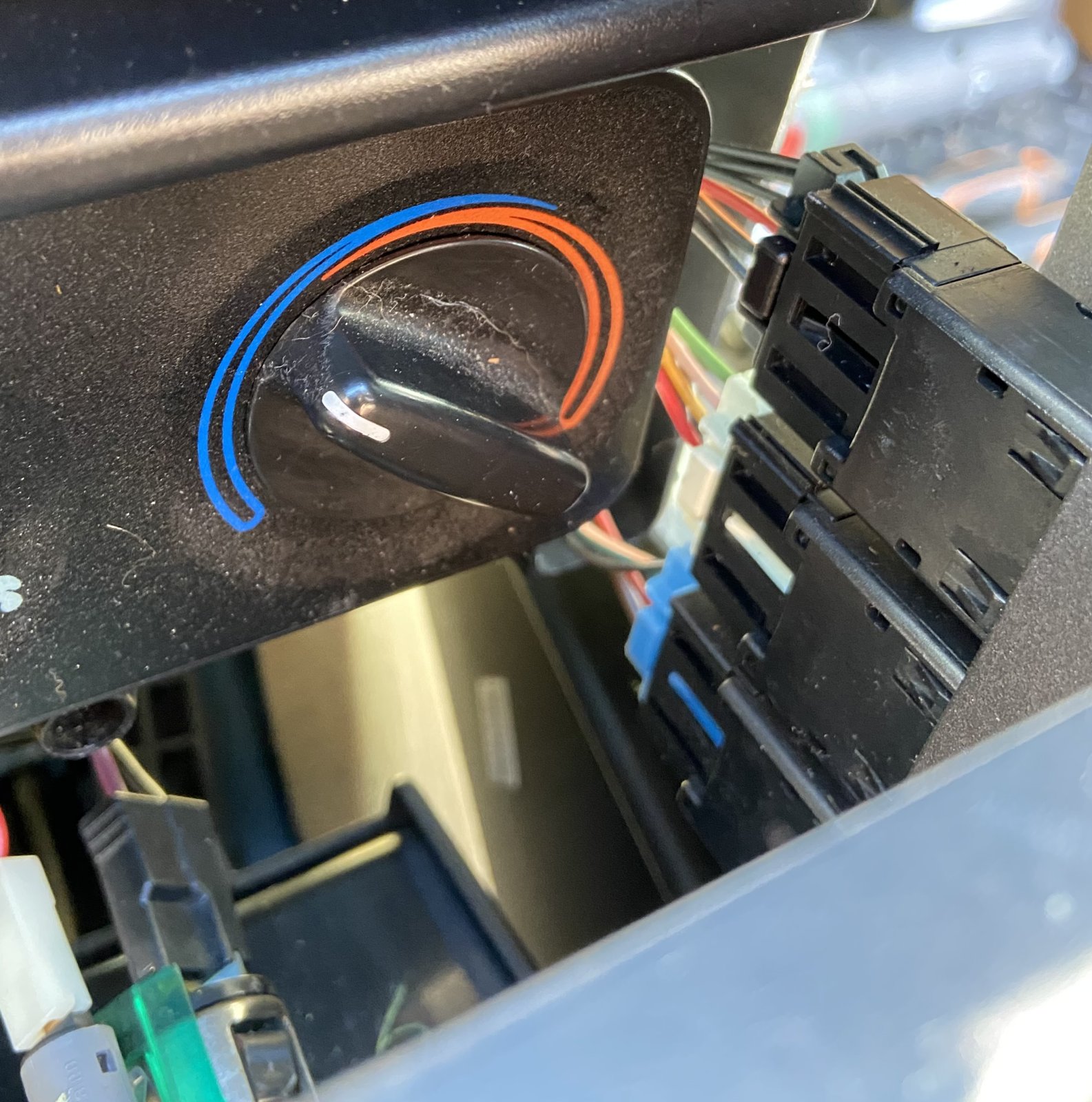

View attachment 324354

Click to expand...

Thanks so much
