Centre console lights?

Paulmitchell1984 · Mar 1, 2014

iv not got a haynes book of lies yet for the Freeby,

iv looked at the fuse diagram on the lid but cant seem to fathom which fues it may be thats gone..

I seem to have lost all 3 heater control lights and the rear window, door lock button etc aswell as the window switched near handbrake

any body tell me which one i shoulf be looking at?

Brack · Mar 1, 2014

Only one I can see is F16 - hope this helps

Paulmitchell1984 · Mar 1, 2014

il have a look in abit and let you know

ta

Paulmitchell1984 · Mar 1, 2014

nope not that one mines a 2003 1.8 if that makes any difference...f16 looks like side light piccs

Brack · Mar 1, 2014

Paulmitchell1984 said:
nope not that one mines a 2003 1.8 if that makes any difference...f16 looks like side light piccs

Yep.. on a 2003 this one covers RH side light and RH tail light - its also the only fuse on the switch illumination diagram - did you check it ?

Paulmitchell1984 · Mar 1, 2014

i did and its fine..

hmm i still cant see what pic it would be on the cover lid thing, tried, stereo ones fine, tried cig ligher..fine i cant see how or why i would loose ALL bulbs but i may look at replacing them tomorrow/monday

Brack · Mar 1, 2014

Tried to scan the diagram but the scanner aint working ... sorry

Brack · Mar 2, 2014

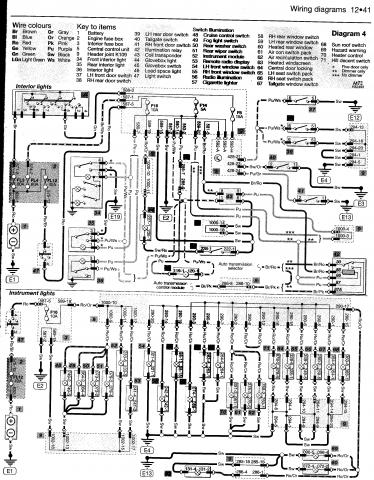

Ah got it working

.....damn too small - will I ever get used to these computers lol

thequeenscheese · Mar 2, 2014

Did you check the bulbs bit of a long shot but maybe a few blew together ?

Paulmitchell1984 · Mar 2, 2014

Bravk you are a star...muppett here checked wrong fuse...id not realised that id lost left side lights until this morn..check the right fuse and hey presto works...cheers for diagram too

Brack · Mar 2, 2014

Paulmitchell1984 said:
Bravk you are a star...muppett here checked wrong fuse...id not realised that id lost left side lights until this morn..check the right fuse and hey presto works...cheers for diagram too

Your most welcome ..pleased your sorted
