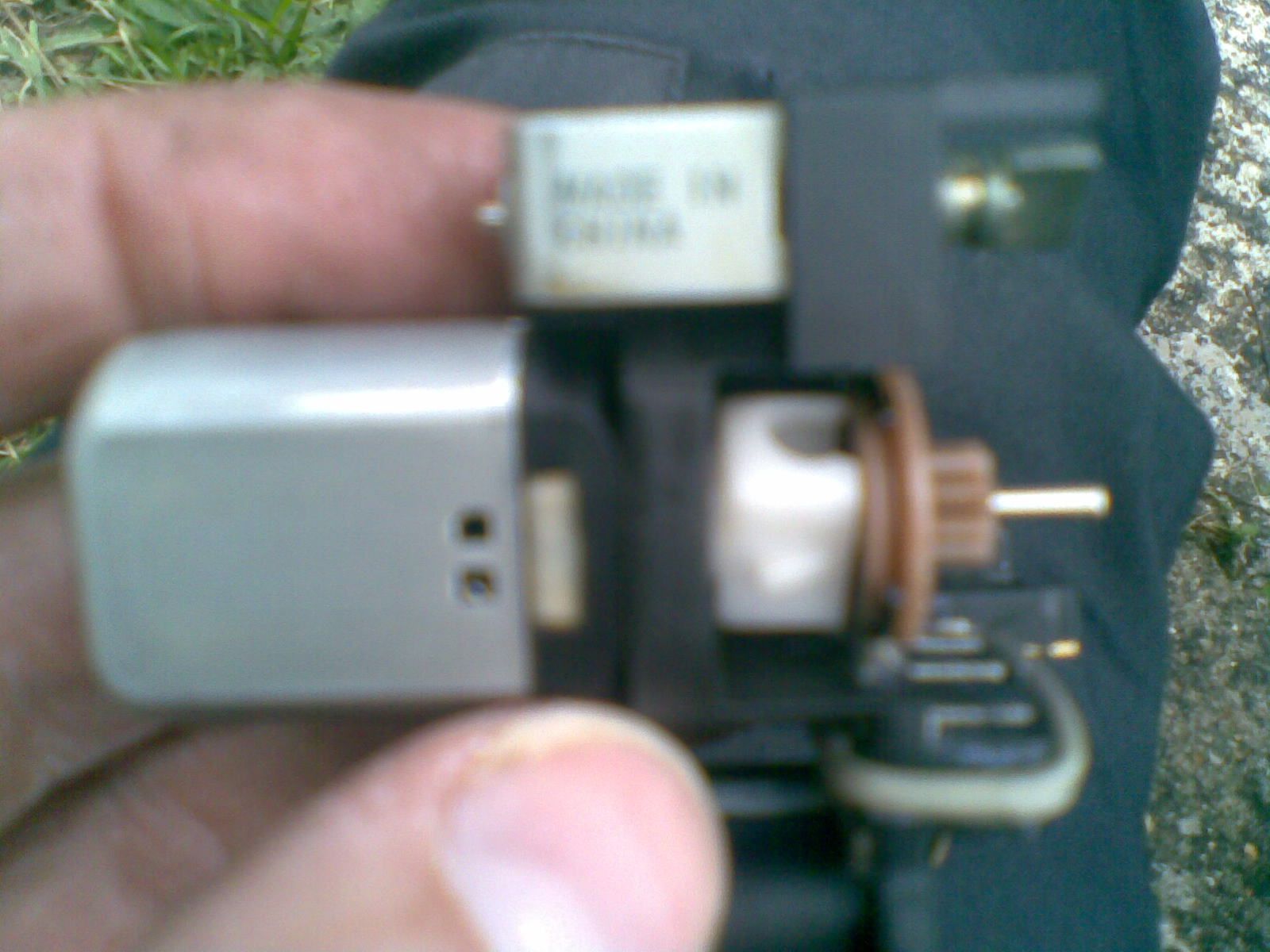

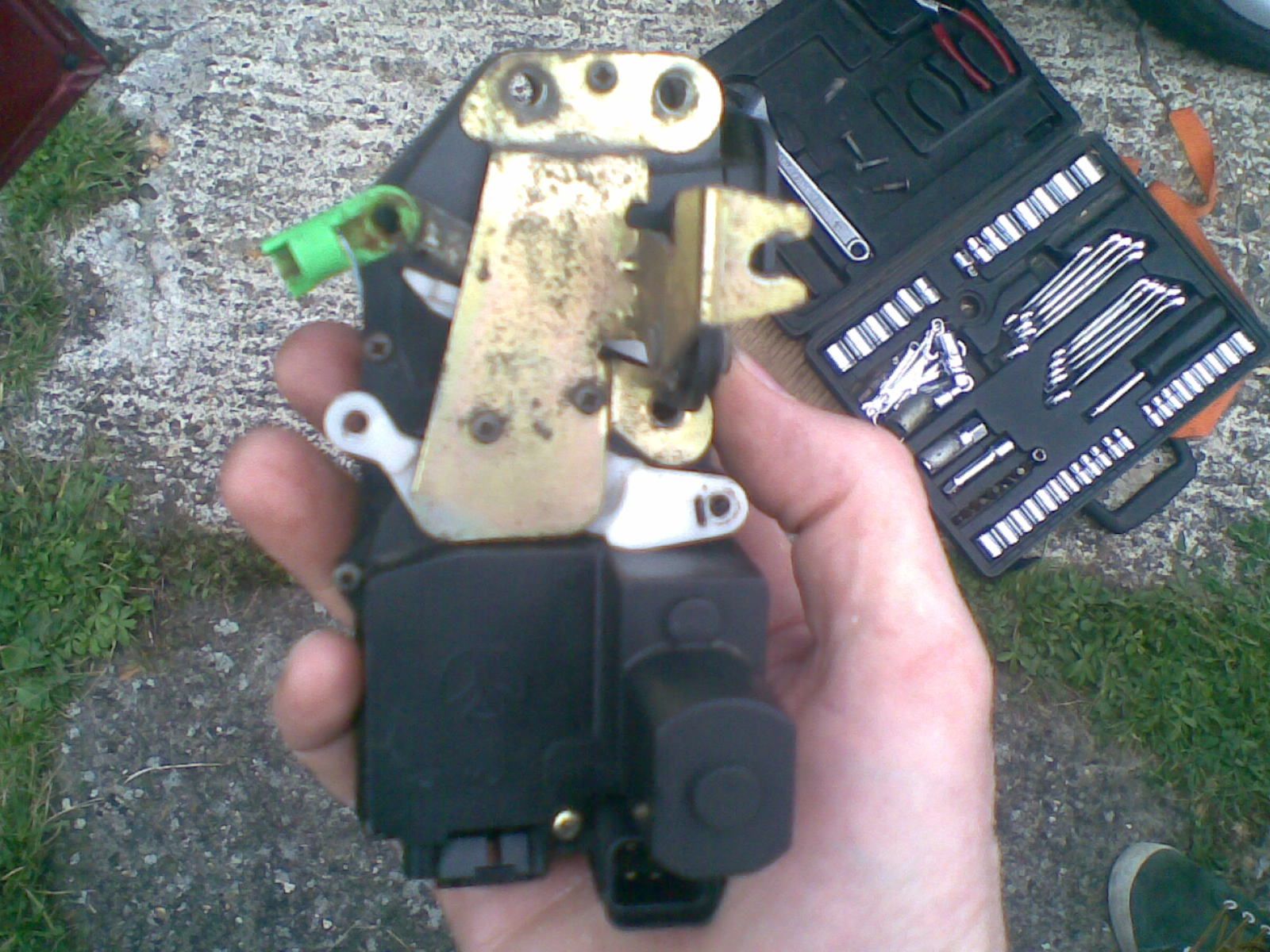

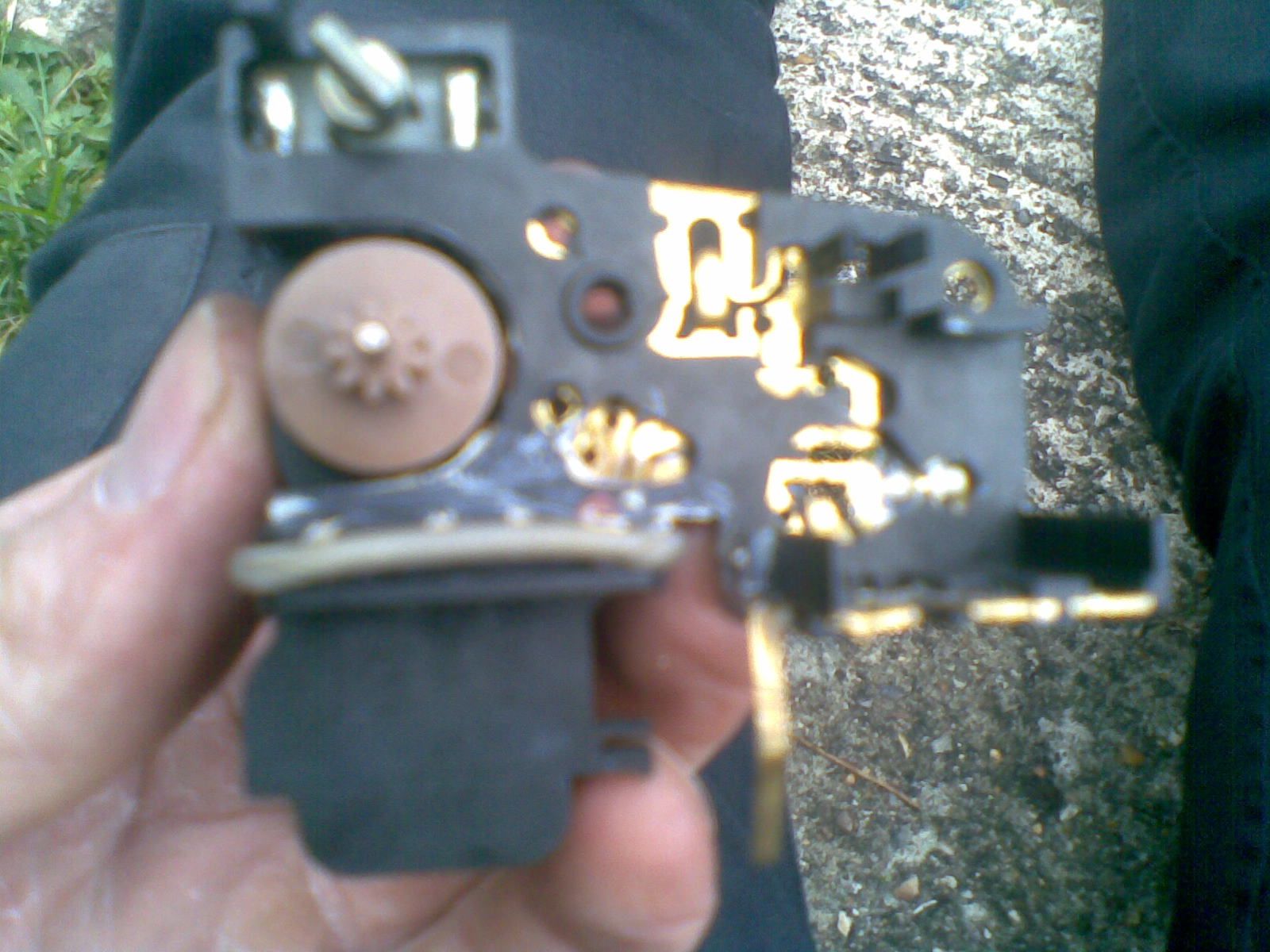

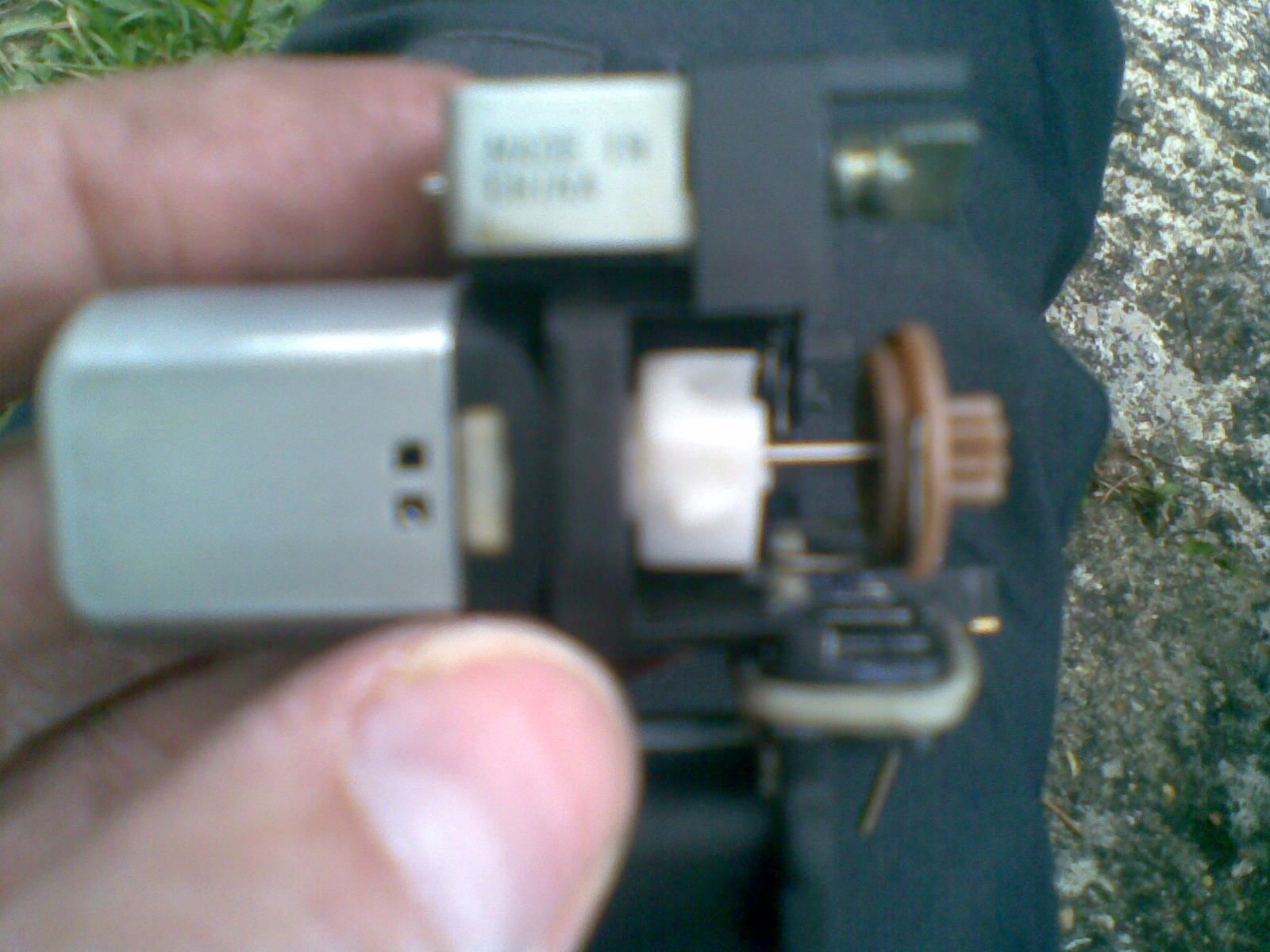

Hi chaps,

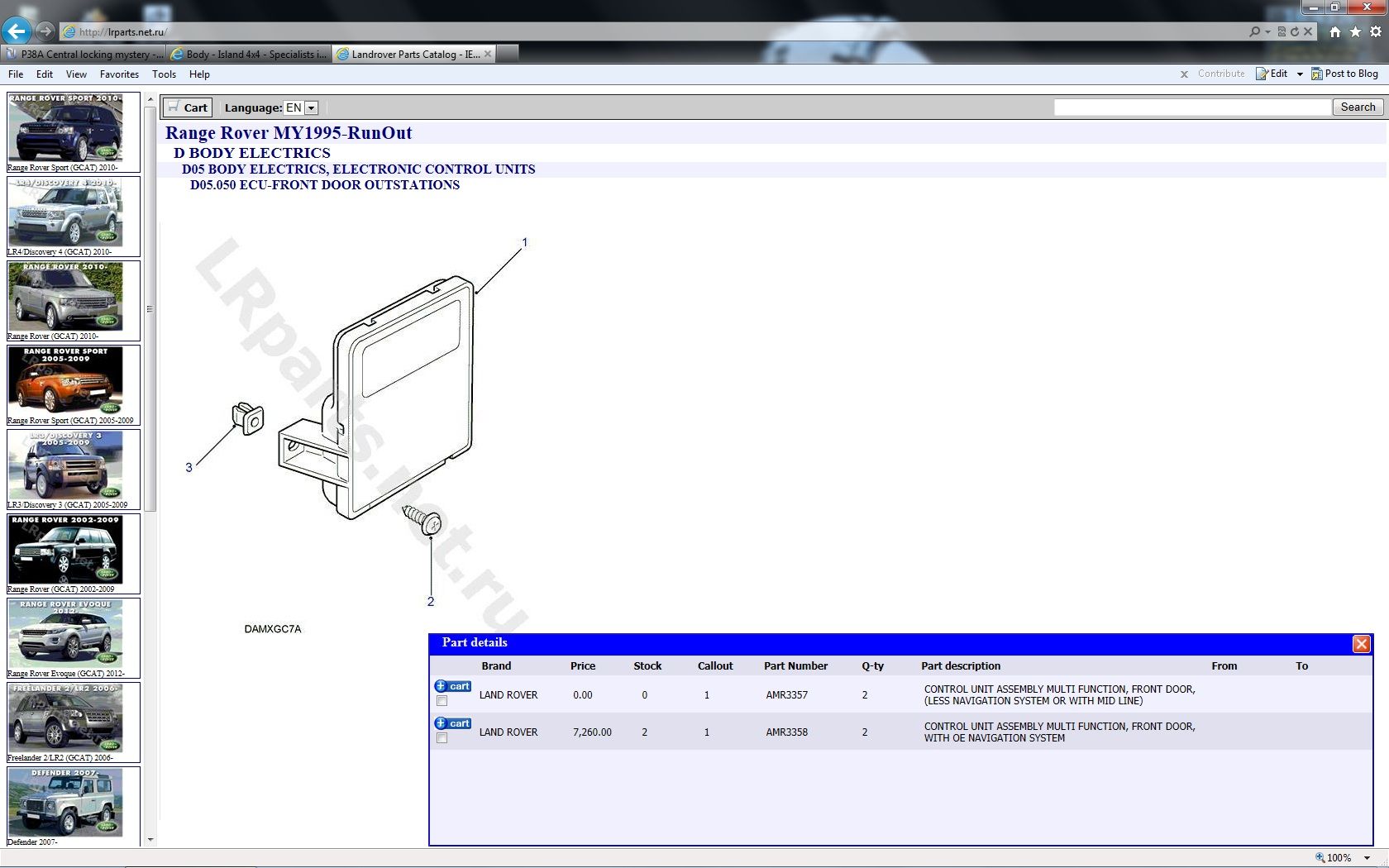

Another mystery, this time from my central locking. Had the drivers side (the off-side - right hand drive) apart a few times now and motor etc doesn't look bad. Today I took both front door cards off and decided to do some voltage testing. First thing to note is that both door outstations have a large L on them. Presumably the one on the drivers side should have an R on it? Both have AMR3357 on them too. Are the outstations interchangeable? Only difference I could see is that the near-side (LHS) one had 05-F-95 written on it and the drivers side (RHS) had 06-F-95 written on it.
The symptoms: neither of the front doors respond to central locking. The bottons on the remote open and close both back doors and disarm the alarm but that's it. The key locks the drivers door, back doors, the boot and the filler cap and arms the alarm. The key unlocks the drivers door, boot and filler cap but not the back doors. The key usually disarms the alarm but not always.
So, down to the voltage testing. Do the following values look right? All tests done with both front doors open.
Note: blue/red = key switch; green/red = central locking; purple/white = door ajar; pink/black = something to do with motors? orange/black = lock motor; orange/pink = superlocking of motor.
LHS (near-side) outstation tested between module and lock.
Blue/red: +5V all the time.
Green/red: 0V all the time.
Purple/white: 0V all the time.
Orange/black: 12V pulse on pressing the lock button or locking using the key but otherwise 0V.
Orange/pink: 0V all the time.
RHS (drivers-side) outstation tested between module and lock.
Blue/red: 5V all the time. Briefly goes to zero when key turned but otherwise stays at 5V.
green/Red: 0V when key turned clockwise. 5V when key turned anti-clockwise. No change on buttons.
Purple/white: 0V. No change on turning key in ignition.
Pink/black 0V. 12V pulse when button pressed to open. Nothing on lock button.
Orange/black: 12V on lock button otherwise 0V.
Orange/pink: 0V all the time.
Swapping the 2 outstations over didn't seem to have any effect, although strangely I thought the drivers door green/red wire was originally 5V clockwise and 0V anticlockwise but on switching back it was the same as the other one (i.e. 0V clockwise and 5V anticlockwise) so maybe I was mistaken.
Do these voltages stack up? Are the outstations interchangeable? If so then I guess the next step will be the microswitches although in this instance I'm not convinced there's an issue.
I will note that when I originally had the drivers door off the wiring loom hadn't been clipped in place properly and the electric window was sometimes clipping the wires. This may have damaged them internally.
Any thoughts welcome.
Cheers,
J.
