cav pump problem

R

richwill90

New Member

Posts

5

• Dec 7, 2011

• #1

Hi, lads can you help...just installed a recon pump(19j), but landy will only run with top bleed screw open, it will idle and rev as normal until this is closed, then die. have tried holding throtle open fully and then closing the screw it will run but as soon as i move throtle she stops ! is there air in the pump still ?



Last edited: Dec 7, 2011

Oldseadog

Well-Known Member

Posts

9,270

Location

Tynemouth

• Dec 7, 2011

• #2

First of all :welcome2:

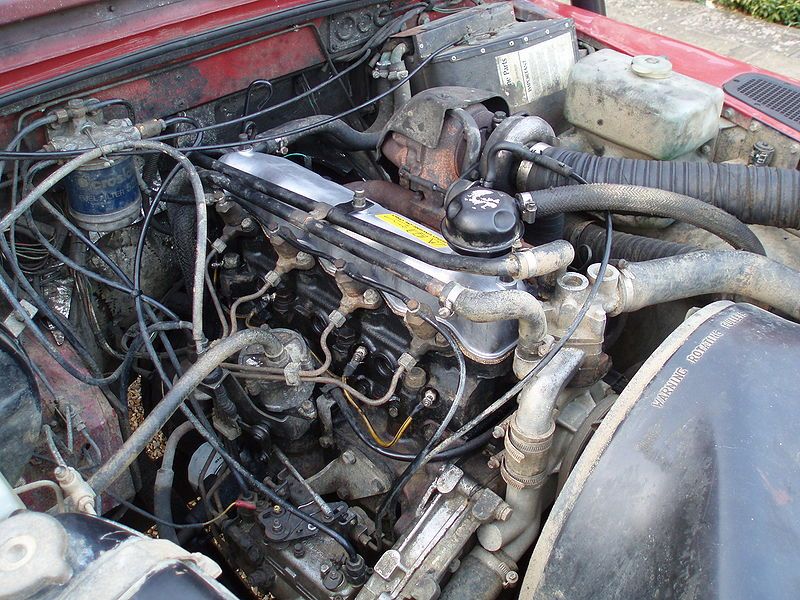

Is this what you have got? If so, was it set up before you fitted it, or are you starting from scratch?



Attachments

•

  142.2 KB · Views: 401

R

richwill90

New Member

Posts

5

• Dec 7, 2011

• #3

yes the same engine...i took the pump off had it serviced by a specialist and put it back on, changed the boost diaphram,and bled the pump, but i dont seem to get alot of derv at the injectors, but open the samall 8mm screw on the top and turn her over and she starts as she used too. but with derv running out of this screw



R

richwill90

New Member

Posts

5

• Dec 7, 2011

• #4

hi thanks for replying, its the same engine, serviced by pump specialist i then refitted the pump and a new boost diaphram... she starts but only owith this screw open



Oldseadog

Well-Known Member

Posts

9,270

Location

Tynemouth

• Dec 7, 2011

• #5

OK. At the front, in front of the bleed screw is a spring-loaded adjustment. That is your tickover thingy. If you screw it in a quarter of a turn, it should allow your engine to start and tick over

Don't touch any of the others yet!!



R

richwill90

New Member

Posts

5

• Dec 7, 2011

• #6

just tried that ....see starts and then dies



Oldseadog

Well-Known Member

Posts

9,270

Location

Tynemouth

• Dec 7, 2011

• #7

Try a bit more, and if you can see any smoke from the exhaust, what colour is it?



R

richwill90

New Member

Posts

5

• Dec 7, 2011

• #8

on the first attempt earlier as i said it started, ran for a few seconds then stalled, (white smoke), all attempts after that it would not start.....undo the bleed screw and she starts after a few turns and while running no smoke,( with fuel leaking from the bleed screw)..... could it be over fueling and flooding, while running all seems fine.... idle, rev, smoke all good, close screw and it stalls
