Bulkhead appendages

Resurgam · Jul 20, 2023

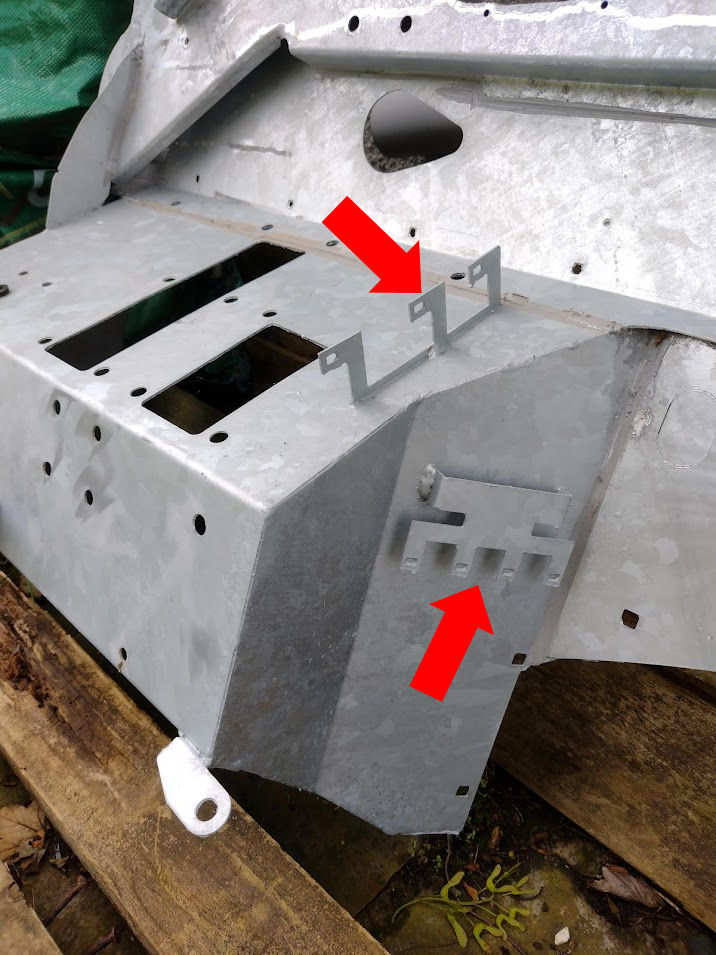

Another day, another photo with pointy arrows. What are these bits on my new galvanised bulkhead for? It's supposed to be a 200Tdi LT77 bulkhead but these brackets aren't on my old rusty one (unless they'd fallen off which is quite possible). There's another one on top of the passenger side footwell too.

Brown · Jul 20, 2023

I've got something similar to the lower one. It was originally for the various multiplugs on the wiring loom to clip on to. However, the corresponding bits on the plastic multiplugs have long since broken off. So I use them to wrap a cable tie round to steady the wiring loom

KISSMYAURA · Jul 20, 2023

Leccy mounting fings, ( relays / plugs harness tie etc)

Resurgam · Jul 20, 2023

Great, thanks. No idea what my loom was clipped to then, but I'll see what happens when it all goes back together.

Hicap phill · Jul 20, 2023

Check your tunnel fits before installing this…
Iv not seen a slave cylinder pipe bracket like that on footwell before

Resurgam · Jul 20, 2023

I'll check, but I'm pretty sure it's alright. There's a pipe bracket on the passenger side footwell too, which is the one I need. I think they probably cover every possible variant to save having too many different bulkheads
