Bolt Part Number - Holds Gear Shifter
- Thread starter s8ndst0rm
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
bluedog333
Well-Known Member
- Posts
- 5,467
- Location
- Henley on Thames, Oxfordshire
I’ll guess it’s not a special bolt, is it off a Td5?
bluedog333
Well-Known Member
- Posts
- 5,467
- Location
- Henley on Thames, Oxfordshire
Ah right, the bolt is : FS106161L and the washer is : FRC886
bluedog333
Well-Known Member
- Posts
- 5,467
- Location
- Henley on Thames, Oxfordshire
The bolt (set screw) is just an M6x16mm bolt (set screw). Aftermarket offerings are predominantly flanged bolts (set screws!), but the original set-up had the thick washer. Doesn’t matter either way.
s8ndst0rm
Member
- Posts
- 49
Thanks!
bluedog333
Well-Known Member
- Posts
- 5,467
- Location
- Henley on Thames, Oxfordshire
No worries.
- Posts
- 4,632
The bolt and washer is there to stop the ball from lifting out of the socket.
The hex head bolt (or set screw) is an M6x16mm and the washer is an M6x14x1.5mm form C.
EBay is your friend here.
Beacuse you are going into alluminium it's advisable to get BZP components rather than stainless.
There is little force on the bolt/washer so no need to over tighten.
Pleanty of waterproof grease (Morris K99) slathered over the ball won't go amiss either.
Adjusting the spring pressure on the gear shift is one of the most noticable things you can do, it makes the gearchanges really schweet..
The hex head bolt (or set screw) is an M6x16mm and the washer is an M6x14x1.5mm form C.
EBay is your friend here.

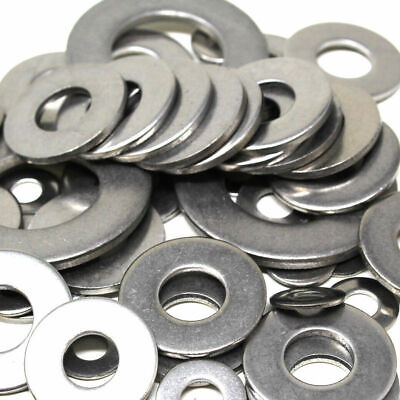

M4 M5 M6 M8 M10 FORM C Flat Washers Wider Large GREAT QUALITY FREE POSTAGE !! | eBay
M4 M5 M6 M8 M10 'FORM C' FLAT WASHERS MIX POSSIBLE TOO !
www.ebay.co.uk
Beacuse you are going into alluminium it's advisable to get BZP components rather than stainless.
There is little force on the bolt/washer so no need to over tighten.
Pleanty of waterproof grease (Morris K99) slathered over the ball won't go amiss either.
Adjusting the spring pressure on the gear shift is one of the most noticable things you can do, it makes the gearchanges really schweet..
s8ndst0rm
Member
- Posts
- 49
Thanks! I’ve got plenty of these in a tin so have sorted it. I changed up for a slick shift and adjusted the springs and it’s changing very nice. The throw on it was wide to say the least before.The bolt and washer is there to stop the ball from lifting out of the socket.
The hex head bolt (or set screw) is an M6x16mm and the washer is an M6x14x1.5mm form C.
EBay is your friend here.
M4 M5 M6 M8 M10 FORM C Flat Washers Wider Large GREAT QUALITY FREE POSTAGE !! | eBay
M4 M5 M6 M8 M10 'FORM C' FLAT WASHERS MIX POSSIBLE TOO !www.ebay.co.uk
Beacuse you are going into alluminium it's advisable to get BZP components rather than stainless.
There is little force on the bolt/washer so no need to over tighten.
Pleanty of waterproof grease (Morris K99) slathered over the ball won't go amiss either.
Adjusting the spring pressure on the gear shift is one of the most noticable things you can do, it makes the gearchanges really schweet..
