Hi All.
Ive had a Nanocom unit for a few years now and recently upgraded to a P38, I went on to the website and while purchasing new licences i noticed the price of the new cable. €52 for the green cable + shipping €24.47 = €76.47 + VAT = €94 delivered, now thats on top of my €184 for a new licence. This is not a dig at BBS, im quite happy to pay for the licences but if i am able to make my own cable then i think im happy to try. Personally im a tight Bast#rd and id rather spend that on something else that needs doing
So a big shout out goes to Rushjob who actually gave me the wiring info i just kinda put it together and thought id put it in a thread for future reference for someone else.
oh so here goes.......
1) First you need to buy 1 of each of these for either Green or Blue cable

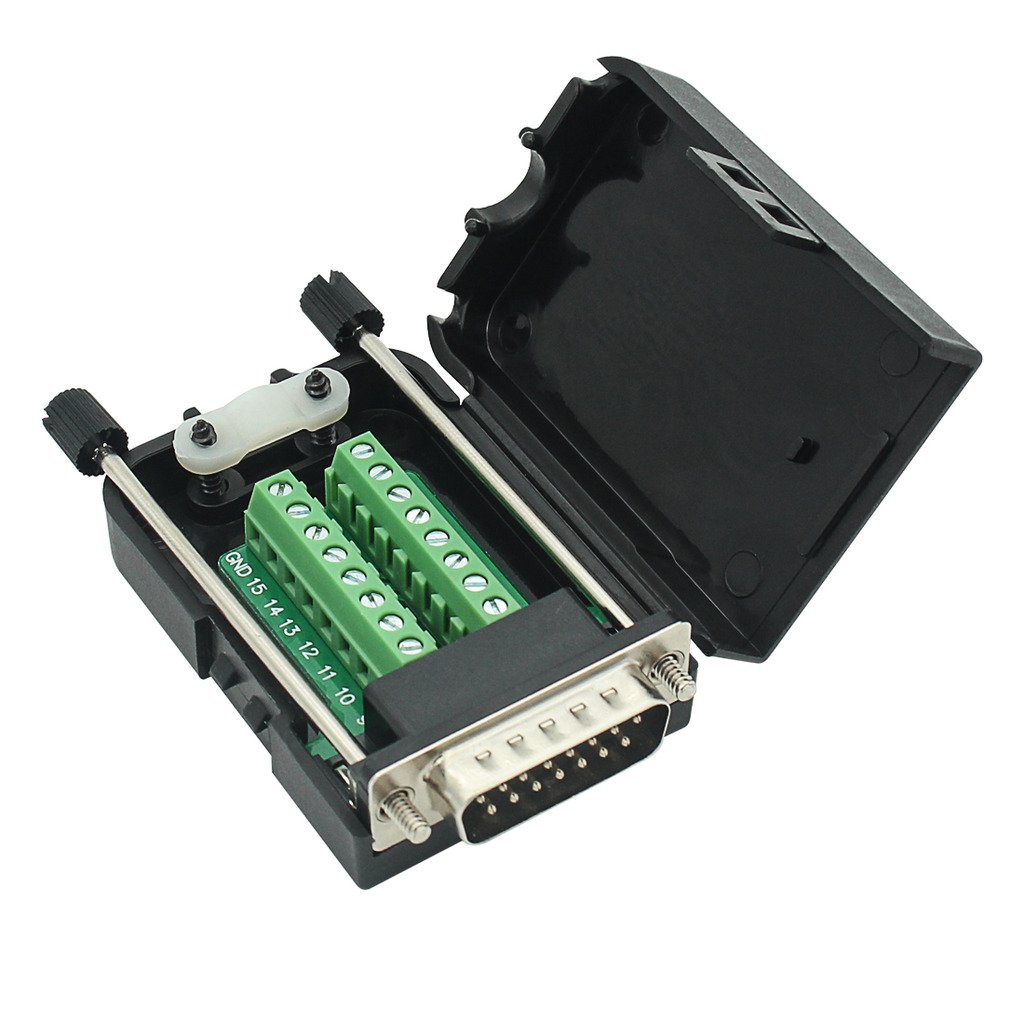

DB15 breakout Connector Male Adapter 15-pin Port Adapter to Terminal Connector Signal Module With case(Male Connector, Screw With case)

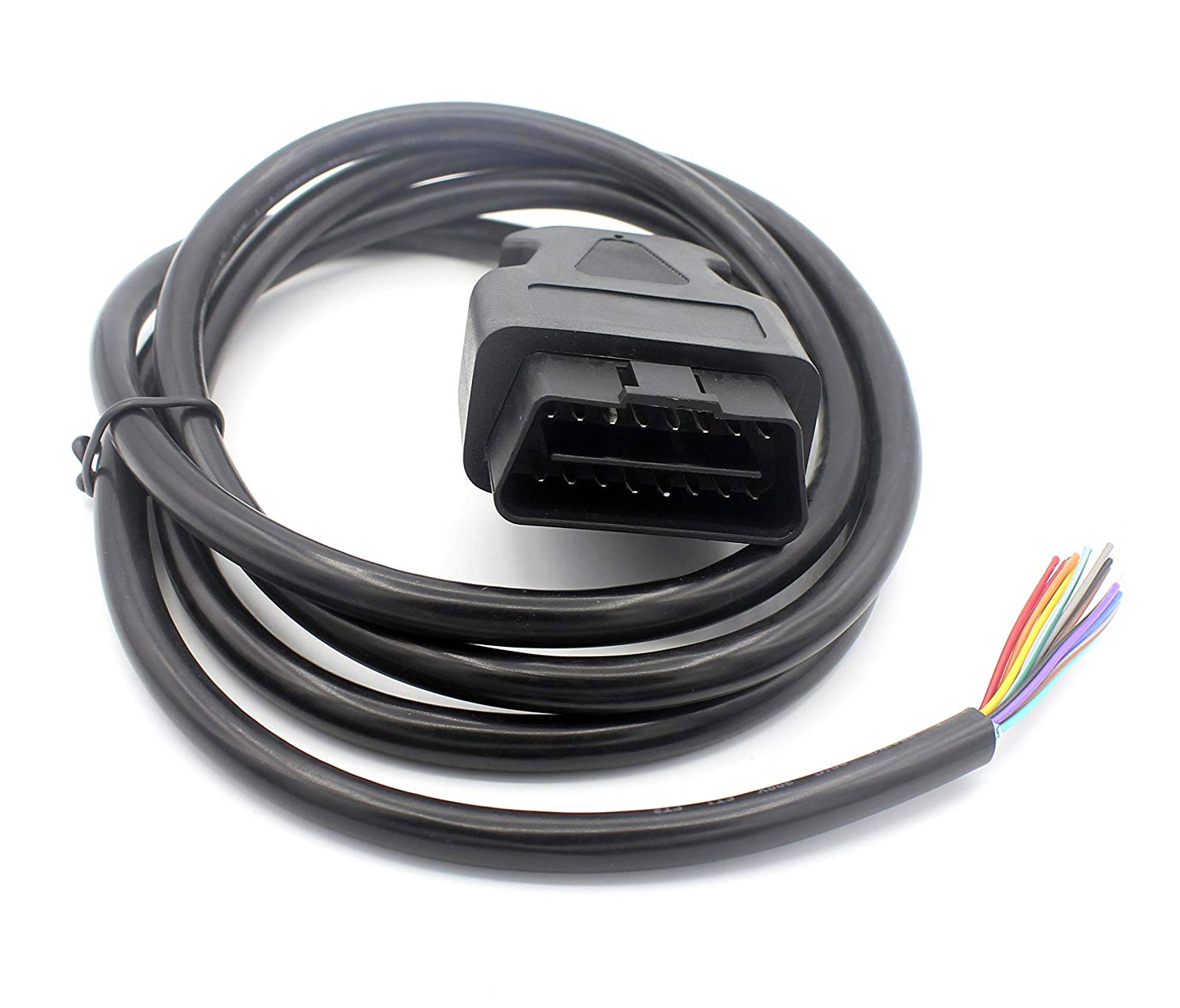

LoongGate OBD-II 16 Pin to To End Open Plug Wire - OBD2 Male 16 Pin Connector Round Extension Diagnostic Cable - 1.5 Meters(5ft)

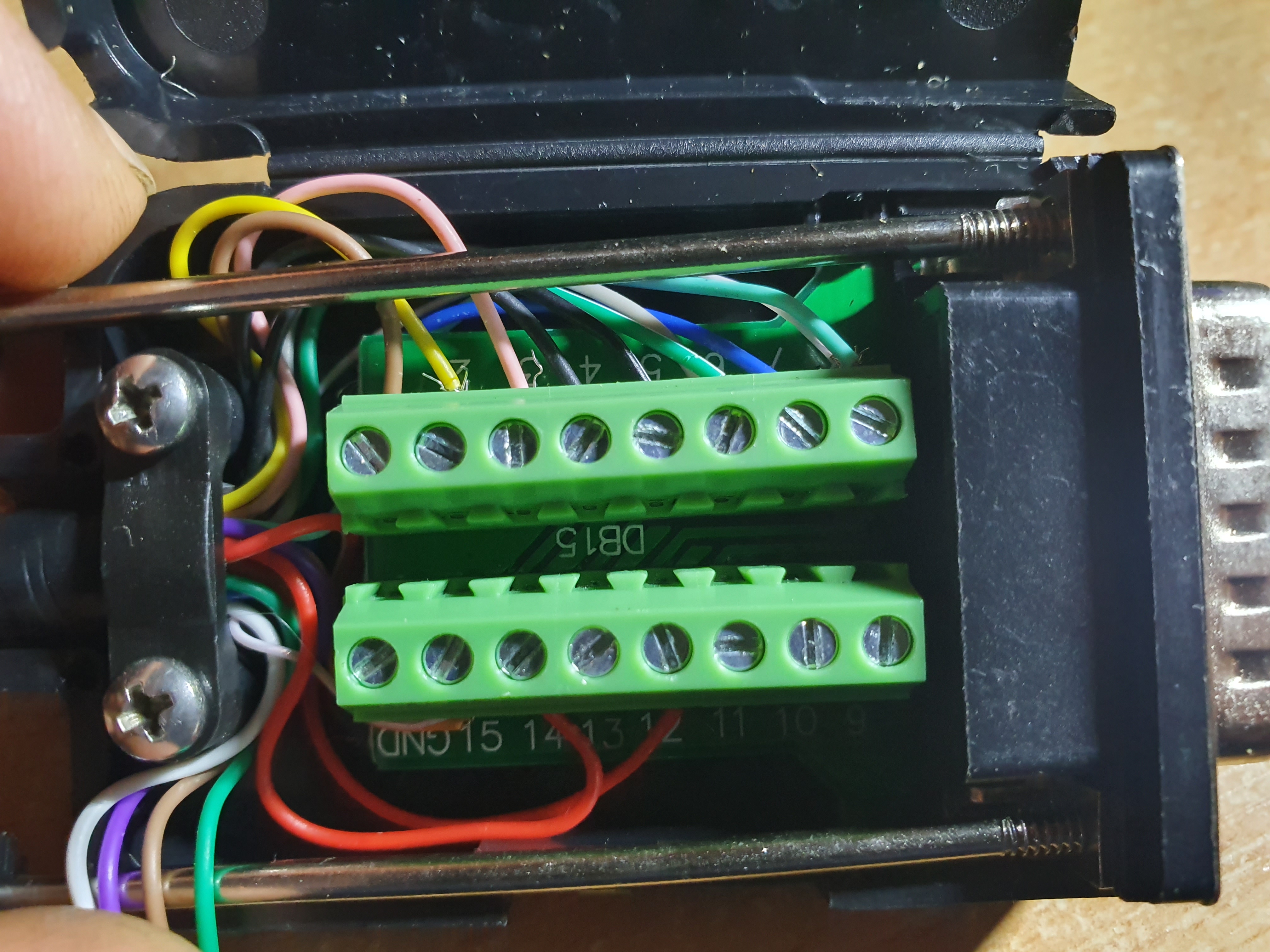

for the green wire like so......
Put the following wires in the following numbers......
DB15 OBDII Lead colours
1 - Brown
2 - Yellow
3 - Pink
4 - Black
5 - Black White
6 - Green White,
7 - Blue
8 - Green (use an extra cable to also connect to 15. I used Grey)
9 - Empty
10 - Empty
11 - Empty
12 - Red White
13 - Empty
14 - Red
15 - Orange, (use an extra cable to also connect to 8. I used Grey)
The 4 spare wires are not required and can be cut and disregard.

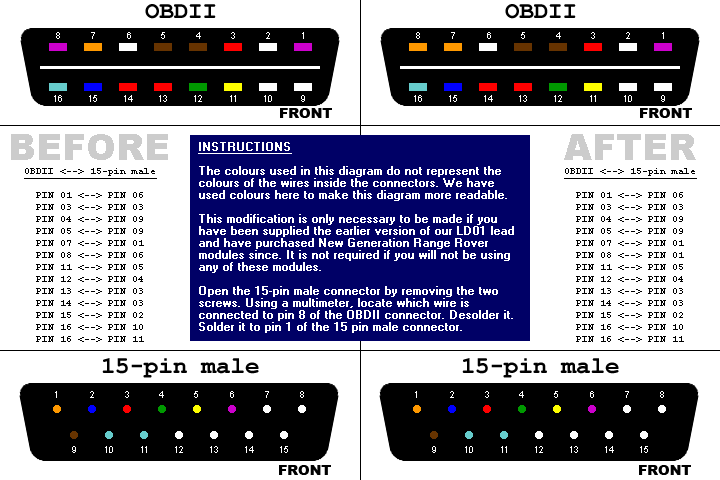

Here is an OBDII and what pins are which...... (just pay attention to the top diagrams disregard the lower part)
Blue cable like so........
OBDII Pin# Colour Nanocom 15 pin
4 Purple - 15&8
5 Light Blue - 15&8
6 Green - 9
7 Black - 4
8 Black White - 5
9 Red White - 12
14 Green white - 10
