Bell-housing swap???

bodgit0_0 · Mar 8, 2010

Right then, the V8 in my series 1 has sold on to another owner leaving a space to be filled....Well once he collects it...

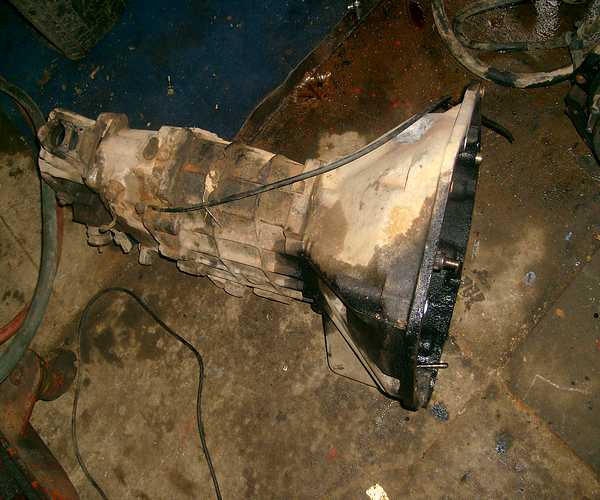

I have on my drive a 2 litre TD perkins prima which came complete with this gearbox below which I think is an LT77!!

Can I transfer this bell-housing and input shaft onto a disco 200 tdi gearbox complete. If yes then how hard would it be and what special tools will I need.

The reason I want the 200tdi box is I can then run my pto winch which hasnt had a home for a good 2 years now.

Cheers

Lee

bodgit0_0 · Mar 11, 2010

No info then, may have to take the plung, buy a cheap box to see if it can be done.

Lee

Pikey · Mar 11, 2010

if it is an lt77 then yes the bellhousing will swap over. changing input shaft is easy enough. but not sure if the gear selector will be the same. I guess you need to compare it to an actual lt77 to see.

bodgit0_0 · Mar 11, 2010

Cheers. Bidding on the bay to try and grab a cheapy.

Lee

jai_landrover · Mar 11, 2010

what gearbox do you need?
I have a disco box from a tdi, and i have a couple from a rangerover but it'll be too long for your series

jai_landrover · Mar 11, 2010

selectors would be no good for you tho,
I know where there is a defender box but i think the output splines are all but shot Jai

bodgit0_0 · Mar 12, 2010

I want an lt77 gear box with a same t-box pref from a disco which will allow me to drive my PTO winch and have a higher road gearing.

PTO winch came of an early TD5 but i have been asurred it will fit this gearbox??

By fitting my short bellhousing(and input shaft) that matches up to the Perkins Prima I will keep the lenght nice and short for the S1. Already got the Rangy axles on but not sure which diffs to use yet, rangy or series?

What do you want for the Disco box???? Dont want to spend a lot as if it doesnt work out I will stick with the box I have and fit my T-Box from a Lada Niva.

Cheers

Lee

jai_landrover · Mar 12, 2010

Disco box on its own £45 depending where you are I could possibly deliver was ok when taken out of a rusty tdi disco

bodgit0_0 · Mar 12, 2010

Im all over the place, mostly Warminster, Stourport or work in the SW Devon etc. Already got a couple of bids running on ebay at the mo, if no luck then I will give you a shout.

Whats your location.

Cheers

Lee

fanatic · Mar 12, 2010

to convert to defender long stick is near box strip

bodgit0_0 · Mar 12, 2010

Defender long stick????

What do you mean.

Lee

fanatic · Mar 12, 2010

Discovery =short gear stick
Defender =long gear stick

Buckshot was discussing putting a discovery lt77 in a defender, the issue is the selector forks inside the gearbox are different, so to convert them you need to strip the gearbox-not just swap gear leaver over,also I think the input shaft is different.

bodgit0_0 · Mar 12, 2010

Dont plan to change the gear stick layout, Vehicle has had a daihatsu box in it before so a homemade tunnel is already there which with some 'cut & shut' will do.

jai_landrover · Mar 13, 2010

im no fan of fitting wrong bits epecially disco boxes into defenders but hey ho.

Im in Luton Beds can deilver a few miiles and meet but thats if you still want it

bodie · Mar 13, 2010

if you have no luck on flea bay i have a disco box with out a transfer box you can have if you wont to come and fetch it could do with a referb tho but has bell housing and good imput shaft not long replaced apparently just let us know if ya wont it
