P38A Battery Cable loose in Clamp

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
pwood999

pwood999

Well-Known Member
Full Member
Posts
4,117
Location
Near Heathrow.
So last night while driving to Fleet, my Green P38 completely cut out a few times, although only for a second or two. All electrics dies, but came back, so I thought fusebox again ?? Luckily it recovered each time, so continued on & got it home without requiring recovery.

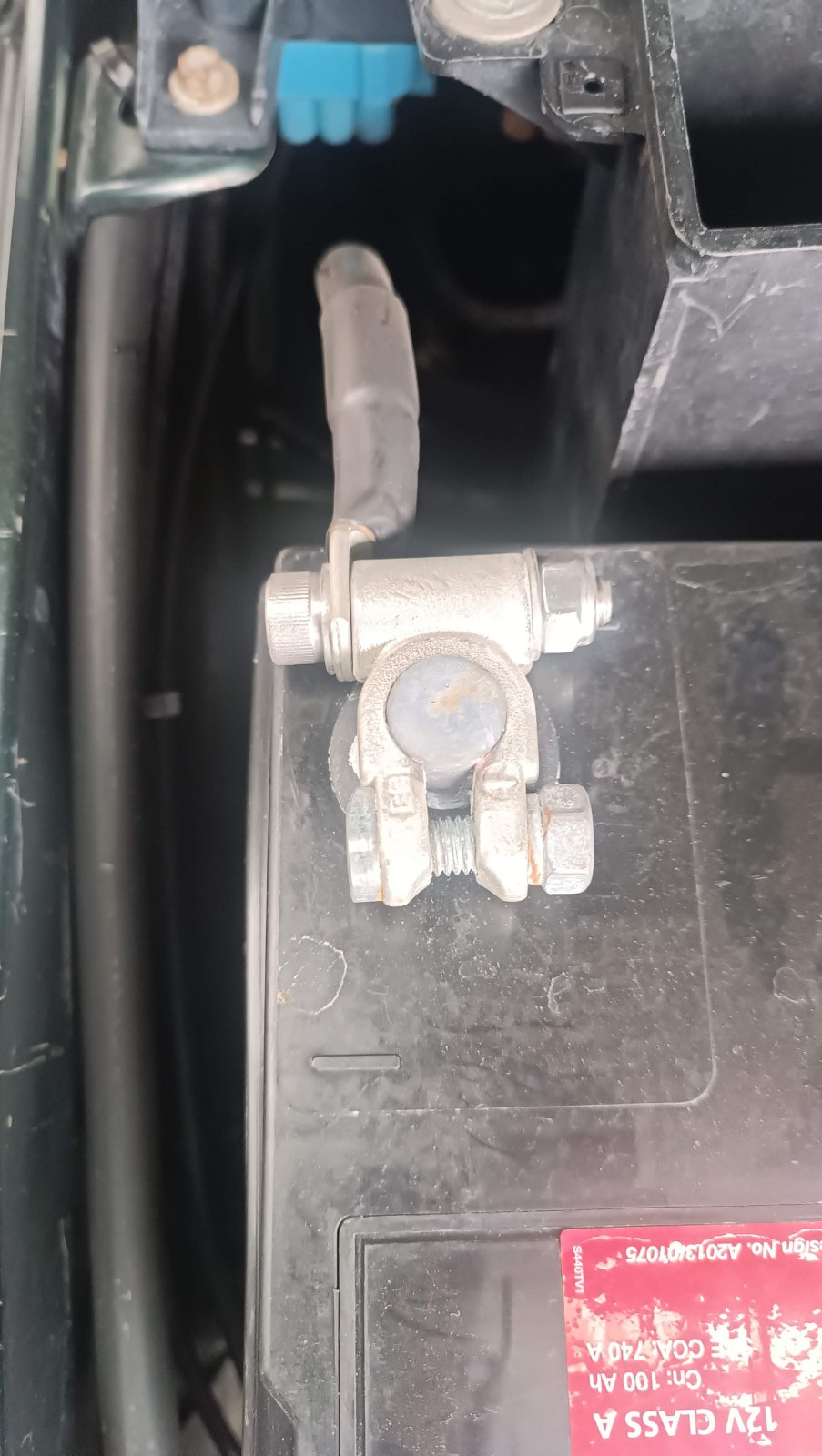

Chekc all the battery & fusebox main terminal. Somehow the 12V cable from battery to fusebox is loose in the clamp. Clearly either the clamp needs replacing, or the cable re-soldering ?

Wondering what clamp types others use ?

Proper crimped cable lug that bolts onto the battery terminal clamp

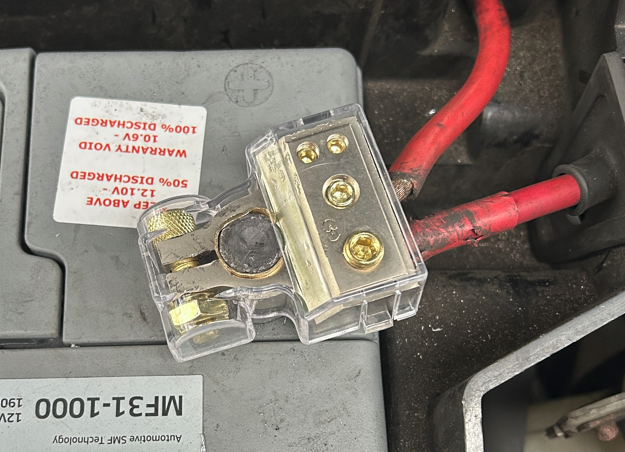

In the past when I was in my early 20’s I broke the terminal clamp trying to wire in a sub. Popped to Halfords and picking up one of these and it sorted it out. Depending on cable length you may want to strip back some insulation to get a better purchase on the core.

P38Seb said:
In the past when I was in my early 20’s I broke the terminal clamp trying to wire in a sub. Popped to Halfords and picking up one of these and it sorted it out. Depending on cable length you may want to strip back some insulation to get a better purchase on the core.
Click to expand...

Check that it's not got green inside the clamp or you should get a new cable too ...

This is what I have found:





For the cable crimps, I have a hydraulic crimp tool, but need to get some crimps large enough for the cables. If I go this route will also do the salt & vinegar copper cleaning & probably solder the ends as well.

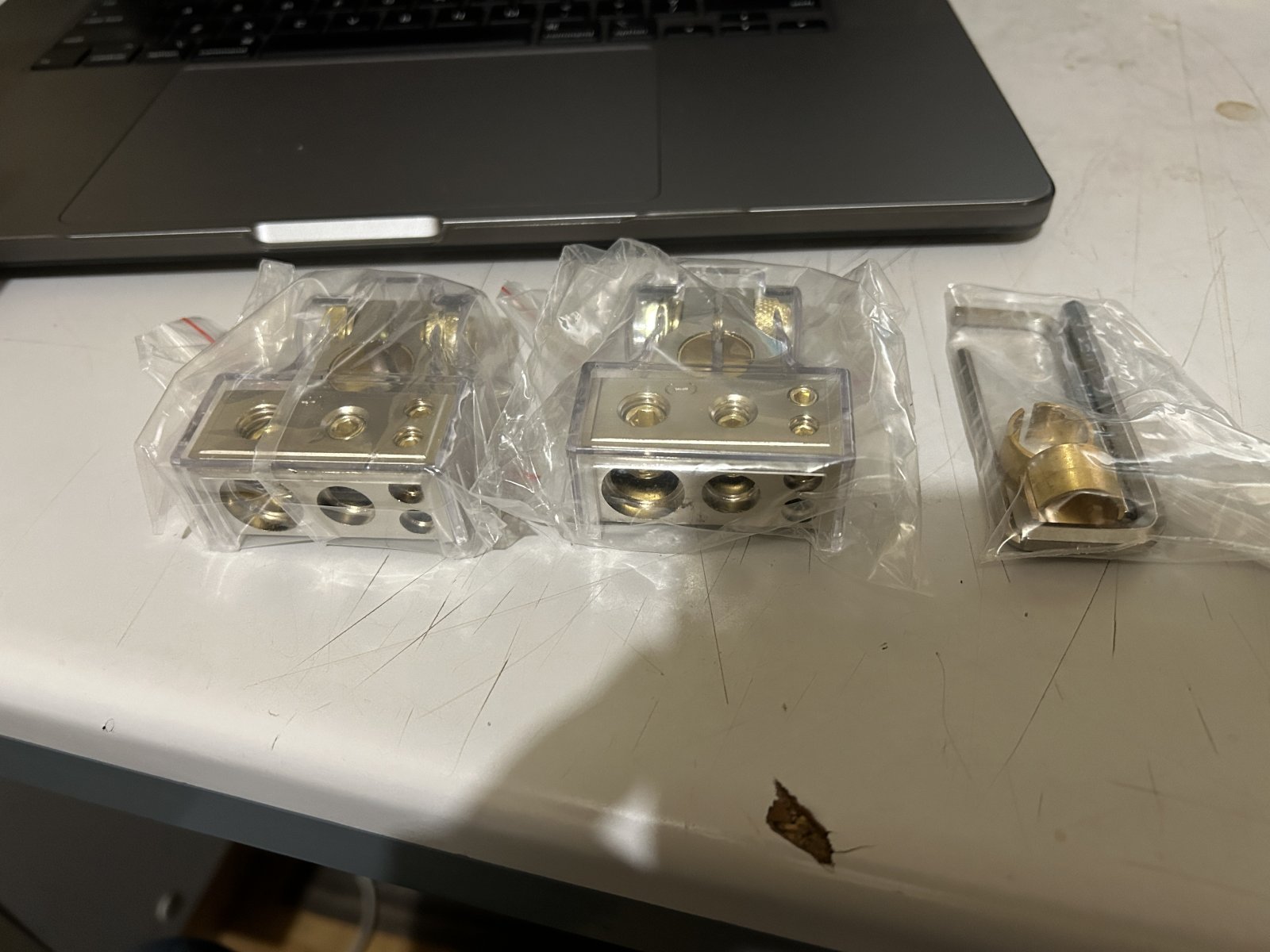

Also have a pair of these, but need larger versions, with 2 or 3 cable options like Mark's above..


If you are able to make a proper crimp on cable that size do not solder it.
On large connections like that that see vibrations the solder forms micro cracks that are terrible for electrical connections.

Rather put in some effort to keep moisture out either some form of resin after the crimp has been made or Atum heat shrink(thats what i use) its heat shrink with glue inside that melts when heated.

With a crimp connection that stays dry inside it will last the rest of the cars lifetime.

25sqmm is 4awg

Just confirm the 25sqmm. Im abit unsure of that value.

sqmm is millimetres squared or mm^2. Its just abit easier to type.

pwood999 said:
So last night while driving to Fleet, my Green P38 completely cut out a few times, although only for a second or two. All electrics dies, but came back, so I thought fusebox again ?? Luckily it recovered each time, so continued on & got it home without requiring recovery.

Chekc all the battery & fusebox main terminal. Somehow the 12V cable from battery to fusebox is loose in the clamp. Clearly either the clamp needs replacing, or the cable re-soldering ?

Wondering what clamp types others use ?
Click to expand...

MrGorsky's was loose so I made a copper spacer with a piece of copper pipe from my plumbing stuff.
