Anyone reconise this Stud axle/hub/drive shaft set up.

Evening guys.

Im hunting down a troublesome noise from my front axle and decided to do a rebuild of both wheel stations. I have done the N/S without any troubles, replacing all seals in the swivel ball/hub/stub axle as well as the raiko bush/bearing and wheel bearings while I'm at it.

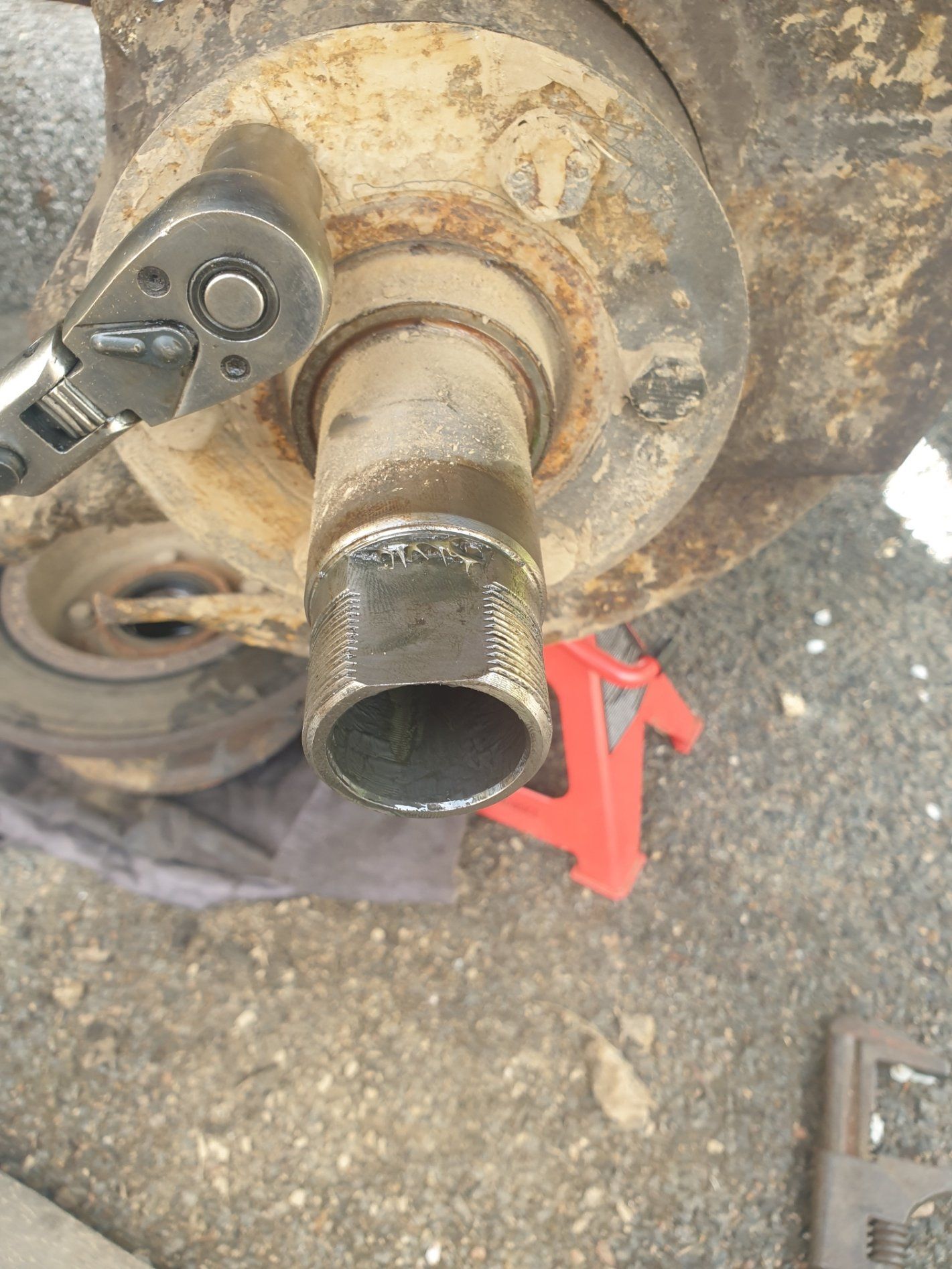

I've now moved onto the O/S and how I've not noticed this before is beyond me. It isn't fitted with the usual drive flange and drive shaft set up. Instead its a drive flange with a fixed shaft that engages the CV joint... but its not just that... the hub is different and even the swivel housing is different, it is the type with two bearings rather then a raiko. I guess someone has some issues in the past and just swapped everything from the swivel ball out with a complete unit. Now the rebuild parts I've ordered are obviously useless and I want to put this back to normal but out of interest can anyone tell me what these parts are from? a Disco maybe? the stub axle has a large flat rather then a small flat for the washer behind hub nut.

I'll have to order a new swivel,hub and stub axle to revert this back to a standard 200tdi defender 90 of its age.



Cheers guys.

its rrc or very early disco axle,youd need to change the chrome balls to if you wanted to convert it to early defender

jamesmartin said:

its rrc or very early disco axle,youd need to change the chrome balls to if you wanted to convert it to early defender

Click to expand...

Typical Landy hack haha. Cheers for the info.

Yep aware ill have to change all from the ball outwards. Ill get looking at prices.

Many thanks.

GogsJsy said:

Typical Landy hack haha. Cheers for the info.

Yep aware ill have to change all from the ball outwards. Ill get looking at prices.

Many thanks.

Click to expand...

leave it as is it wouldnt be very cheap

GogsJsy said:

Typical Landy hack haha. Cheers for the info.

Yep aware ill have to change all from the ball outwards. Ill get looking at prices.

Many thanks.

Click to expand...

the only way you will get it at a decent price will be get parts second hand.

Got an entire wheel station second hand 60 quid. Job done.
