Any one with a 2.25 diesel and camera?

Big Mat · Aug 31, 2011

Hi all,

Has anyone with a 2.25 diesel got a spare moment to take a picture of how all the cables attatch to the side of the injector pump, i stupidly forgot to take a photo and now i can't work out how the hell it goes back together.

thanks
Mat

crashbox · Aug 31, 2011

Give me five minutes...

crashbox · Aug 31, 2011

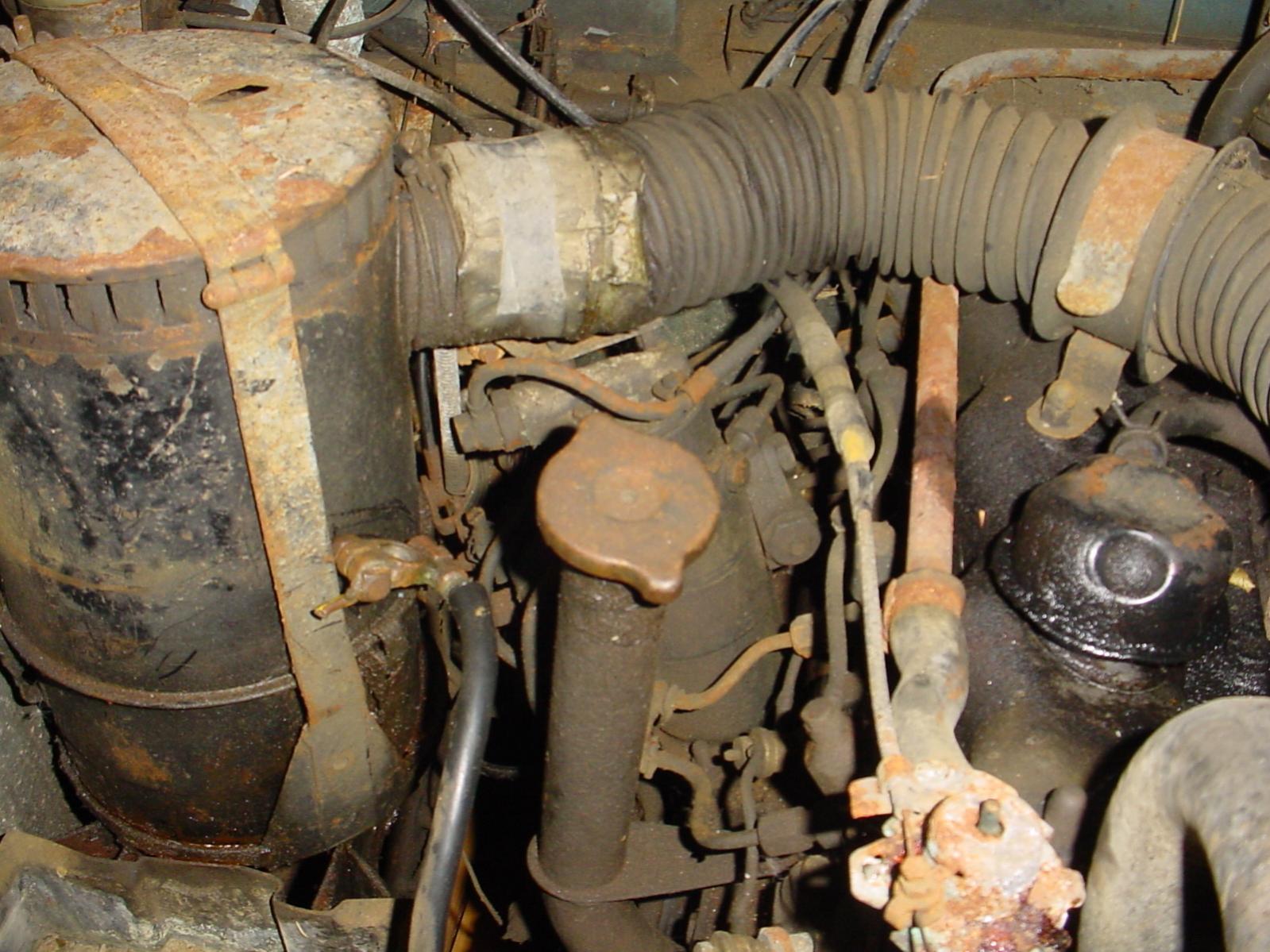

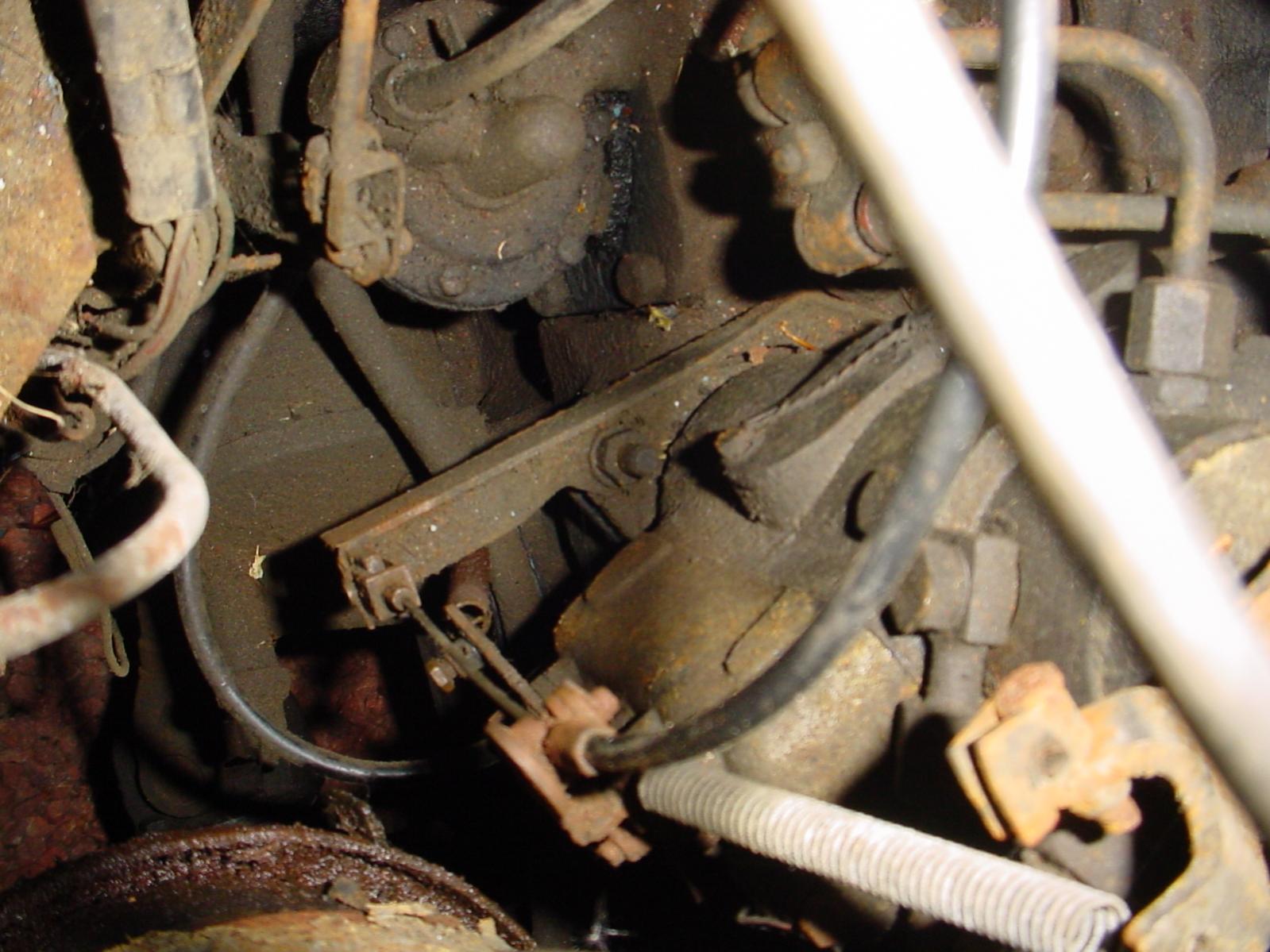

Not sure if these help as its pitch dark outside and difficult to photograph.

crashbox · Aug 31, 2011

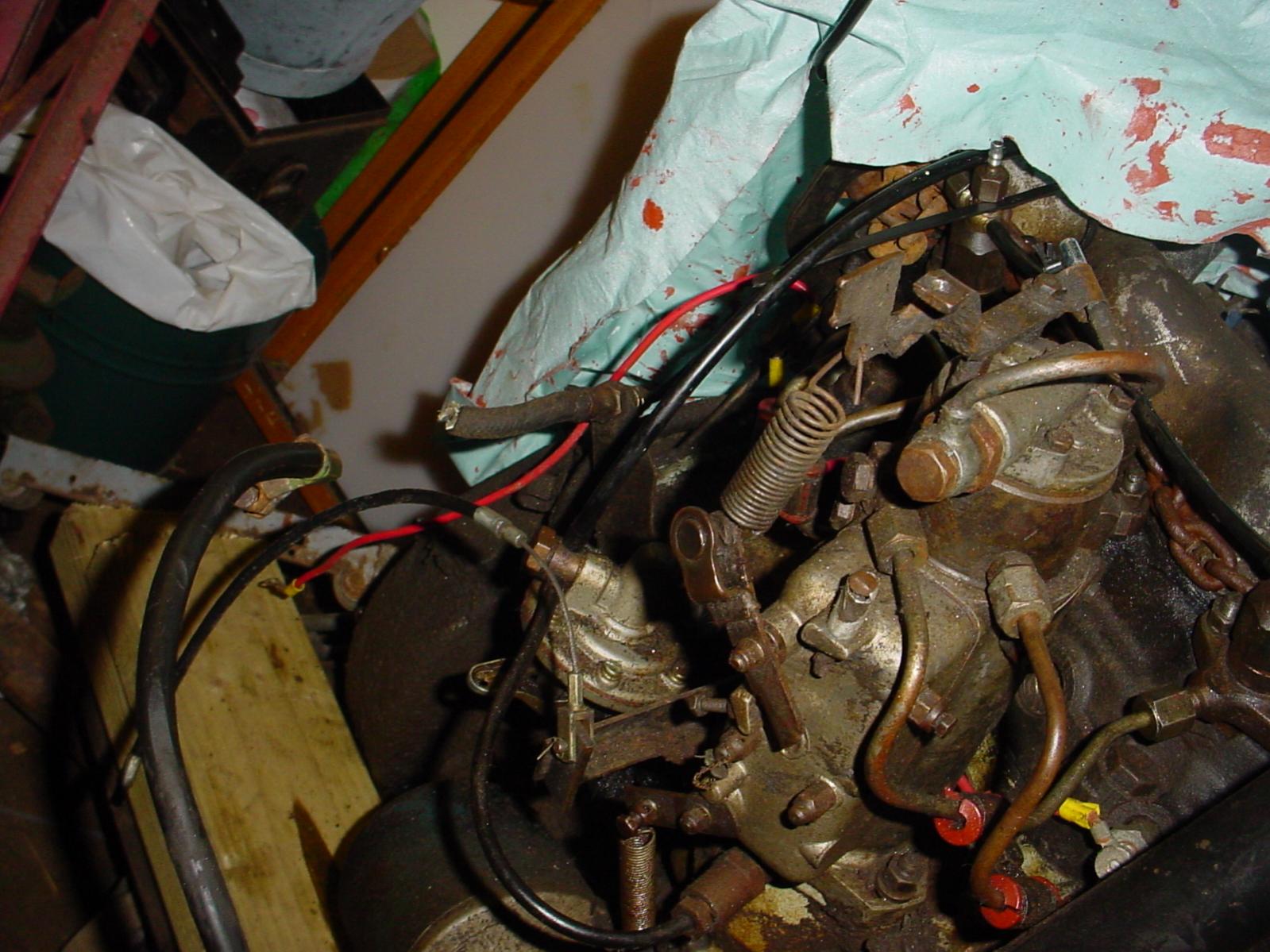

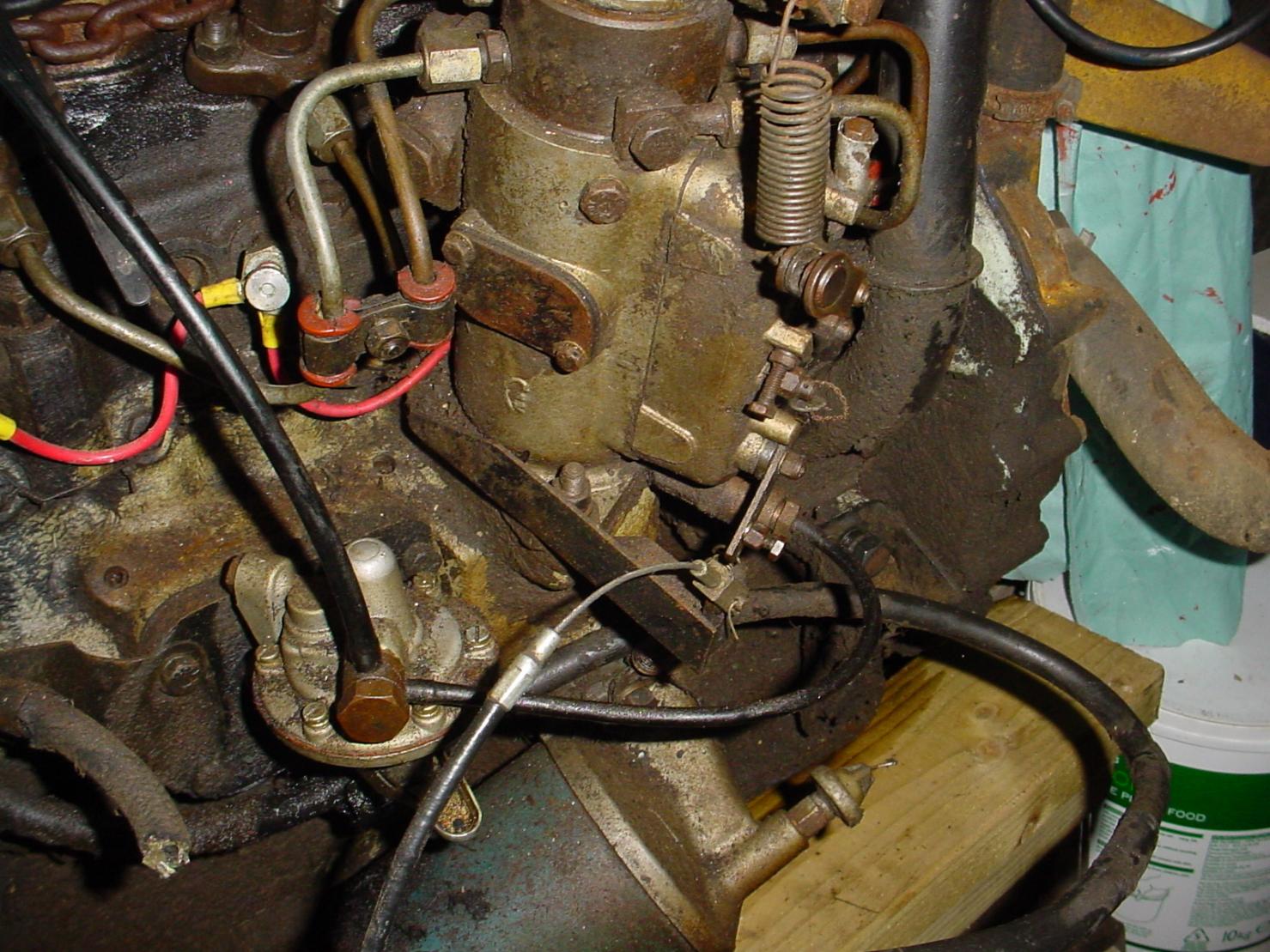

Or these from an engine removed from the vehicle.

Big Mat · Aug 31, 2011

That helps alot thanks, should be able to get them all back on from those photos.

Thanks
Mat
