L322 Air suspension sensors

jimwise68 · Feb 4, 2017

Had one of my front air suspension sensors snap. Well the bolt that fits into the strut arm. Sensor and everything else works fine just had to cable tie it to the strut for it to work.

I ordered a couple of new linkage arms (which are now plastic) but they don't come with the bolt/screw attachments that connect them to the strut arm. Anybody know where you can get them from?

I've looked online but can't find anything.

Saint.V8 · Feb 4, 2017

What year is yours??

Can you spot which part it is on these diagrams....then I may be able to get the part number for you!

jimwise68 · Feb 4, 2017

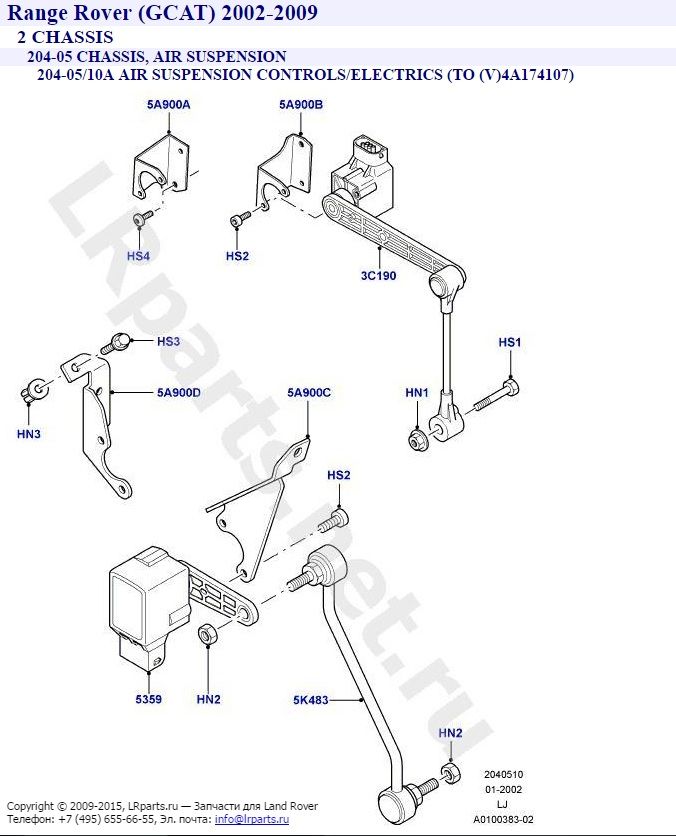

Mines a 2002 and the arm is part 5K483 in the first diagram. Which looks like the mounts are part of the arm/rod.

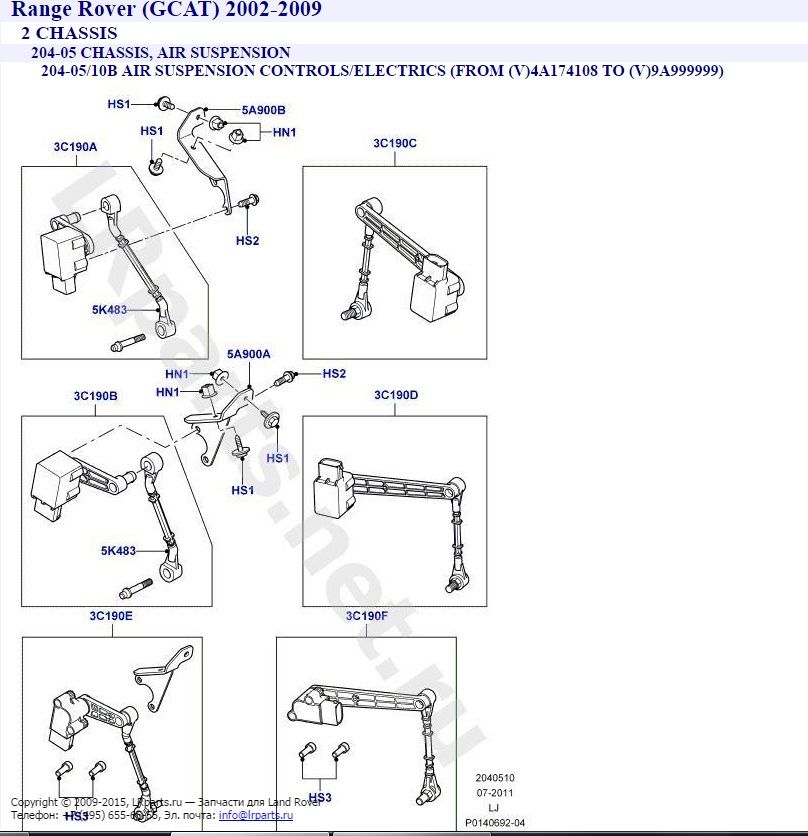

The plastic arm/rod part I bought look very much like 5K483 in the second picture. in diagrams 3C190A and 3C190B.

Saint.V8 · Feb 5, 2017

The second picture is for 2004/5 onwards.....if yours is a 2002 you need to use the one in the first picture.....which covers all vehicles up to VIN Number 4A174107

Part Number for 5K483 in the first picture is: RQW000010

jimwise68 · Feb 6, 2017

Thanks Saint

jimwise68 · Feb 6, 2017

Just searched online for that part number and it comes back saying it has been superseded by the part I bought.

https://britishparts.co.uk/products/6899-height-sensor-link-RVF500060G

Which doesn't have the connecting screws that attach it to the torsion bar or to the sensor itself. ???????? Good old JLR

Saint.V8 · Feb 6, 2017

You should still be able to get the original arms, I think LRDirect had them from memory!
