300tdi Lift Pump Query

LeftFoot · Jun 30, 2018

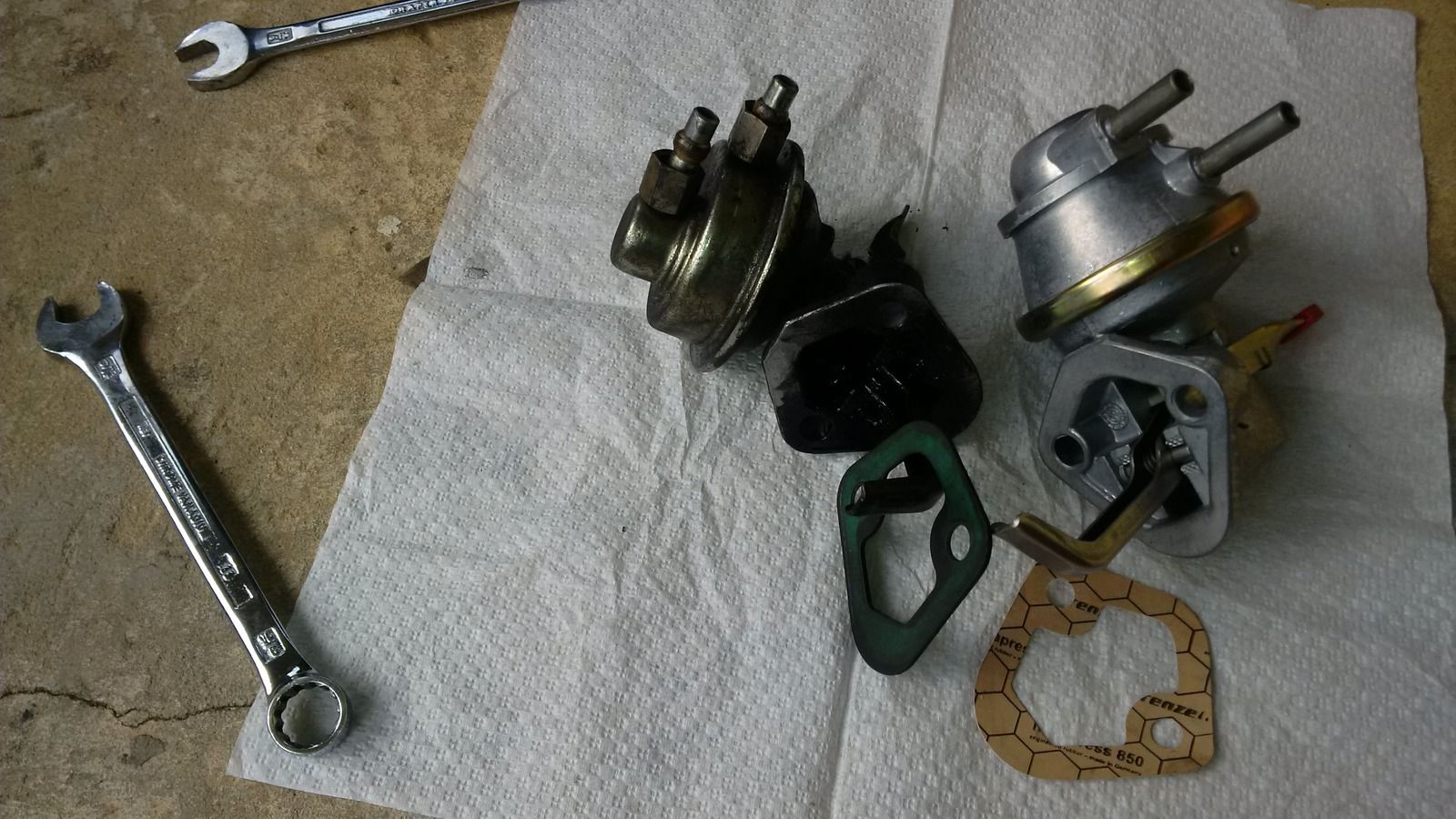

The attached photo shows my old lift pump and the one I plan to replace it with. Two questions please:

1. Are I supposed to purchase the olives for the piping separately? If so, what size?

2. In the attached photo on the old pump is that a spacer or a gasket? It appears too thick and brittle to be a gasket to me. I assume since the new one came with only a paper gasket it means no spacer is required?
Thanks.

jamesmartin · Jun 30, 2018

try nrc9771 and nrc9770,no spacer is needed when fitting to a 300tdi

LeftFoot · Jun 30, 2018

jamesmartin said:
try nrc9771 and nrc9770,no spacer is needed when fitting to a 300tdi

Thanks! I am lost as to why the pump came without the nuts and olives

.

jamesmartin · Jun 30, 2018

its common for them to come separate

Lightrods12 · May 13, 2019

8mm olives or 5/16ths if you want a tighter fit. Make sure they are barrel olives and NOT stepped olives. By my experience go hand tight and 1 extra turn max for a good seal. If you want to check out the lift pump flow check out the video I did here....

Markingston · Sunday at 16:15

Thought I'd add in this video about priming pump spacer & gaskets

miktdish · Sunday at 17:25

Markingston said:
Thought I'd add in this video about priming pump spacer & gaskets

6 years after the thread ended ...
