300tdi 1997 srs wiring

Damo1988 · Apr 16, 2019

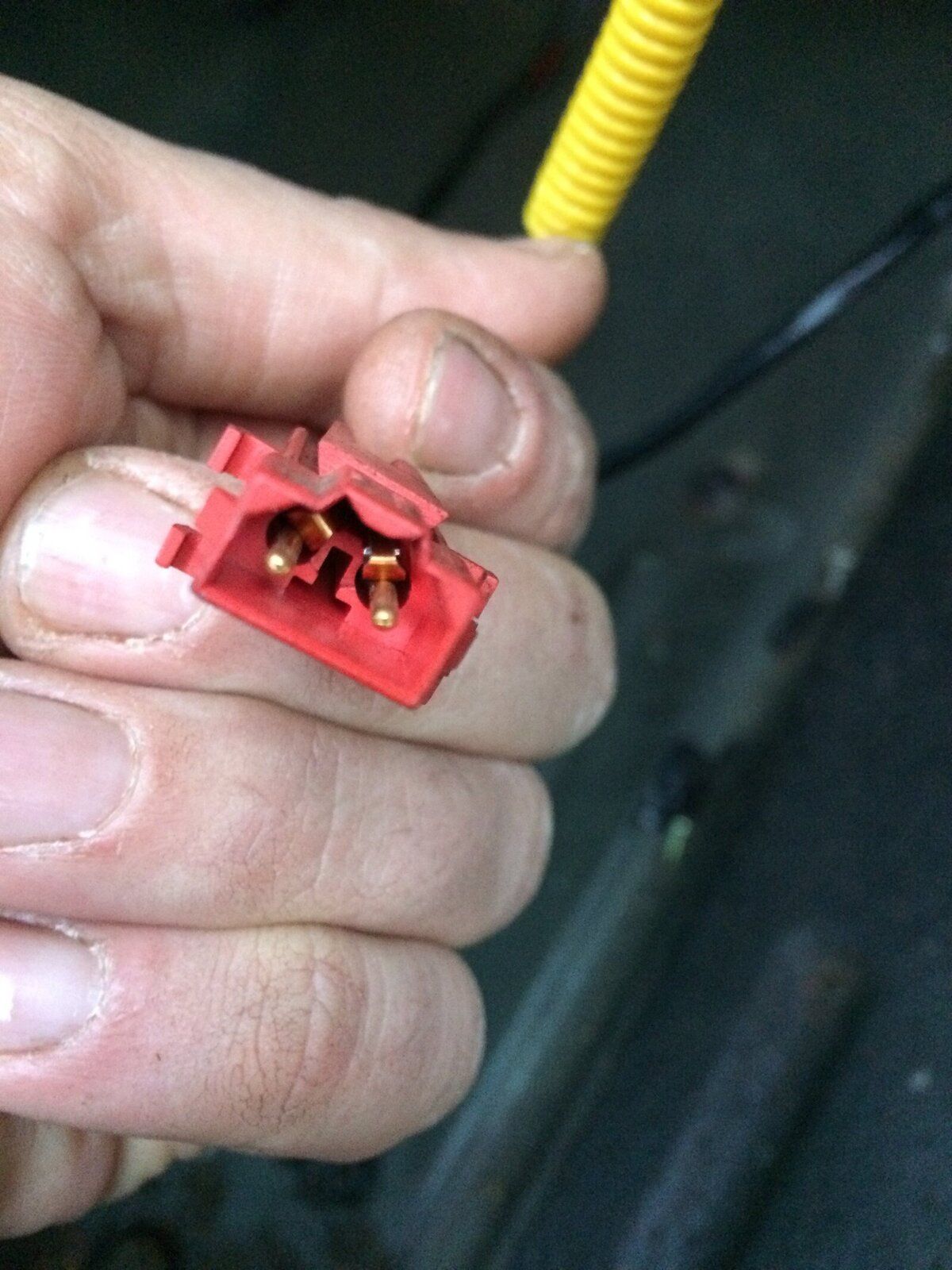

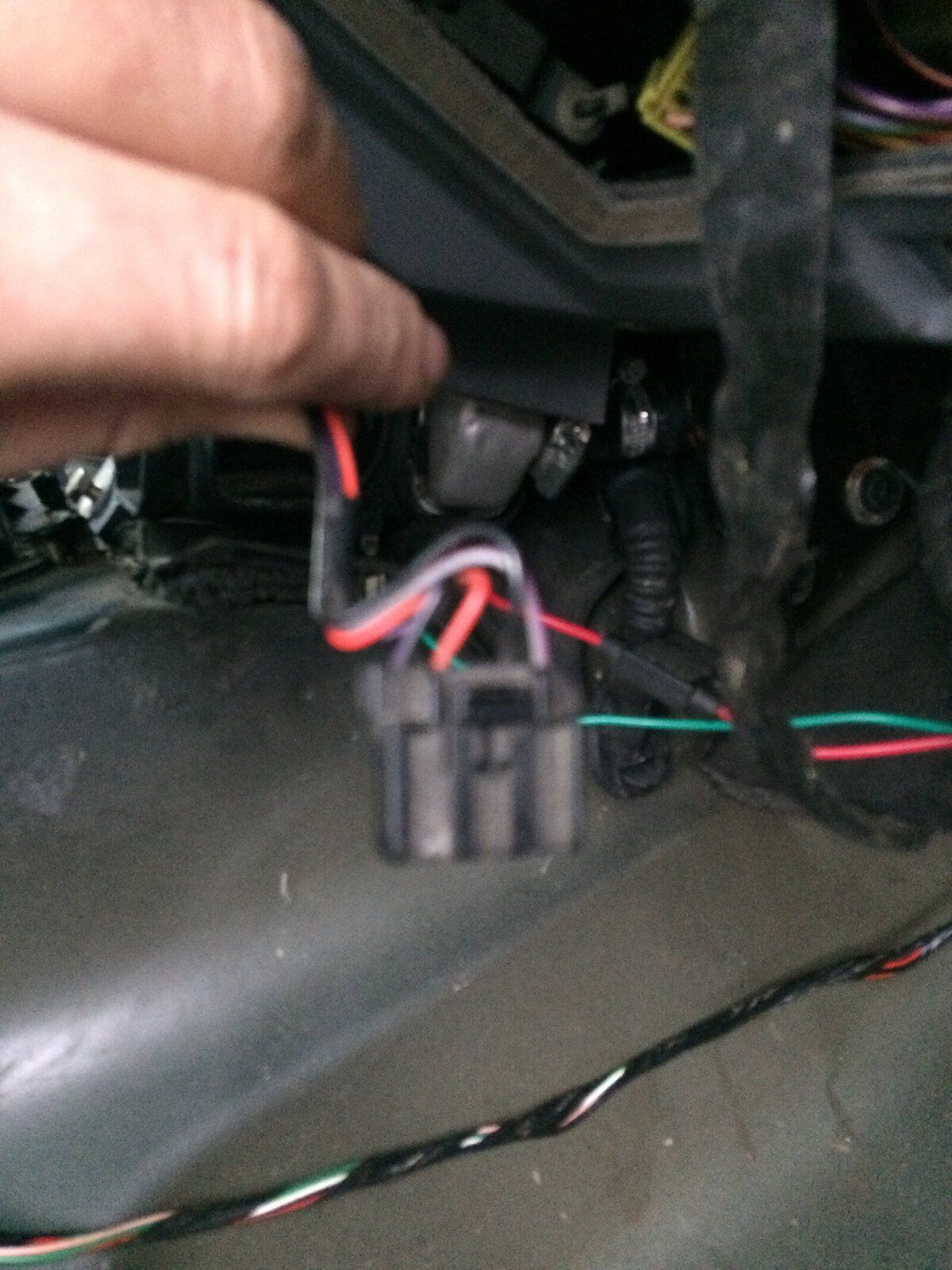

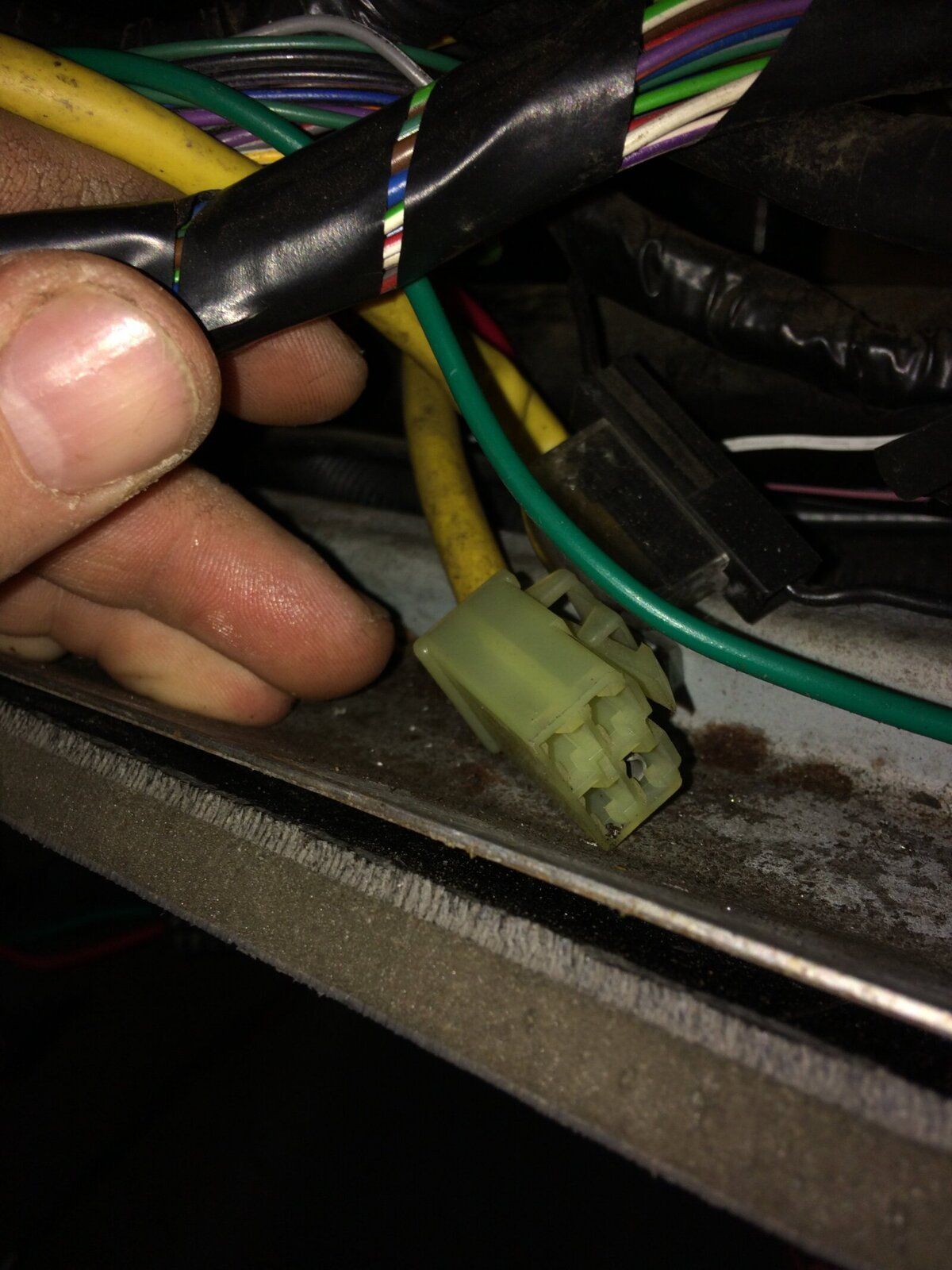

So I’ve put my dash back together cant seem to find where the two pin red plug yellow cable from the rotary coupler connects to in the under tray, these are all I can see to b honest I can’t remember unplugging it in
Can anyone shed any light pleasssssse

discool · Apr 16, 2019

I know it’s a ‘birds nest’ sometimes under there with the wiring, but the plug won’t have flown away. A bright torch may help, CSI fashion, to locate the missing plug.

Damo1988 · Apr 18, 2019

3 days I’ve looked for it even partly took dash back of it!
So I spoke to the chap I brought it off, asking whether the srs light was on before he had problems with abs light on? His answer was srs light comes if problem with abs, don’t believe a word of this unless someone can tell me different ! I’m starting to think what he meant was he’s had the srs light wired up to the abs light and as there’s a problem with abs they both have come on, is this possible
My reason for this is, there definitely isn’t a plug for srs from rotary coupler to plug into no under seat sensors I can’t find the srs ecu anywhere
Kind regards

sierrafery · Apr 18, 2019

The SRS ECU should be beneath the central console under the handbrake lever

Damo1988 said:
I’m starting to think what he meant was he’s had the srs light wired up to the abs light and as there’s a problem with abs they both have come on, is this possible

Run a plip test for the ABS and if the SRS light will flash together with the ABS it means there is a botch somewhere and the two lights are linked so you might struggle in vain

Damo1988 · Apr 18, 2019

No ecu under centre console

malcolm bell · Apr 19, 2019

Lift up the console.behind the hand brake ecu yellow box.i have had the srs light problems aswell.sorted now.

Damo1988 · Apr 19, 2019

I’ve stripped the car for welding! Nothing but drivers seat! Looks like it’s been took out n hard wired to abs! Now to find abs fault n hopefully that will turn um both off (lights)‍
