300 TDI stop solenoid

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
marksman

marksman

Well-Known Member
Full Member
Posts
1,302
Location
Co Durham
I cant seem to find the wiring diagram (in Rave) showing how the stop solenoid is wired, does anyone have a diagram they're willing to share ?
I have an intermittent issue I'm trying to diagnose

Thanks
Don't have an immobiliser ECU its a 1996
I saw the ecu controlled one

Last edited:
this may help car manufactures tend to carry stock parts from previous year model on to new models in the form of extra spec or standard till stock is used up so may be 1994

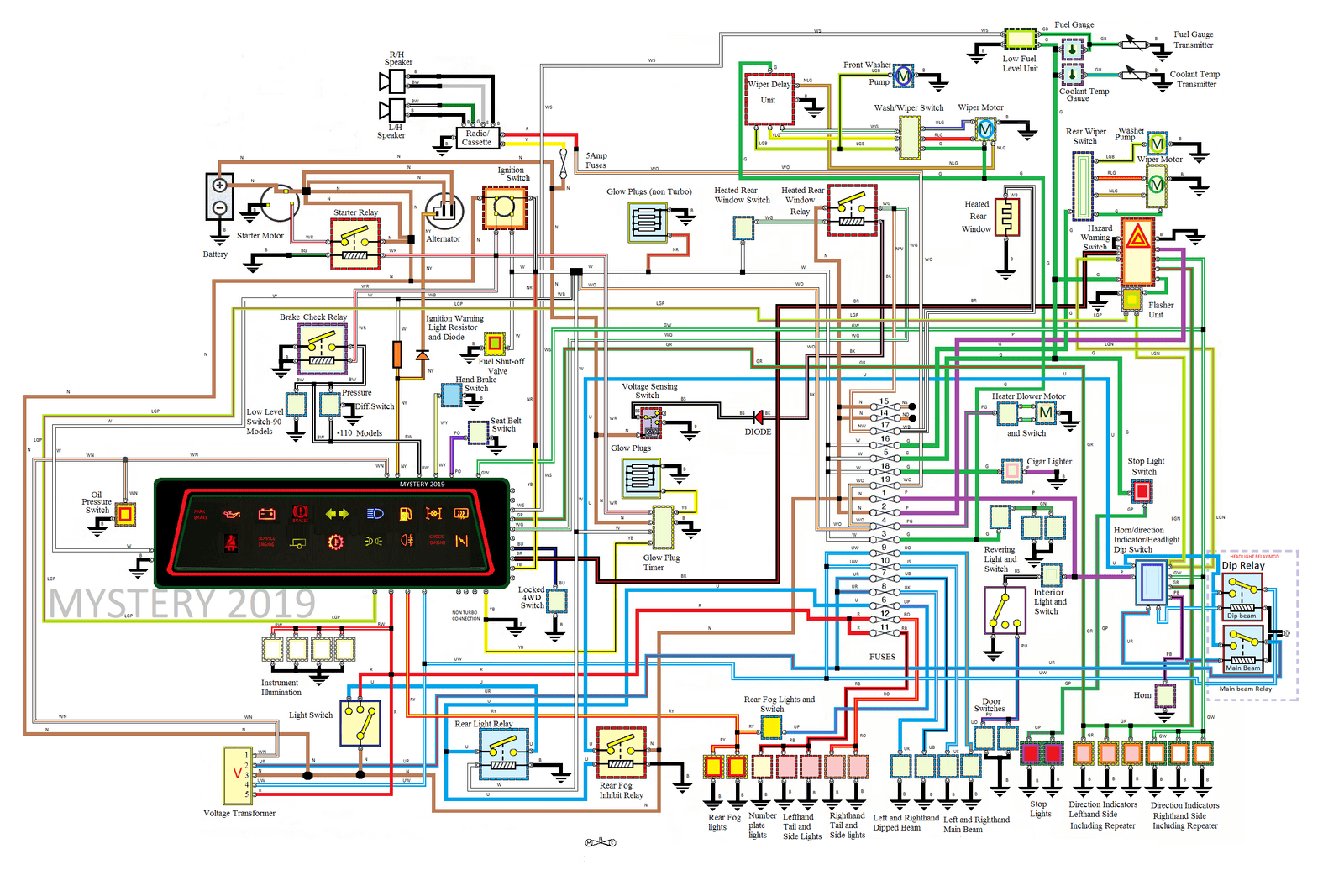

Defender 1991 t0 1994Master.png

Engine dies occasionally, unplug stop sol plug back in and it works, new stop solenoid no better, I'm now testing the continuity between ign s/w and connection as I do know you can get wire breakages

Just put a 12v feed straight to stop solenoid and this will tell you if the fault lies there. You will need to disconnect to stop engine.

Gmacz said:
Just put a 12v feed straight to stop solenoid and this will tell you if the fault lies there. You will need to disconnect to stop engine.
Click to expand...
We did similar to get home 1 night. Wired up solenoid to the headlights. Headlights off - engine off. Wiring fault somewhere most likely the immobiliser on a 97 300tdi..
