Disco 1 300 tdi bumper on 200tdi end caps?

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
B

Baker556

Member
Posts
68
Hi guys,

I'm in the process of fitting a 300tdi bumper to my 200tdi as the old one is rusted.

The end caps from the 200tdi fit but there is no where to mount the sides onto the body of the disco, is there some kind of bracket missing? Or should I need to purchase 300tdi end caps?

Thanks,

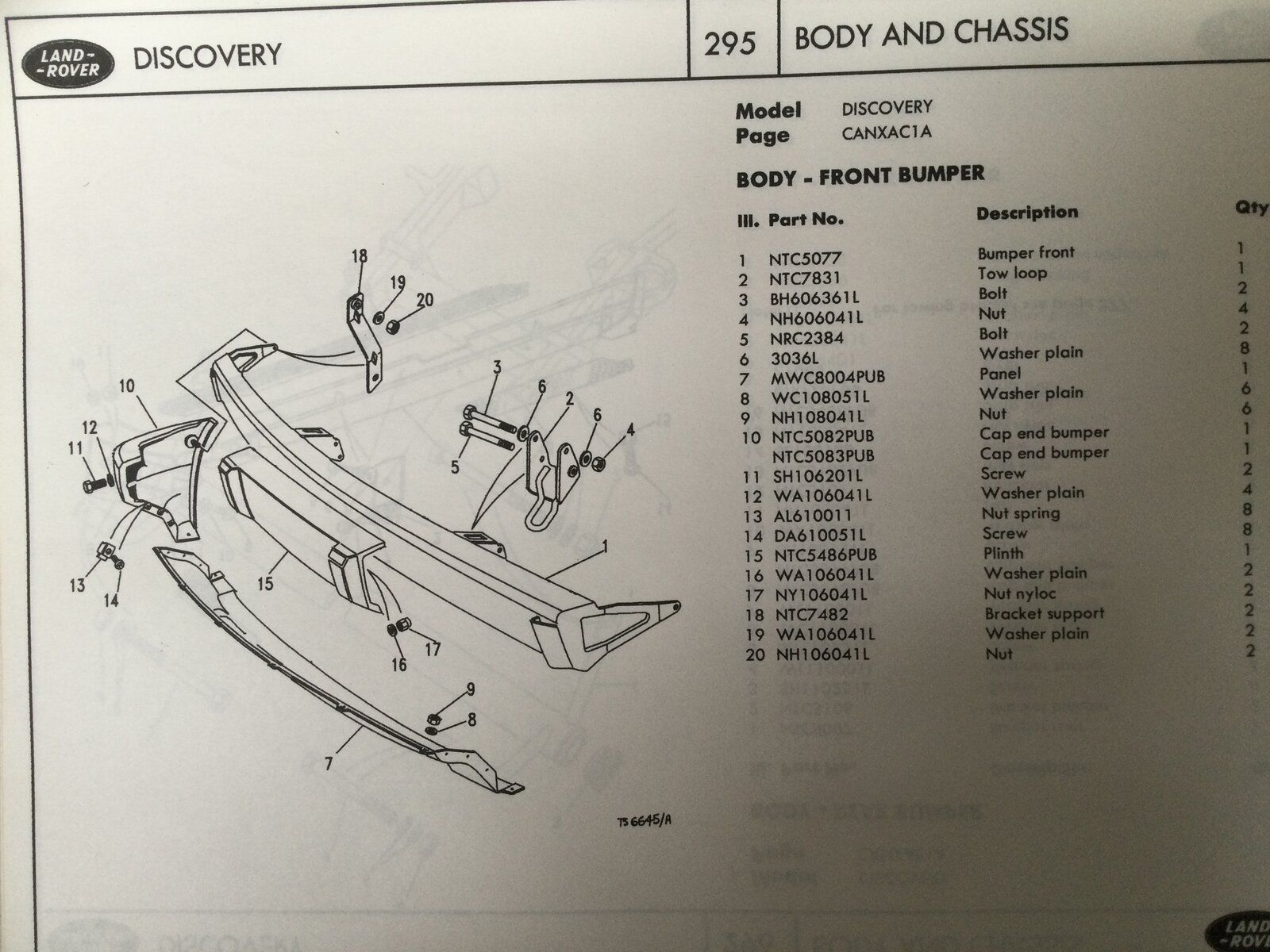

Ntc7482 bracket support

Europa, answering everything for me at the moment thanks! Sorry I didn't put in the original post, it's for the rear bumper, any thoughts?

Thanks

Yes I have fitted the TDI 300 rear bumper to mine 200tdi,
Also fitted the extra lights while I was at it,
The rear end caps don’t attached to the body only to the bumper,

Cheers Europa, but I have no way of attaching them to the bumper, I guess I'm missing a bracket for the rear as similar to your post above about the fronts.

Baker556 said:
Hi Europa that part I think is to the chassis not the end caps:

https://www.johncraddockltd.co.uk/ntc5106-bracket-bumper-to-chassis-rear-discovery-1.html

Nevertheless, I think I've found it, expensive!

https://www.ebay.co.uk/itm/280651998921?epid=656193290&hash=item415829a6c9:g:VCcAAMXQoiJRf5kZ
Click to expand...

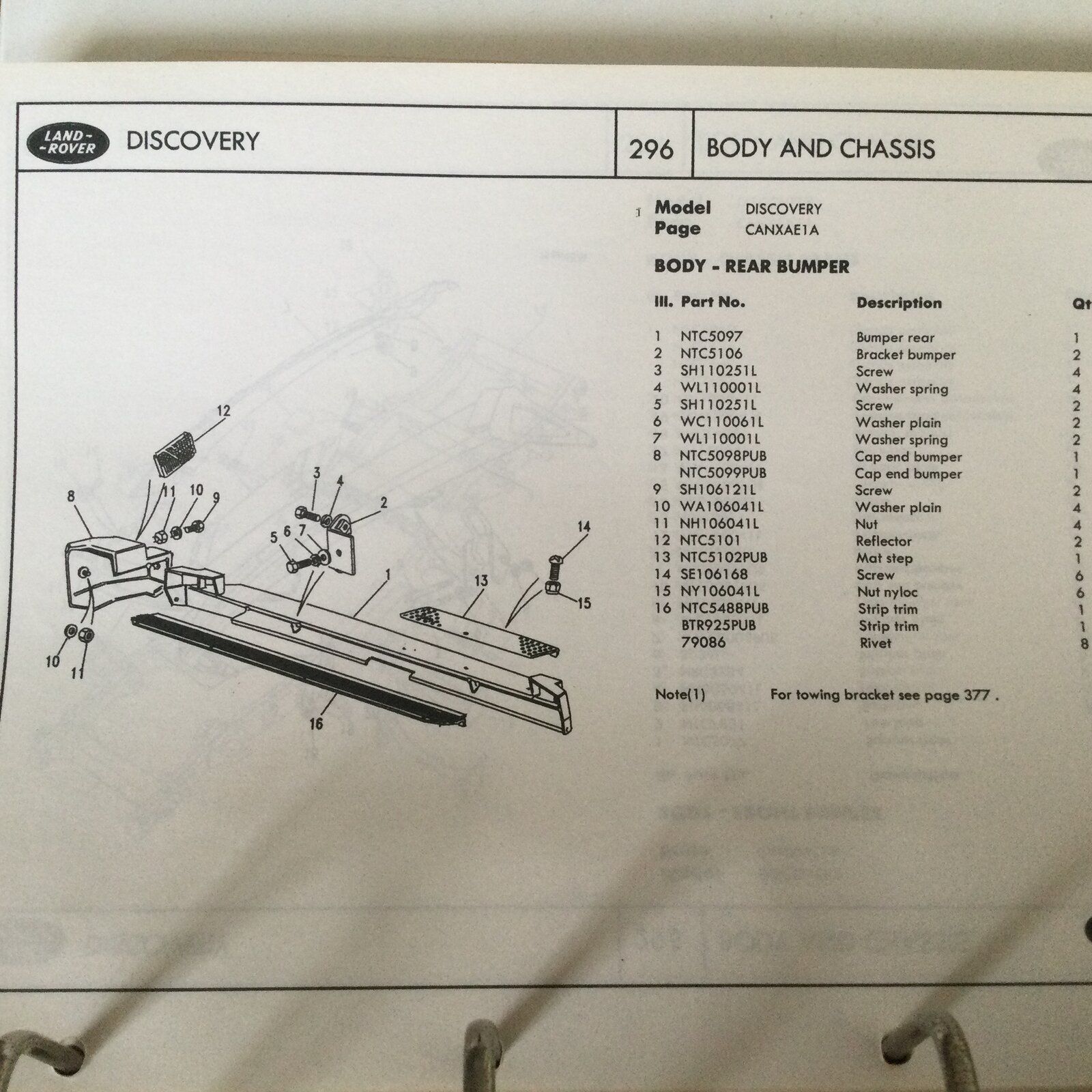

Confused with the incorrect drawing posted? Update parts book also shows the 300 series bumpers part numbers, which are different from the 200 series.
So thats the correct bracket, the 300 series have ANR3025 for the RH, ANR3026 for the LH end cap brackets
You will need a couple of m8 x 25 flange head screws and washers for each.
