3 Door Roof Light Bar

edcbradford · Mar 7, 2014

Hi all

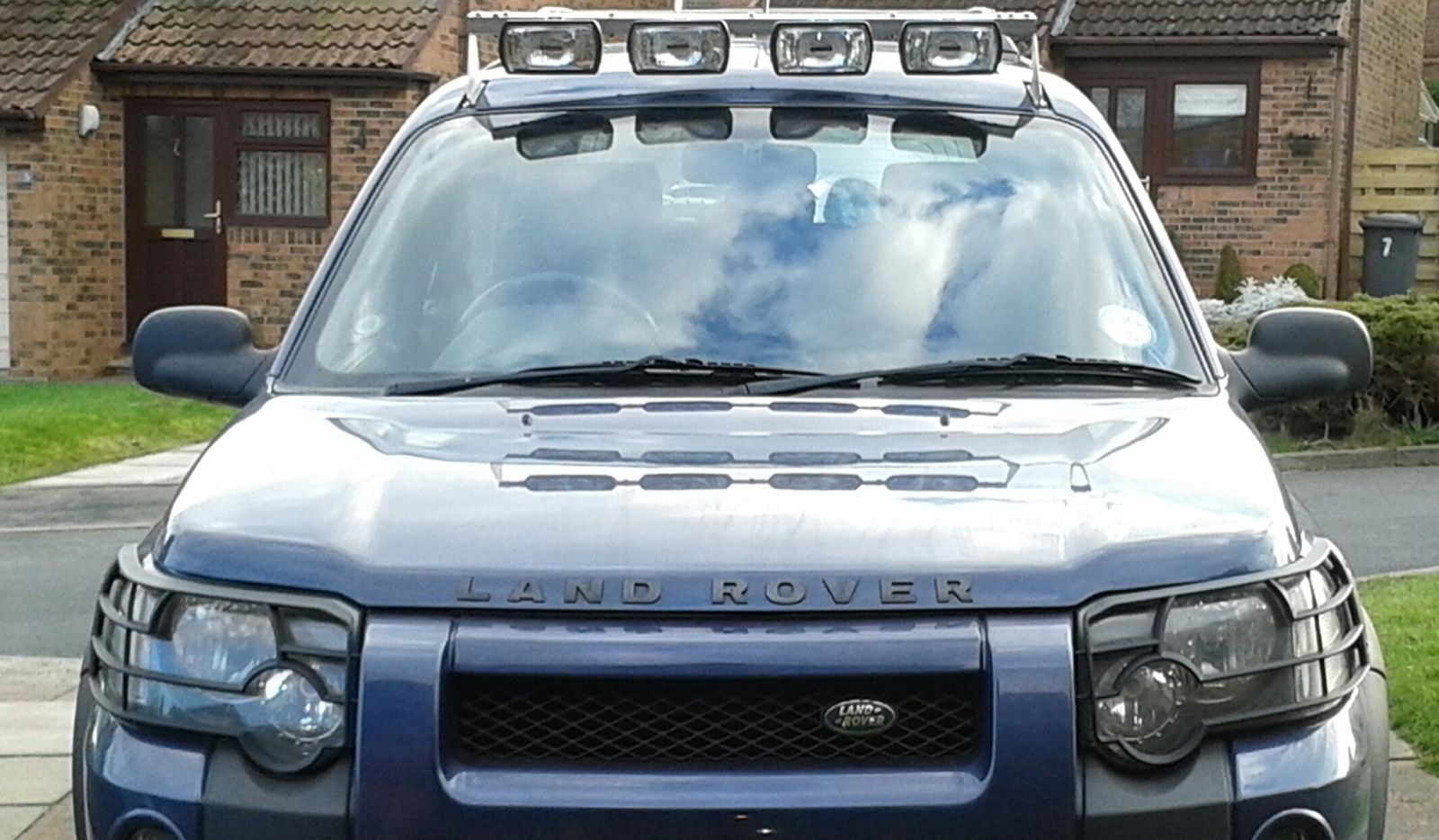

New to this forum, and wanted to share my recent project which was a light bar for a 3 door freelander.

What do you think?

ED

thequeenscheese · Mar 7, 2014

Side profile?..
Sticks up too much for me i think with how much i use the rack, is it one crom ses88?, how easy is it to get the wiring to where it needs to goand keep water tight etc?

SES88 · Mar 7, 2014

thequeenscheese said:
Side profile?..
Sticks up too much for me i think with how much i use the rack, is it one crom ses88?, how easy is it to get the wiring to where it needs to goand keep water tight etc?

Not one of mine, I'm still prototyping.

Bar should be lower with the lights mounted on top, just looks better that way, good effort nonetheless

thequeenscheese · Mar 7, 2014

Tbh i quite like the pre made plastic pods with x4 spots the 3m on..

edcbradford · Mar 7, 2014

I made everything from off cuts at work, so it was free.

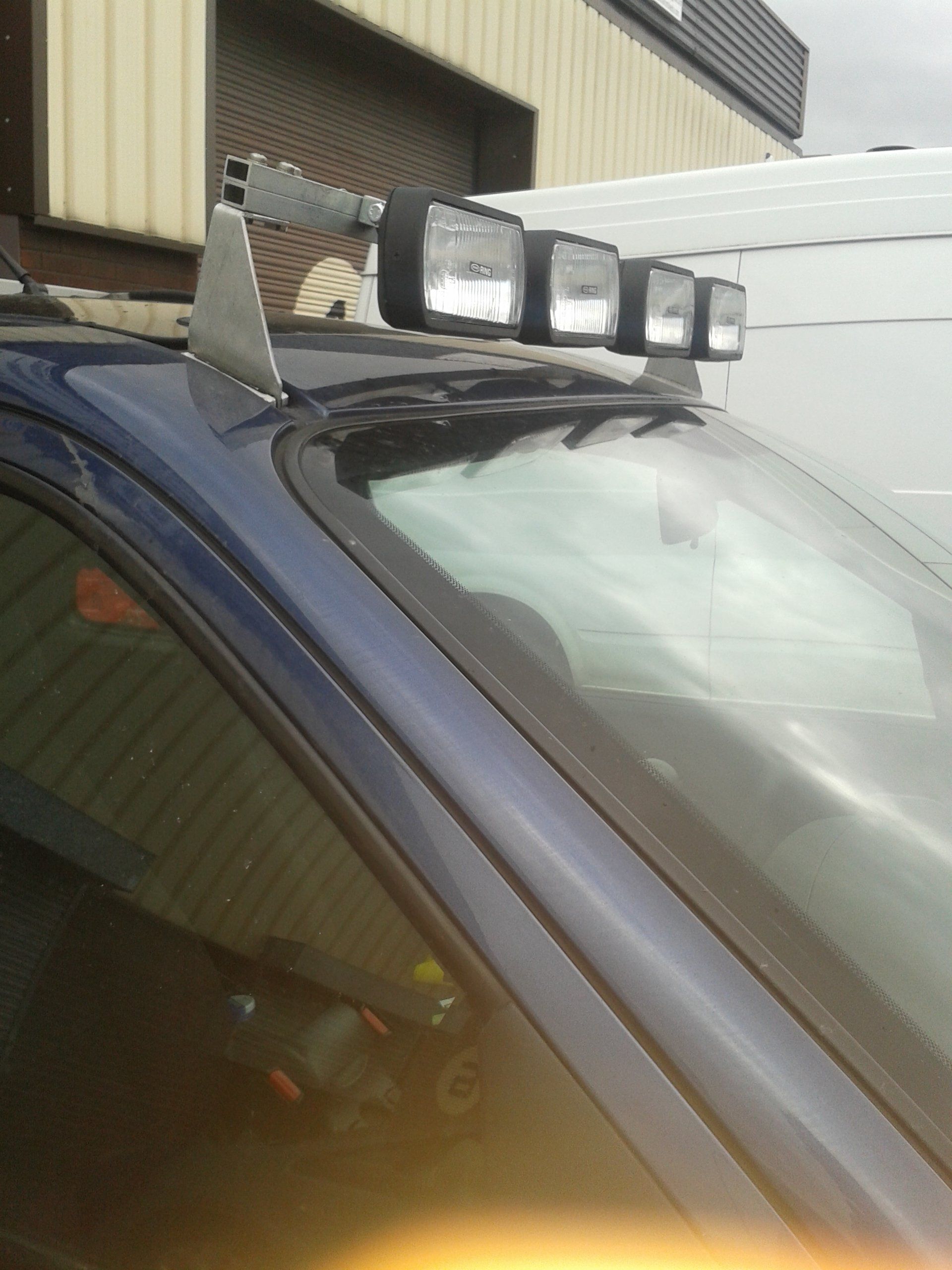

I wasn't planning on making it as high, but i over calculated. The Side profile is that of a triangular shape, it was the clamping idea that took a lot of time. I Haven't yet wired them up will be a job this weekend

but will use glands and grommets to provide water tightness.

I am going to spray the bar with a midnight blue hammer finish which will match the color which may help blend it in.

Thanks for the input

SES88 · Mar 7, 2014

Yeah I've had a right chew on getting a bracket system made that isn't overly expensive so that its commercially viable, think I have it cracked though

baptista · Mar 7, 2014

edcbradford said:
Hi all

New to this forum, and wanted to share my recent project which was a light bar for a 3 door freelander.

What do you think?

ED

a bit high in my opinion, how does it grab to the roof? can you please put up some pics that show some more detail.

edcbradford · Mar 7, 2014

Will do on my lunch

essexpestcontrol · Mar 7, 2014

from one bodger to another, if it cost nowt and it works, then it's ok in my books

edcbradford · Mar 7, 2014

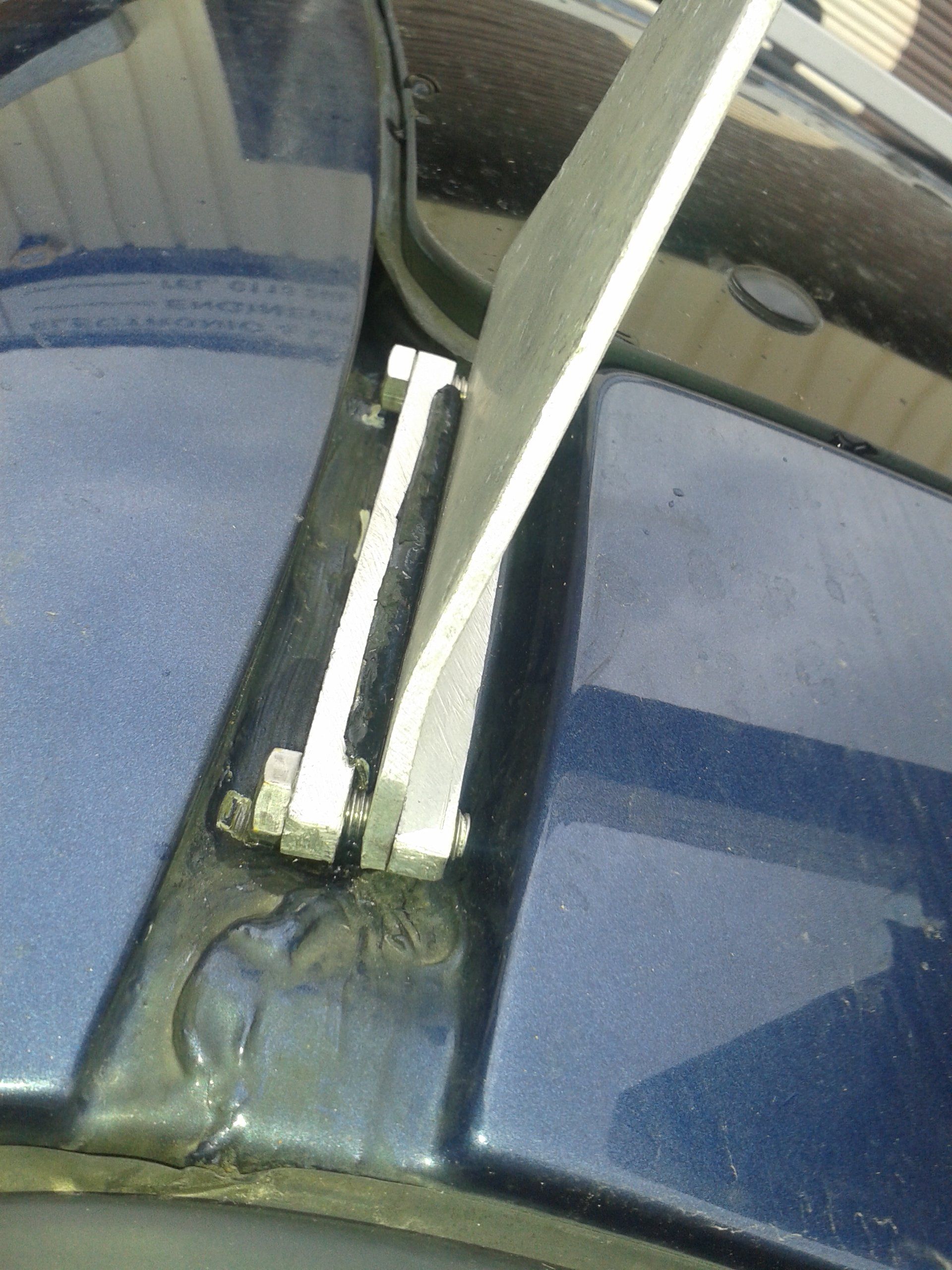

These are the pictures of the clamping arrangement.

baptista · Mar 7, 2014

that's a great idea!!!
my DIY roof-rack project now has a chance to become real, thanks.

essexpestcontrol · Mar 7, 2014

what is the purpose of those bits on the roof to begin with? were they put there for after market land rover products, ie roof rack fixing points, roof lights etc??
just interested to know

now as those brackets cost you nowt, how much to make me a set

DaddyCoolJordan · Mar 7, 2014

Looks smart good idea different to what others have done thumbs up

Winu · Mar 7, 2014

essexpestcontrol said:
what is the purpose of those bits on the roof to begin with? were they put there for after market land rover products, ie roof rack fixing points, roof lights etc??
just interested to know

Probably some kind of fixing point for channel finisher.

SES88 · Mar 7, 2014

Well whaddayaknow, your clamping solution is remakably similar to mine, I'd post a pic, but i'll leave that til I get them on the market. It bolts the same way, but the inside bit is angled and the bar bolts to the top creating a fully covered capping that covers the full channel.

As for the purpose of the channels, they're the seams between the sides of the car and the roof. They're seam welded and spotted in some places.

essexpestcontrol · Mar 7, 2014

SES88 said:
Well whaddayaknow, your clamping solution is remakably similar to mine, I'd post a pic, but i'll leave that til I get them on the market. It bolts the same way, but the inside bit is angled and the bar bolts to the top creating a fully covered capping that covers the full channel.

As for the purpose of the channels, they're the seams between the sides of the car and the roof. They're seam welded and spotted in some places.

makes sense

ZDomZ · Mar 7, 2014

Here is my version....

Doesn't move at all. The bar is off at the moment though as I have had a few trips to London and back over the last month or so...

SES88 · Mar 7, 2014

See i'd have thought that would move at motorway speeds with the drag, maybe not lift off, but enough to twist it upwards

essexpestcontrol · Mar 7, 2014

and where's the wire routed?

Dangermike · Mar 7, 2014

That's an awesome idea! I wander if there is one of those mounts near the rear?
I haven't managed to remove the channel finisher on the rear yet...

Also will this work on the 5 door?
