3,9 EFI front timing assembly

roule · Sep 19, 2024

Hello, my front timing and pulleys are back in, but I can't remember exactly how many bolts, I haven't lost any but I have one of the holes in the lower right cover free... is there a bolt coming here?

roule · Saturday at 17:06

roule said:
Hello, my front timing and pulleys are back in, but I can't remember exactly how many bolts, I haven't lost any but I have one of the holes in the lower right cover free... is there a bolt coming here?

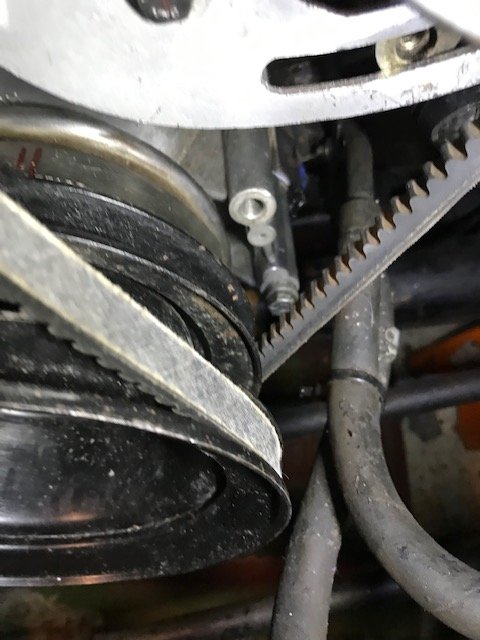

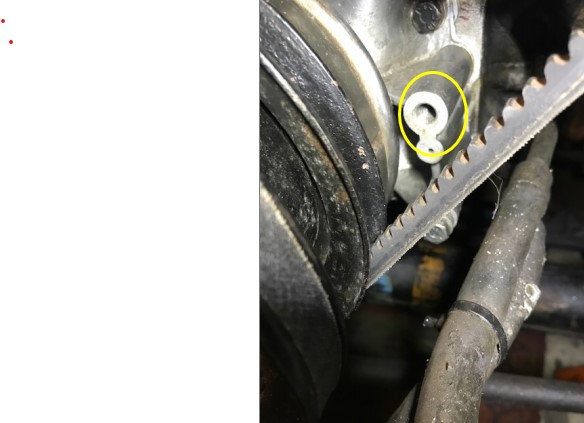

View attachment 326305 View attachment 326306

No answers ?

roule · Saturday at 17:24

roule said:
Hello, my front timing and pulleys are back in, but I can't remember exactly how many bolts, I haven't lost any but I have one of the holes in the lower right cover free... is there a bolt coming here?
View attachment 326305 View attachment 326306

I found that, it's to fix a bracket...

discool · Sunday at 11:50

The bracket shown is ETC5576 for mounting an alternator on a V8 carburettor engine.
My 3.9 has a serpentine belt so in that area there is a power steering pump mounted with a small alloy bracket.

Bracket-Alternator - ETC5576

Land Rover ETC5576 Bracket-Alternator

www.paddockspares.com
