Freelander 1 2002 TD4 LP Fuel Pump Type

After much searching, I conclude that there are two types of LP fuel pump arrangement for the TD4. In tank and in engine bay pump - up until about 2002 then wheel arch pump only.

My question is this; is the wheel arch pump and the in engine bay pump the same part number? Photos suggest they are identical but can anyone confirm please?

Mine has the in engine bay pump which is needing a 'tap' to resolve starting problems and a P1260 code so i guess it is the pump. Connections and pressure sensor connections all good.

Thanks

same pump, original ones were pierburg, so if you can go for a pierburg robust and silent compared to aftermarket which tend to be noisy and do not last that long.

Used pierburg ones are a good buy drop this chap a message and say Arctic recommended him to you, link below
http://www.ebay.co.uk/itm/Rover-75-...7937db4&pid=100005&rk=2&rkt=6&sd=192002736498

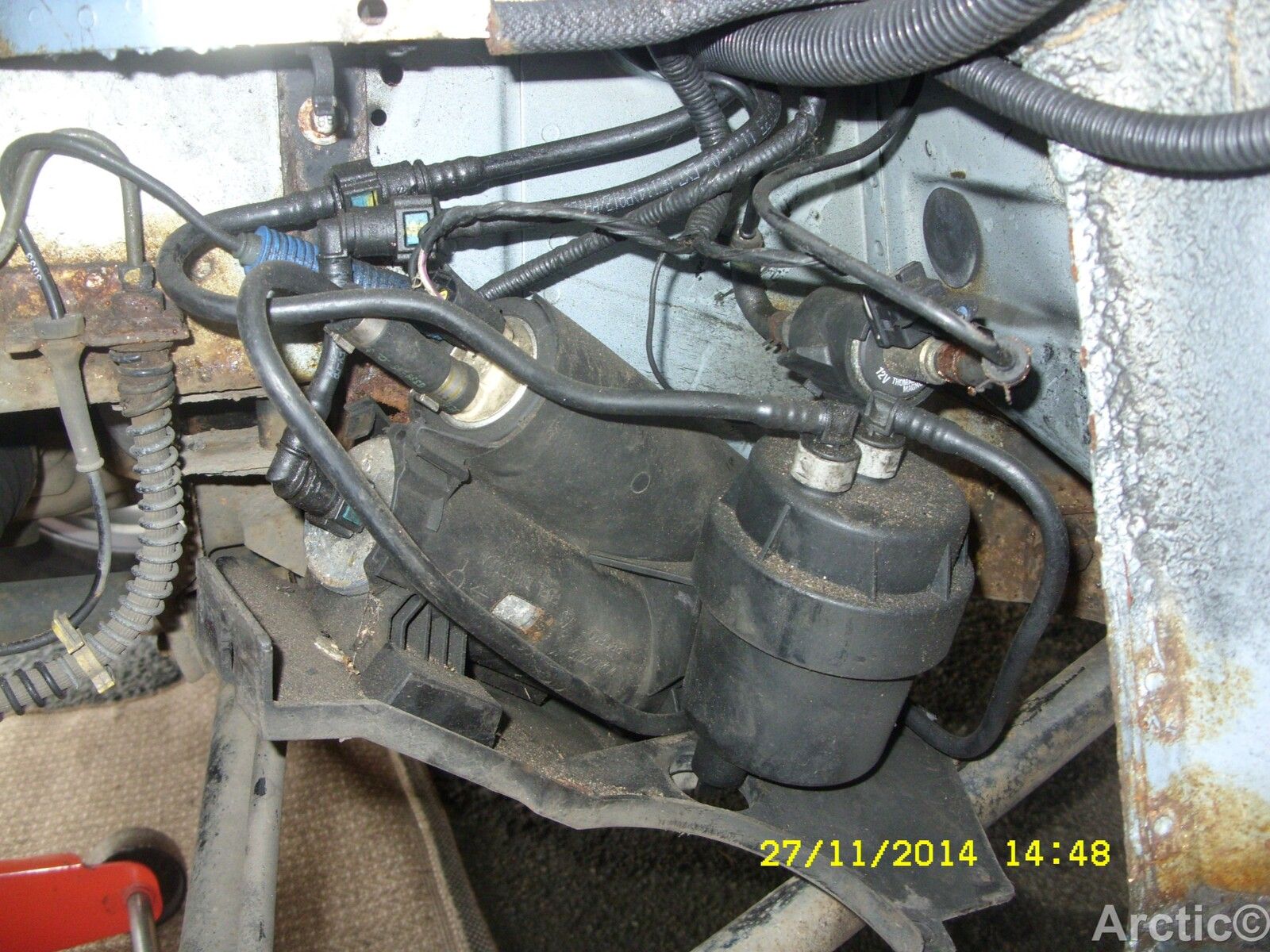

Underbonnet pump is different to the in wheel arch pump

td4van said:

Underbonnet pump is different to the in wheel arch pump

Click to expand...

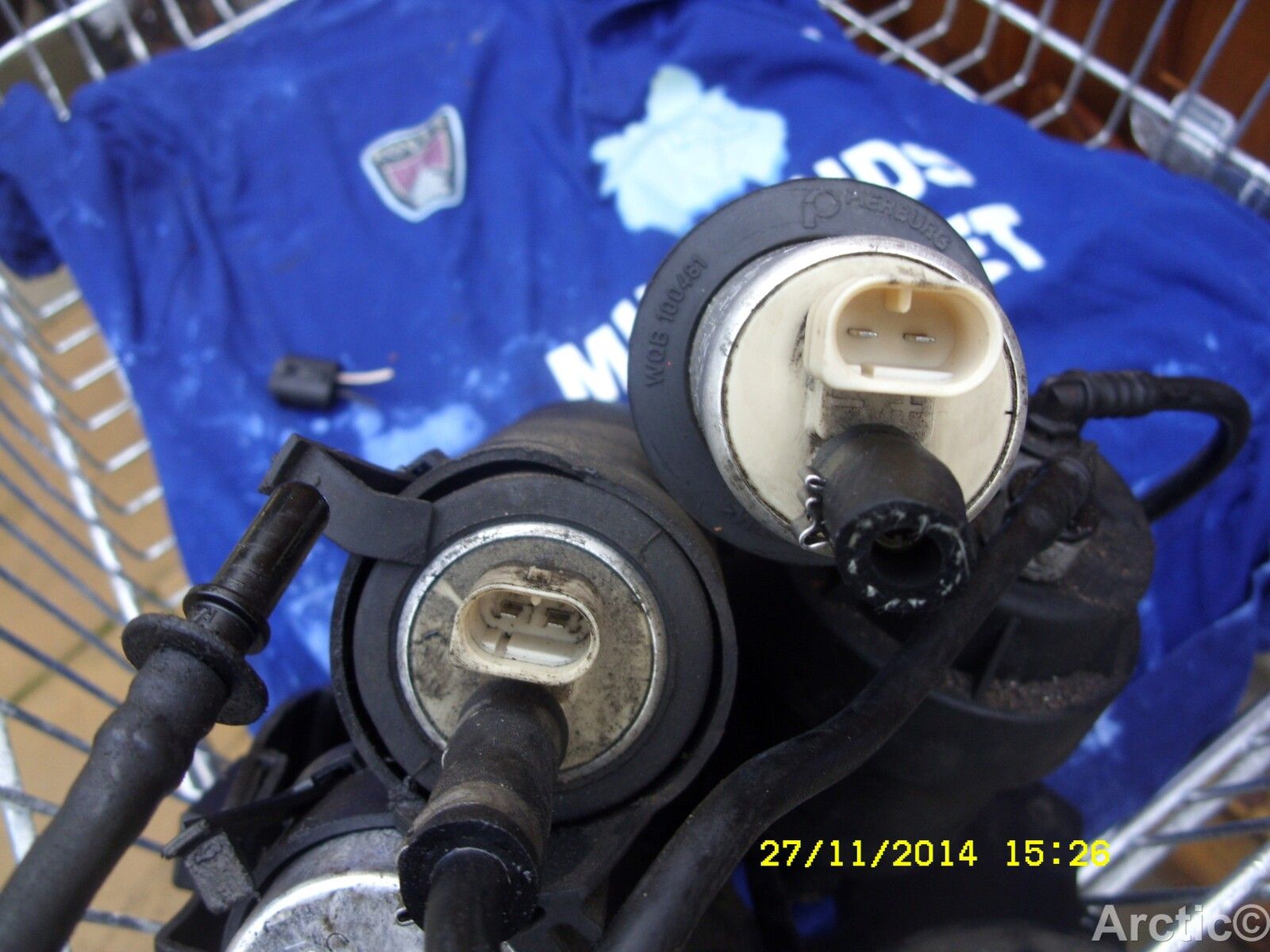

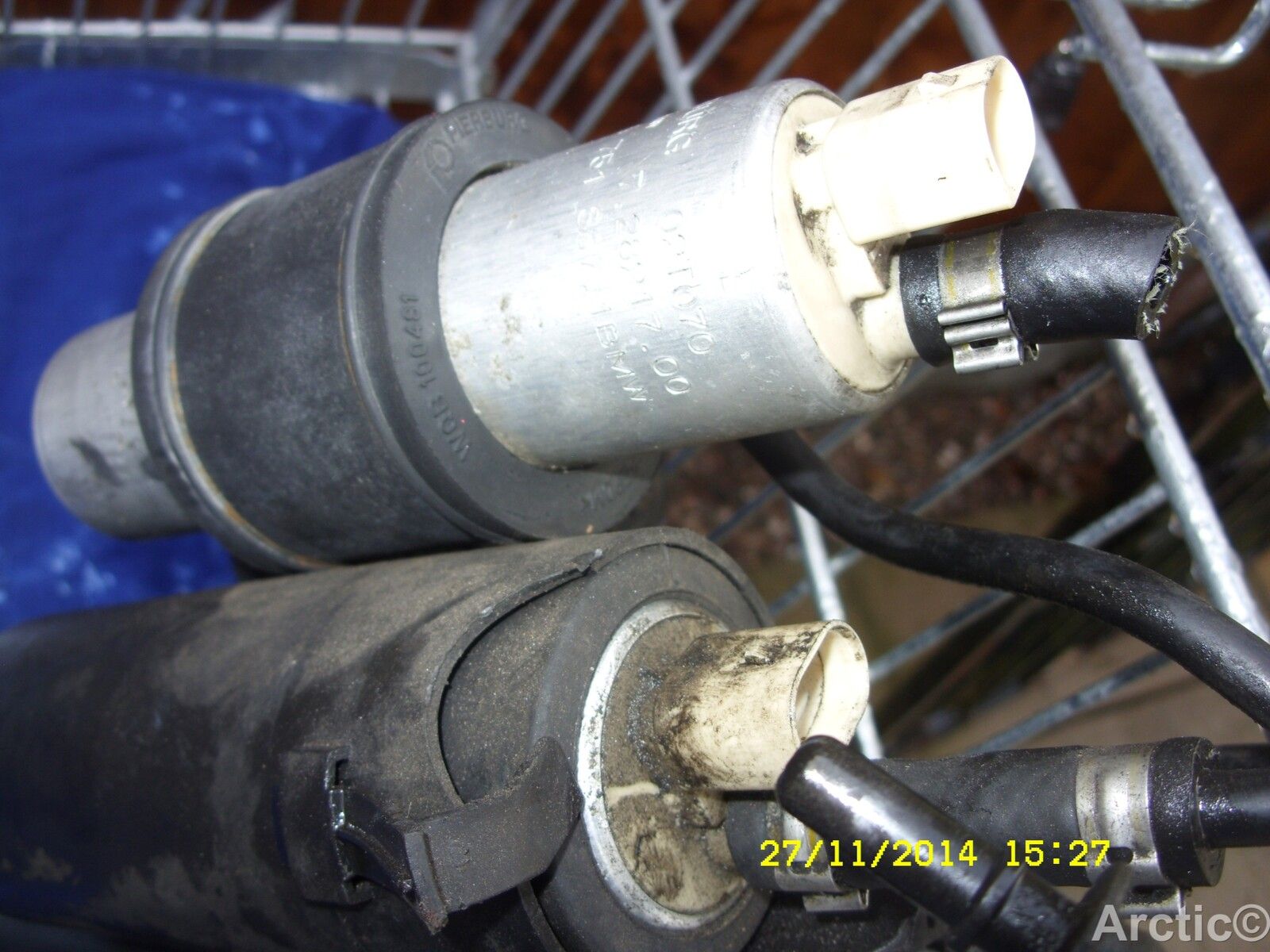

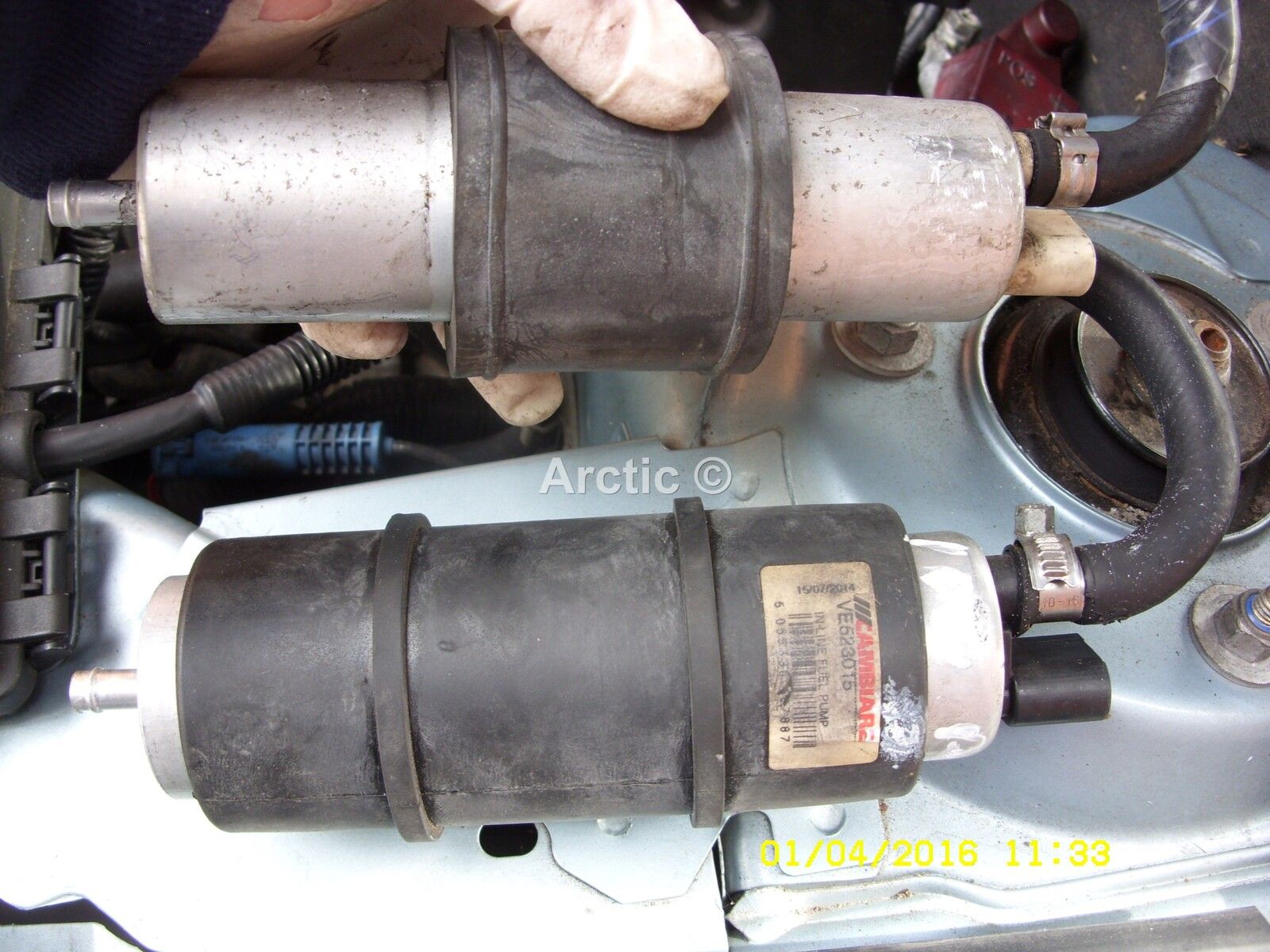

Both the same, it is just the holding container that is different, they are also the same on a R40 or MGZT diesel, and some BMW

Thanks for photos and clarification. See my thread P1260 fault code solved for the rest of the story !

what ever you do don't replace with a cheap one or you will be doing it again .just that bit more at the time and it should last you for a few years.
