200/300tdi air filter mount

Lej · Saturday at 15:50

Hi all,

Just looking to move my air filter to allow for a diesel heater that I'm fitting, it's a 200tdi discovery engine in a Landy 90.

On the 300tdi the air filter is sat above the lift pump, on the 200its above the manifold.

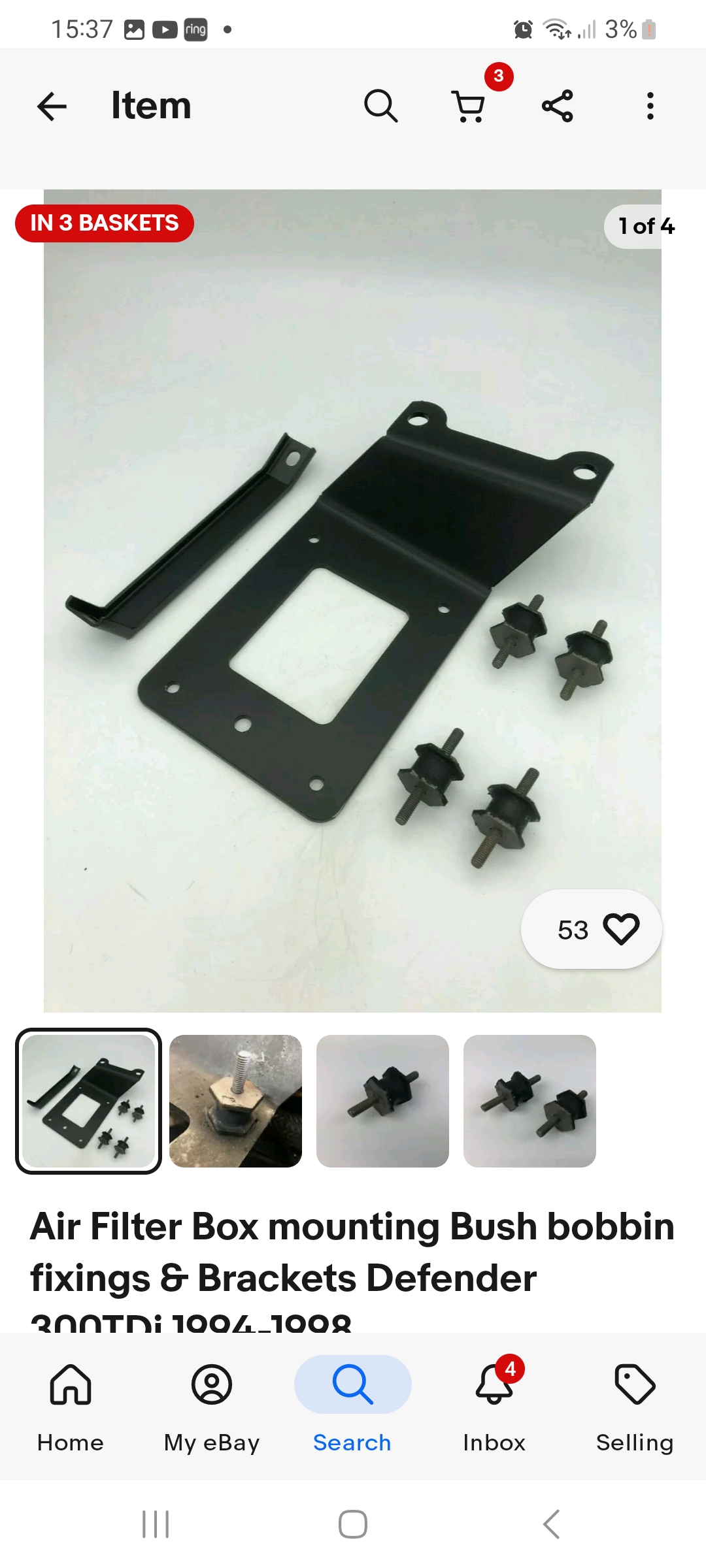

My question is, will the mount for a 300tdi bolt to the same place on a 200tdi, I want to move it to give me more space. The mount I would be using is put of a 300tdi, pictures below.

Thanks all!

tottot · Saturday at 17:29

My 200tdi is an original Defender high turbo version. The Air filter housing is mounted on the downward slope of the NS wing behind the head lamp. Not a fan of the 300 system myself making lift pump hard to get to and the fact that the mount uses two of the head bolts to attach

julianf · Saturday at 17:55

I'm pretty sure that, if you mount the air filter as per the 300, you will need to move the fuel filter off the bulkhead.

Binkie · Saturday at 19:08

If its a discovery engine you could put were the A/C pump would go.

Hicap phill · Saturday at 21:20

Can you put the 200 filter on the drivers side of the motor in the same place? (Where a left hand drive would be?

Or tight behind the head light?
Or stood up like a turbo diesel?

Think the header may be a pain but better than removing 2 head bolts

dag019 · Monday at 15:31

Hicap phill said:
Or stood up like a turbo diesel?

This is where I have mine for my discovery 200tdi using the original TD filter housing and filter.
