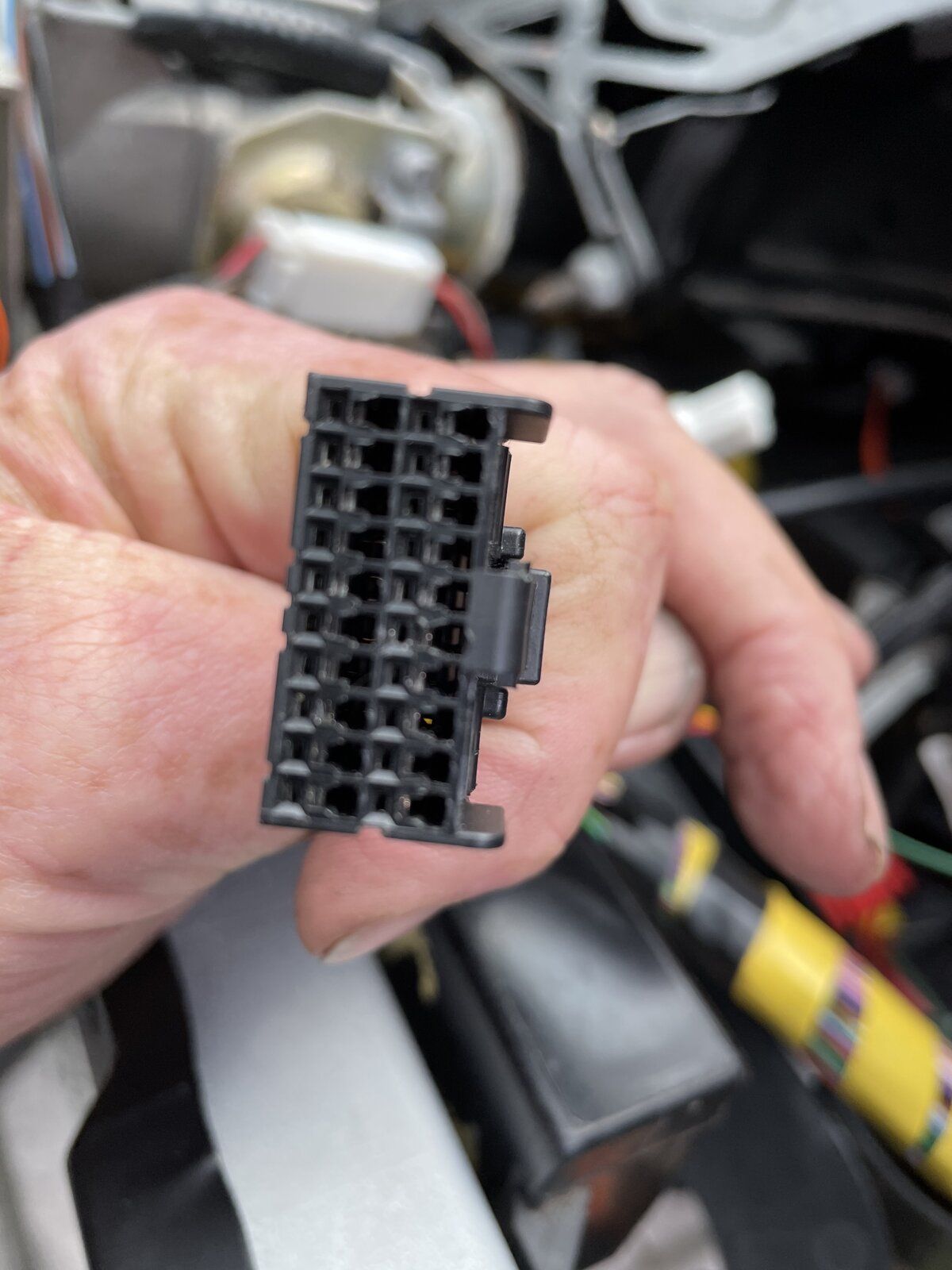

P38A 20 pin connector
- Thread starter pete12345
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
RangeRoller dt
Well-Sprung Member
- Posts
- 14,384
- Location
- Trapped inside my head @ LZ asylum
If you can’t find a new one just chop it off and solder the wires together.
- Posts
- 2,427
- Location
- Isle Sheppy
It goes into the binnacle that would mean stripping it all out and I’m still not positive that it’s the problem just working through bit at a time didn’t realise they be so hard to source
If you want to de-pin it then in each channel you need to use either a safety pin, or narrow flat bladed jewellers screw driver to move a plastic locking tooth away from the pin and withdraw the wire/pin backwards (after you've undone the lock on the wire side of the connector. It's very technique dependent - the more you pull the wire the harder it is to pop the tooth up... you don't need too much force. if you get a 2x or 5x magnifying glass the connector will probably say on it what it is. Maybe an AMP connector.
- Posts
- 2,427
- Location
- Isle Sheppy
Thanks I’ve tried taking a pic then magnifying it but couldn’t see much will try your advice
- Posts
- 3,855
- Location
- Near Heathrow.
Same connector type are used all over the car, but with different pin numbers. There are probably UK suppliers, but maybe it's this one from China ?
https://www.alibaba.com/product-detail/AMP-175967-2-automotive-iso-wire_60820885204.html
After you unclip the rear retainers that hinge out, push the terminal into the housing, and then use jewellers screwdriver to release the tab. Then pull the wire & connection out.
The usual problem is loose socket contacts, so they are intermittent on the pins on the other side.
https://www.alibaba.com/product-detail/AMP-175967-2-automotive-iso-wire_60820885204.html
After you unclip the rear retainers that hinge out, push the terminal into the housing, and then use jewellers screwdriver to release the tab. Then pull the wire & connection out.
The usual problem is loose socket contacts, so they are intermittent on the pins on the other side.
- Posts
- 2,427
- Location
- Isle Sheppy
Cheers pwood999 just ordered a few from a uk site from that part number I’ve got the car starting and running properly now but I will replace that plug with new just in case
- Posts
- 3,855
- Location
- Near Heathrow.
Share the link for the UK site.
- Posts
- 2,427
- Location
- Isle Sheppy
I haven’t got a link but the companies called farnell whack that in google and you will find them they do loads of connectors
- Posts
- 3,855
- Location
- Near Heathrow.
Yes I use Farnell for all sorts of stuff, but they have hundreds of multi-way connectors
Connector Part number perhaps? It should be you email from Farnell when you ordered.
Connector Part number perhaps? It should be you email from Farnell when you ordered.
- Posts
- 2,427
- Location
- Isle Sheppy
Oh sorry I put in part number from the Chinese ali ba ba site link and got it AMP 175967-2
- Posts
- 3,855
- Location
- Near Heathrow.
Cool. Next question is whether it has the correct key-ways & fits the socket.
- Posts
- 2,427
- Location
- Isle Sheppy
Will check it out hold on
- Posts
- 2,427
- Location
- Isle Sheppy
Don’t waste your money on them connecters they don’t fit in the binacal
- Posts
- 12,601
- Location
- Sud ouest France !
https://www.rs-online.com/
these may have them?
these may have them?
