2.25 Diesel engine mounting brackets

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
W

Webley1991

Well-Known Member
Posts
2,579
Location
London
Can anyone here sell me one of these brackets?

I nicked the photo from someone's ebay auction.

I got the top one Peterborough, now I need the one in the red box. I can't seem to find one anywhere.

Also, can you still get genuine Land Rover rubber mounts? The ****part ones I used last time seem to have come apart in less than a year.

Thanks for any info.


Attachments

  • mounts1.JPG
    32.8 KB · Views: 897
Last edited:

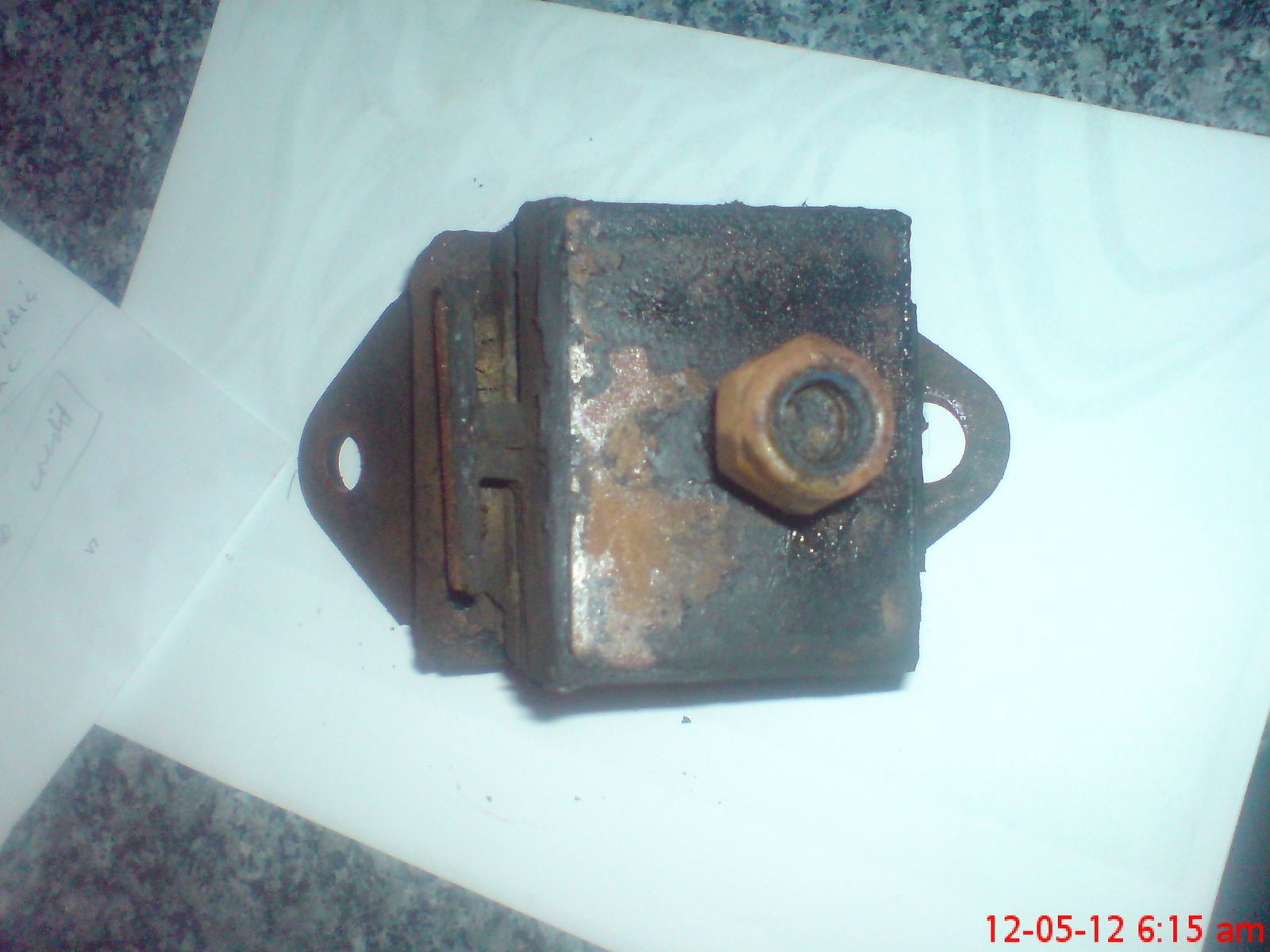

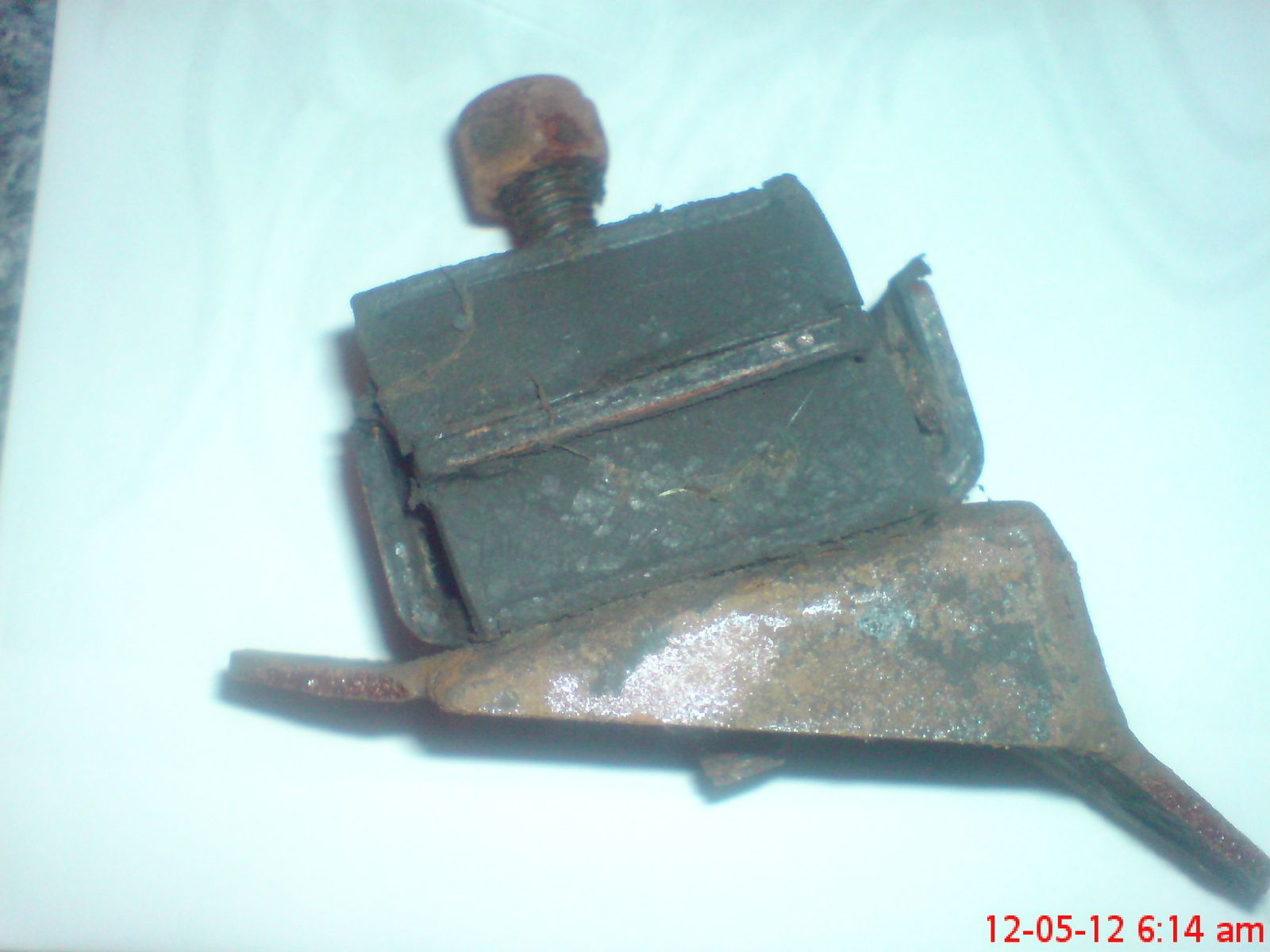

the bracket is not a gear box mounting but the same as my 1957 series 1 diesel engine mounting drivers side


Attachments

  • DSC01395.JPG
    121.4 KB · Views: 359
  • DSC01398.JPG
    151.8 KB · Views: 340

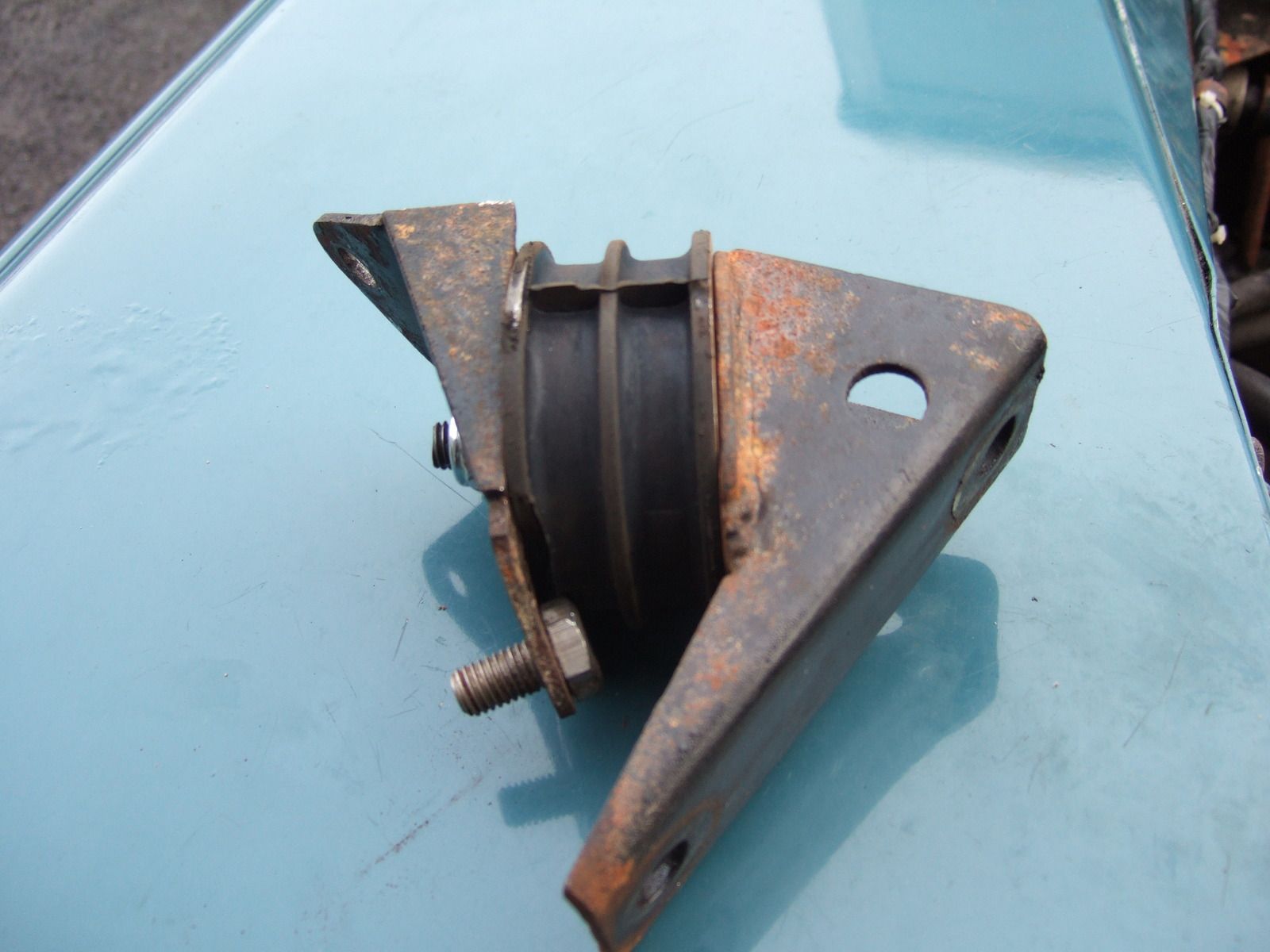

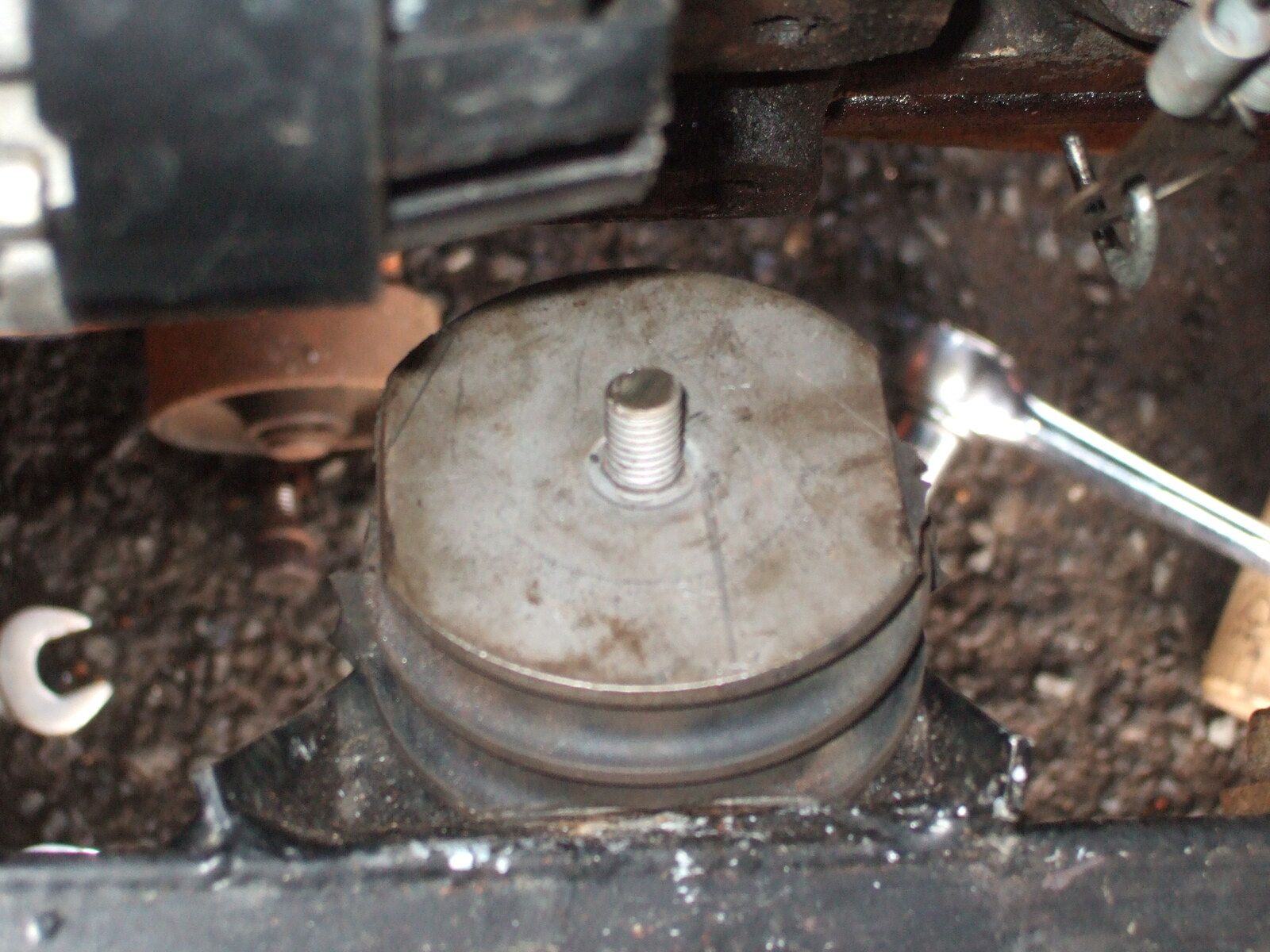

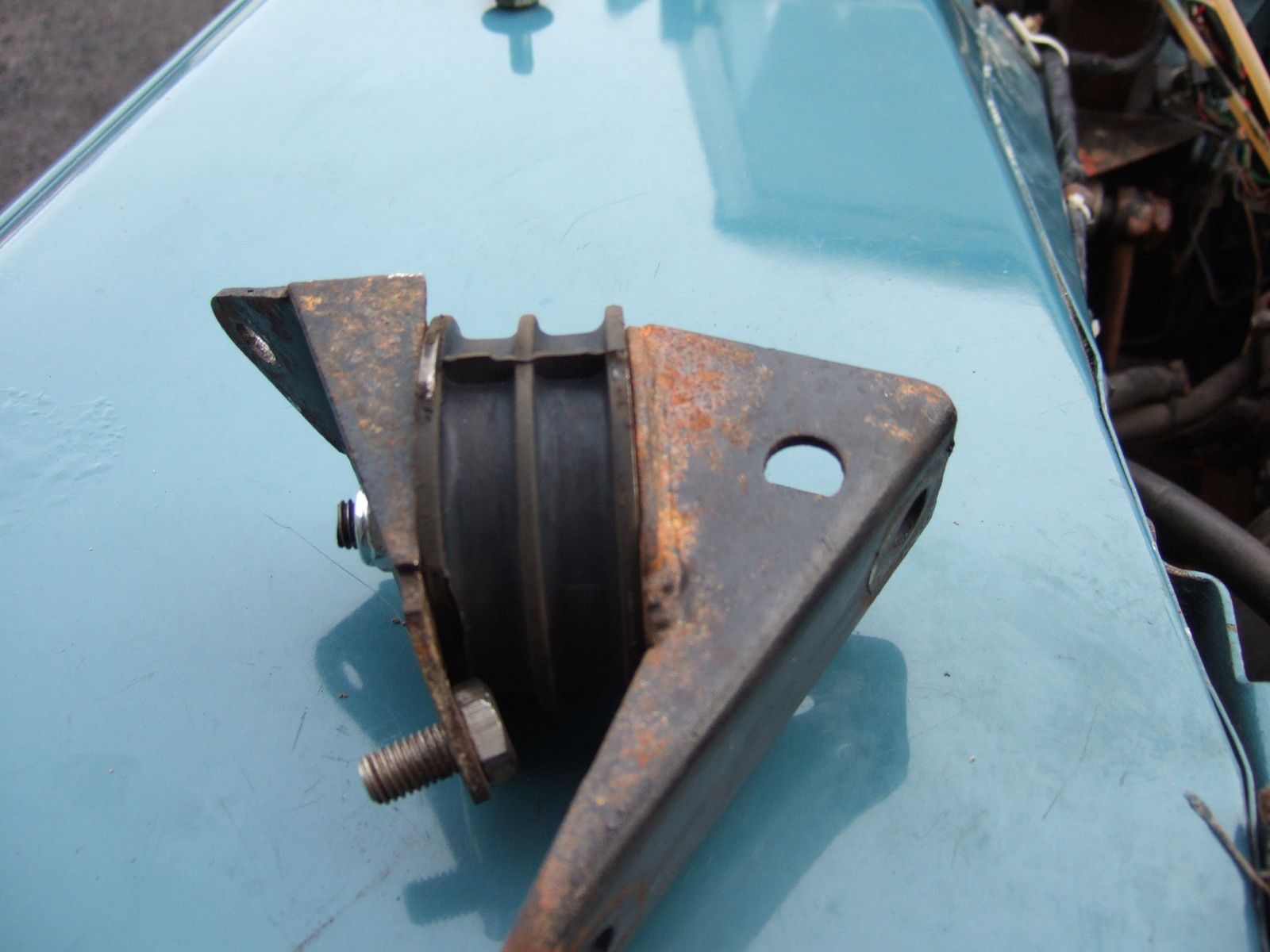

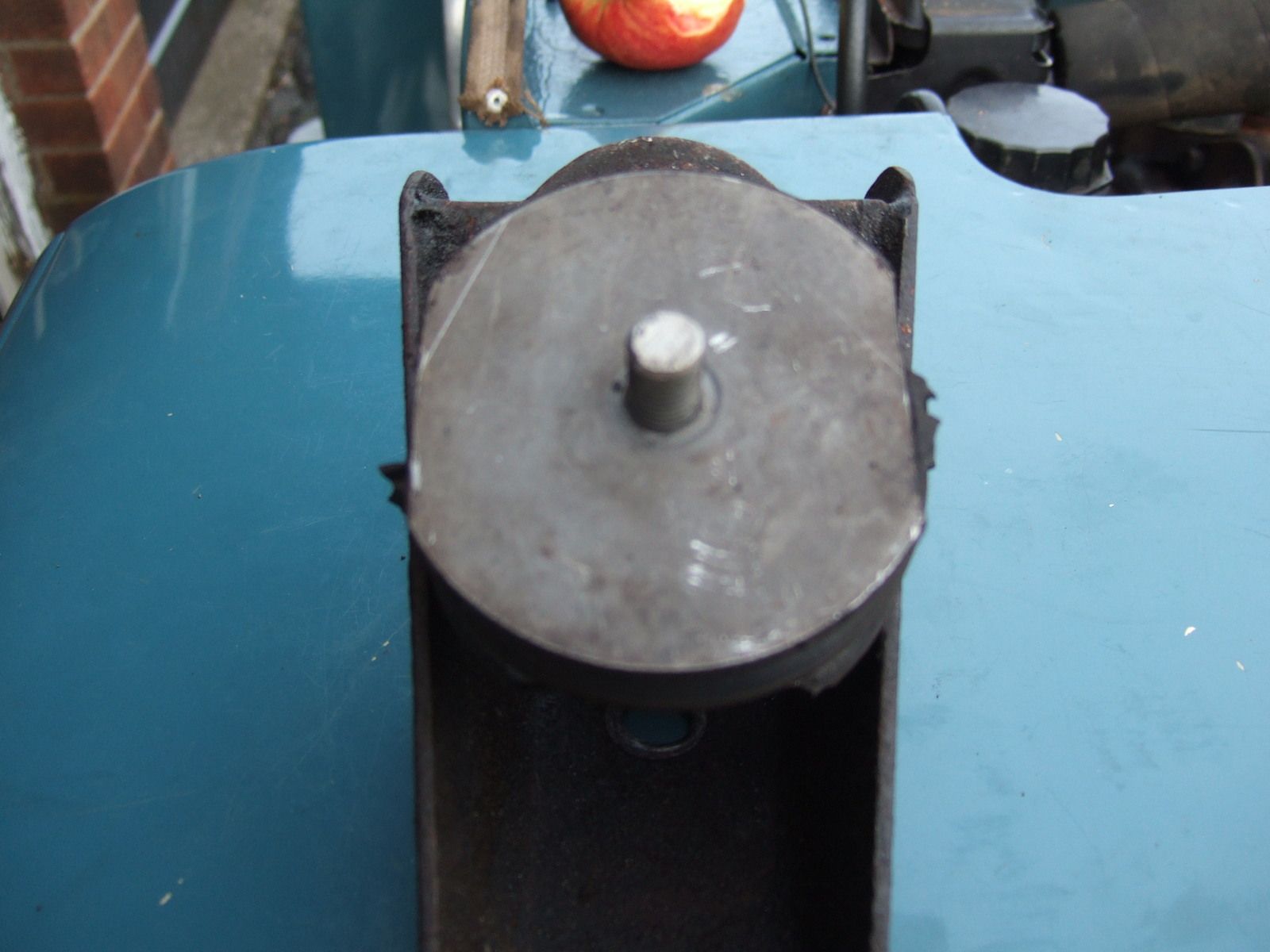

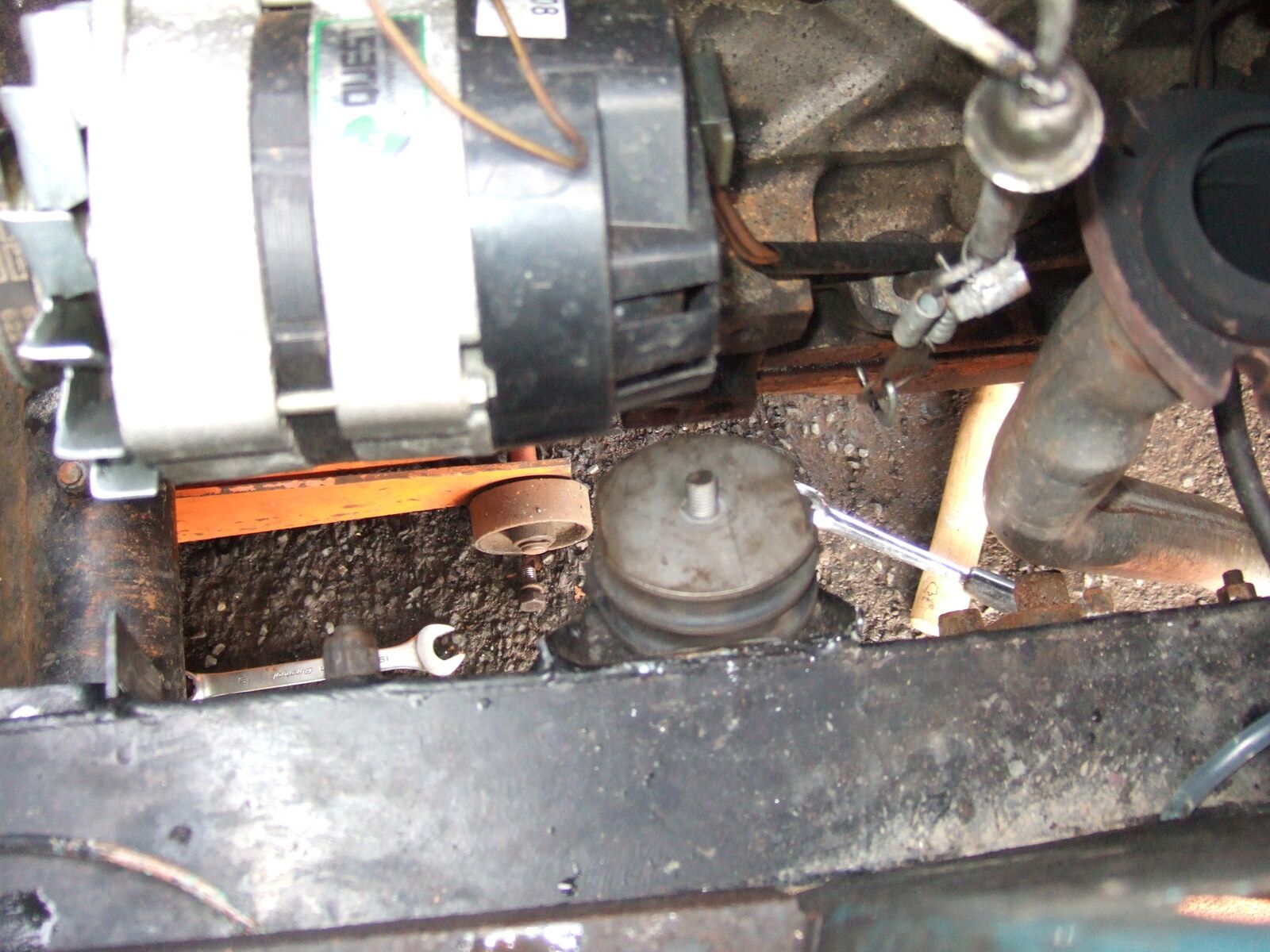

Must be slipping had a look at my photos of engine mounts see attached , this was a conversion to fit defender rubbers recommended by Glencoyne engineering and bought via them [rubbers had to be cut down a little but reduced vibrations now have a 200di fitted ].The one with the bracket is drivers side passenger side does not have one.


272506 ENGINE MOUNTING BRACKET ADAPTER | shop | www.lrseries.com | L. R. Series
Do you have a parts PDF? page 54 if not I can send you a location to download.
Link to Glencoyne shop http://shop.glencoyne4x4.com/engine-conversion-parts-8-c.asp

Last edited:
Thanks for the reply.

I like the idea of using modified Defender rubbers, genuine ones are probably a lot easier to get.

Now just to actually get one of those pesky brackets.

I have tried downloading the parts PDF a couple of times before but it hasn't worked. My internet is slow and my PC isn't that great.

To resurrect an old thread: Do all of the Defender rubbers need modification or just the one attached to the bracket discussed in this thread?

Drivers side needs a flat cutting on small bracket side where bolt goes in.
Passenger side needs one flat on base chassis side and two at 90 deg for engine mount.



While since I did it but becomes obvious once you have them in your hand.

Does anyone have access to a passenger side engine mounting for a 2.25 Diesel. If possible, I would like to know the measurement between the two sides of the bracket (where the rubber mount fits into). Once I have this, I can cut the mounts down accordingly.

Thanks for any info.
