110 rear crossmember

Wilddog4x4 · Feb 29, 2020

Just about to cut the old crossmember off, I was just going to cut the wiring loom and solder it back together. But wondering if anyone has a better plan for the loom?

Cheers

mick the builder · Feb 29, 2020

Tie some wire to it and pull it back past the cut.pull it back through with the wire when you've finished.or pull it right through and put it back along chassis in a flexible conduit.

Gmacz · Feb 29, 2020

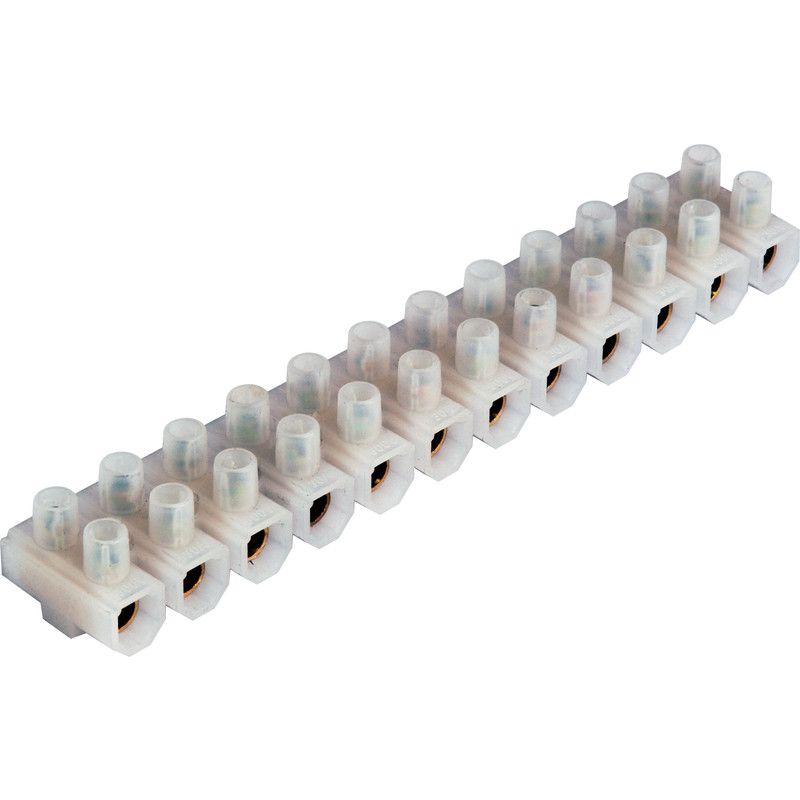

You either cut it or disconnect everything at the back. I just cut and used

To put it back together.
Solder and heat shrink would be much better.

lynall · Feb 29, 2020

Red or blue heat shrink crimps is what I used.
I also ran it down the top of the chassis, just for easy future access.

frog hopper · Feb 29, 2020

Run mine along top of chassis leg in flexy conduit.
Top tip -- feed in a couple of spares while your doing it, already had a use for one feeding a rear power point.

Wilddog4x4 · Mar 1, 2020

frog hopper said:
Run mine along top of chassis leg in flexy conduit.
Top tip -- feed in a couple of spares while your doing it, already had a use for one feeding a rear power point.

That's a great idea, thanks.

tottot · Mar 1, 2020

When I did my series I abandoned the old tatty cables and ran a length of 9 core heavy trailer cable along the top of the chassis rail from the bulkhead to the rear.
