110 double cab

H

henda

Member

Posts

45

• Feb 19, 2006

• #1

had a 110 Hi cap pick up now for about a year i am going to attempt to change it into double cab using a 110 station wagon body. Has anyone heard of this being done or better still has anyone ever done it who knows what could happen once i get the angle grinder out.



yella

New Member

Posts

15,991

Location

outside cos every fookers in me shed and theres no

• Feb 19, 2006

• #2

a man after my own heart. i bet you have a lazy tongue pop riveter too



H

henda

Member

Posts

45

• Feb 19, 2006

• #3

The amount of pop rivits that will be goping in this it may well have to be a pneumatic one and a 4 stone bag of rivits to go with it...



vossie

New Member

Posts

54

Location

Johannesburg South Africa

• Feb 20, 2006

• #4

no angle grinder needed, its all bolts,nuts and like they said a few pop rivets. The biggest task to convert a station wagon into a double cab is to fit the bulkhead behind the back seat, the rest should be straight bolt-off bolt-on.



H

henda

Member

Posts

45

• Feb 20, 2006

• #5

Vossie
Is the holes and everything there to fit the bulk head to or do you have to make up brackets and have you altered a station wagon into a double cab?



adafish

New Member

Posts

77

• Feb 21, 2006

• #6

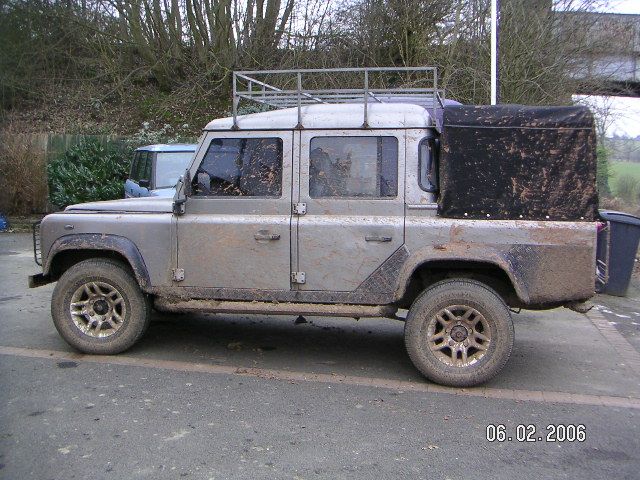

Mine was once a CSW....but the bloke i brought it off done the conversion..its a very good job.....if you need photo's let me know.it can only help.....The problem he had, i think,was the roof. To buy a proper one was a fortune, but they made one.Also getting the rear headlining was hard to come by, but eventually got one from LIVERIDGE 4X4.....



Attachments

•
  poppies 3rd 001.jpg

  87.7 KB · Views: 7,077

yella

New Member

Posts

15,991

Location

outside cos every fookers in me shed and theres no

• Feb 21, 2006

• #7

that looks well nice ada, its not brit spec though is it. where are you based old matey



adafish

New Member

Posts

77

• Feb 22, 2006

• #8

Based in Atherstone, North Warwickshire.......The car was built for a certain Rock Star who had a hit back in the 90's that lasted 20 odd weeks at no. 1.........



H

henda

Member

Posts

45

• Feb 22, 2006

• #9

Adafish thats exactly what im after looks excellent, do you not fancy swapping so you can have the experience of building one, wouldnt mind some photos to keep me on the right track cause once i get started taking bits off it may have to be a pick up.



adafish

New Member

Posts

77

• Feb 22, 2006

• #10

let me know which part you want photo-in.....its just a click away



yella

New Member

Posts

15,991

Location

outside cos every fookers in me shed and theres no

• Feb 22, 2006

• #11

adafish said:

Based in Atherstone, North Warwickshire.......The car was built for a certain Rock Star who had a hit back in the 90's that lasted 20 odd weeks at no. 1.........

Click to expand...

is he a canadian



H

henda

Member

Posts

45

• Feb 23, 2006

• #12

Hi adafih, could you photograph the rear bulkhead from inside and out also the roof section at the rear inside and out, would be much appreciated you could email them to me at [email protected] cheers.



adafish

New Member

Posts

77

• Feb 23, 2006

• #13

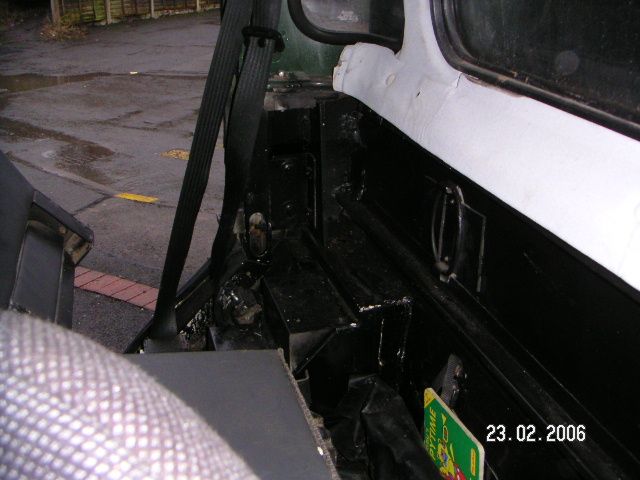

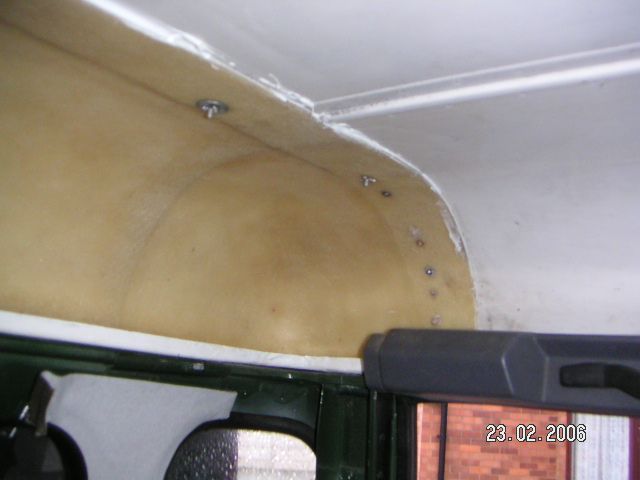

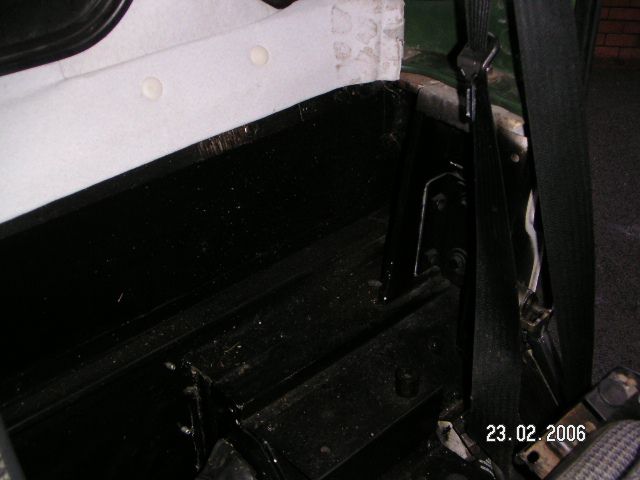

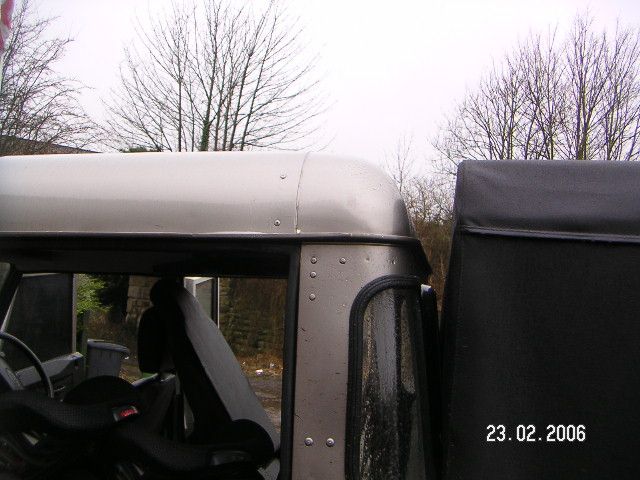

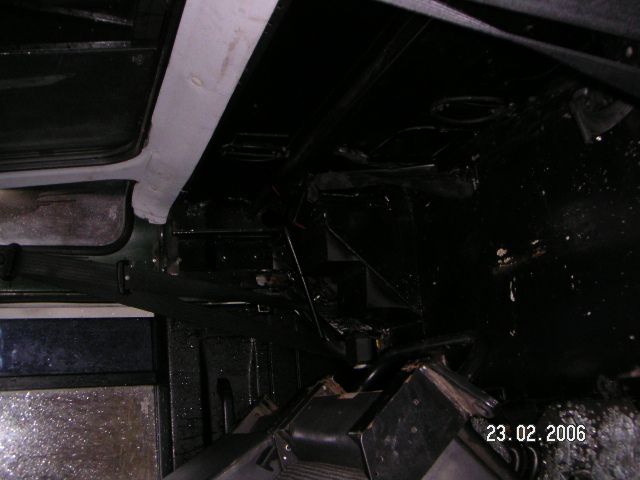

AFTERNOON....RIGHT ...managed to get some photo's done, hope it helps...In the process of doing so, the high back seats i have in the back fell and went thro the rear truck cab glass......"OH DEAR AND BLAST" i said..these things are sent to try us..if you need any more let me know....ADA



Attachments

•
  truck cab 001.jpg

  32 KB · Views: 337
•
  truck cab 002.jpg

  27.7 KB · Views: 361
•
  truck cab 003.jpg

  44.4 KB · Views: 329
•
  truck cab 005.jpg

  55.9 KB · Views: 350
•
  truck cab 007.jpg

  34.9 KB · Views: 366

H

henda

Member

Posts

45

• Feb 23, 2006

• #14

Cheers Ada, Sorry about your back window, wondered why my ears where burning, hope you can sort it without much trouble or cost. Photos are spot on, they have made a very good job of the roof,hope mine looks as good when im done. thanks again.
