110 300Tdi fuel tank outlet

D

drfoster

Well-Known Member

Posts

258

Location

Wolverhampton

• Yesterday at 17:10

• #1

Hi there,

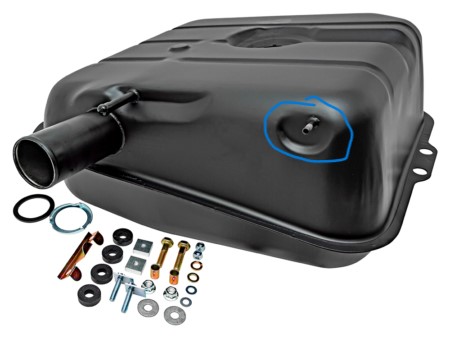

looking to fit a diesel heater and need to a take a feed from the main tank, yes i could t-piece it but is the pipe shown circled in blue on the picture below a take-off, say for an optional heater, or is it a breather. it appears to be blanked off on mine and all the spares schematics show a bolt that covers it. i'm hoping its a take off that i can re-use.

cheers all

Steve



Attachments

•

  33.1 KB · Views: 20
•

  29 KB · Views: 19

Seaswood

Active Member

Posts

219

Location

Falmouth New England

• Yesterday at 18:23

• #2

That is I believe for the return line if I remember correctly.



dag019

Well-Known Member

Posts

6,031

Location

Warwick

• 55 minutes ago

• #3

drfoster said:

Hi there,

looking to fit a diesel heater and need to a take a feed from the main tank, yes i could t-piece it but is the pipe shown circled in blue on the picture below a take-off, say for an optional heater, or is it a breather. it appears to be blanked off on mine and all the spares schematics show a bolt that covers it. i'm hoping its a take off that i can re-use.

cheers all

Steve

Click to expand...

It is indeed a return for the senders that don't have the inbuilt return. I don't think you will easily get another pickup without modifications as nothing else goes to the bottom of the tank.



L

lynall

Well-Known Member

Full Member

Posts

25,649

Location

Kent

• 53 minutes ago

• #4

Ebay diesel heater stand pipe, cheap.



D

drfoster

Well-Known Member

Posts

258

Location

Wolverhampton

• 46 minutes ago

• #5

lynall said:

Ebay diesel heater stand pipe, cheap.

Click to expand...

i'll do a search, the heater came with a pickup but i'd need to drill a hole in the tank or in the fuel pickup at the top of the tank to fit the pickup
