Hi, my drive belt snapped on sat , got a new one but having trouble fitting it, have i got to take out the rads and everything to do it, cant seem to access the tensioner as its behind the fan , following diagram of belt installation but struggling, anyone got an answer?
03 disco td5 drive belt
- Thread starter gazza123
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
hi, if you remove the radiator cowl then using a 36mm fan spanner remove the fan, it helps if you have an assistant wedge the crank pulley so it cant move, once fan is off use a 15mm socket on a long bar to take the pressure off the belt tensioing pulley then then thread new belt around the pulleys following photo in haynes book for correct routing, the hardest part is getting the fan off, i hads to use a lump hammer on the spanner to crack the nut.
Alistair Davidson
Member
- Posts
- 48
- Location
- Seattle, USA
Anyone got a better diagram than this. changing a disco td5 engine into a defender (no ACE, no AC)
so just need a belt diagram for crank pully, tensioner, fan pully, pas pump/waterpump pully. Thats it.

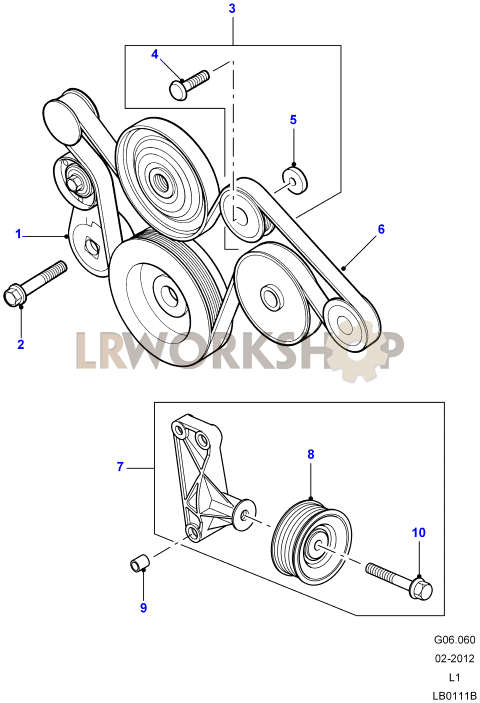

Seems this is closest thing but not labeled and seems to have an extra pully at top.
so just need a belt diagram for crank pully, tensioner, fan pully, pas pump/waterpump pully. Thats it.
Seems this is closest thing but not labeled and seems to have an extra pully at top.
sierrafery
Well-Known Member
- Posts
- 17,742
- Location
- Arad/Romania
No better diagram than that, the "extra pulley" at the top is the idler instead of the aircon compressor, this one https://www.island-4x4.co.uk/idler-less-britpart-err6493-p-27710.html, the other (nr.7) is instead of the ACE pump(ERR6949)... both are compulsory to fit the PQS101490 belt
