DISCO 2 No Communication with SRS

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
KernsArt55

KernsArt55

Member
Posts
11
Location
Kingman, Arizona USA
Hi, I joined in March 2024 and have been learning about my 2003 Discovery 2 SE, many thanks to everyone who has posted here. With my manual, o-scope, and OBD2, I have ventured into the insanity that is my 2003 Discovery 2 SE. I have conquered the 3 amigos, and now have only the SRS light on, and my OBD2 tells me that it's not able to communicate with the SRS unit. Any ideas on where to go from here? HELP!!!

The first thing to do is to check the power & ground connections to it - including pin grip at the connector.

Graculus said:
The first thing to do is to check the power & ground connections to it - including pin grip at the connector.
Click to expand...
Thank you for your answer, but where is it located? I'm new to this, and I'm not sure about pin grips and connectors. I'm a little wary of the SRS, because I get the feeling that it might set off the airbags if I go poking around with a probe... or am I just imaging too much of the outcome?!! BOOM, is not something that I want to hear! LOL

sierrafery said:
Hi, what kind of diagnostic tool do you have? cand you select the vehicle modell and the system you want to scan or it's a generic OBD2 reader which gives you that message?
Click to expand...
I have a Zurich 11, and I've installed a software update. It does select model and system scans. It's told me that it's unable to communicate with the SRS.

KernsArt55 said:
I have a Zurich 11, and I've installed a software update. It does select model and system scans. It's told me that it's unable to communicate with the SRS.
Click to expand...
Then as Graculus suggested you must make sure that the SRS ECU(DCU) has power, first of all check fuse F35 interior fusebox and if it's OK you'll have to get with multimeter to the DCU and measure across pins 14 -15 in it's connector(C0256) unplugged with ignition on, if there is power the DCU is suspect or it's an interruption on the diagnostic line between that connector(pin 9) and the header(C0286) where the K line splits to all the ECUs, that's very hard to access cos it's wrapped into a harness under the dash so eventually splice in with a wire into the the pink one there and into the pink at the OBD socket and if still no comms that way replace the DCU (google out YWC106200 known good sh ones are cheap on ebay). Good luck


sierrafery said:
Then as Graculus suggested you must make sure that the SRS ECU(DCU) has power, first of all check fuse F35 interior fusebox and if it's OK you'll have to get with multimeter to the DCU and measure across pins 14 -15 in it's connector(C0256) unplugged with ignition on, if there is power the DCU is suspect or it's an interruption on the diagnostic line between that connector(pin 9) and the header(C0286) where the K line splits to all the ECUs, that's very hard to access cos it's wrapped into a harness under the dash so eventually splice in with a wire into the the pink one there and into the pink at the OBD socket and if still no comms that way replace the DCU (google out YWC106200 known good sh ones are cheap on ebay). Good luck

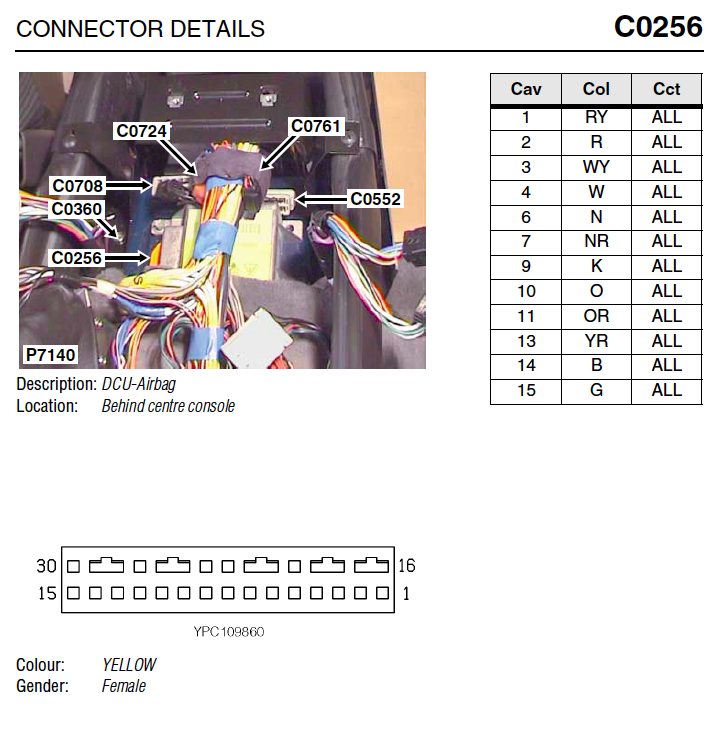

View attachment 315928
Click to expand...

Wow! I can't begin to thank you enough for your reply. You have saved me so much time and effort, because (unless I am mistaken) there is no colour-coded electrical schematics in the repair manual. It's hard enough chasing couplers and pins. Again, I thank you!

sierrafery said:
Then as Graculus suggested you must make sure that the SRS ECU(DCU) has power, first of all check fuse F35 interior fusebox and if it's OK you'll have to get with multimeter to the DCU and measure across pins 14 -15 in it's connector(C0256) unplugged with ignition on, if there is power the DCU is suspect or it's an interruption on the diagnostic line between that connector(pin 9) and the header(C0286) where the K line splits to all the ECUs, that's very hard to access cos it's wrapped into a harness under the dash so eventually splice in with a wire into the the pink one there and into the pink at the OBD socket and if still no comms that way replace the DCU (google out YWC106200 known good sh ones are cheap on ebay). Good luck View attachment 315928
Click to expand...
sierrafery said:
Actually as your's is 2003 downolad this https://smallpdf.com/file#s=44ee0b76-9fcf-41a1-9218-0056a0d61e9e and if you know to work with diagrams, follow the circuit through connectors in the diagram then you find the connector view like the one i posted with C0256 in the "electrical library" . Good luck
Click to expand...
KernsArt55 said:
many thanks, you have saved me from so much work!!!
Click to expand...
sierrafery said:
Actually as your's is 2003 downolad this https://smallpdf.com/file#s=44ee0b76-9fcf-41a1-9218-0056a0d61e9e and if you know to work with diagrams, follow the circuit through connectors in the diagram then you find the connector view like the one i posted with C0256 in the "electrical library" . Good luck
Click to expand...

sierrafery said:
Actually as your's is 2003 downolad this https://smallpdf.com/file#s=44ee0b76-9fcf-41a1-9218-0056a0d61e9e and if you know to work with diagrams, follow the circuit through connectors in the diagram then you find the connector view like the one i posted with C0256 in the "electrical library" . Good h
Click to expand...
I checked fuse 35, and it wasn't there. I installed a 10 amp fuse and all my problems were gone! Thank you again for your time and help! No more warning lights on my dash!
