Finished the dual battery system albeit with a slight issue, changed the wiring so that the alarm is fed off either battery :D, fitted a new front wiper switch to the motor, moved the alarm siren, new front wiper blades and new rear washer pump albeit with another slight issue.

Should get the slight issues done tomorrow and a few more jobs.


Attachments

  • image.jpg
    134.9 KB · Views: 197
cowasaki said:
Finished the dual battery system albeit with a slight issue, changed the wiring so that the alarm is fed off either battery :D, fitted a new front wiper switch to the motor, moved the alarm siren, new front wiper blades and new rear washer pump albeit with another slight issue.

Should get the slight issues done tomorrow and a few more jobs.
Click to expand...

Ide fit a couple diodes on each wire if the batteries are split otherwise you might get drain.

cowasaki said:
diodes where? The batteries are disconnected from each other when the power goes down
Click to expand...

Oh ok, that should be fine then, its only really if they are left with any cconnection. Is the alarm fed directly from the battery's or after where they are joined/disconnected?

discomark10 said:
Cant tell without knowing the exact setup, ide just wait n see if it drains.. if it does just put a diode on each feed.
Click to expand...

Thanks. The only electrical connection between the two batteries is a 200 amp relay. When the relay de-energises there is no connection at all. The alarm, interior light, stereo, work lights & spots all power directly from the 2nd battery so when the ignition turns off they have no way of drawing power from the starter battery.

cowasaki said:
Thanks. The only electrical connection between the two batteries is a 200 amp relay. When the relay de-energises there is no connection at all. The alarm, interior light, stereo, work lights & spots all power directly from the 2nd battery so when the ignition turns off they have no way of drawing power from the starter battery.
Click to expand...
just be carefull that the solenoids are rated for continual use

I took off the origanal front bumper this evening and replaced it with a winch bumper, will hopefully fit the winch in a few days ,

any one got any ideas where i might put the number plate as the center place is now taken up by the winch

steve

Got it back from the welder :)

Now have much bare metal to paint over the weekend, seats to install etc. BUT it's on the road for Christmas :D

Where's that snow?

Well three jobs finished today!

Fixed the button for the rear wash, now both washers work
Rewired the dual battery system's switch wire to ignition through a switch - now fully working
PaulMc managed to get hold of 2011 electric window plugs so now both the electric windows are working
Connected electric window motor to total closure system so alarm closes both both windows and locks doors.
Fitted the passenger side door trims.

Whoooo it is much nicer now :D

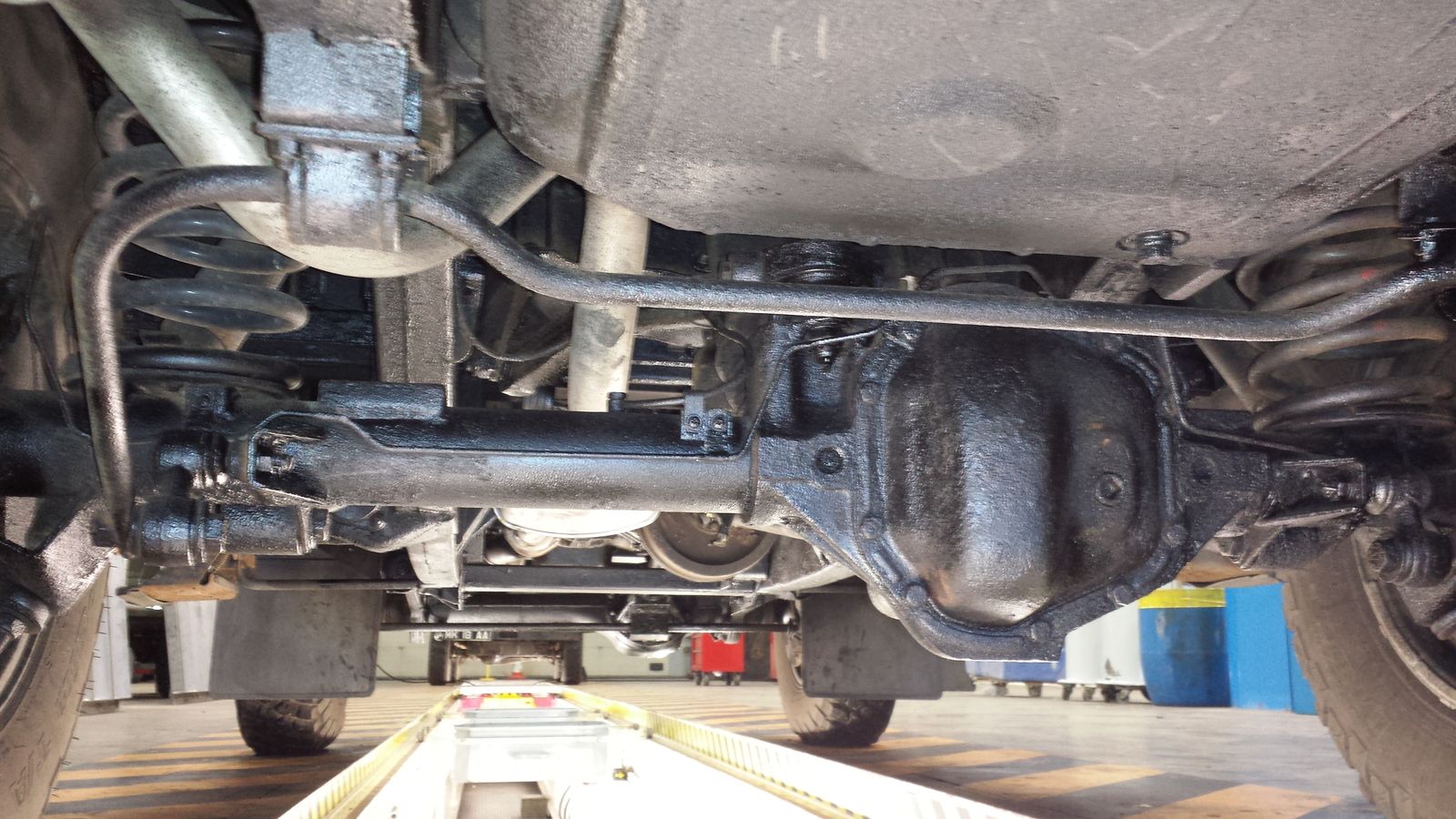

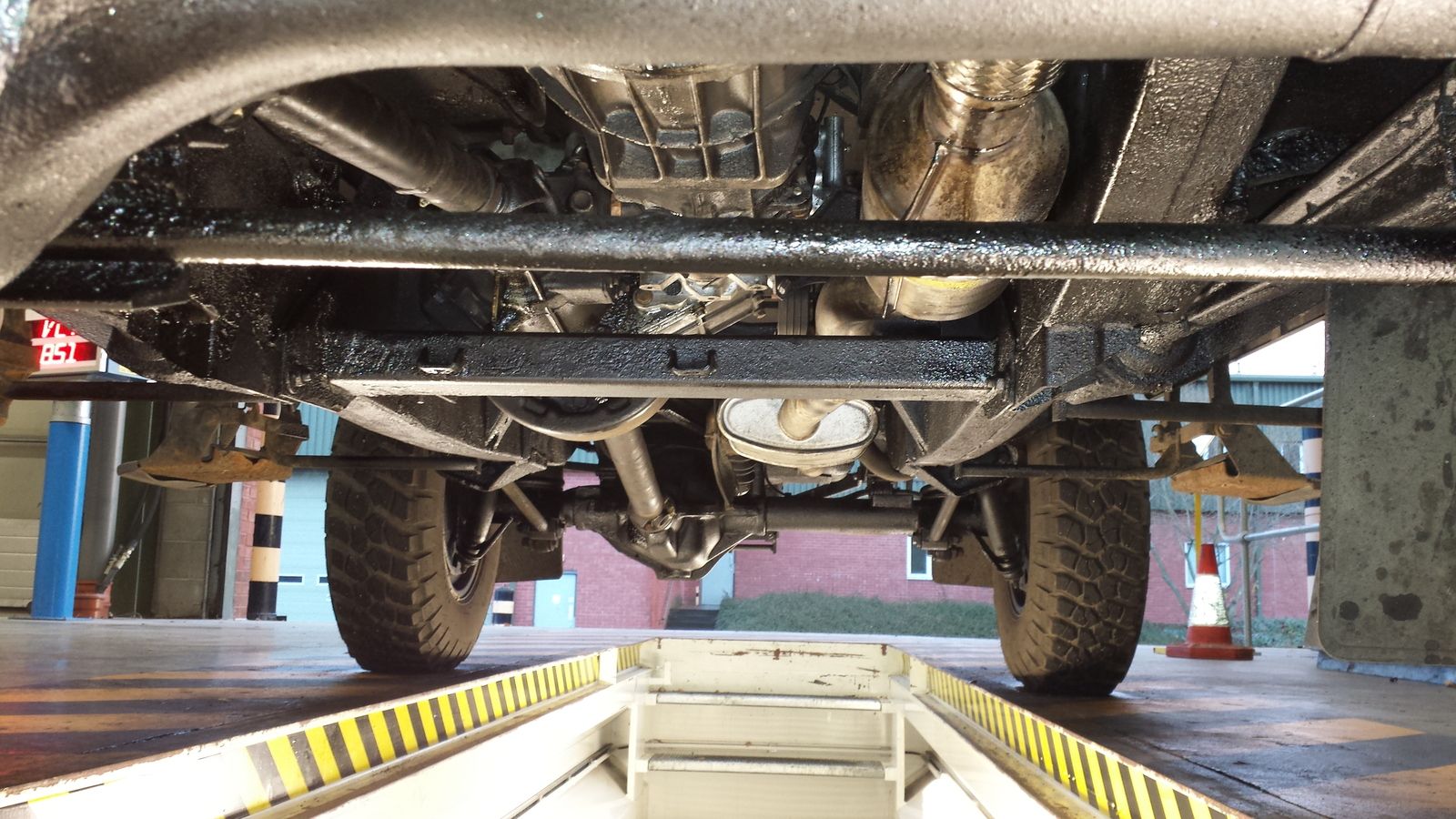

Well washed then wire brushed the chassis down. Then 3 cans of tetra schultz. Sanded the cross member down and a wee spray of hammerite. Keep the orange stuff at bay!


Attachments

  • 20131219_085149.jpg
    263 KB · Views: 167
  • 20131219_085121.jpg
    252.2 KB · Views: 159
Pulled a car outta a ditch this morning. Young lass slid on the ice on a bend outside camp site
