Thinking better, you should check that F3 though cos i just realised that if you run a wire from battery directly to the coil the pump and ECU(both fed by F3) will get the feed from that wire from battey through S292/HJ7 as in the diagram i attached previously
To help us all, you do mean that the car runs fine if you leave this connected, don't you?
And secondly, in view of the above, is it still connected to the original wire or did you disconnect that and replace it with the jumper wire?
sierrafery
Well-Known Member
Not so funny cos if the ignition switch's pos 2 was interrupted as you suspected first i really doubt that the car could "run fine" with a wire from battery to coil cos that 10A fuse should blow instantly by backfeeding the whole vehicle's electrics and then nothing would have power except the coil, ECU and pump
.... i didnt want to butt in to ruin the ignition switch theory but IMO it's not the case here.
I don't honestly think it's the ignition switch either hence what I said about where to start testing and then where to continue. When this sort of thing has happened to me it has been a wire elsewhere rubbing through or breaking. or a connector coming apart.Not so funny cos if the ignition switch's pos 2 was interrupted as you suspected first i really doubt that the car could "run fine" with a wire from battery to coil cos that 10A fuse should blow instantly by backfeeding the whole vehicle's electrics and then nothing would have power except the coil, ECU and pump
If the fuel pump and ECU are running fine then I imagine the break is in the wire after that junction between it and the coil.
His answer to post 24 will clarify.
discool
Well-Known Member
That was because the “link” was in place
Correct but only position 2 which doesn’t provide power to the starter relay thats position 3.
There’ no mention of what the did with the link, but removing the link the engine would stop… but as you lack the knowledge on the EFI engine etc etc.
Correct
I thought it would would be a one post reply from you, well maybe two but you’re sill in a non- technical waffle with more post.
As for Marjon he uses some logic in his technical replies and also without the waffle.
I fill sorry for you
Why on Earth are you talking about position 3? No one ever mentioned the starter motor, neither of the two posters with the problems nor anyone else. Just you. He basically said that he could start it with the key but only if the jumper was applied to the coil. No need to jump the starter motor, where on earth did you get that from?That was because the “link” was in place
Correct but only position 2 which doesn’t provide power to the starter relay thats position 3.
There’ no mention of what the did with the link, but removing the link the engine would stop… but as you lack the knowledge on the EFI engine etc etc.
Correct
I thought it would would be a one post reply from you, well maybe two but you’re sill in a non- technical waffle with more post.
As for Marjon he uses some logic in his technical replies and also without the waffle.
I fill sorry for you
You've been forced to backtrack from the "power is good to the coil" as it obvs isn't but you aren't big enough to admit it. If it was then the poster wouldn't have a problem!
If he removes the link from the batt+ive to the coil the engine stops, obvs, no power=no sparks. Nothing to do with the Efi etc.
I'm not the one who needs anyone to feel sorry for them.
I've wired up enough kit cars and worked on enough others to be able to get well by and fault find on others. This problem is a basic one and will not prove to be hard to solve. Nothing to do with EFi.
You are just trying to muddy the waters.
discool
Well-Known Member
Of course the coil has an electrical connection to the EFI ECU.
Why ii’m sure u know why… as u say u own a 3.9.
I hope you will show that u have more M&E knowledge in your future posts but I doubt it.
I haven't seen much so-far since u joined landy zone.
Your ego is the problem mate.Of course the coil has an electrical connection to the EFI ECU.
Why ii’m sure u know why… as u say u own a 3.9.
I hope you will show that u have more M&E knowledge in your future posts but I doubt it.
I haven't seen much so-far since u joined landy zone.
You still can't admit when you make a mistake. Instead you try to introduce stuff that has nothing to do with what anyone else has posted. It's called "whataboutery" by some. Like trying to bang on about position 3 and the starter motor, ffs.
You are quite a wise old bird and you do know stuff, but you don't know everything. Nor do I but the difference is that I don't have the ego problem so I can admit it when I get it wrong or don't know the answer.
I'd hate to have to walk in your shoes.
Anyway a personal argument on this thread really isn't helping the OP and the other guy with their problems, so why not just try and be helpful instead of picking a fight?
And I have built more cars and probably worked on more than you ever have. So my mechanical knowledge is very sound if a little old skool, but, as you'll know if you follow my posts, I am not so "up" in modern highly electronic system laden stuff, but I readily admit that and bow to the knowledge of others. Being very grateful when they help me with it.
AllanWorms
Well-Known Member
On the positive side of the coil should be 3 wires - one for the RF suppressor, one to the ignition module and one is the power feed from the ignition switch circuit to power the coil and ignition module. ARE THEY ALL THERE?
It could be something as silly as the power wire fell off
Forget about anything else - just that one feed needs checking.
Your "spider" bypass may be faulty and interrupting that feed;
You may have a blown/missing fuse;
You may have a broken wire.
etc
It could be something as silly as the power wire fell off
Forget about anything else - just that one feed needs checking.
Your "spider" bypass may be faulty and interrupting that feed;
You may have a blown/missing fuse;
You may have a broken wire.
etc
For clarification, all cables are left attached. I used another cable and jumped the battery to the coil. if this cable is removed the car dies.
without the said jumper cable the car cranks, we seem to have fuel but no spark.
originally we believe this to be a spider unit, so a bypass was bought. turns out it already had a spider bypass, but we tried the new one anyway.
I will go over all the things suggested and hopefully I can leave you guys with the fix.
Thanks for the help!
So you have told us that the cable to the coil/fuel thingy is only working for the fuel.
Can we take it that the rest of the car's electric systems are working fine?
If so then the break must be between the coil and where the cable divides to go one bit to the coil and the other bit to the fuel management system. so that has saved you time looking in the wrong place.
Brilliant!
Happy hunting!
sierrafery
Well-Known Member

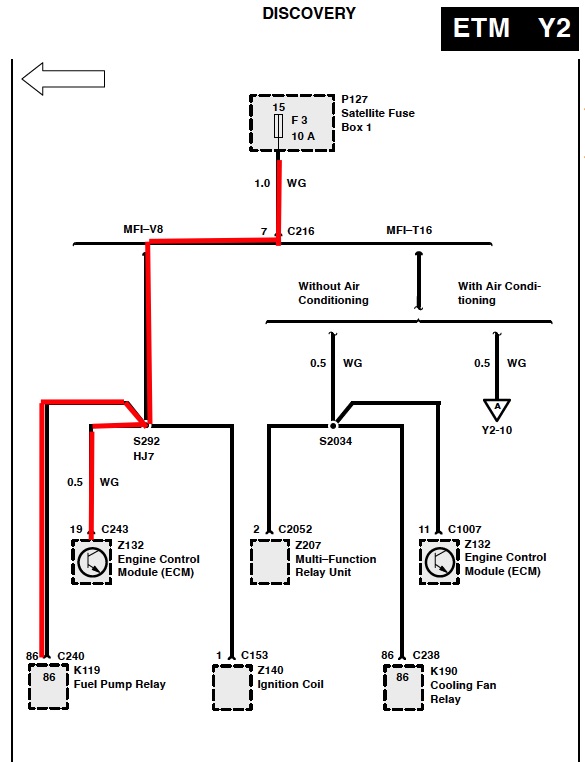

If the fuel pump is running and the EML goes out without that jump lead from battery to coil then the problem is between that split point HJ7 and the coil as the rest from F3 to pump and ECU has power(shown with red)
