All engines produce water vapour while running. It can't be helped as it's a byproduct of combustion. The ratio is close to 1 to 1. So effectively every litre of petrol burned at the stoichiometric ratio produces just over 1 litre of water.
Some engines are better at venting the crank case of excess water than others. The KV6 is quite bad if only used for very short trips. Hence over continuous short trip. Lots of mayo can build up, giving the impression of something more sinister.
If journeys of more than 10 or 15 miles are done regularly, there should be minimal mayo.

Thanks for the reply all. I am trying to put as many observations and data points to help others in case I ever solve this.

Nodge68 said:

All engines produce water vapour while running. It can't be helped as it's a byproduct of combustion. The ratio is close to 1 to 1. So effectively every litre of petrol burned at the stoichiometric ratio produces just over 1 litre of water.
Some engines are better at venting the crank case of excess water than others. The KV6 is quite bad if only used for very short trips. Hence over continuous short trip. Lots of mayo can build up, giving the impression of something more sinister.
If journeys of more than 10 or 15 miles are done regularly, there should be minimal mayo.

Click to expand...

Hi Nodge, I agree there is ample water produced by combustion processes, yet virtually all goes down the tubes (exhaust), - very little down the bores.
Surely the KV6 PCV system cannot be as bad as you describe if working as specification ?
With modern oils (I mean in the last 25 years ) and even a modest PCV the system should not generate mayo in very visible quantities in almost any condition.
If that is the case, then the design is suspect.
Even at low temperatures the emulsion is to all intents and purposes eliminated on a modern engine due to adequate air circulation from filter housing to crank case to inlet.
Condensation in itself is not sufficient to cause emulsion - in the same way that vehicle fuel tank condensation will never cause noticeable water in fuel. (noticable water in fuel comes from external sources)
Again, the KV6 must be very poorly designed in this area. Quite amazing really - but - it is Rover

The KV6 is a strange beastie.

When used mated to a manual box, it is fine. However bolting it to an auto box really affects the way it behaves.

True most water from combustion go down the exhaust, but some finds its way past the rings, into the crankcase.

This is where the problem is:
There are three breathers on the KV6 engine. There is a single larger vent/ admittance pipe. This is connected to the filter side of the TB via a small 8mm drilling.
The cam cover contains a gauss separator where this pipe enters the cam cover.
This gause can get restricted in time with solidified products of combustion.

There are two PCV pipes, one to each cam cover. These are T'd together and fed into a 2mm drilling in the inlet plenum. At times of high manifold depression the crankcase is supposed under partial vacuum. While the engine is used throughout it's entire rev range, all seems well. However if the engine is used with an auto box, things change. The box doesn't allow the engine to run up the revs, in the same way as a manual box can.
Also the Freelander KV6 is worked quite hard, which reduces manifold depression and increases blow-by at the same time.

To this is the slight design error with the right hand bank (front) PCV connection to the cam cover.
Basically the PCV pipe and vent / admittance pipe are next to each other.
This allows lots of stagnation of the crankcase gasses in the RH bank, because the fresh air in through the vent / admittance pipe, simply goes straight into the PCV and so moisture develops. The moisture then begins to emulsify in the vent pipes, reducing crankcase ventilation further.
The oil filler is also in the RH bank, so this is where mayo is first detected.

Nodge68 said:

The KV6 is a strange beastie.

When used mated to a manual box, it is fine. However bolting it to an auto box really affects the way it behaves.

True most water from combustion go down the exhaust, but some finds its way past the rings, into the crankcase.

This is where the problem is:
There are three breathers on the KV6 engine. There is a single larger vent/ admittance pipe. This is connected to the filter side of the TB via a small 8mm drilling.
The cam cover contains a gauss separator where this pipe enters the cam cover.
This gause can get restricted in time with solidified products of combustion.

There are two PCV pipes, one to each cam cover. These are T'd together and fed into a 2mm drilling in the inlet plenum. At times of high manifold depression the crankcase is supposed under partial vacuum. While the engine is used throughout it's entire rev range, all seems well. However if the engine is used with an auto box, things change. The box doesn't allow the engine to run up the revs, in the same way as a manual box can.
Also the Freelander KV6 is worked quite hard, which reduces manifold depression and increases blow-by at the same time.

To this is the slight design error with the right hand bank (front) PCV connection to the cam cover.
Basically the PCV pipe and vent / admittance pipe are next to each other.
This allows lots of stagnation of the crankcase gasses in the RH bank, so moisture develops. The moisture then begins to emulsify in the vent pipes, reducing crankcase ventilation further.
The oil filler is also in the RH bank, so this is where mayo is first detected.

Click to expand...

Excellent explanation Nodge. So the 'fresh air' inlet is from the atmospheric side of the TB in the filter housing (suitably small to alloy a slight pull down, and the vac is applied via the 2mm plenum orifice. ?
So if I read you correctly, they have teed the 2 outlets from the crank case to the single vac induced inlet on the plenum. however, they have allowed the atmospheric side of the fresh air inlet to be virtually alongside the cam cover 'outlet' effectively causing a short path bypass ... ooops
That was a bit of an oversight me thinks..
I used to laugh at some of the early systems where the 'outlets' (the pipes subjected to vacuum removal of gasses) were blocked via crud and the fresh air intake at atmospheric side of the TB effectively became an OUTLET for gasses pressurised by the combustion process. This led to huge quantities of crud and oily yuck to surround the filter - or in some cases - bathe it..
Not mentioning any names - errr - Ford - cough cough ............ Rover V8's on carbs.. cough cough..... Any Fiat (it would seem) prior to the Panda 2 era (circa 2003)

No wonder we used to just run a pipe to the 'world' - or if we were in real tree hugging mode (like the time I dated a Greenham common lass) - use a catch tank....

I like the 'short circuit' built into the design of the KV6 .. that is a corker...

Joe_H said:

Excellent explanation Nodge. So the 'fresh air' inlet is from the atmospheric side of the TB in the filter housing (suitably small to alloy a slight pull down, and the vac is applied via the 2mm plenum orifice. ?
So if I read you correctly, they have teed the 2 outlets from the crank case to the single vac induced inlet on the plenum. however, they have allowed the atmospheric side of the fresh air inlet to be virtually alongside the cam cover 'outlet' effectively causing a short path bypass ... ooops
That was a bit of an oversight me thinks..
I used to laugh at some of the early systems where the 'outlets' (the pipes subjected to vacuum removal of gasses) were blocked via crud and the fresh air intake at atmospheric side of the TB effectively became an OUTLET for gasses pressurised by the combustion process. This led to huge quantities of crud and oily yuck to surround the filter - or in some cases - bathe it..
Not mentioning any names - errr - Ford - cough cough ............ Rover V8's on carbs.. cough cough..... Any Fiat (it would seem) prior to the Panda 2 era (circa 2003)

No wonder we used to just run a pipe to the 'world' - or if we were in real tree hugging mode (like the time I dated a Greenham common lass) - use a catch tank....

I like the 'short circuit' built into the design of the KV6 .. that is a corker...

Click to expand...

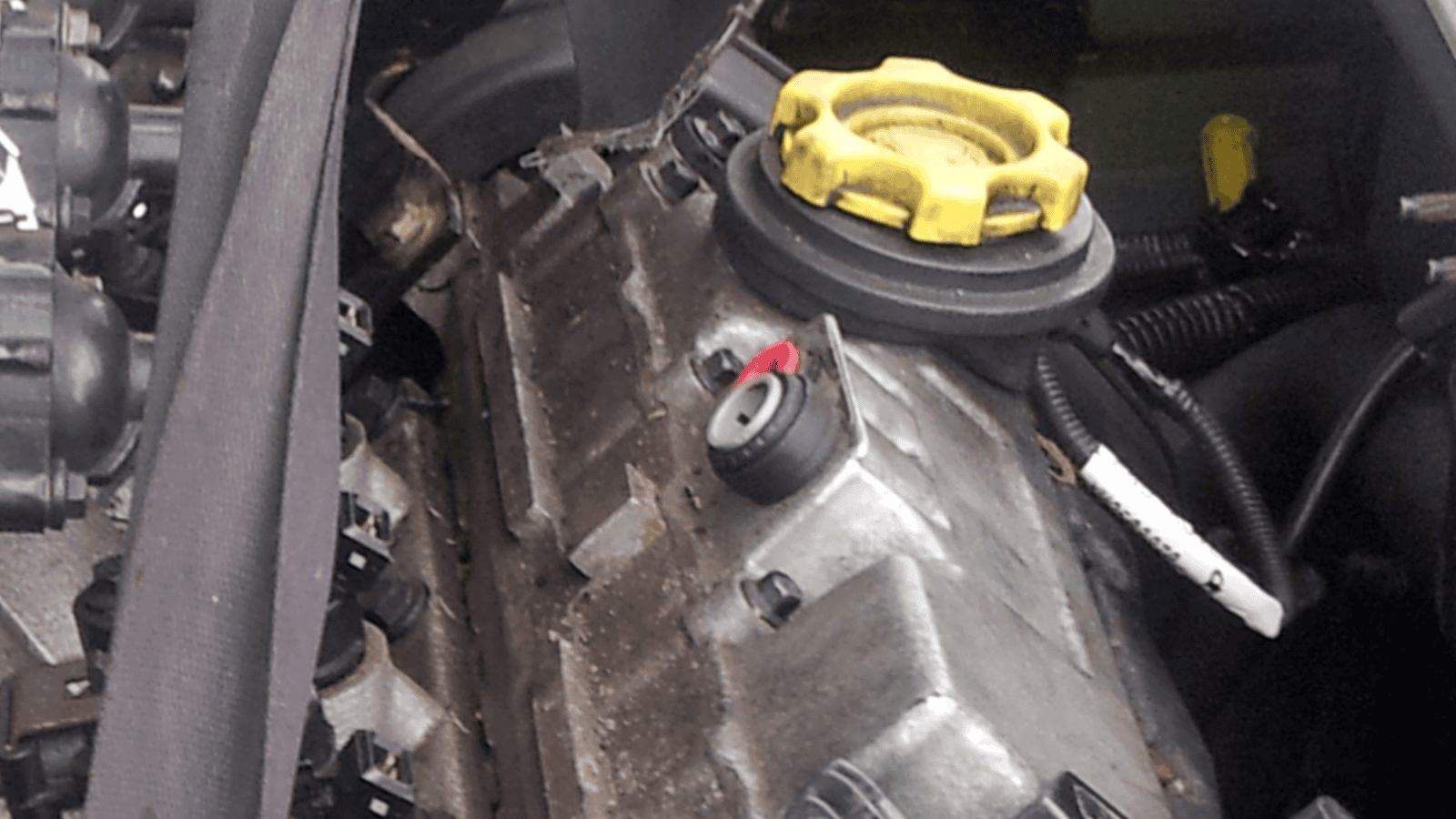

My memory is clouded as there are two fresh in and two PCV pipes. A pair to each bank.
The in and out on LH back are at opposite ends of the cam cover.
On the RH cam cover, the in and out are next to each other.
You can just make out the push fittings in the picture.

Nodge68 said:

My memory is clouded as there are two fresh in and two PCV pipes. A pair to each bank.
The in and out on LH back are at opposite ends of the cam cover.
On the RH cam cover, the in and out are next to each other.
You can just make out the push fittings in the picture.

View attachment 108657

Click to expand...

That is still bad - personally, I much prefer the intake to go to the block. It seems to make a lot more sense to my befuddled brain

What you need is a V64V with 400 BHP and pulling all the way to 9K
Or, indeed a Walkinshaw/JV6

Get your own Virtual Cossy DFV minus a couple of pots. That would make for one rather quick hippo.

I would like a complete V64V just to admire as a piece of furniture.
I had the great pleasure and privilege of a short drive in an ex works 6R4, but, alas, not with the V64V .. Mind you - it WAS fitted with a 4.6 John Eales R/V8
Sex on a stick... - nearly came close in brown adrenaline factor to a mates Corrola with a ex works full Pekka engine / box / suspension / drive etc (Eklund)

I am sure you will have the odd V64V hidden away ????

Oh, I forgot Nodge - - you could always use this as well -

If it was good enough for the 6R4 it's good enough for me !
Rover had quite a bit of experience with VCU's before even Volkswagon....

Love the planetary reduction - a thing of beauty..

Joe_H said:

That is still bad - personally, I much prefer the intake to go to the block. It seems to make a lot more sense to my befuddled brain

What you need is a V64V with 400 BHP and pulling all the way to 9K
Or, indeed a Walkinshaw/JV6

Get your own Virtual Cossy DFV minus a couple of pots. That would make for one rather quick hippo.

I would like a complete V64V just to admire as a piece of furniture.
I had the great pleasure and privilege of a short drive in an ex works 6R4, but, alas, not with the V64V .. Mind you - it WAS fitted with a 4.6 John Eales R/V8
Sex on a stick... - nearly came close in brown adrenaline factor to a mates Corrola with a ex works full Pekka engine / box / suspension / drive etc (Eklund)

I am sure you will have the odd V64V hidden away ????

Click to expand...

I wish I had a 6R4 or even had a drive of one.!!
TheV64v was an advanced power unit with an output that is still considered very good, even by today's standards.
The closest I got was to drive a works spec Talbot Sunbeam Lotus. That had a piffeling 265 Bhp by comparison to the 6R4 400 odd. Mind you the TSL still went pretty damb fast. Faster than I fancied driving it, that's for sure.

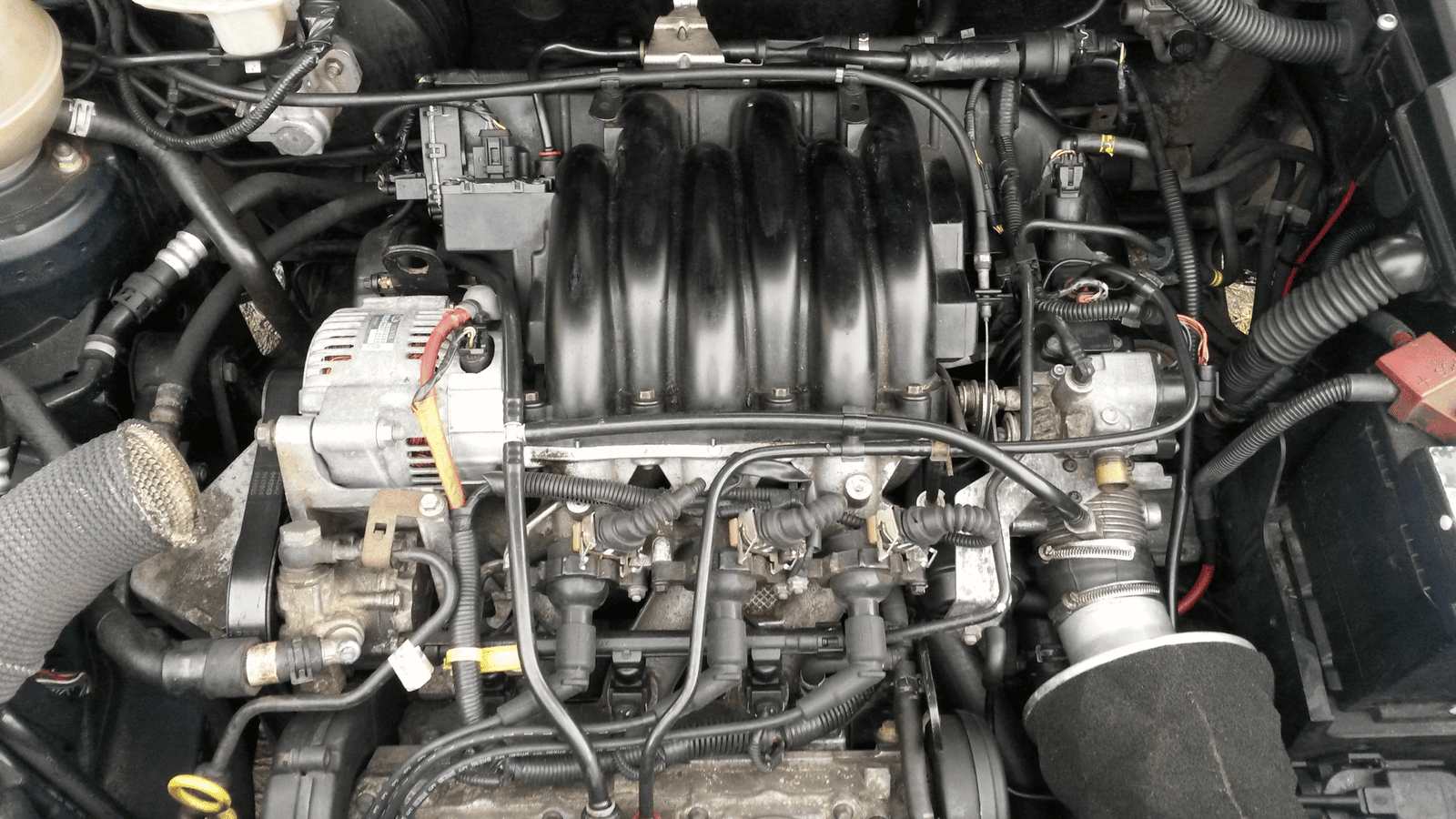

Here's a picture of my Freelander V6. You can just make out the breathers. The RH (front) bank is the poorly vented side of the V.

Nodge68 said:

I wish I had a 6R4 or even had a drive of one.!!
TheV64v was an advanced power unit with an output that is still considered very good, even by today's standards.
The closest I got was to drive a works spec Talbot Sunbeam Lotus. That had a piffeling 265 Bhp by comparison to the 6R4 400 odd. Mind you the TSL still went pretty damb fast. Faster than I fancied driving it, that's for sure.

Here's a picture of my Freelander V6. You can just make out the breathers. The RH (front) bank is the poorly vented side of the V.View attachment 108661

Click to expand...

Yes, I can see the breathers there (or at least where the rear snakes around the back of the cam cover)
It IS a nice looking lump though - shame about the %$£*** BM- BL00DY-W plastic fantastic though

Here is a nice shot of Russell Brookes in the Sunny. (taken in 2009 I think !) still his original works bus too !...
I have seen them all in action - Russell Brookes, Jimmy McCrae, Henri Toivonan ... (sadly killed in 86 - that and Rally Portugal killed off Group B sadly)



Thought you might also appreciate this -
Lights off, phones on, volume up....

Joe_H said:

Yes, I can see the breathers there (or at least where the rear snakes around the back of the cam cover)
It IS a nice looking lump though - shame about the %$£*** BM- BL00DY-W plastic fantastic though

Here is a nice shot of Russell Brookes in the Sunny. (taken in 2009 I think !) still his original works bus too !...
I have seen them all in action - Russell Brookes, Jimmy McCrae, Henri Toivonan ... (sadly killed in 86 - that and Rally Portugal killed off Group B sadly)

View attachment 108662

Thought you might also appreciate this -
Lights off, phones on, volume up....

Click to expand...

I was still at school when Henri won't the Lombard RAC rally in the Sunbeam Lotus
The unmistakable sound of the Lotus slant 4 lovely. I've not heard that sound in years. The Sunbeam 911 unit was a lovely thing to work on. Except for the exhaust manifold, which required the engine to be removed, to change a gasket.
I've not played with one since the mid 90s. Fond memories though. A friend of mine finished restoring his 81 Sunbeam Lotus last summer. His is only mildly tweaked though. I forget the exact figures now but it's 220ish Bhp. QED built the engine for him 1990, at huge cost iirc. He's got a works LSD fitted which means it actually accelerates, rather then spin the wheels.
Nice engine, except for it being half a V8, making it hard to do some simple jobs.

As long as the subject of KV6 crankcase breathers has come up I am looking for one of the rear cam cover fittings. (The one on the front end of the cam cover that takes the larger diameter hose.) New or used, doesn't matter. The one on my Hippo is broken and venting to the air which can't be a good thing. I have tried to find one but so far have ended up with 3 incorrect fittings. That's the trouble with buying parts online without the part number!
Even if someone can tell me the correct part number that would help.
My local LR dealer is hopeless unless you are driving a late model $$$ Range Rover, and then I am sure everything is on warranty anyway.

Good site for part numbers here:
http://www.allbrit.de/NAV.cfm?SPRACHE=EN&PAGE=591925

Thanks for that!
That site will be a good reference but it's not correct for the part that I need. It shows the fitting as being LZN100390L. I have one that I got from a US supplier, still in the numbered LR bag and it takes a 6mm hose, not the 12mm that I have on my Hippo (Just re-measured it to make sure). I wonder if it is an error in the parts lists, or if maybe the North American V6 used a larger diameter pipe?
I may have to resort to buying a used cam cover locally to get one the right size.

Take a look at the front bank (closets to the radiator). Are you after the large or small fitting? There are the same throughout.

The large one is LYC100510L

A whole thread on these :

https://www.landyzone.co.uk/land-rover/pcv-valve-fix.236334/

Thanks Ze! It is the large one that I am after.
I'll try ordering one using that number.
Reading through that thread his issue was the same as mine, although in my case the plastic tubing is fine but the fitting was broken by a previous owner leaving the pipe just poked into the hole in the valve cover. It will be nice to have it sorted out.
