Those fuse and relay boxes look familiar, I got two of them for my headlight relays, air horns, diesel fuel filter heater etc, very good bits of kit :)

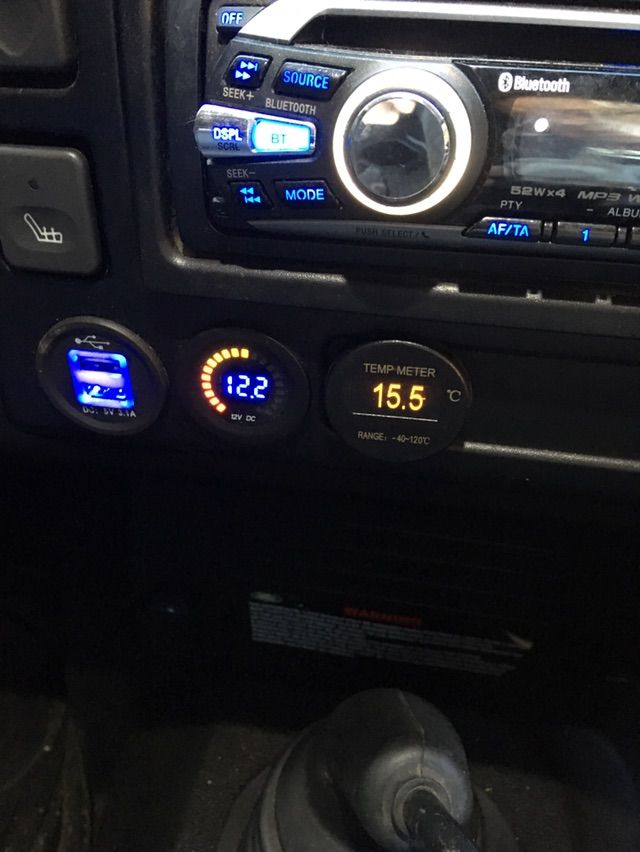

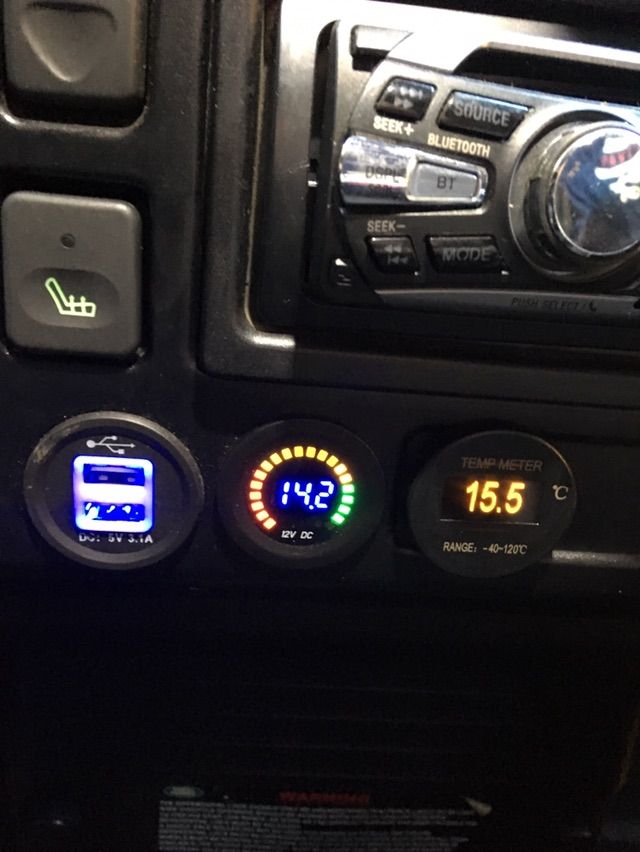

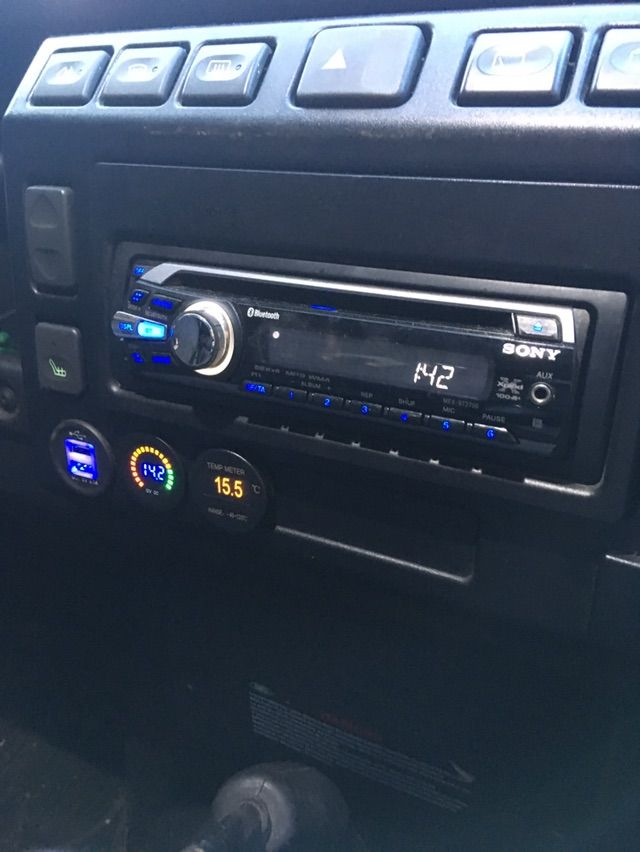

New voltmeter and temp gauge.

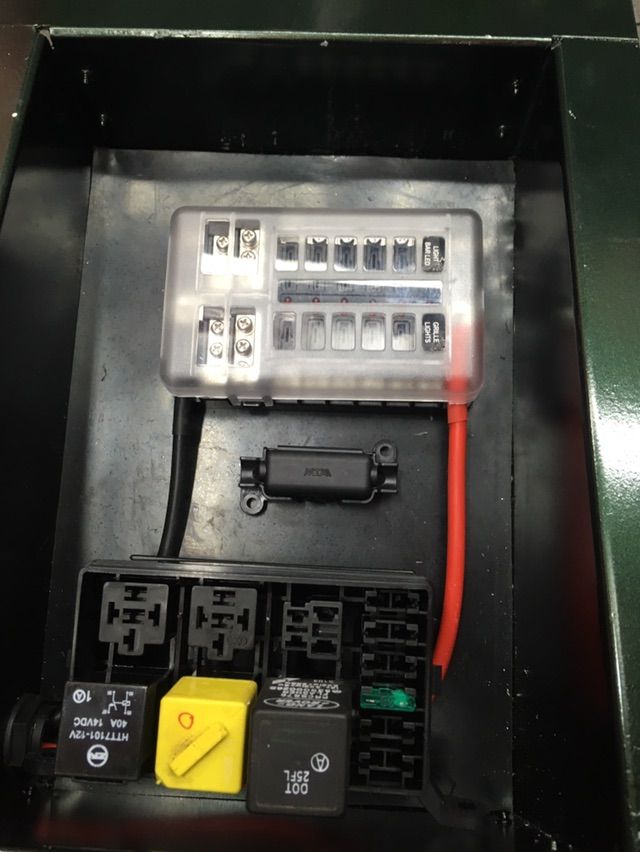

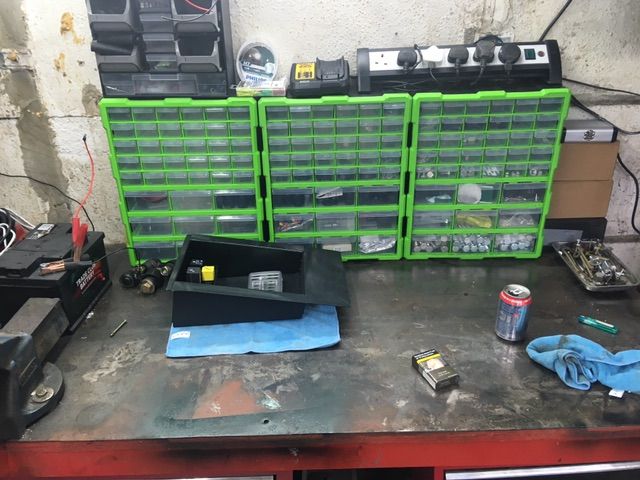

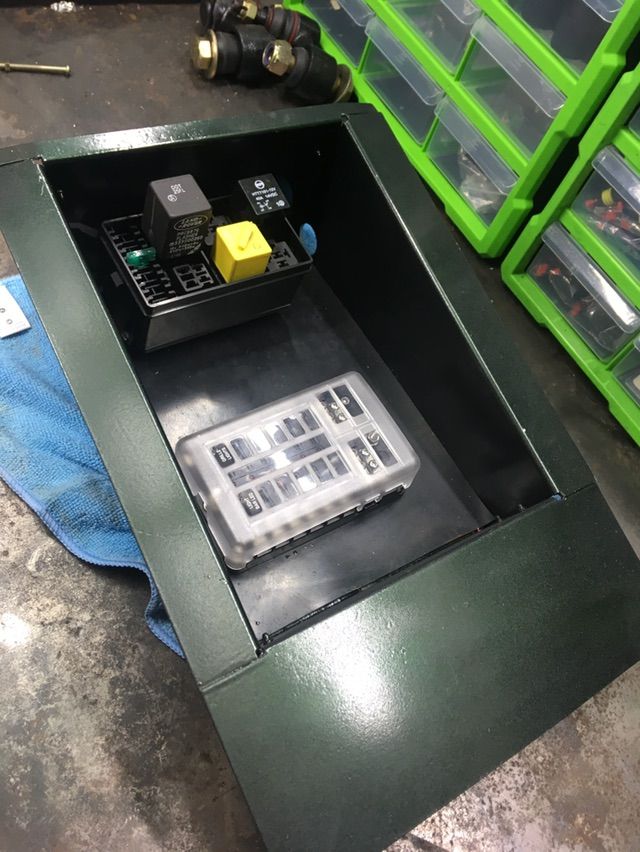

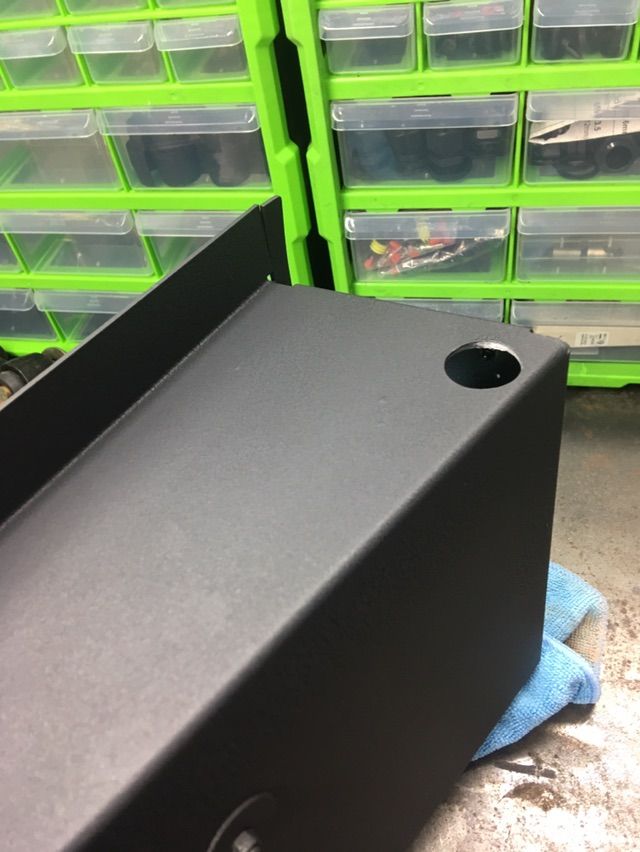

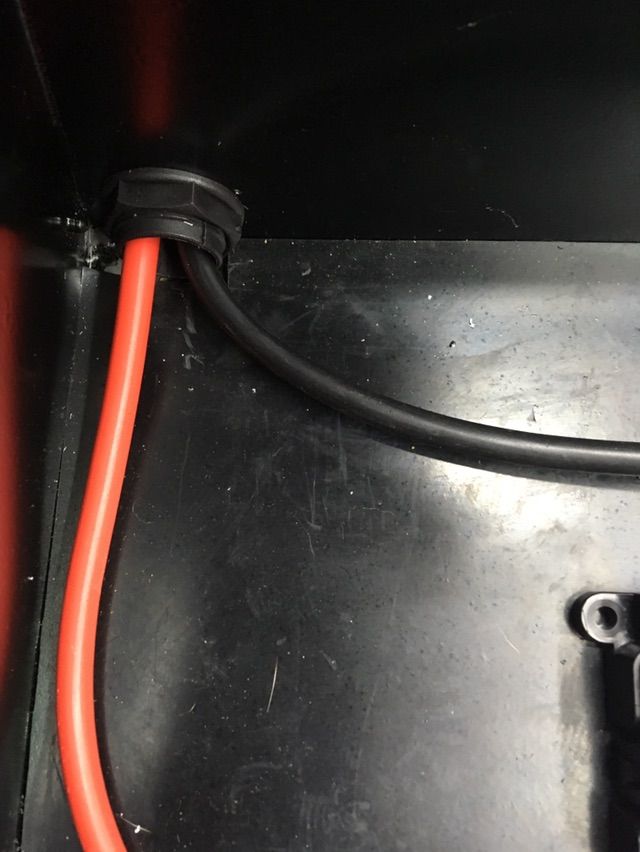

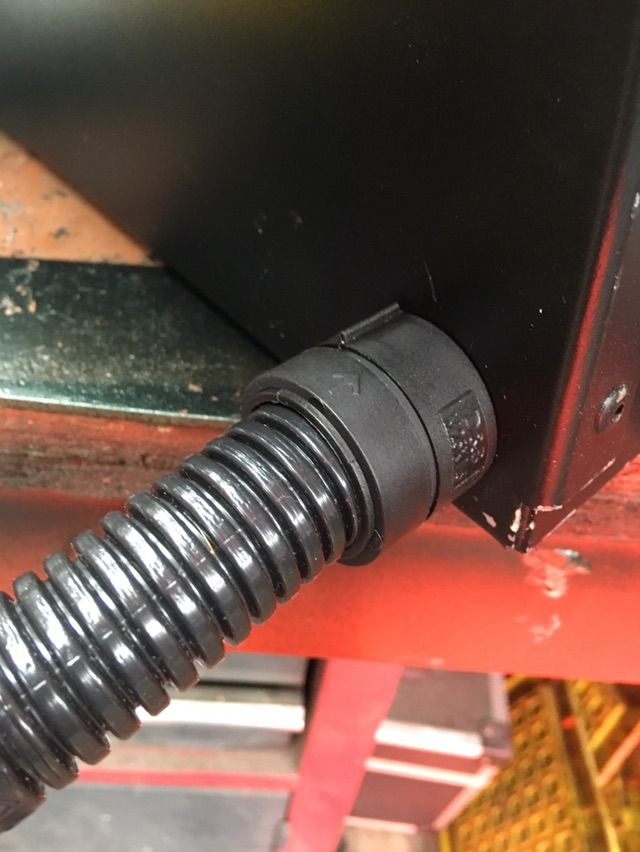

More test fitting for centre tray electrical distribution, conduit and master feeds. As the location from underside is high risk form water ingress will ptfe and silicone seal conduit glands for main battery box and centre tray.

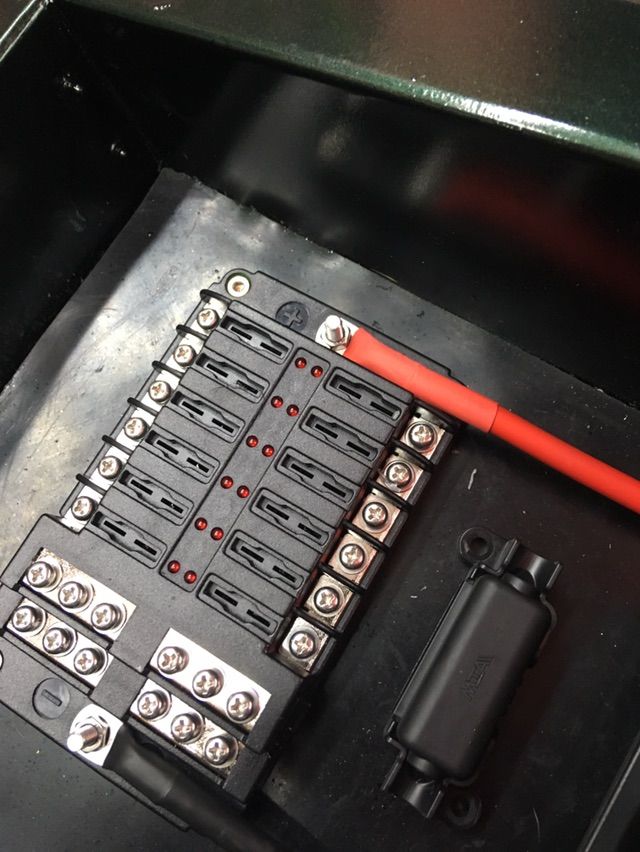

Still more to do before final cable route, want to use the cub fuse / relay box to house relays and timers for :
  • Heated Screen & Mirrors
  • Heated Seats
  • Front light bars / spots
  • LED Load space lights / Side and rear flood-pool lights / Engine bay inspection lights
Managed to source some high amp thin sleeve cable, not cheap but great stuff very flexible.


Last edited:
KISSMYAURA said:
More test fitting for centre tray electrical distribution, conduit and master feeds. As the location from underside is high risk form water ingress will ptfe and silicone seal conduit glands for main battery box and centre tray.
Still more to do before final cable route, want to use the cub fuse / relay box to house relays and timers for :
  • Heated Screen & Mirrors
  • Heated Seats
  • Front light bars / spots
  • LED Load space lights / Side and rear flood-pool lights / Engine bay inspection lights
Managed to source some high amp thin sleeve cable, not cheap but great stuff very flexible.

View attachment 170704 View attachment 170705 View attachment 170706 View attachment 170707
Click to expand...

Perfect timing, I'm just planning my rear aux distribution set up, looking like a 35mmsq cable front to back and a distribution post to a fuseboard and then off to the accessories.

I'm not 100% on whether I should fit a relay board too?

dieseldog69 said:
Perfect timing, I'm just planning my rear aux distribution set up, looking like a 35mmsq cable front to back and a distribution post to a fuseboard and then off to the accessories.

I'm not 100% on whether I should fit a relay board too?
Click to expand...
you might as well, depending on how many accessories you can use than as your fuse board......

KISSMYAURA said:
you might as well, depending on how many accessories you can use than as your fuse board......
Click to expand...

So far I'm looking at :-
1) on board air compressor system
2) aux hot air diesel heater for the cabin on cold drives/camping
3) stereo amp for better sound quality when I turn up the choones :cool:

I was thinking 35mm as it gives a massive reserve of power supply should I also fit rear andersons connectors for jumper cables?

Thoughts & comments appreciated.

dieseldog69 said:
So far I'm looking at :-
1) on board air compressor system
2) aux hot air diesel heater for the cabin on cold drives/camping
3) stereo amp for better sound quality when I turn up the choones :cool:

I was thinking 35mm as it gives a massive reserve of power supply should I also fit rear andersons connectors for jumper cables?

Thoughts & comments appreciated.
Click to expand...
i fitted anderson connector under passenger seat, ideally should in an access box outside (trap door side entry)
