v8250
Well-Known Member
@landy-lee , some great work you're doing there!
landy-lee
Well-Known Member
Cheers mate
I have lots of parts coming this week so all being well i should have lots of photos for you!!
payydg
Well-Known Member
Aux tank is by far the best way to store fuel. Keeps the weight low and central and you don't have jerry cans attracting attention. You just going to have an aux pump to pump into the main tank?
landy-lee
Well-Known Member
Yup thats my plan!
Pump into the rear tank and i am also going to fit a sedimentor as well
landy-lee
Well-Known Member
Good morning
I have a few parts com yesterday from paddocks so i had a nice day fitting them.
As you can see i have been coating the nuts and bolts with Lucas red sticky grease. I am doing this as a little experiment to see if it will add some protection to them. I might even incorporate a coat on all bolts when i do a oil services.
I have a few parts com yesterday from paddocks so i had a nice day fitting them.
As you can see i have been coating the nuts and bolts with Lucas red sticky grease. I am doing this as a little experiment to see if it will add some protection to them. I might even incorporate a coat on all bolts when i do a oil services.
payydg
Well-Known Member
I’d recommend the facet red top fuel pump. Pretty sturdy and has its own internal filter that’s removable
doriz
Well-Known Member
@landy-lee brilliant quality work, so jealous of your diligence and attention to detail.
landy-lee
Well-Known Member
Cheers mate! I just keep chipping away at it one can of beer at a time!
landy-lee
Well-Known Member
I have not kept a track money for 2 reasonsLook's fantastic and a top quality job, a couple of cheeky questions .....do you keep a record of your expenditure and if so, does it make your eyes water?
1st it would make my eyes water........alot!
2nd if the miss found out my eyes would water even more after being kicked in the balls!
landy-lee
Well-Known Member
And the diff is done!
The pinion nut was a bugger to do up and im glad i made the box section locking tool.
Im glad i invested in new diff gears and shims as i dint realise just how much slop was in the old gears comparing them to the new. Ihm happy now that i will get years of good service for the rebuilt diff.
Tomorrow i will get it under the chassis and then im going to have a play around with the rear brake lines and fuel pipes.
The pinion nut was a bugger to do up and im glad i made the box section locking tool.
Im glad i invested in new diff gears and shims as i dint realise just how much slop was in the old gears comparing them to the new. Ihm happy now that i will get years of good service for the rebuilt diff.
Tomorrow i will get it under the chassis and then im going to have a play around with the rear brake lines and fuel pipes.
v8250
Well-Known Member
A gentle heads up re' Facet pumps [blue, red, silver and gold tops]. Facet automotive pumps are good but they suffer from failure points...
1. they don't like vibration - they must be mounted using the rubber mounts provided.
2. they don't like crud in there filters as the pump is cooled/lubricated by the fuel - always use a pre-filter with Facets
3. ideally, install a Filter King with fuel filter and pressure regulator post Facet pump [in engine bay] to set up correct fuel flow/pressure - the glass bowl units are best giving a ready viewer of the fuel/dirt condition.
I've driven/rallied across lots of rough terrain in many continents using Facets and they always fail if not installed correctly + I'd really recommend running twin Facet pumps in parallel as one day, one will fail and leave you stranded...don't ask
Oh, and don't buy the little cube jobbies, they crap. Apart from this, they're great pumps
landy-lee
Well-Known Member
A gentle heads up re' Facet pumps [blue, red, silver and gold tops]. Facet automotive pumps are good but they suffer from failure points...
1. they don't like vibration - they must be mounted using the rubber mounts provided.
2. they don't like crud in there filters as the pump is cooled/lubricated by the fuel - always use a pre-filter with Facets
3. ideally, install a Filter King with fuel filter and pressure regulator post Facet pump [in engine bay] to set up correct fuel flow/pressure - the glass bowl units are best giving a ready viewer of the fuel/dirt condition.
I've driven/rallied across lots of rough terrain in many continents using Facets and they always fail if not installed correctly + I'd really recommend running twin Facet pumps in parallel as one day, one will fail and leave you stranded...don't ask
Cheers for the heads up!
My plan is to use a stock in tank pump in the auxiliary tanks and pump to the rear.
payydg
Well-Known Member
A gentle heads up re' Facet pumps [blue, red, silver and gold tops]. Facet automotive pumps are good but they suffer from failure points...
1. they don't like vibration - they must be mounted using the rubber mounts provided.
2. they don't like crud in there filters as the pump is cooled/lubricated by the fuel - always use a pre-filter with Facets
3. ideally, install a Filter King with fuel filter and pressure regulator post Facet pump [in engine bay] to set up correct fuel flow/pressure - the glass bowl units are best giving a ready viewer of the fuel/dirt condition.
I've driven/rallied across lots of rough terrain in many continents using Facets and they always fail if not installed correctly + I'd really recommend running twin Facet pumps in parallel as one day, one will fail and leave you stranded...don't ask
That’s interesting to know. Never had a problem with mine. It’s just pumping from the aux tank into the standard tank not being used as a pump directly into the fuel system. I prefer to keep things separate. If it fails it doesn’t affect the main tank and it’s located where it can be replaced by anything really.
doriz
Well-Known Member
Get one of those outboard bollox pumps. That way you can pump fuel with you left foot whilst cruising and avoid a DVT
landy-lee
Well-Known Member
Aup everyone
Bit of a update for you.
Been a bit slow the past 2 weeks. Started a new and its been a bit full one but back to normal now.
Got the rear Td5 fuel tank in and all the fuel lines, brake pipe and rear lights cable in so i can start to look at getting the rear tub on soon.

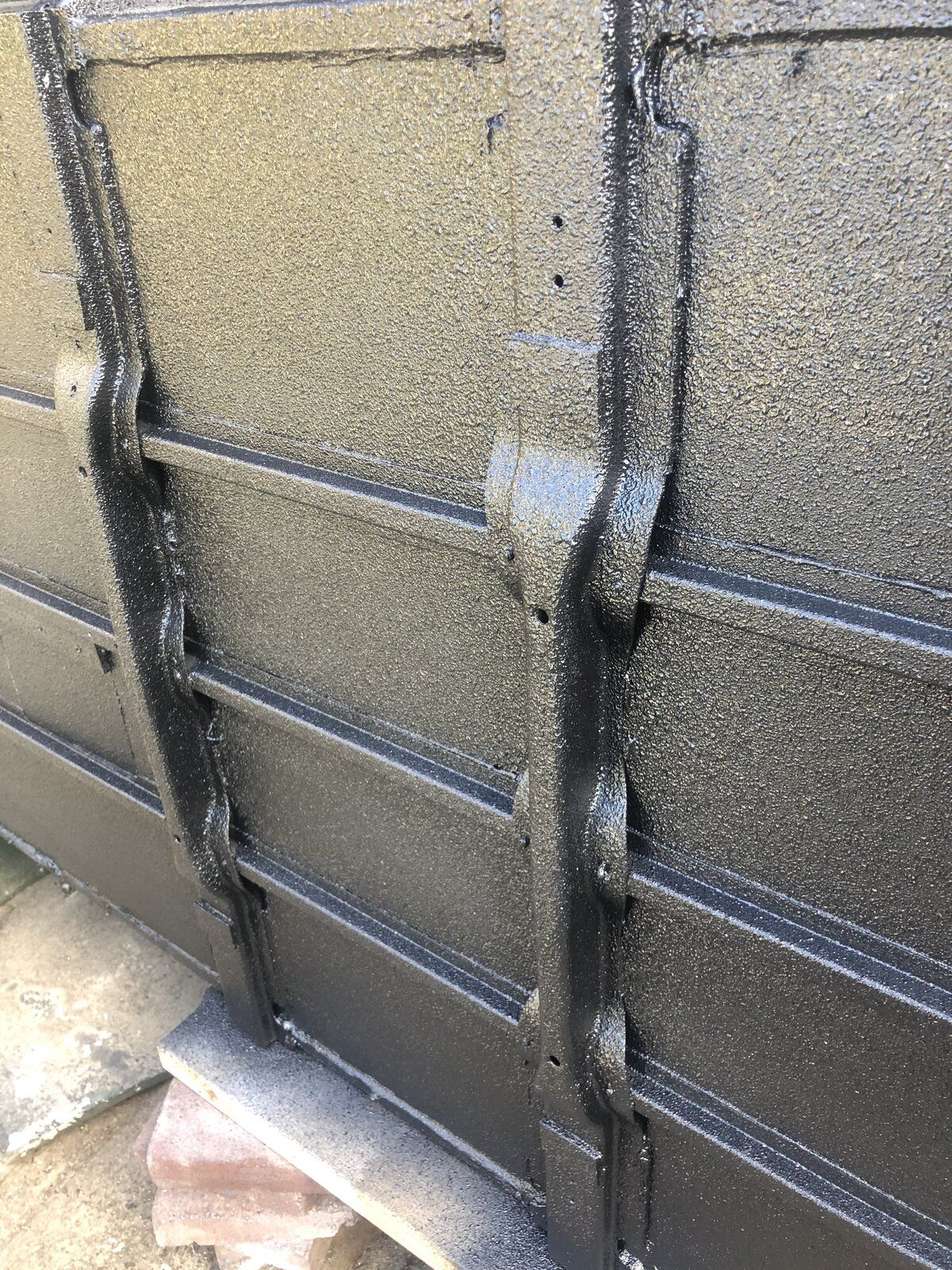

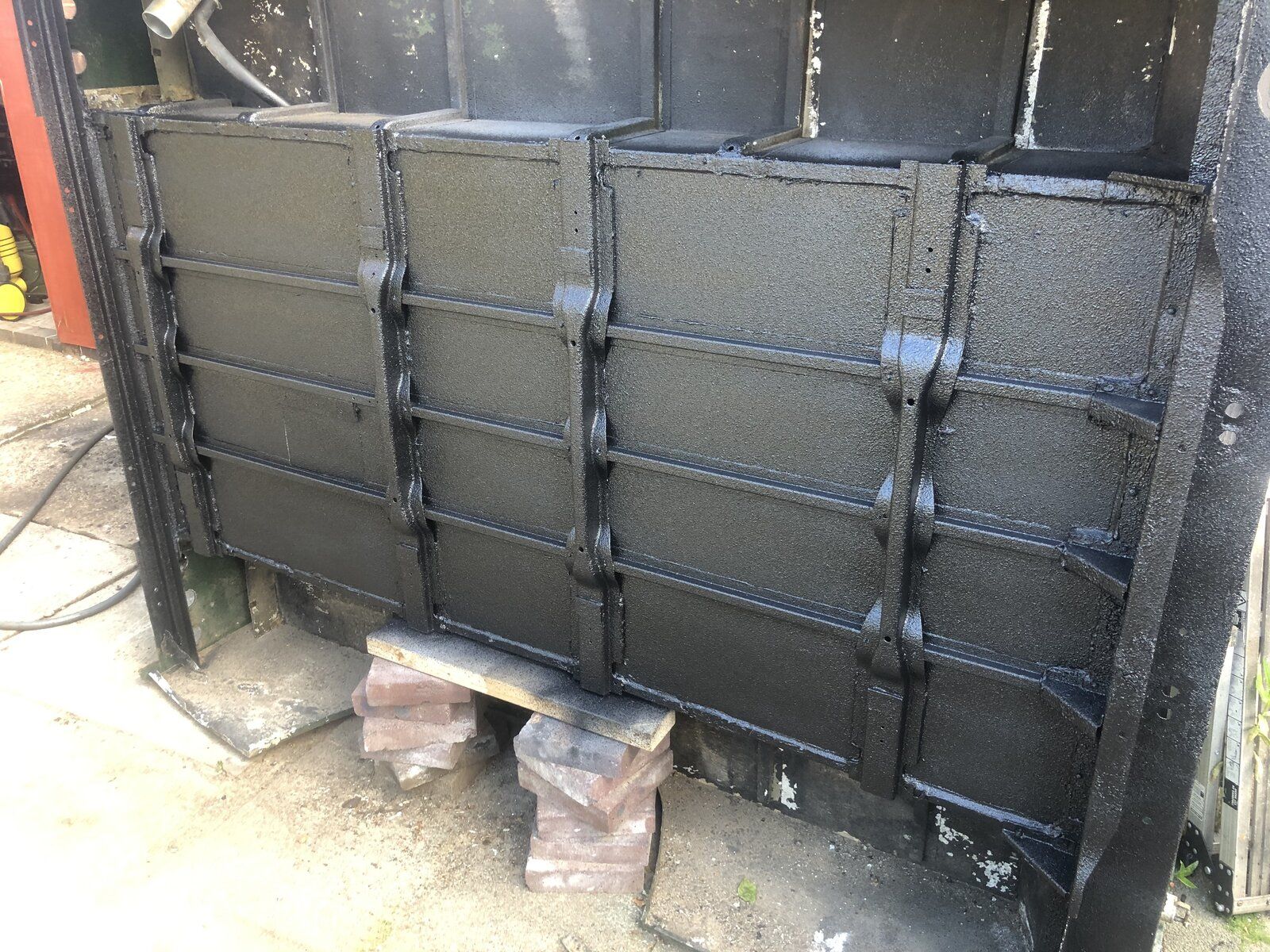

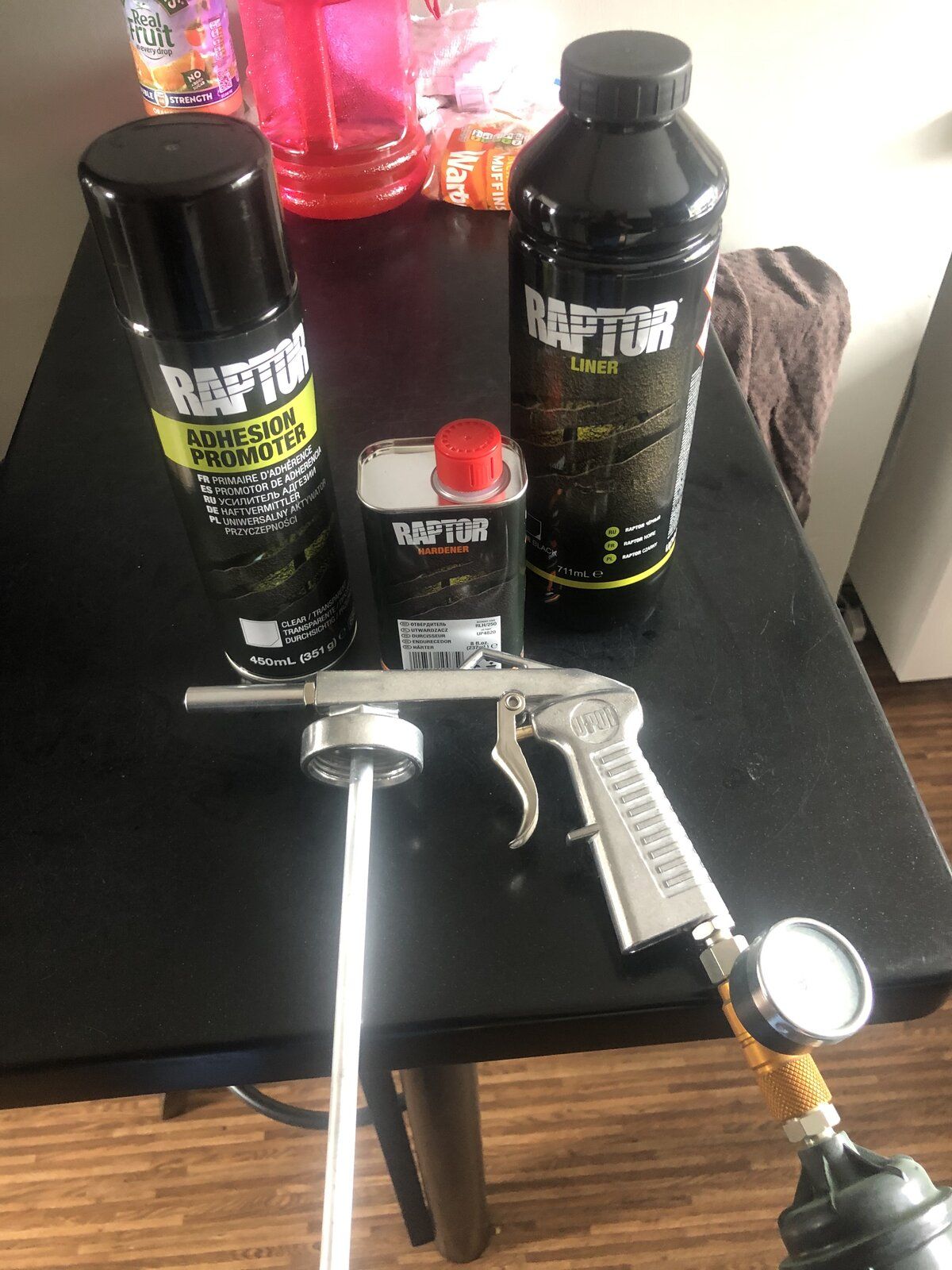

My plan with the tun is to raptor line the tub floor and then drop in on to the chassis.
Bit of a update for you.
Been a bit slow the past 2 weeks. Started a new and its been a bit full one but back to normal now.
Got the rear Td5 fuel tank in and all the fuel lines, brake pipe and rear lights cable in so i can start to look at getting the rear tub on soon.
My plan with the tun is to raptor line the tub floor and then drop in on to the chassis.
mick the builder
Well-Known Member
It's great stuff. I did the engine bay and the inside floor of the tub.
landy-lee
Well-Known Member
Yeh im really happy with it.
My plan is to do the arch areas when the tub is back on its chassis
