Crank sensor removed. Tested gave o reading when attached to Iron when removed showed voltage back to o when attached to Iron again. Refitted to car.
Coil pack two terminal show ohms when tested.
Coil pack wires. Show no voltage with ignition on and when cranking. Both wires.



S

steve6621

Member

• Mar 23, 2021

• #22

Crank sensor removed and bench tested working ok refitted.
CPS pack tested and giving ohms readings.
CPS cables tested no power with ignition on and when cranking.
Engine management light remains on when ignition on.



S

steve6621

Member

• Mar 23, 2021

• #23

Sorry yes my fault.
Cp sensor removed bench tested working refitted.
Coil pack tested ohms shown.
Coil pack cables NO POWER ignition on and when cranking.
Engine management light remains on the dashboard when ignition on?



marjon

Well-Known Member

Full Member

• Mar 23, 2021

• #24

steve6621 said:

Coil pack cables NO POWER ignition on and when cranking.

Click to expand...

Ok.

I take it you tested with black probe to body?
If so then need to work backwards on said power supply.

J



S

steve6621

Member

• Mar 24, 2021

• #25

At work today will recheck coil pack leads this afternoon and report



S

steve6621

Member

• Mar 24, 2021

• #26

yes coil pack wires tested earth to car NO POWER...
pulled codes from engine, as engine management light now on.
Fault: 108 Continuous Power Supply Interruption Minimum Value[...]Not Reached. Fault NOT Present and Static.

Fault: 148 P1667 Anti-Theft Alarm System BCU/BeCM Serial Link [...]Timeout Minimum Value Not Reached. Fault NOT Present and Intermittent.

still canking not starting, no codes on dashboard.



marjon

Well-Known Member

Full Member

• Mar 25, 2021

• #27

Sounds like its alarmed and the ecu not synced but you said you did it?
Try again.

Start checking connections at the BECM /ECU & fusebox

J



Grrrrrr

Technician, Bodgit & Scarper Ltd

Full Member

• Mar 26, 2021

• #28

I've got a niggly memory the ultrasound alarm thing can sometimes act up. Might be worth a Google or maybe @Saint.V8 can remember.



S

steve6621

Member

• Mar 26, 2021

• #29

still working on other projects, Those the wife says are important, back on the car ASAP watch this space.



T

tomcat59alan

Well-Known Member

• Mar 26, 2021

• #30

steve6621 said:

still working on other projects, Those the wife says are important, back on the car ASAP watch this space.

Click to expand...

Bloody wimin



Grrrrrr

Technician, Bodgit & Scarper Ltd

Full Member

• Mar 26, 2021

• #31

tomcat59alan said:

Bloody wimin

Click to expand...

It's only once a month.



T

tomcat59alan

Well-Known Member

• Mar 27, 2021

• #32

Grrrrrr said:

It's only once a month.

Click to expand...

But the attitude lasts fo the whole month.



pwood999

Well-Known Member

Full Member

• Mar 27, 2021

• #33

tomcat59alan said:

But the attitude lasts fo the whole month.

Click to expand...

Pre-MS, During-MS, Post-MS . . . . maybe one week off ?



Mark Piercy

Well fumbled member....

Full Member

• Mar 29, 2021

• #34

What about pulling the plug on the alarm sounder?
Could there be a fault there thats interfering?



S

steve6621

Member

• Mar 30, 2021

• #35

Hi all The alarm is disabled in the BeCM. But I will unplug the sounder.
I managed to start removing the upper air intake over the weekend. I want to check the wiring at the back of the engine and under the intake for damage. Just to rule it out. Also have ordered a new crank position sensor as need to rule that out. Waiting to complete wiring check and part arrival. Will report progress later.



S

steve6621

Member

• Apr 22, 2021

• #36

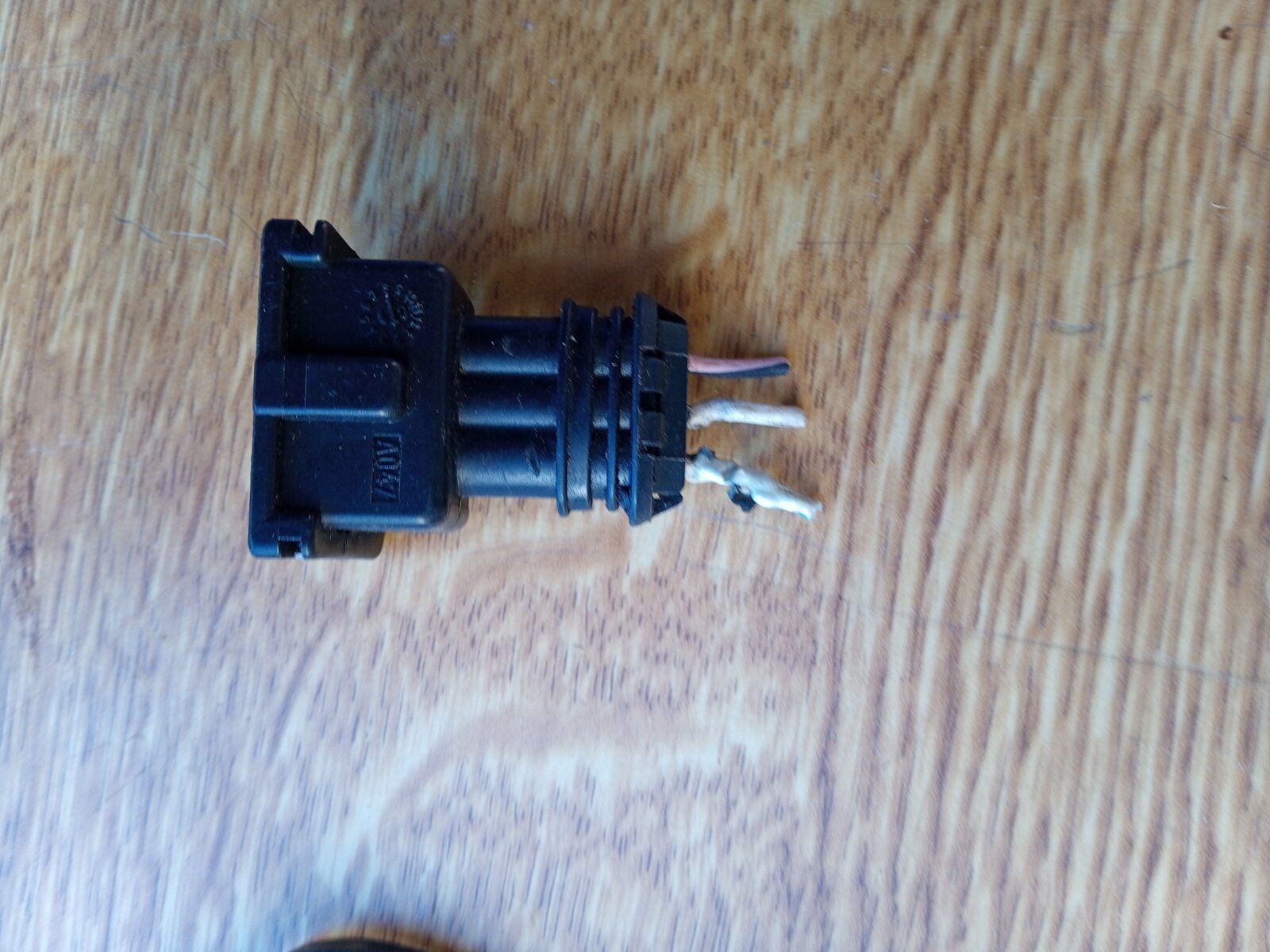

Hi all, part has arrived not fitted yet as only just got the air intake off today.look what I found. Two wires on the plug to the right coil pack melted and connected. Guess found out why I have no spark.



S

steve6621

Member

• Apr 22, 2021

• #37

New plug on order should be here by Saturday. Will keep you posted.



S

steve6621

Member

• Apr 22, 2021

• #38



RangeRoller dt

Well-Sprung Member

• Apr 22, 2021

• #39

Strange with your problems there are no fault codes? That’s not right - what diagnostics are you using?
Does sound like immobiliser/sync issue off the bat, not necessarily, but I get that feeling.



S

steve6621

Member

• Apr 22, 2021

• #40

When overheat happened and after cooling and restart engine ran rough. Then suddenly cut out would not restart, fault codes found showed misfires in various cylinders. Faults cleared at roadside in a hope that would get the car started. It didn't later found had no spark, no power to coil packs. The wires on this plug were twisted together copper showing on both. White and green, and white wires. As said before coil packs positioned behind battery, ran 2000 miles since moving coil packs.
