Did you try Wych Bearings? They've always come up trumps for me.
Did you try Wych Bearings? They've always come up trumps for me.
ar1g3
Well-Known Member
I did not, but now it's too late as it's partly assembled again. But I think my solution will work, the o-ring size is within tenths of a mm of what was fitted before.
Been there before. Everything crossed here.
ar1g3
Well-Known Member
Everything finally back together, still need to test it but first some other jobs while the car is in the garage.
Some advice for those tackling this job:
- main thing needed is 2 ways of supporting the gearbox, one static and one jack. You will need to switch them, and be able to remove the transfer box off the jack.
- prop shaft nuts are bastards, use 9/16 3/8 drive socket plus suitable extensions
- use new screws and loctite when bolting the trigger wheel to the park brake gear
- grease the flanges of the chassis crossmember when refitting, use a jack and mallet to get it in
- you don't need to remove the exhaust front pipe! Just unbolt the connection to the middle box
- I had the car on bump stops and needed to raise the chassis for fitting/removing the props as they where too long to go over the bolts on the transfer box side. Raising the car extends the prop shafts
Final advice: use a bore scope to check the bolts before ordering a new sensor.
Some advice for those tackling this job:
- main thing needed is 2 ways of supporting the gearbox, one static and one jack. You will need to switch them, and be able to remove the transfer box off the jack.
- prop shaft nuts are bastards, use 9/16 3/8 drive socket plus suitable extensions

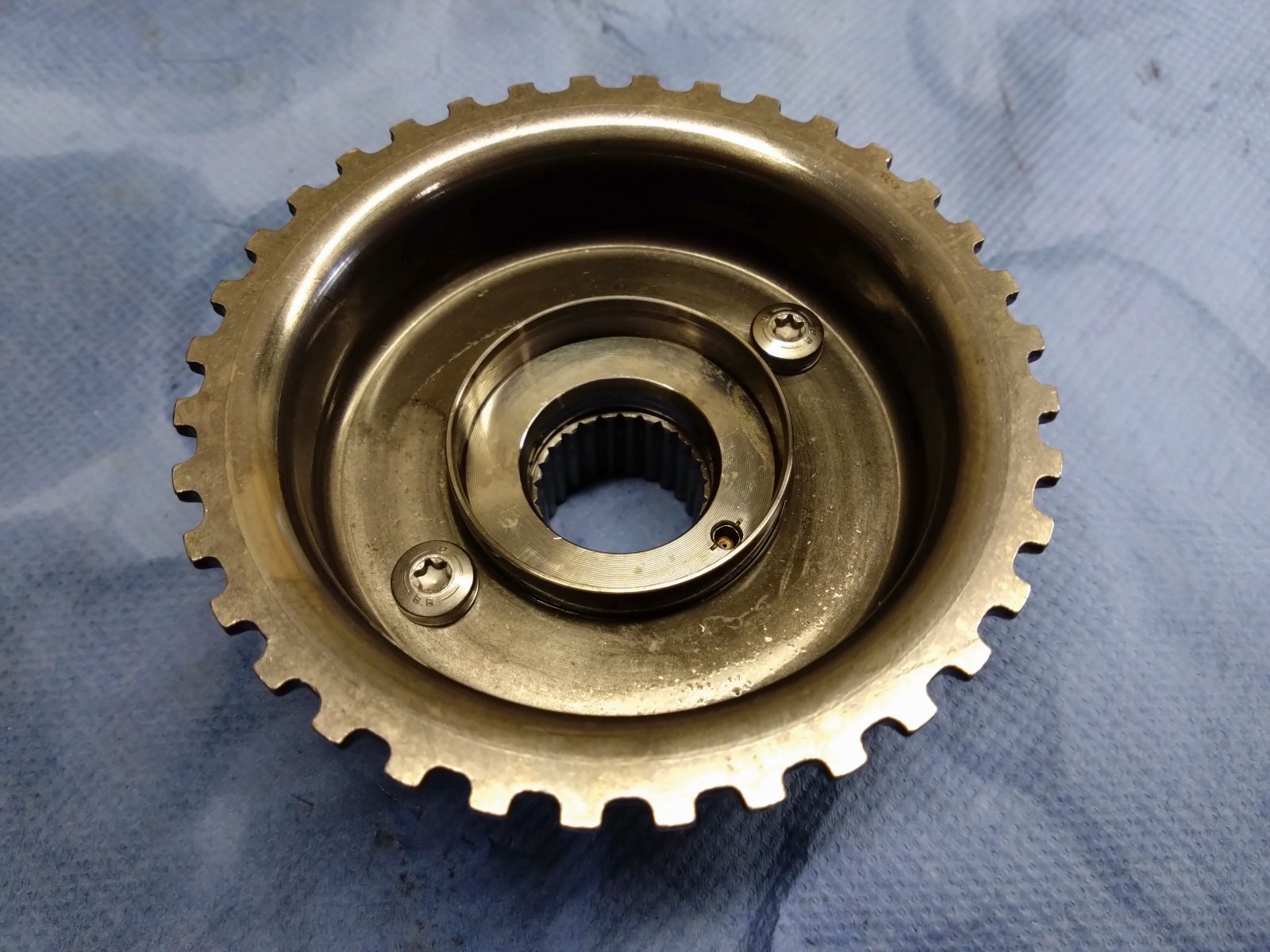

- use new screws and loctite when bolting the trigger wheel to the park brake gear
- grease the flanges of the chassis crossmember when refitting, use a jack and mallet to get it in
- you don't need to remove the exhaust front pipe! Just unbolt the connection to the middle box
- I had the car on bump stops and needed to raise the chassis for fitting/removing the props as they where too long to go over the bolts on the transfer box side. Raising the car extends the prop shafts
Final advice: use a bore scope to check the bolts before ordering a new sensor.
