UpandOver

Well-Known Member

• Jun 19, 2021

• #161

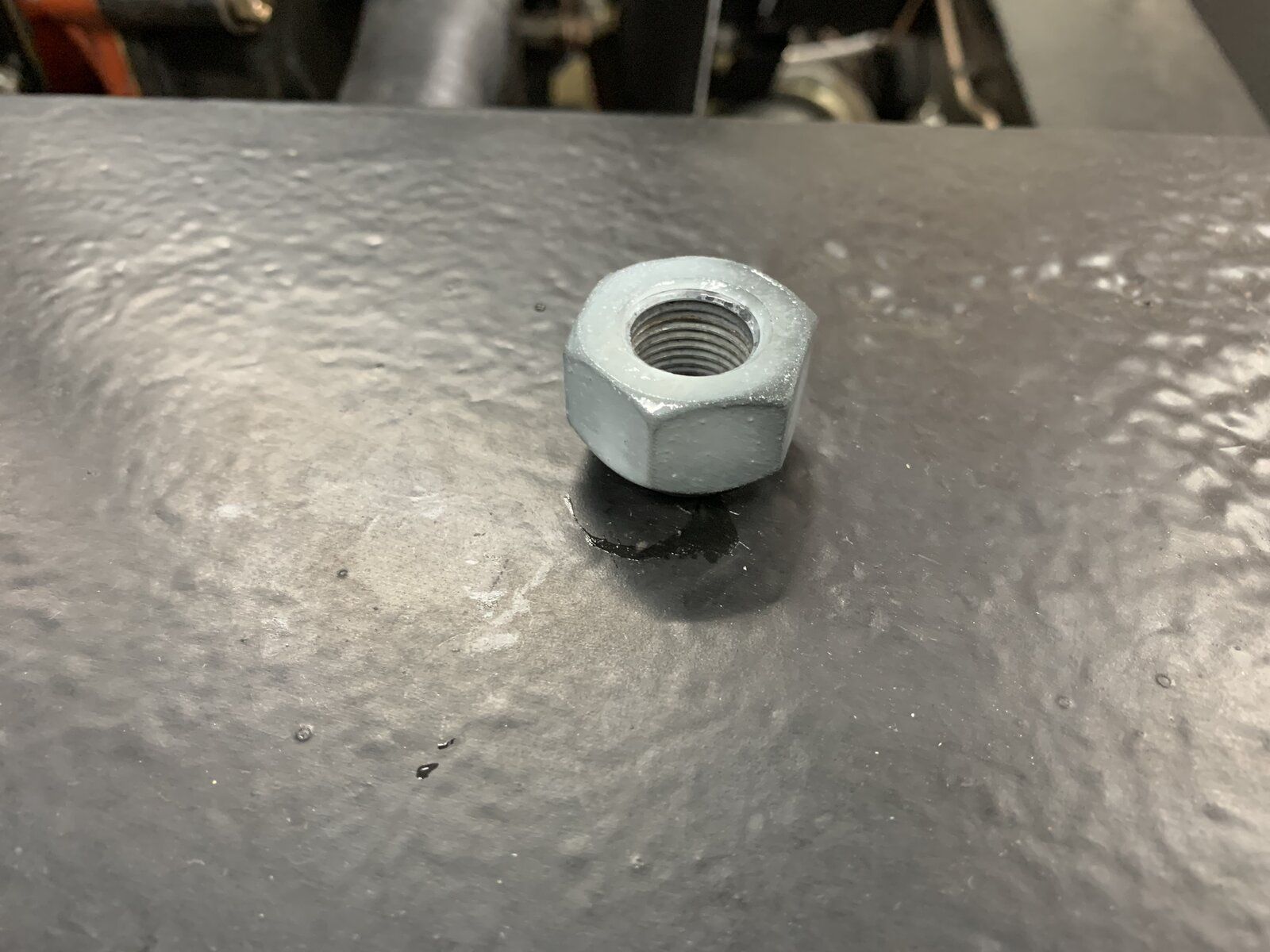

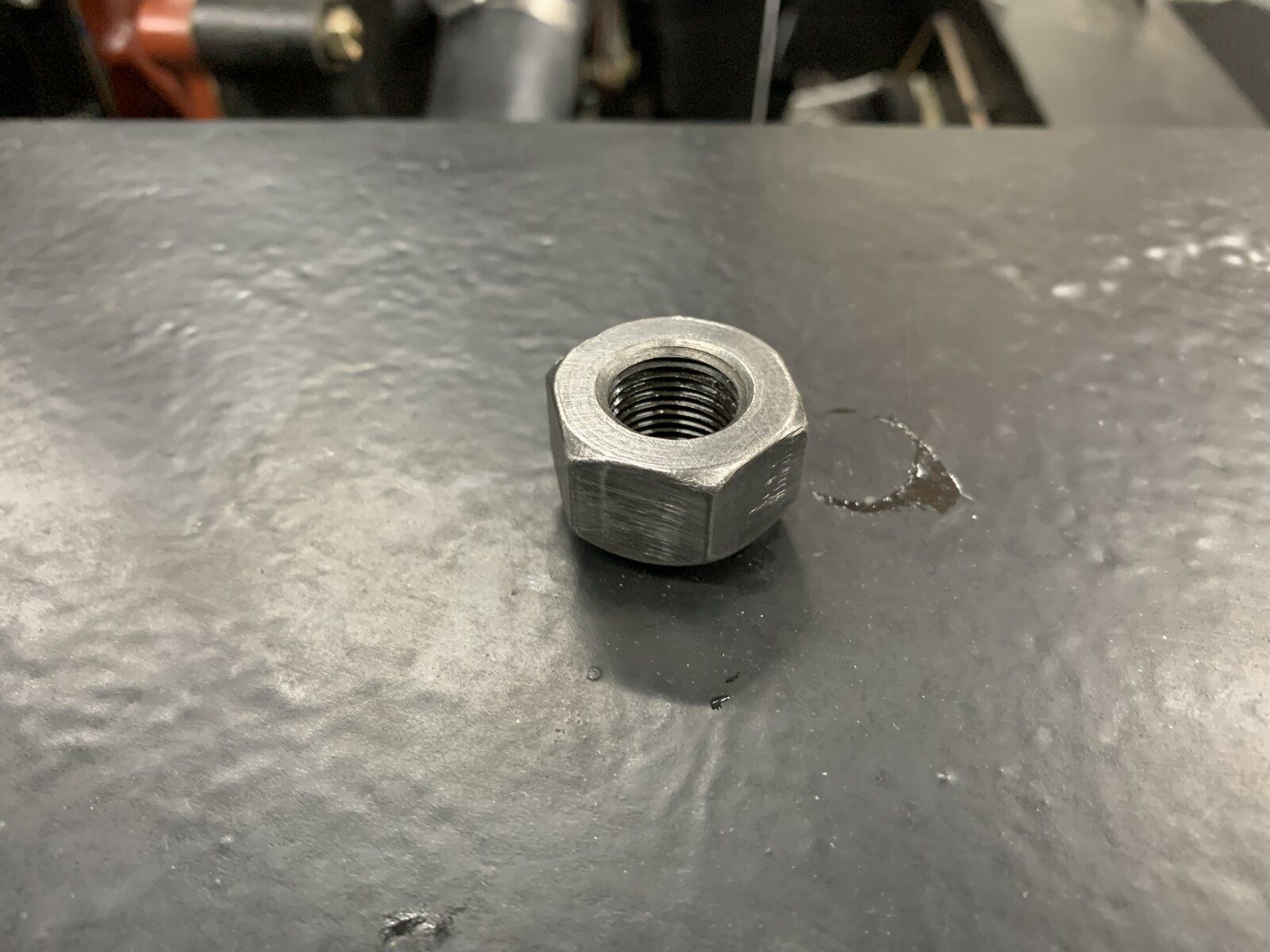

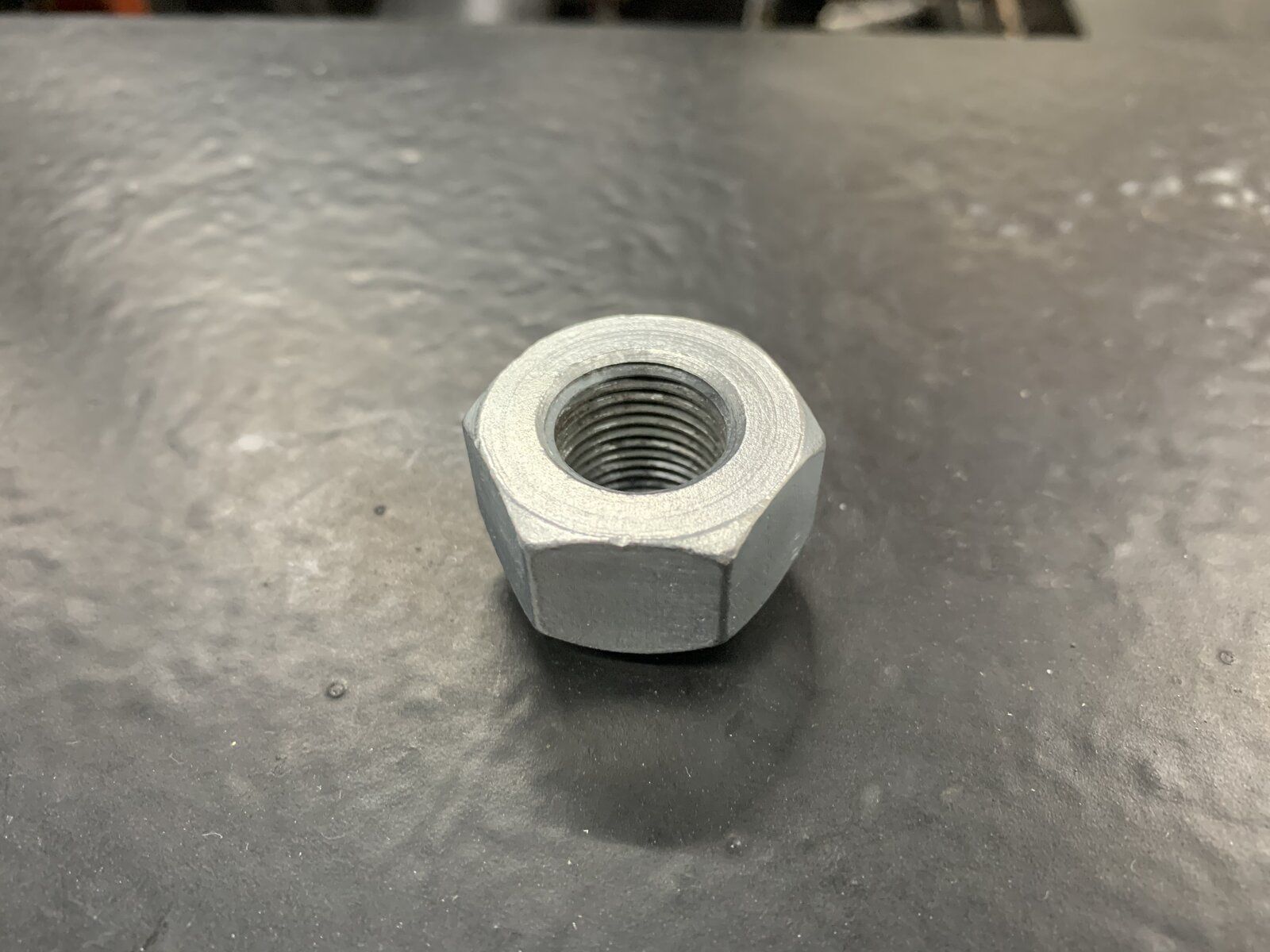

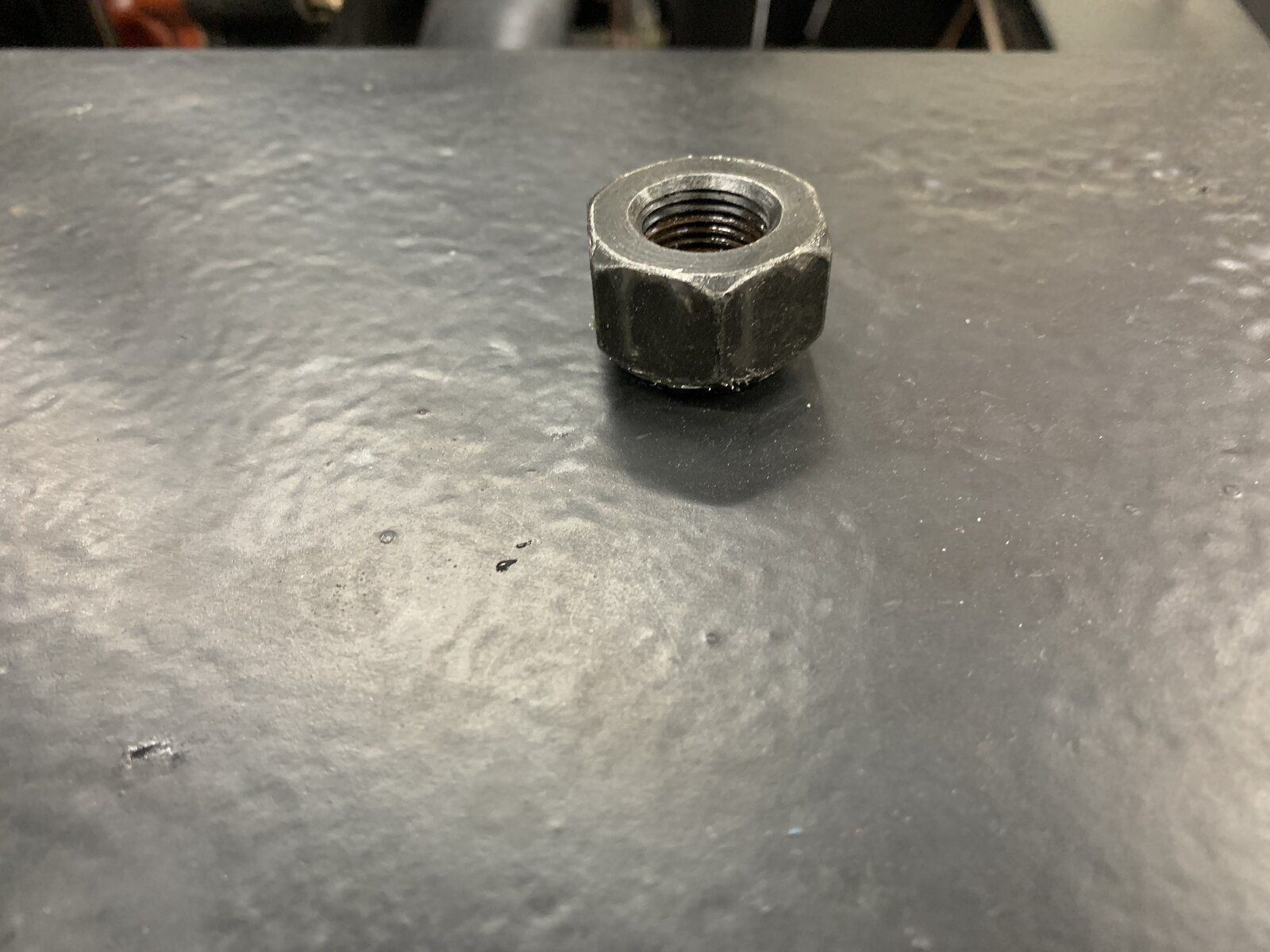

Zinc plating stages
1 - de grease
2 - wire brush
3 - de grease
4 - 10min zinc plating
5 - wire brush with brass brush
6 - clean in water
7 - second zinc coat 10min
8 - wire brush with brass brush
9 - dry and fit !



Attachments

•

  197.3 KB · Views: 161
•

  185.7 KB · Views: 132
•

  202.2 KB · Views: 133
•

  182.3 KB · Views: 140

UpandOver

Well-Known Member

• Jun 19, 2021

• #162

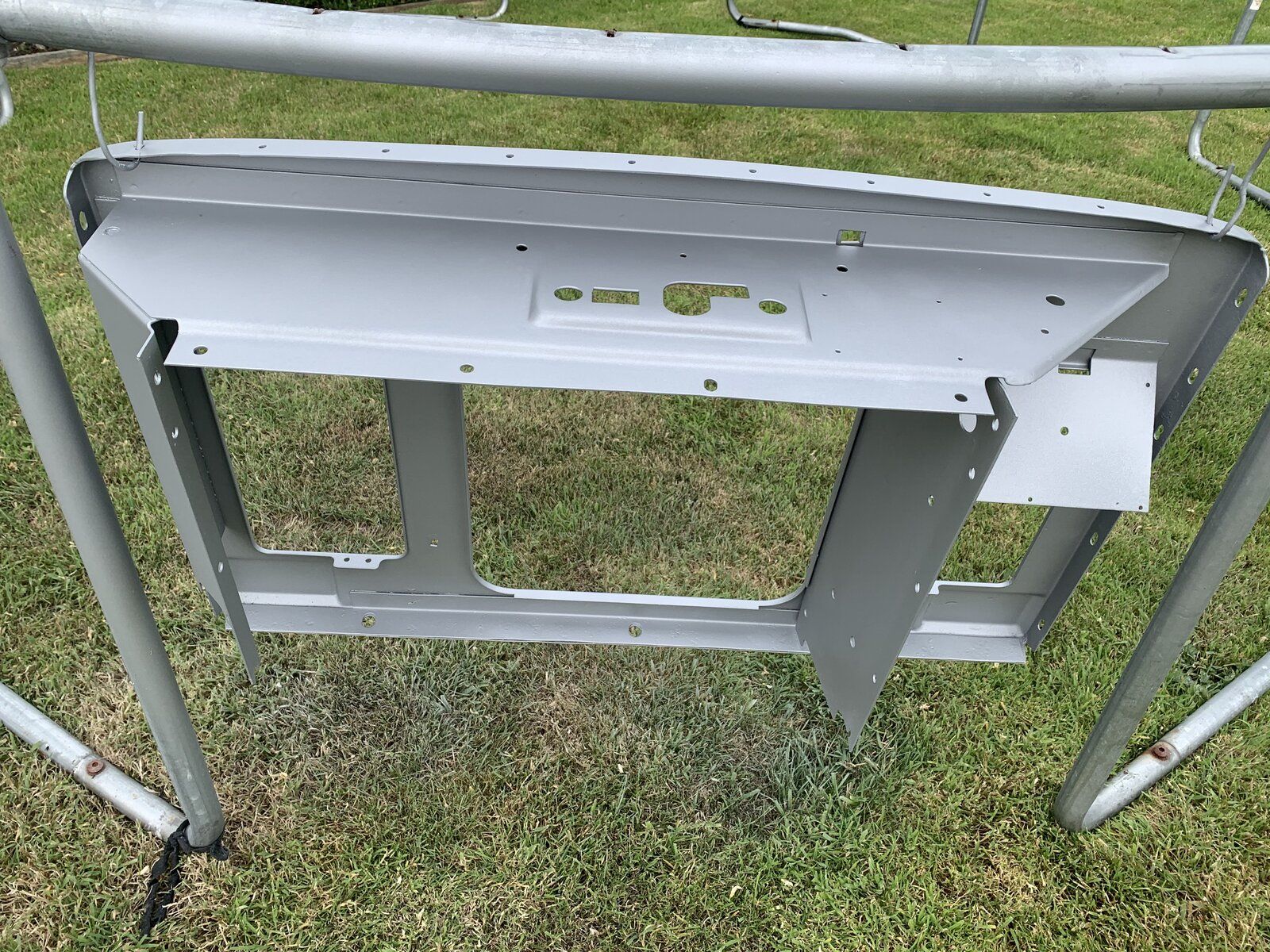

The front panel had taken 5 coates of primer, and hours of wet and dry to flatten out the pitting but well worth the effort ! Its now ready for blue paint along with the bulk head. Hope to have them back end of next week.



Attachments

•

  557.5 KB · Views: 150

UpandOver

Well-Known Member

• Jun 19, 2021

• #163

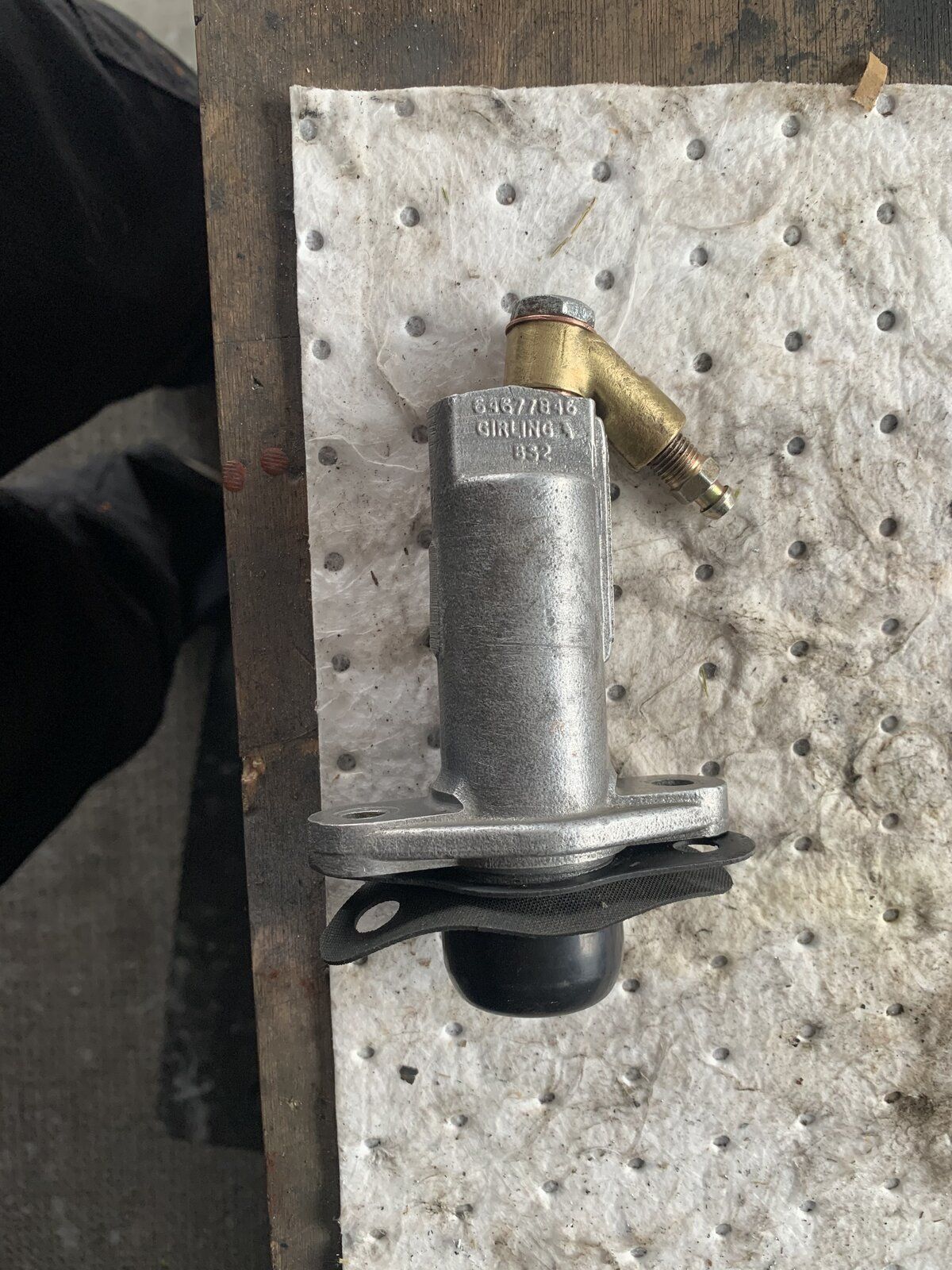

Slave clutch cylinder cleaned and put back together with a new seal kit, new bleed nipple and re zinc plated union bolt. So easier to buy a replacement part but you cant compare it to the origional !



Attachments

•

  358.9 KB · Views: 150

Last edited: Jun 19, 2021

steve2286w

Well-Known Member

• Jun 19, 2021

• #164

That’s a hefty zinc coating kit, I was wondering if you could have done the front panel using a bigger container.



UpandOver

Well-Known Member

• Jun 23, 2021

• #165

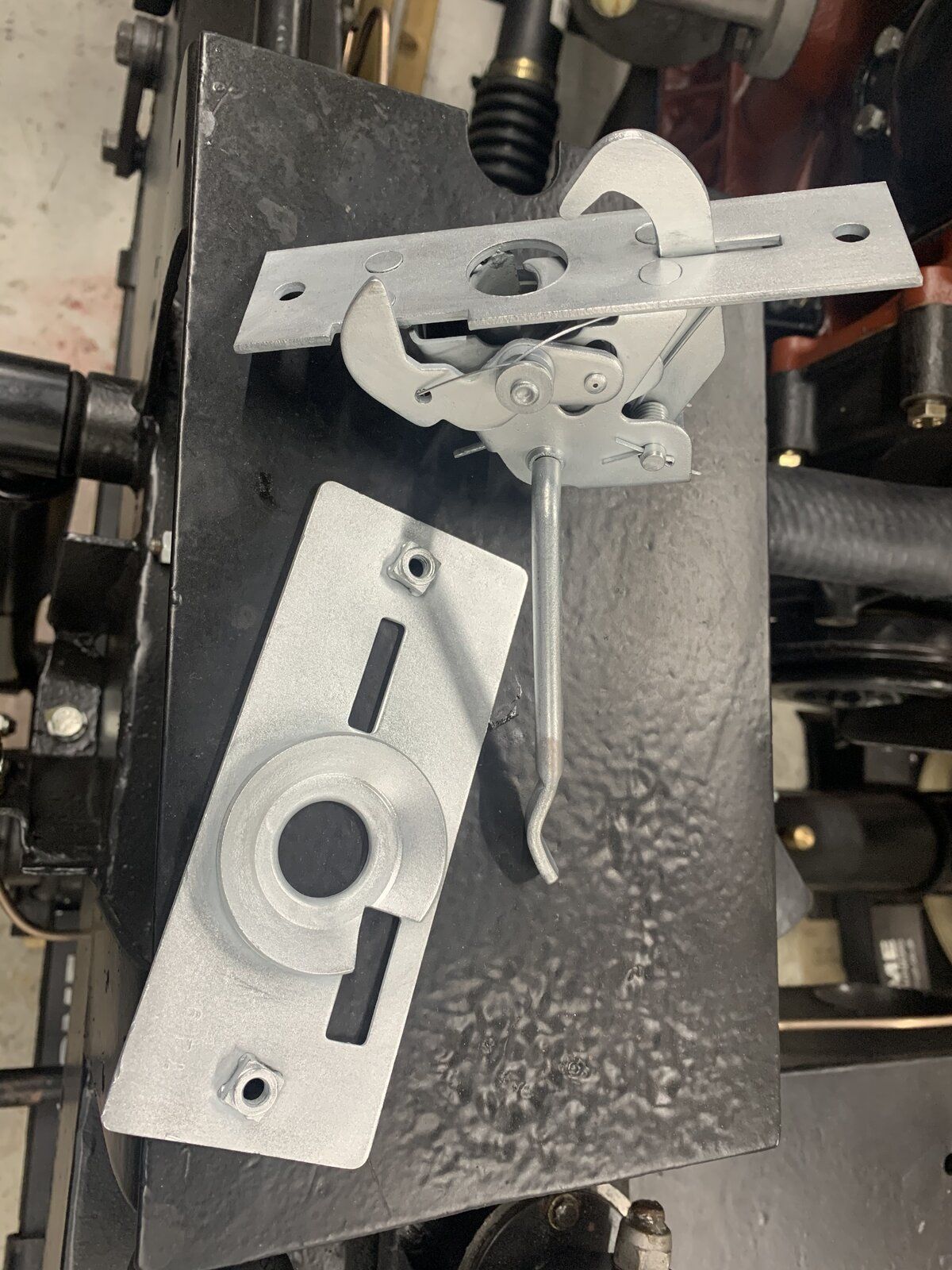

Bonnet catch and striker plate blasted and zinc plated.



Attachments

•

  295.4 KB · Views: 148

Resurgam

Well-Known Member

• Jun 28, 2021

• #166

UpandOver said:

The front panel had taken 5 coates of primer, and hours of wet and dry to flatten out the pitting but well worth the effort ! Its now ready for blue paint along with the bulk head. Hope to have them back end of next week.

Click to expand...

Great use of a trampoline there! I'll have borrow ours from the kids when the time comes.



UpandOver

Well-Known Member

• Jun 30, 2021

• #167

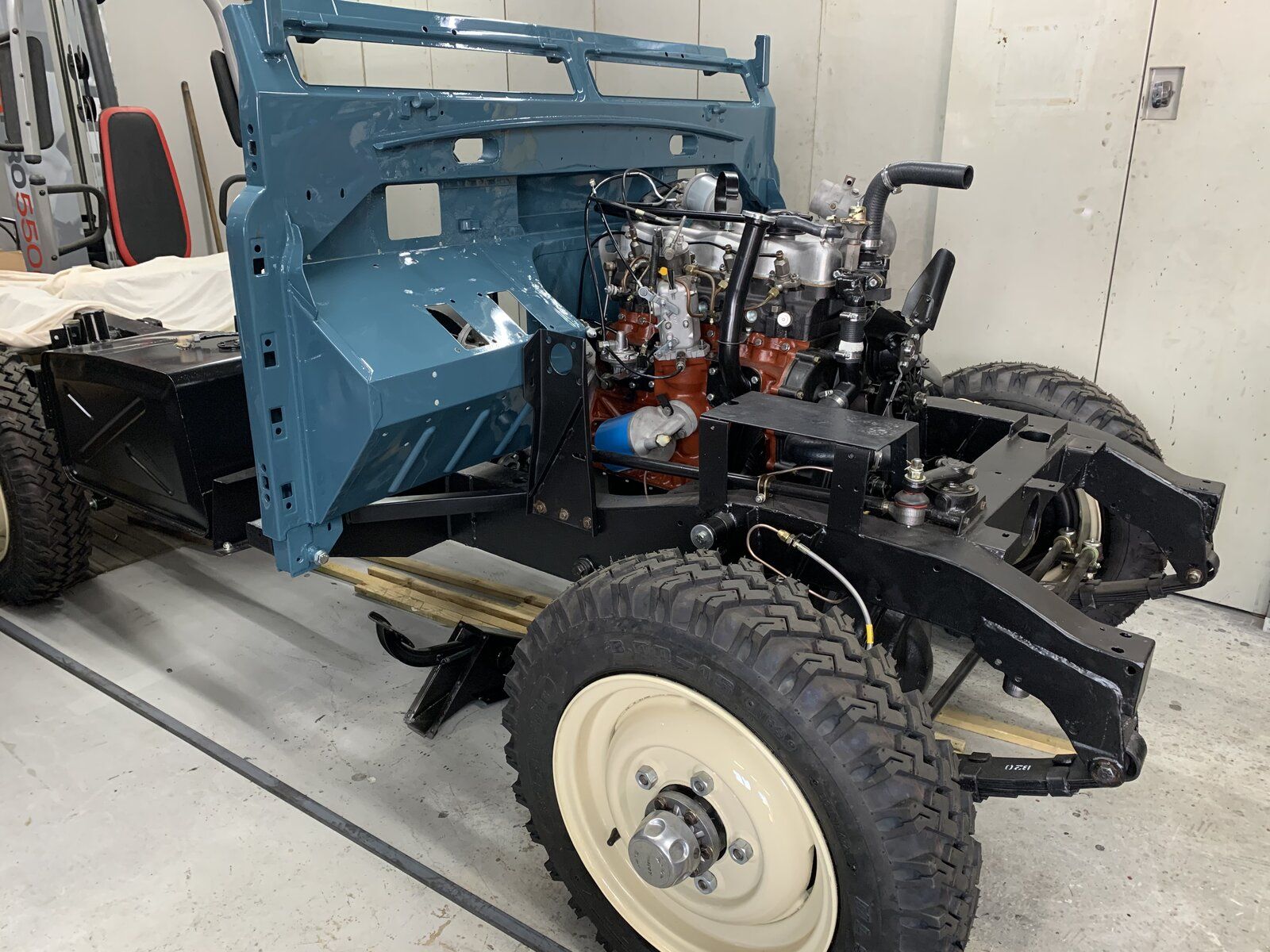

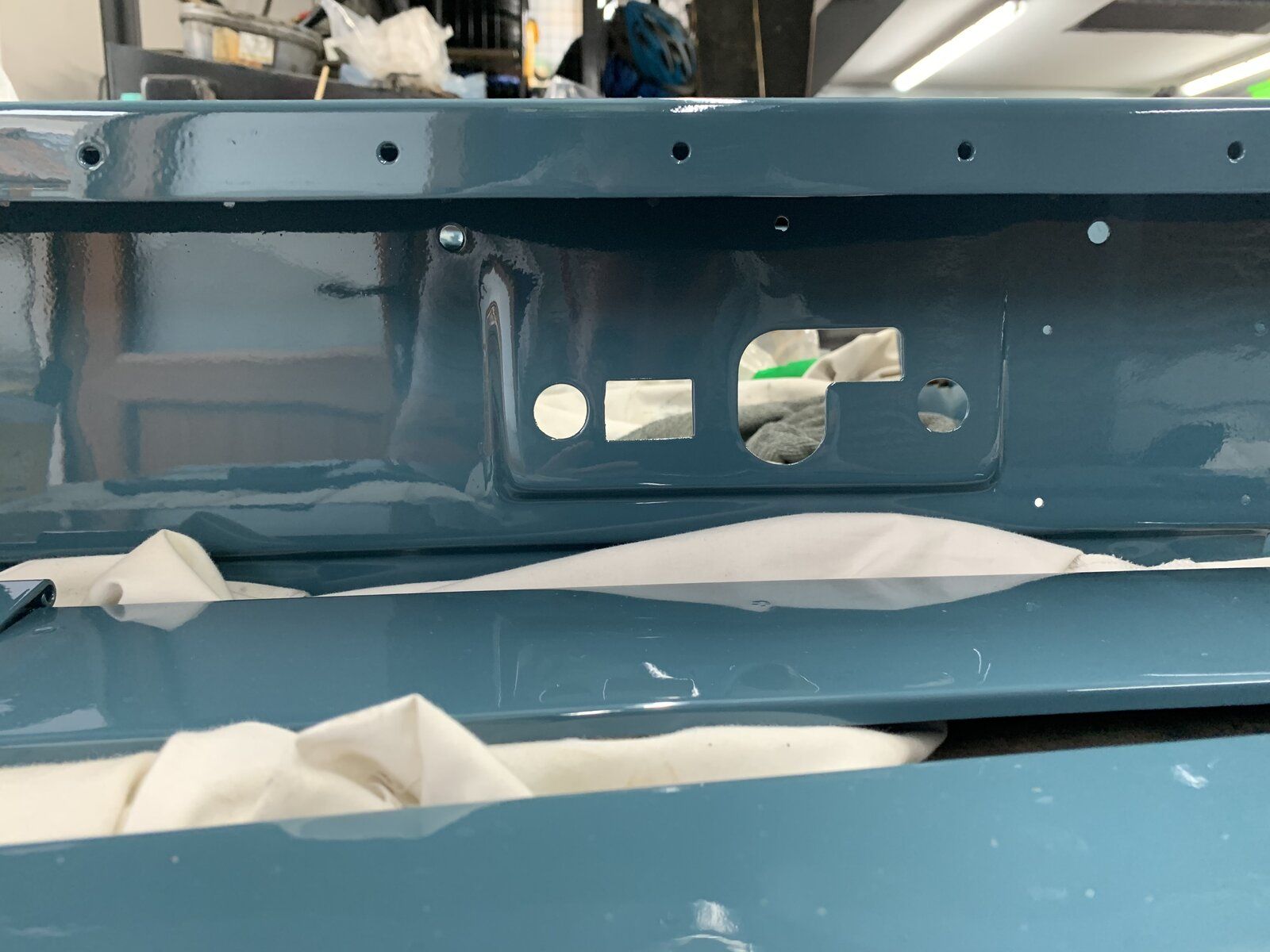

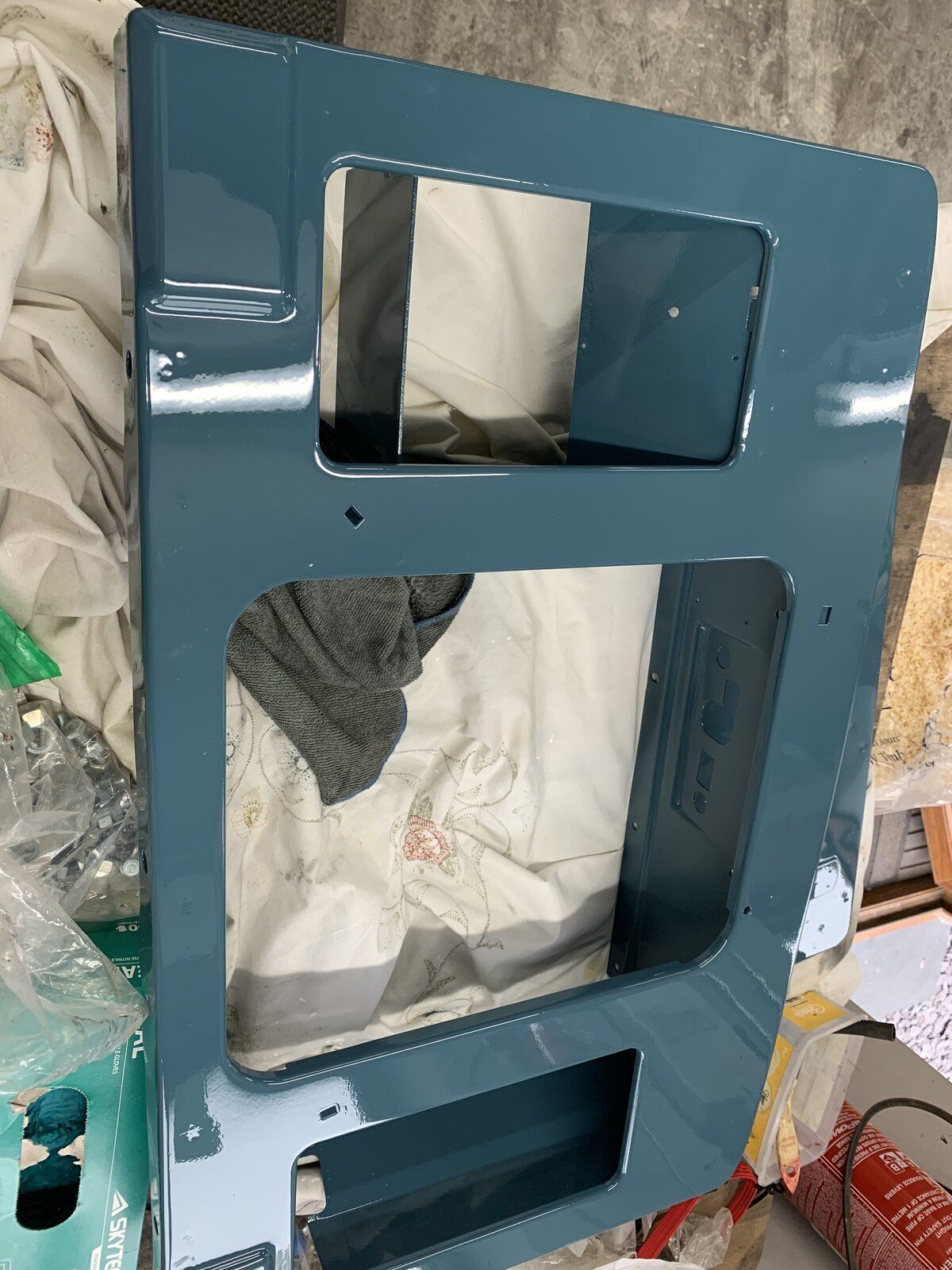

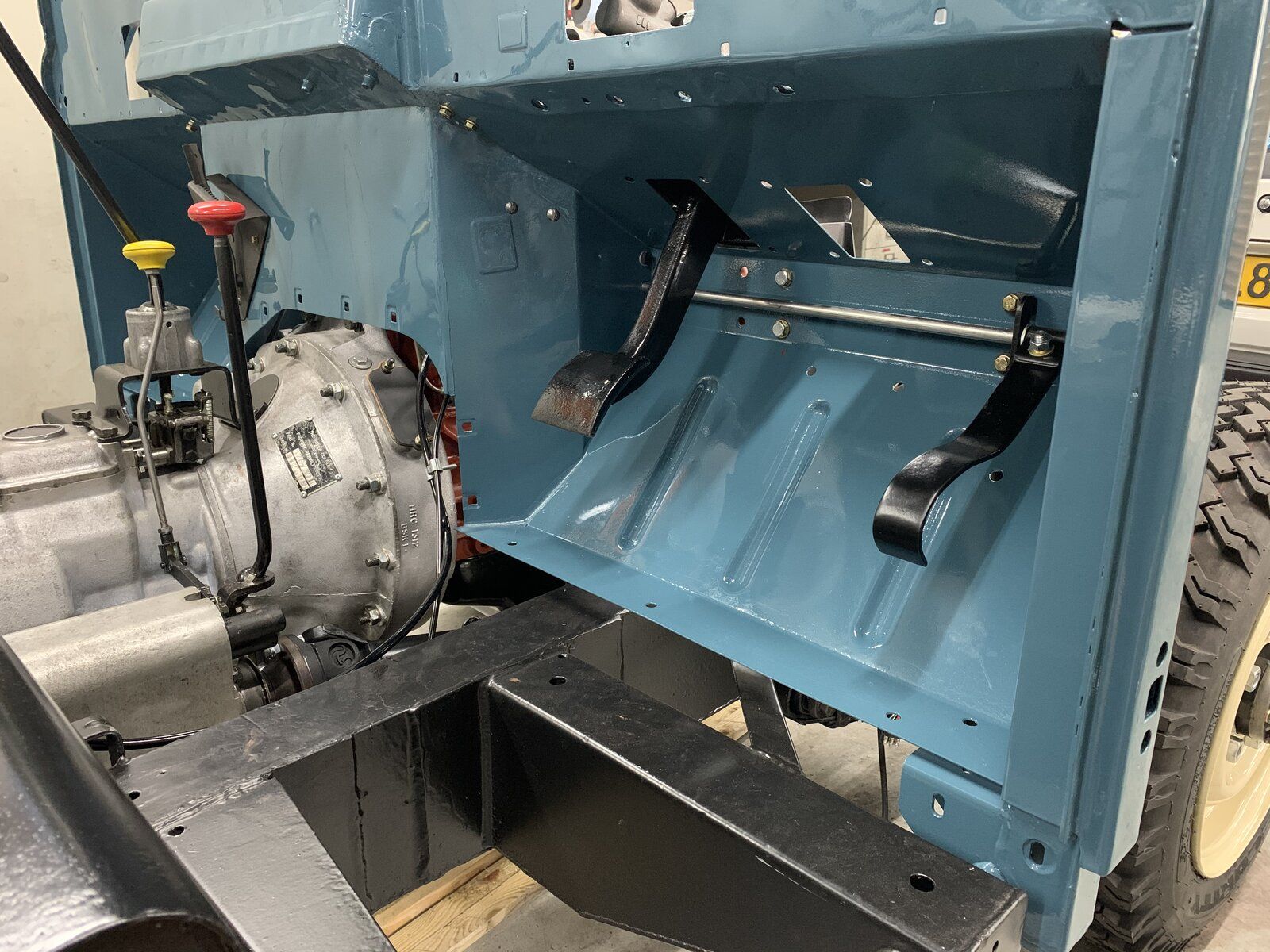

Well how happy was I yesterday when I get the call from the painters to say the bulkhead and front panel were ready! Couldn’t wait to finish work and get it fitted !



Attachments

•

  323.6 KB · Views: 149
•

  315 KB · Views: 149

UpandOver

Well-Known Member

• Jun 30, 2021

• #168

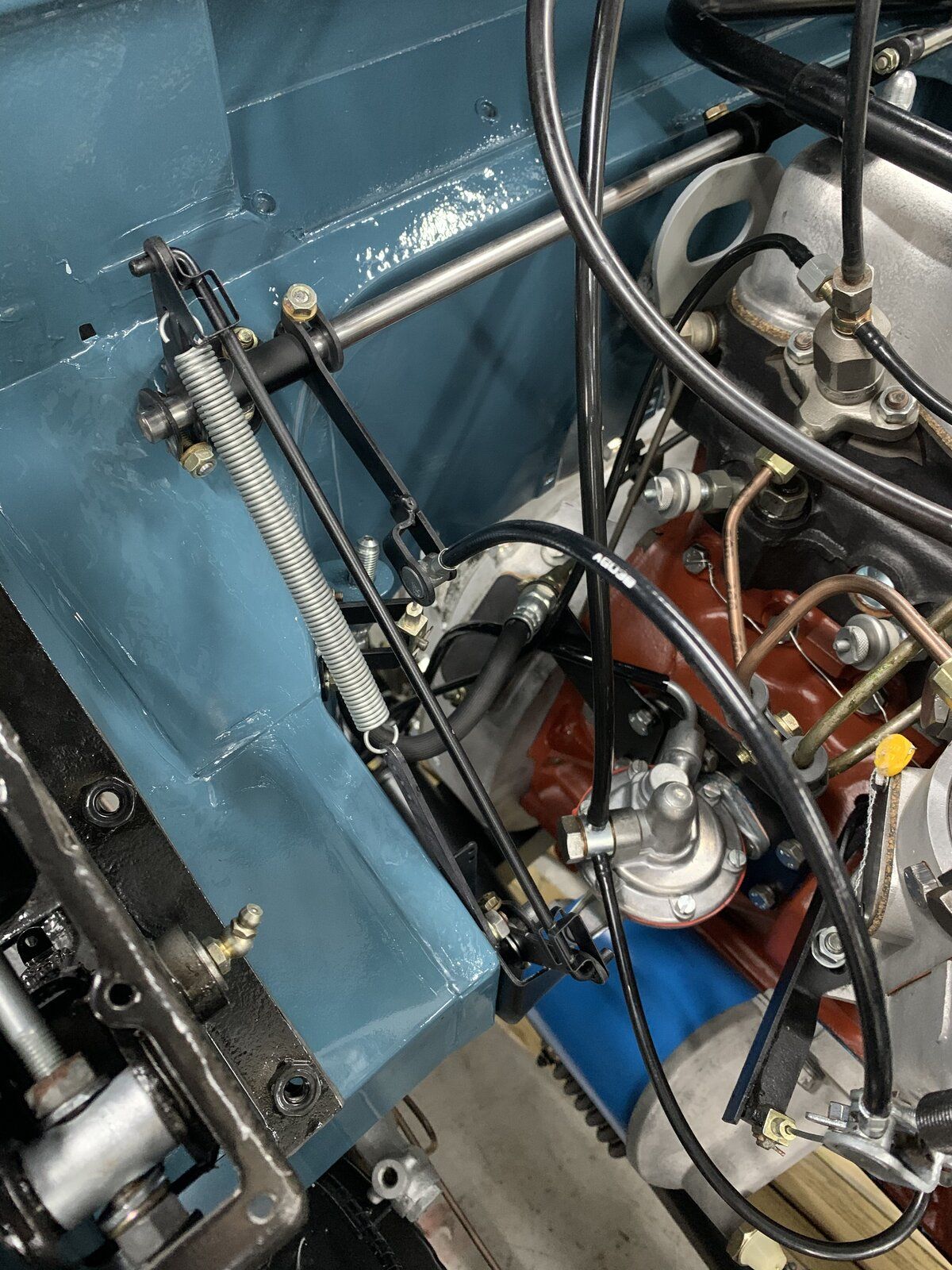

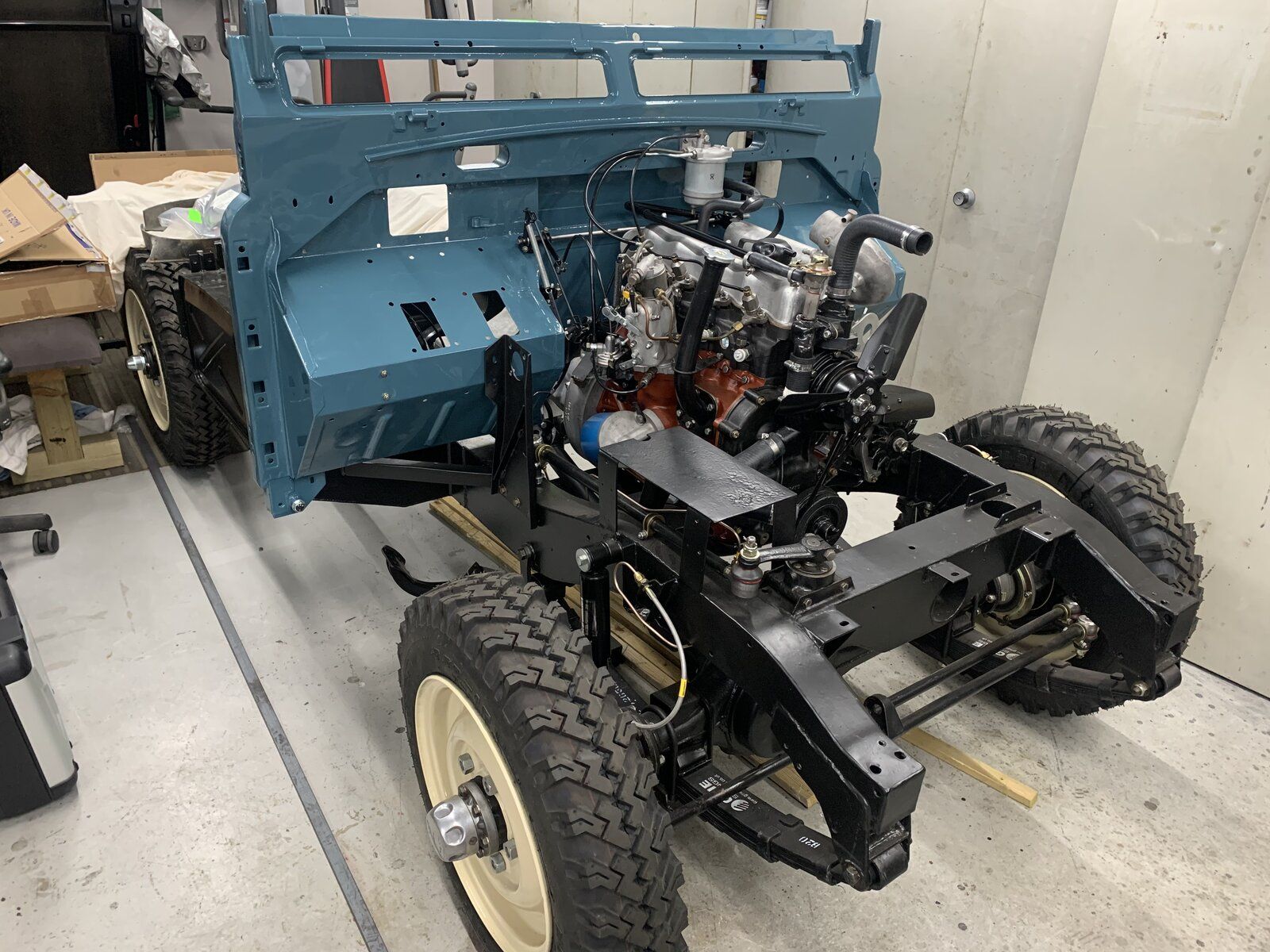

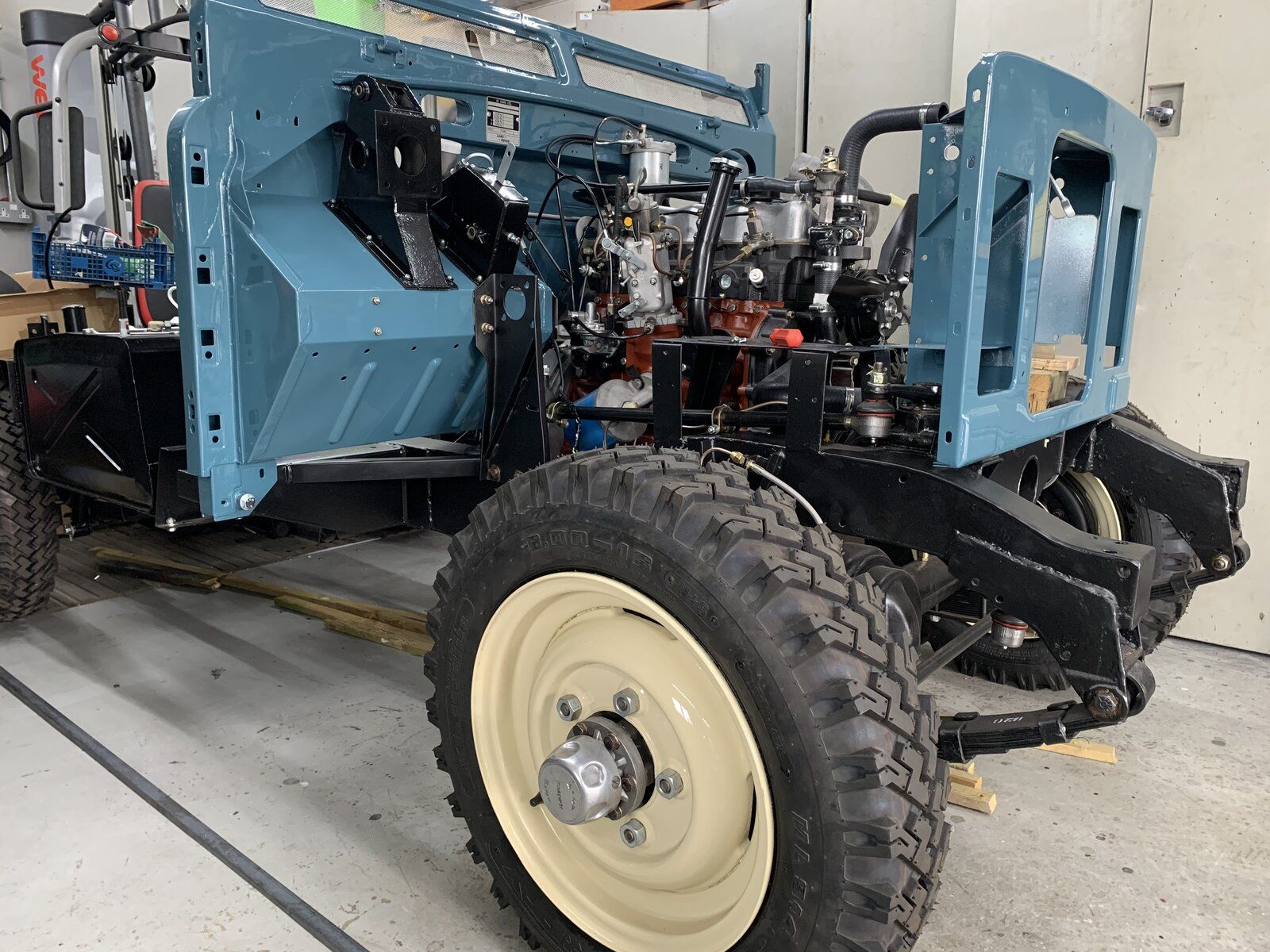

Throttle linkages fitted, fuel filter attached oh won’t be long now until she’s fired up



A

adrianhartopp

Active Member

• Jun 30, 2021

• #169

UpandOver said:

Throttle linkages fitted, fuel filter attached oh won’t be long now until she’s fired up

Click to expand...

Please can you video it when you do fire her up. I'm sure there's more than just me on here who would like to witness it.
Looks fantastic too.



UpandOver

Well-Known Member

• Jun 30, 2021

• #170

adrianhartopp said:

Please can you video it when you do fire her up. I'm sure there's more than just me on here who would like to witness it.
Looks fantastic too.

Click to expand...

Will do !



UpandOver

Well-Known Member

• Jun 30, 2021

• #171

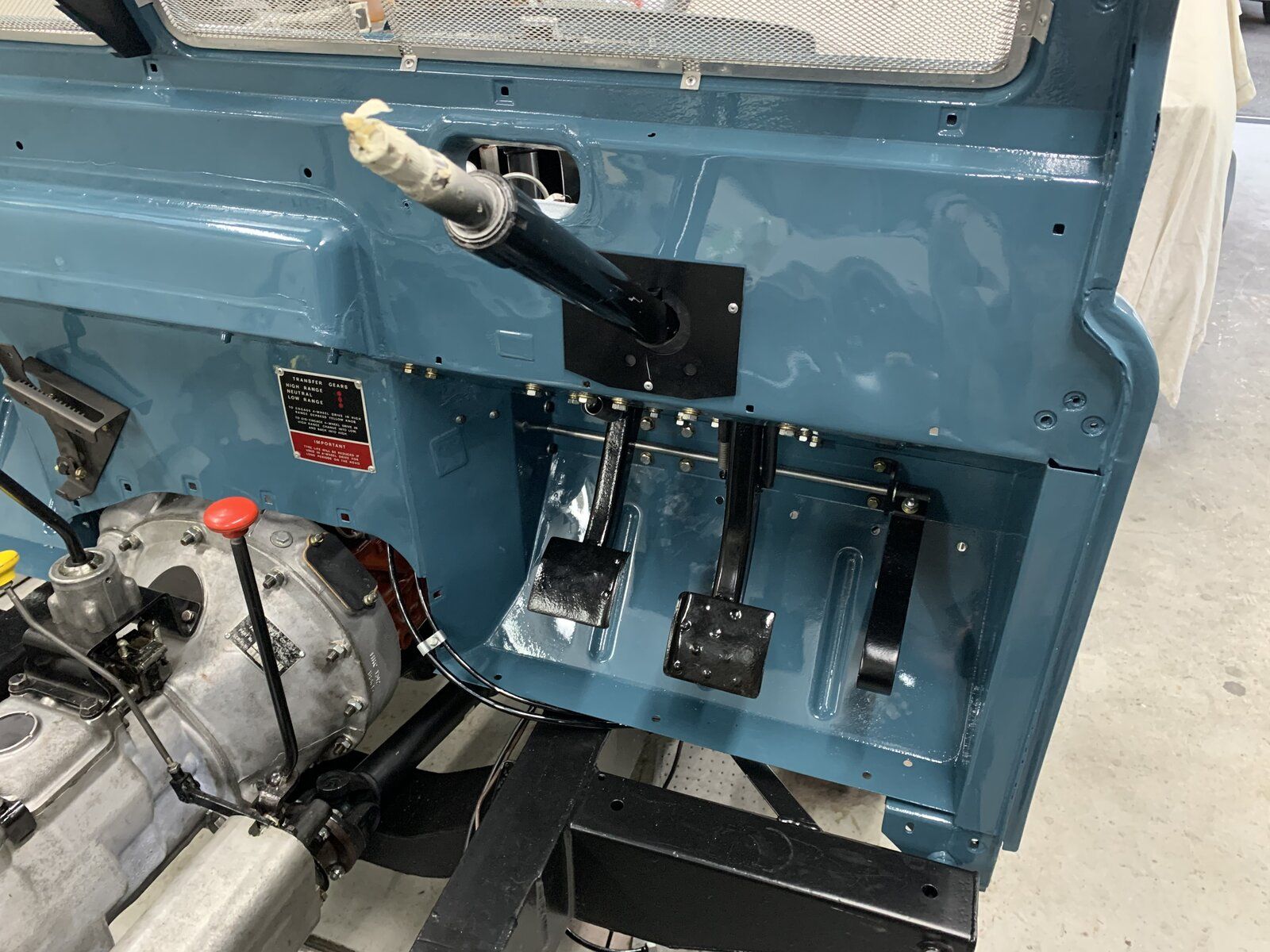

Clutch pedal box back together and new chassis loom pulled through. Encased the loom in a length of rubber hose that I cut down the middle just to make sure that it doesn’t rub inside the box chassis.



Attachments

•

  365.8 KB · Views: 127
•

  324.3 KB · Views: 141

UpandOver

Well-Known Member

• Jun 30, 2021

• #172

Well I have to admit all that primer, wet and dry and elbow grease really paid off ! There isnt a blemish on the front slam panel !



Attachments

•

  163.8 KB · Views: 151
•

  254.8 KB · Views: 140

UpandOver

Well-Known Member

• Jun 30, 2021

• #173

Bearing this in mind I’m not looking forward to getting the wings and rear tub ready for paint ! Wet and dry ! More like hammer and chisels



UpandOver

Well-Known Member

• Jul 3, 2021

• #174

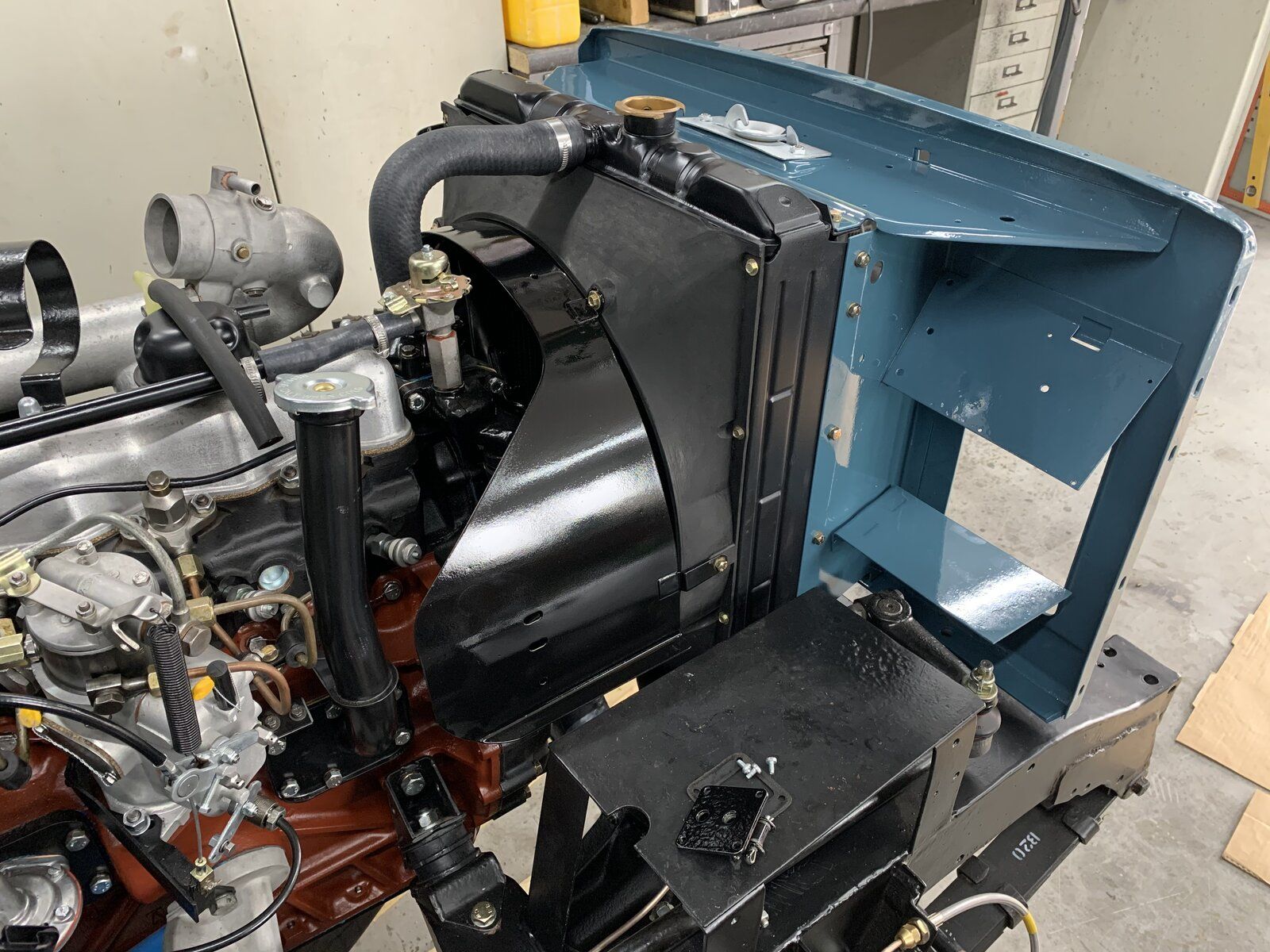

Radiator fitted to the front panel, rad plastic cowl cleaned and polished, then the steel fan guard fitted.



Last edited: Jul 3, 2021

UpandOver

Well-Known Member

• Jul 3, 2021

• #175

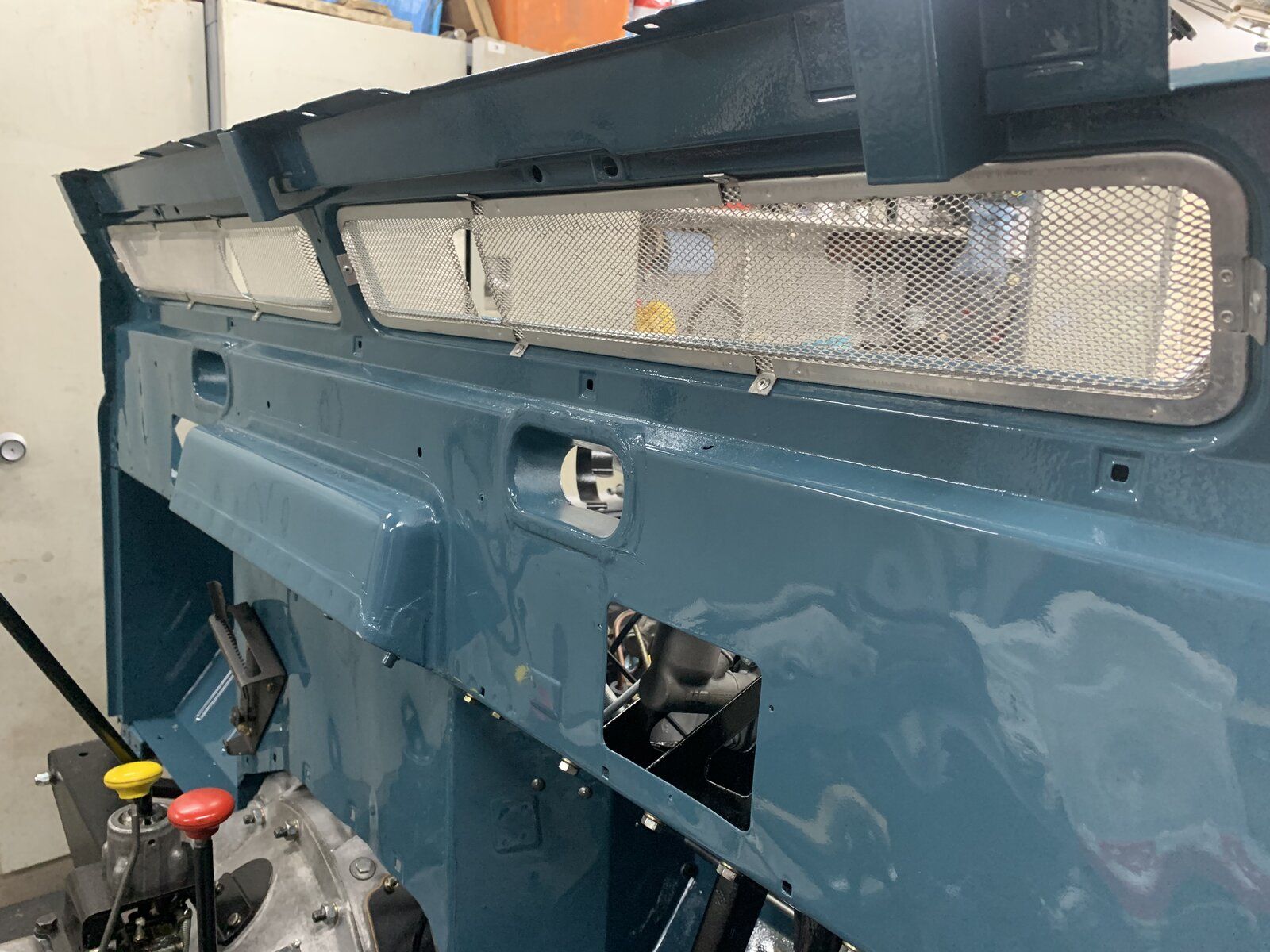

Vent mesh cleaned straightend then riveted in



Attachments

•

  266.7 KB · Views: 127

Last edited: Jul 3, 2021

UpandOver

Well-Known Member

• Jul 3, 2021

• #176

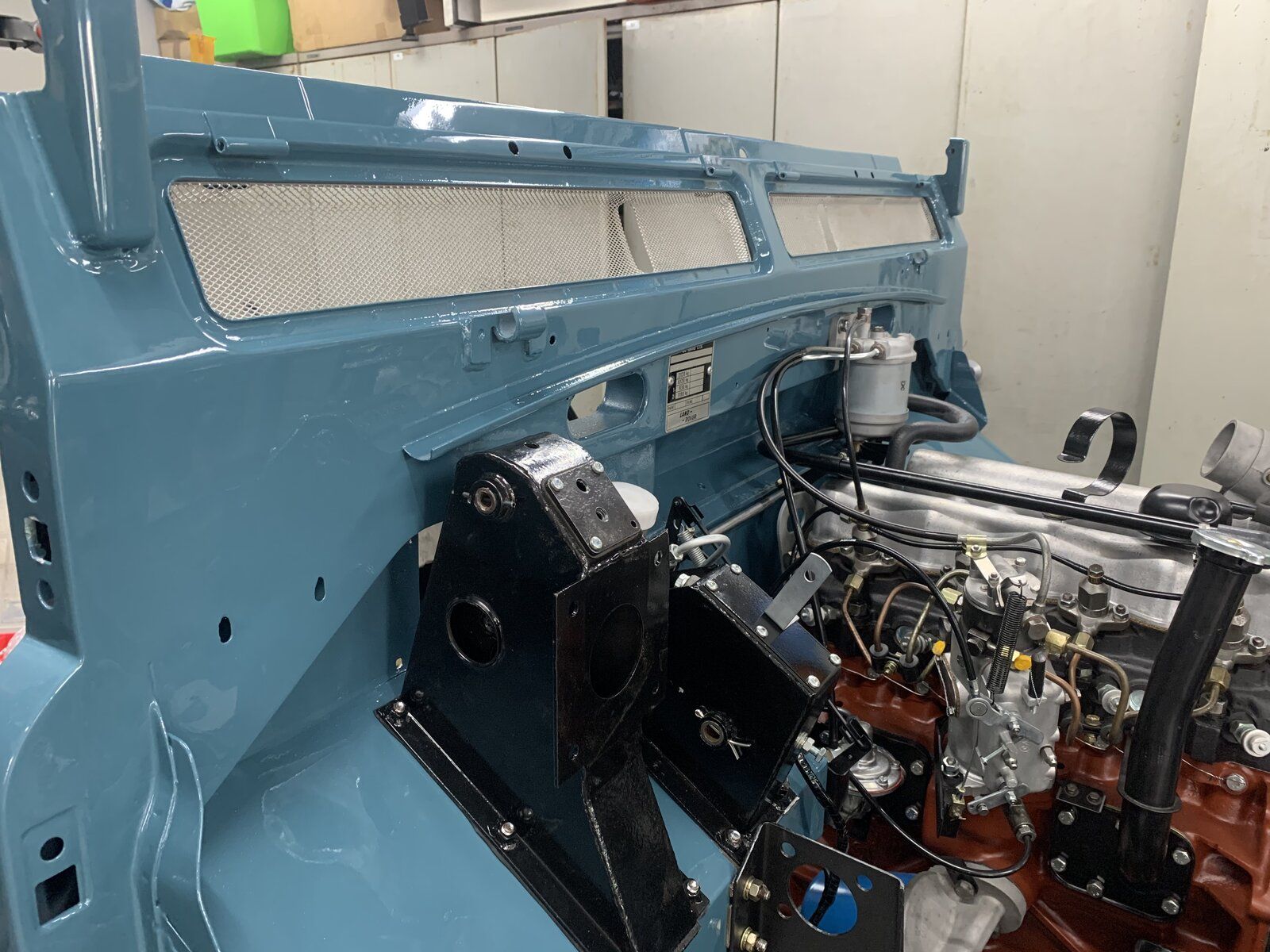

Brake box fitted just waiting for the new servo to arrive



Attachments

•

  281.3 KB · Views: 128

UpandOver

Well-Known Member

• Jul 11, 2021

• #177

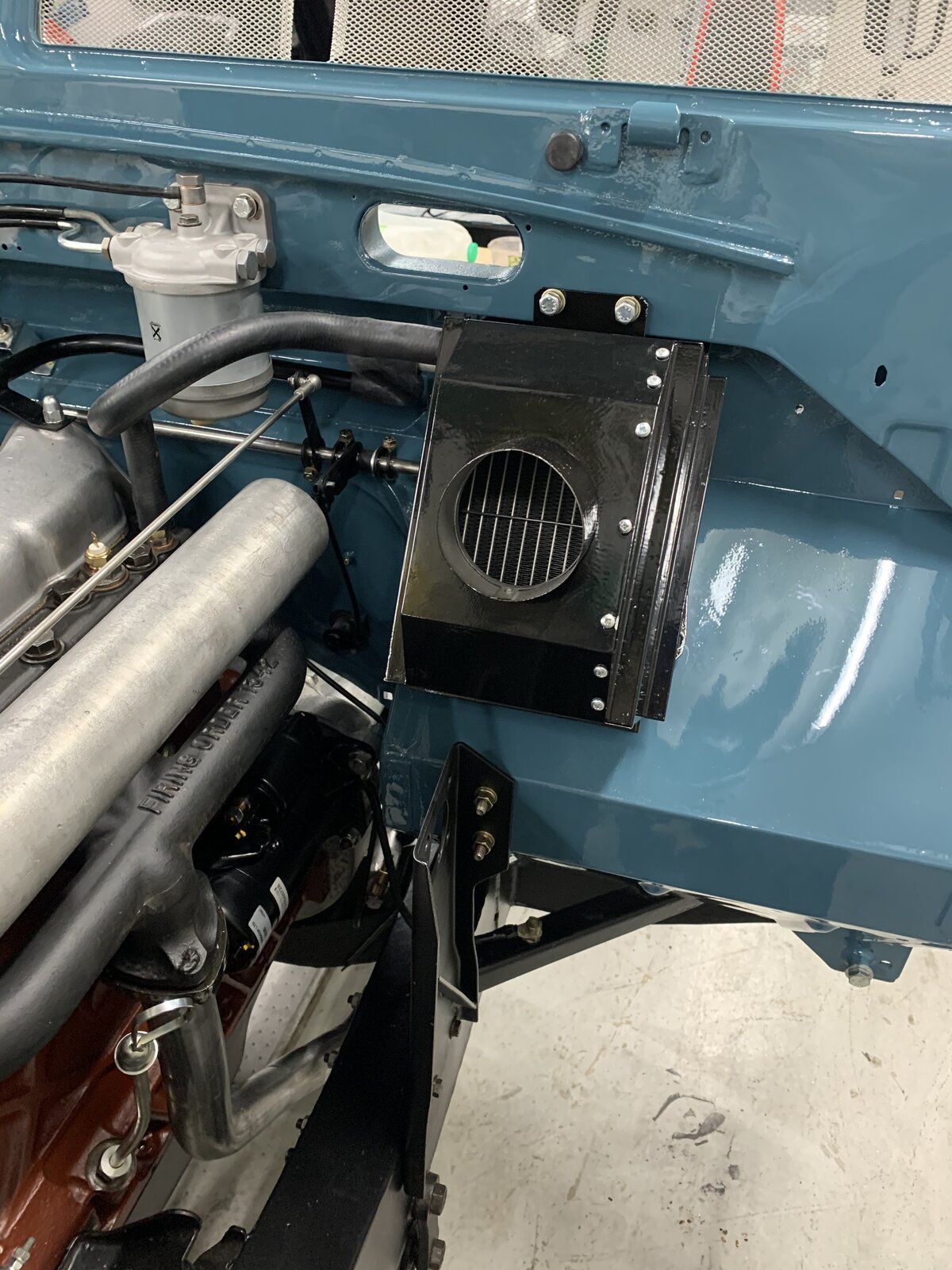

Heater box back together with new matrix ! Not sure why as this landy will only go out when its dry and sunny



Attachments

•

  303.2 KB · Views: 149

UpandOver

Well-Known Member

• Jul 11, 2021

• #178

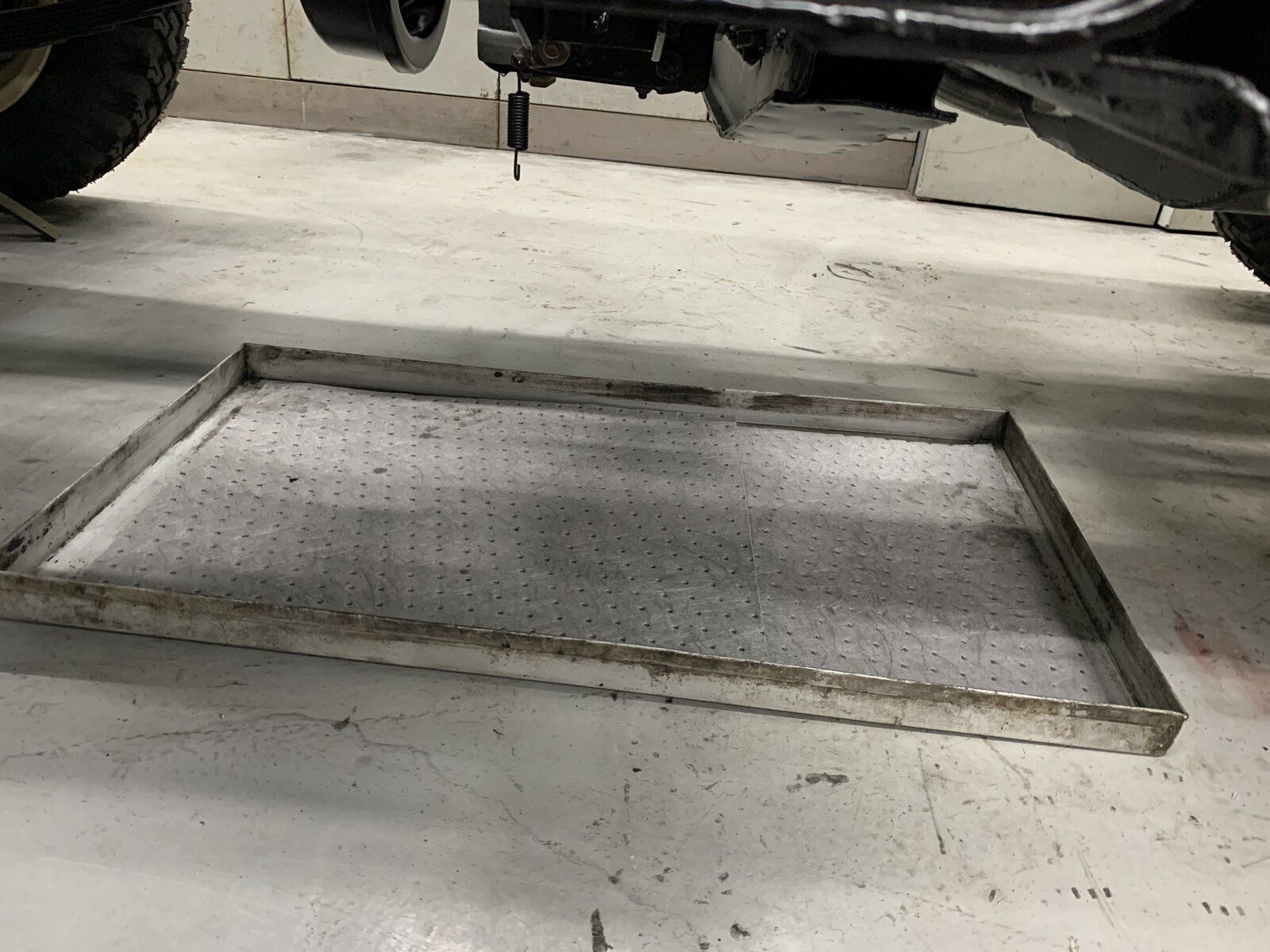

Filled the gearbox and transfer box and 2.5lts of oil ended up on the floor ...grrr looks like the handbrake output seal was not doing its job! Took it apart and it seems that the Corteco seal wasnt that tight on the output flange shaft (hmm that sounds well dirty) lol anyhow ordered a genuine landy one and boom ! Seals as tight as a ducks arse ! Now there’s something you dont see often ! A dry drip tray under a landy



Attachments

•

  248.4 KB · Views: 116

UpandOver

Well-Known Member

• Jul 16, 2021

• #179

Steering column blasted painted and rebuilt with a rebuild seal and bearing kit. Filled with some fresh smelly EP90!



Attachments

•

  328.8 KB · Views: 126
•

  291.5 KB · Views: 126

UpandOver

Well-Known Member

• Jul 27, 2021

• #180

First start up
