N

nickjaxe

Well-Known Member

• Mar 24, 2019

• #41

Have you had an infra red temp sensor on the thermostat housing to see if it really is getting to hot before wasting your money????



Stormintrooper

Active Member

• May 11, 2019

• #42

UPDATE

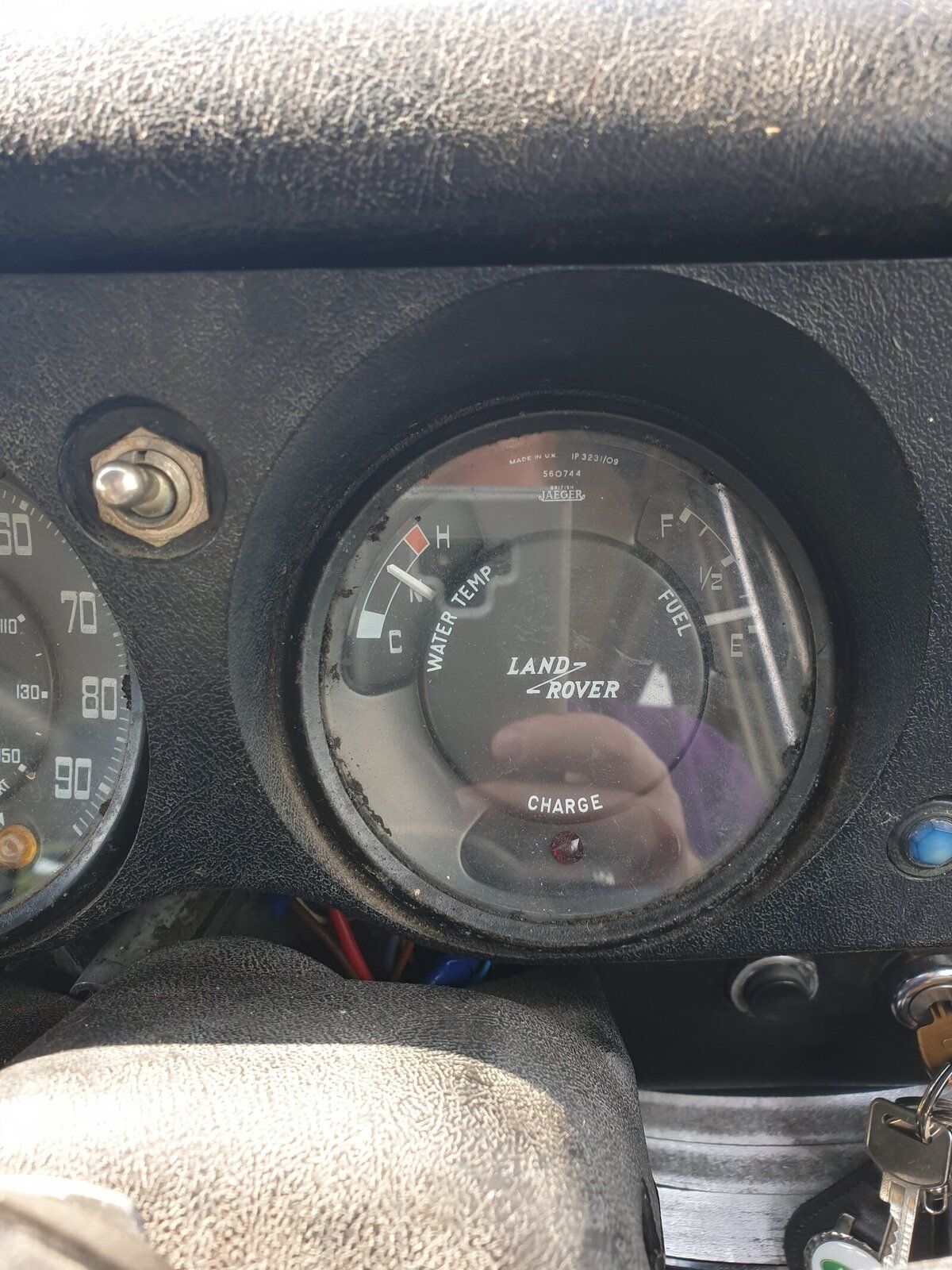

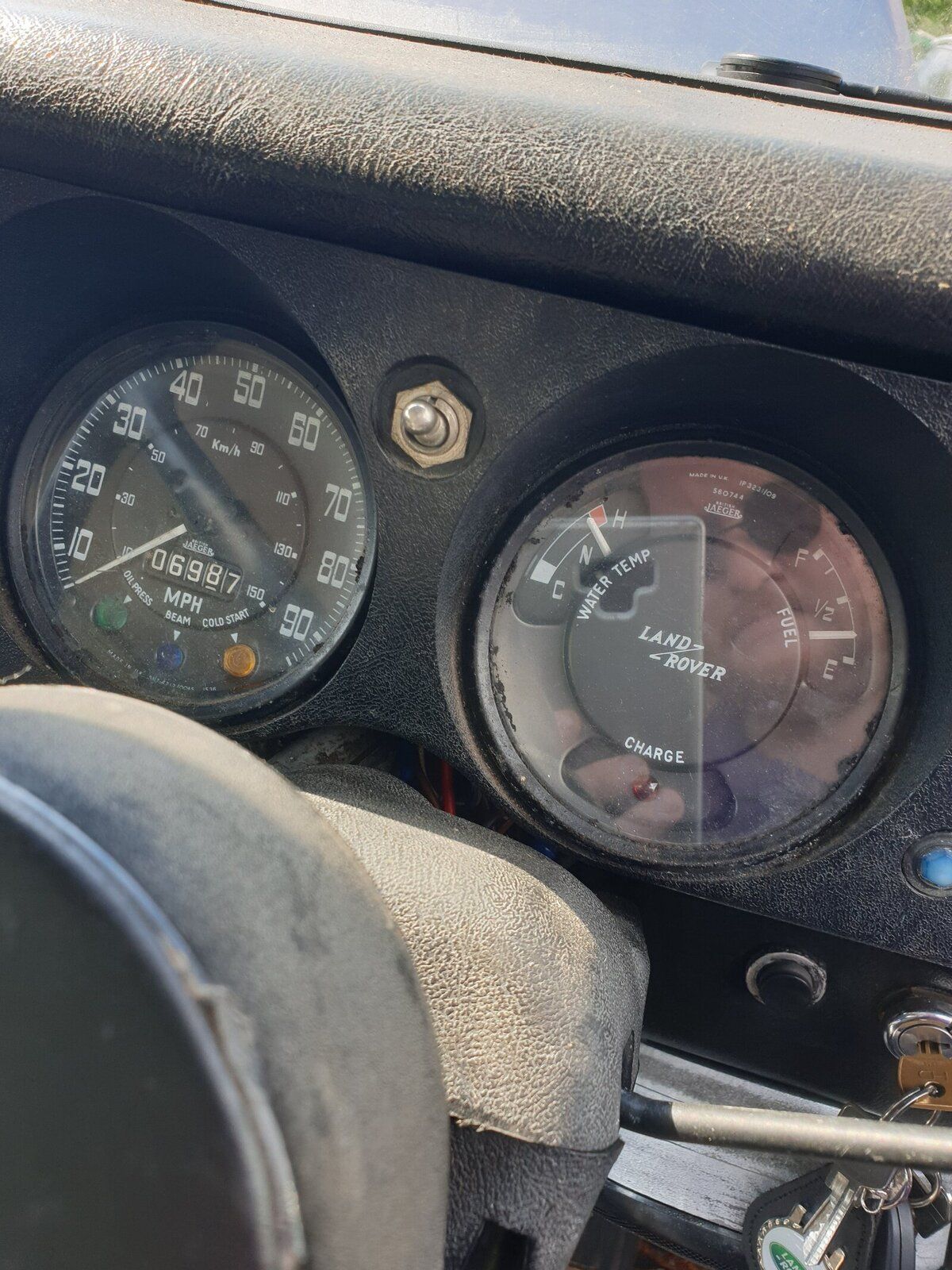

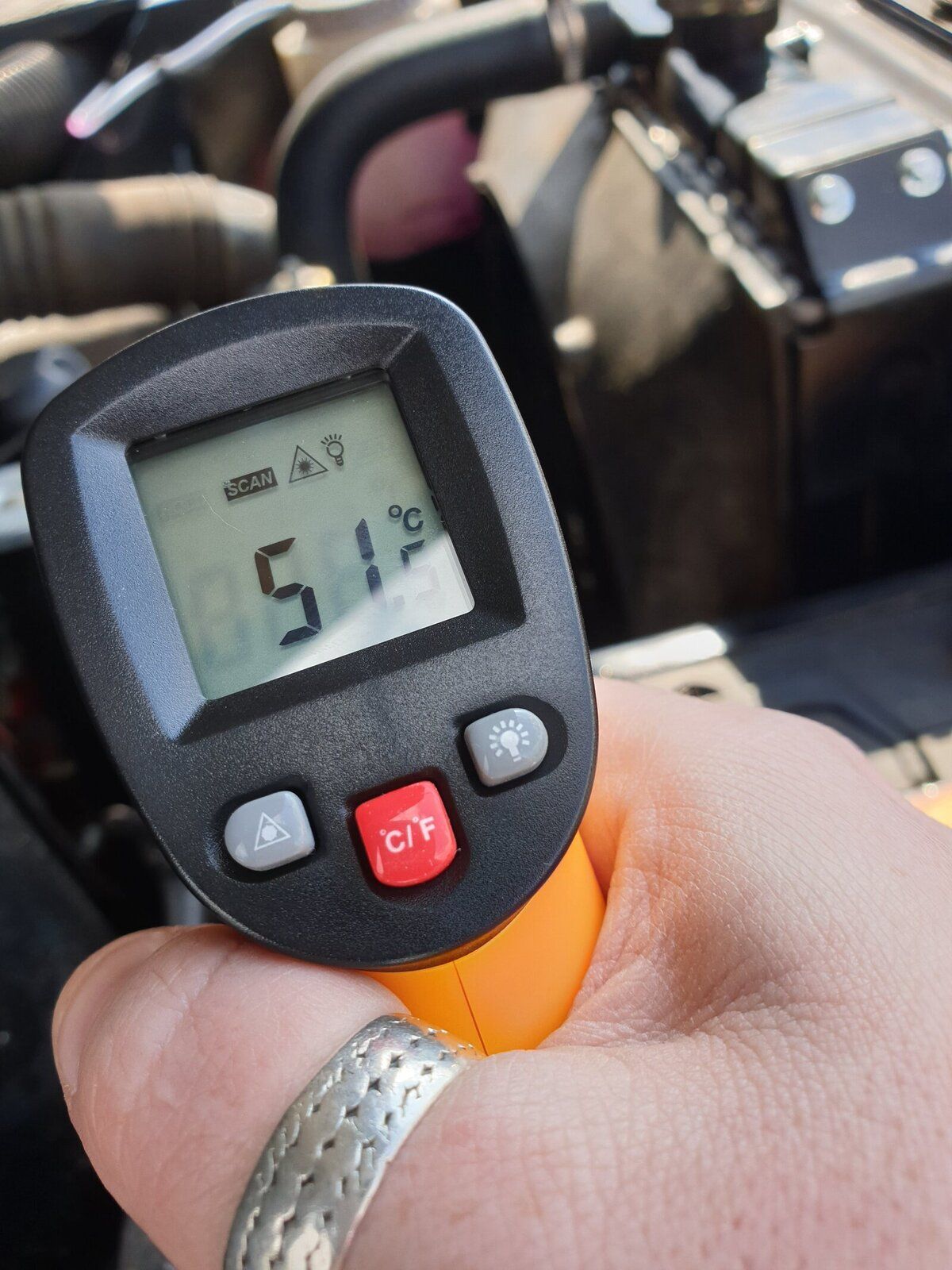

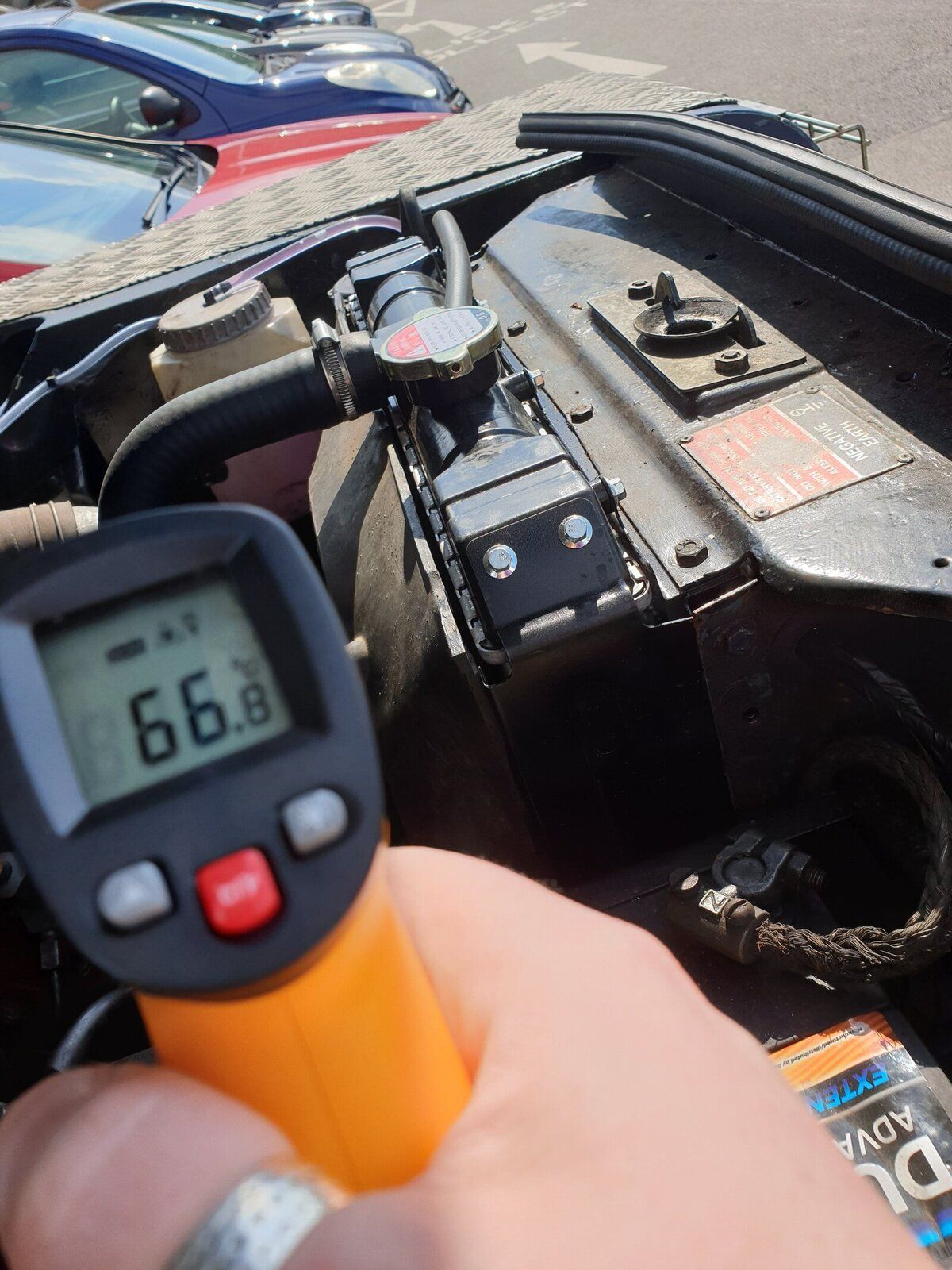

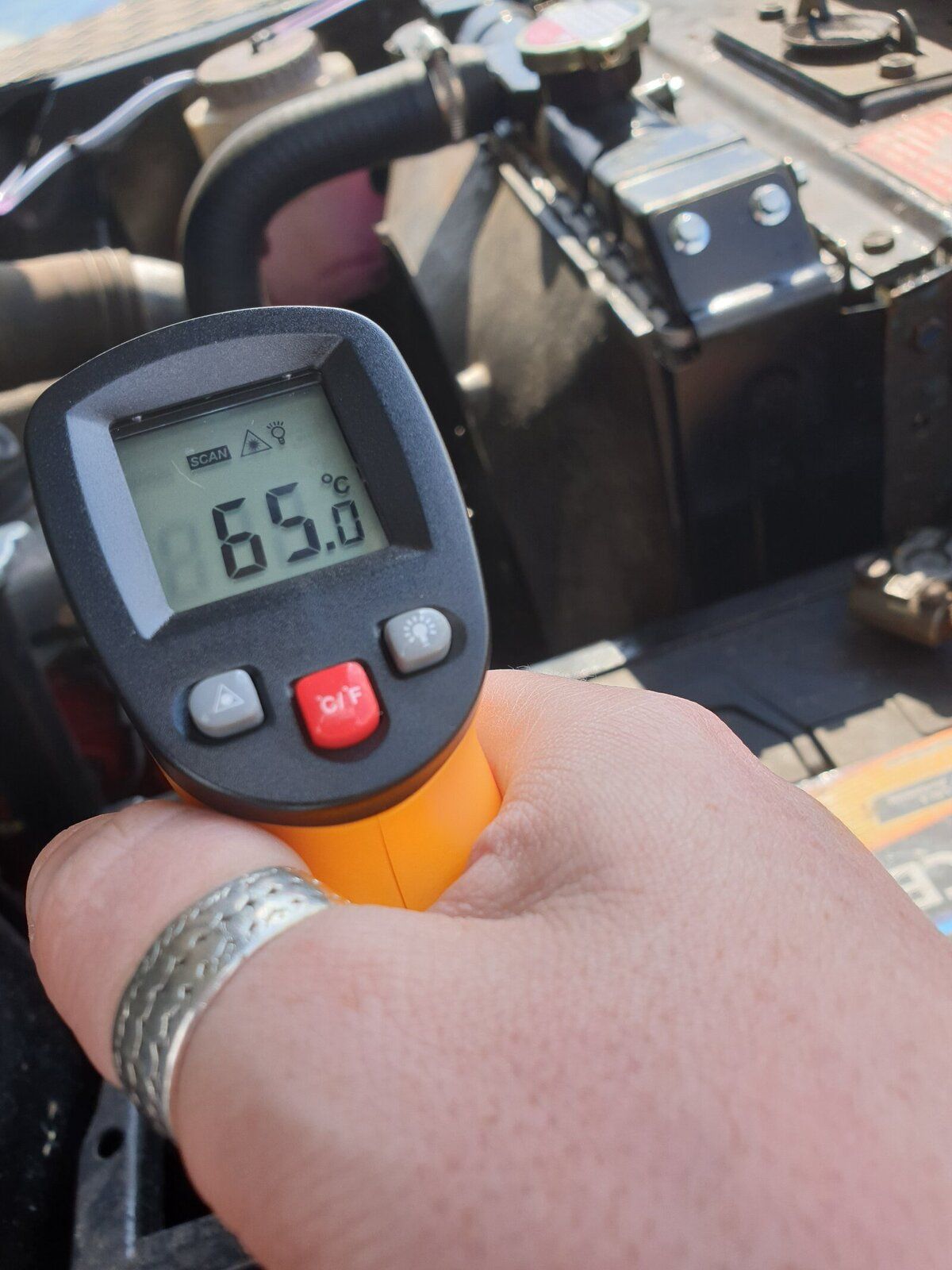

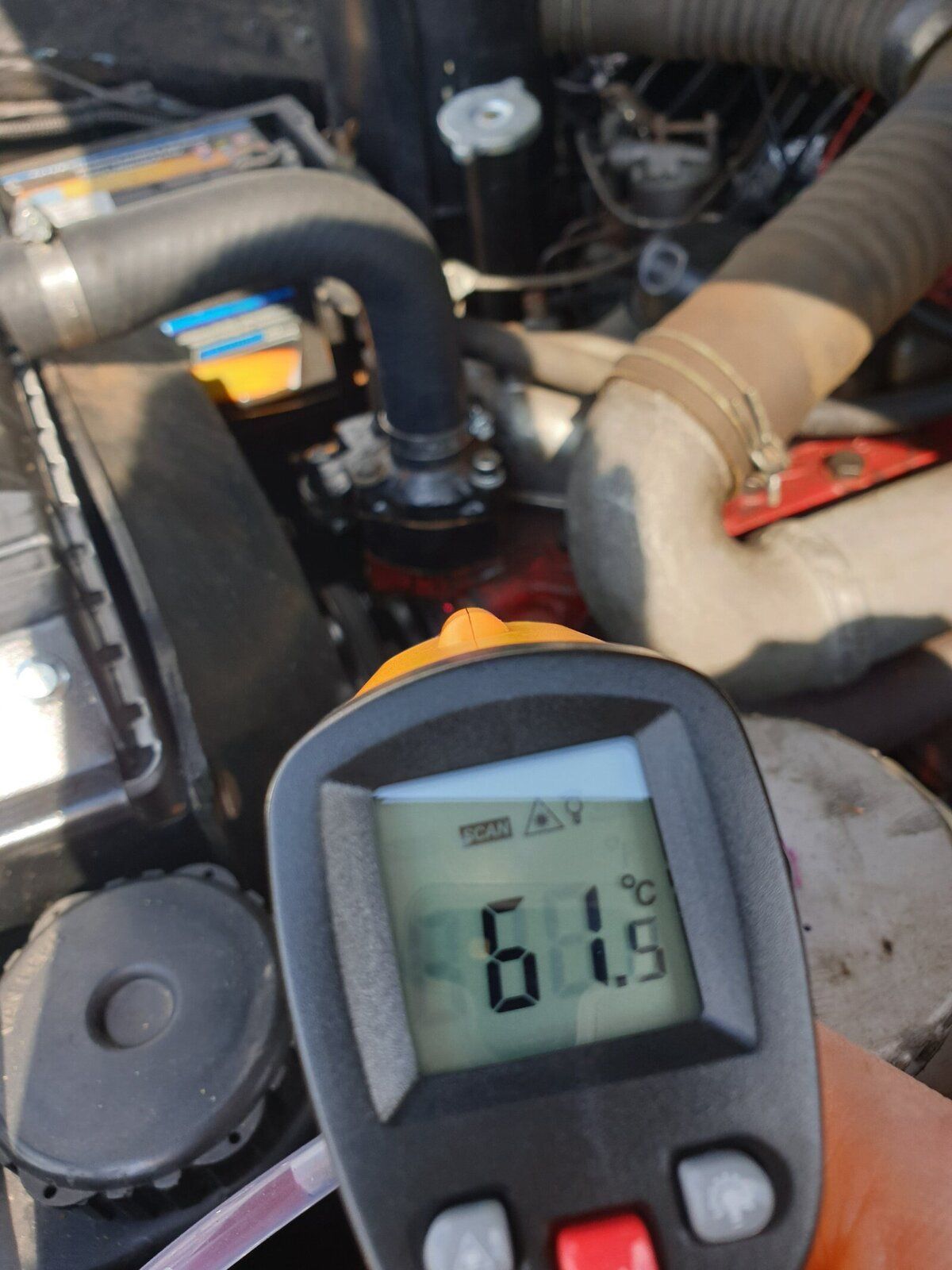

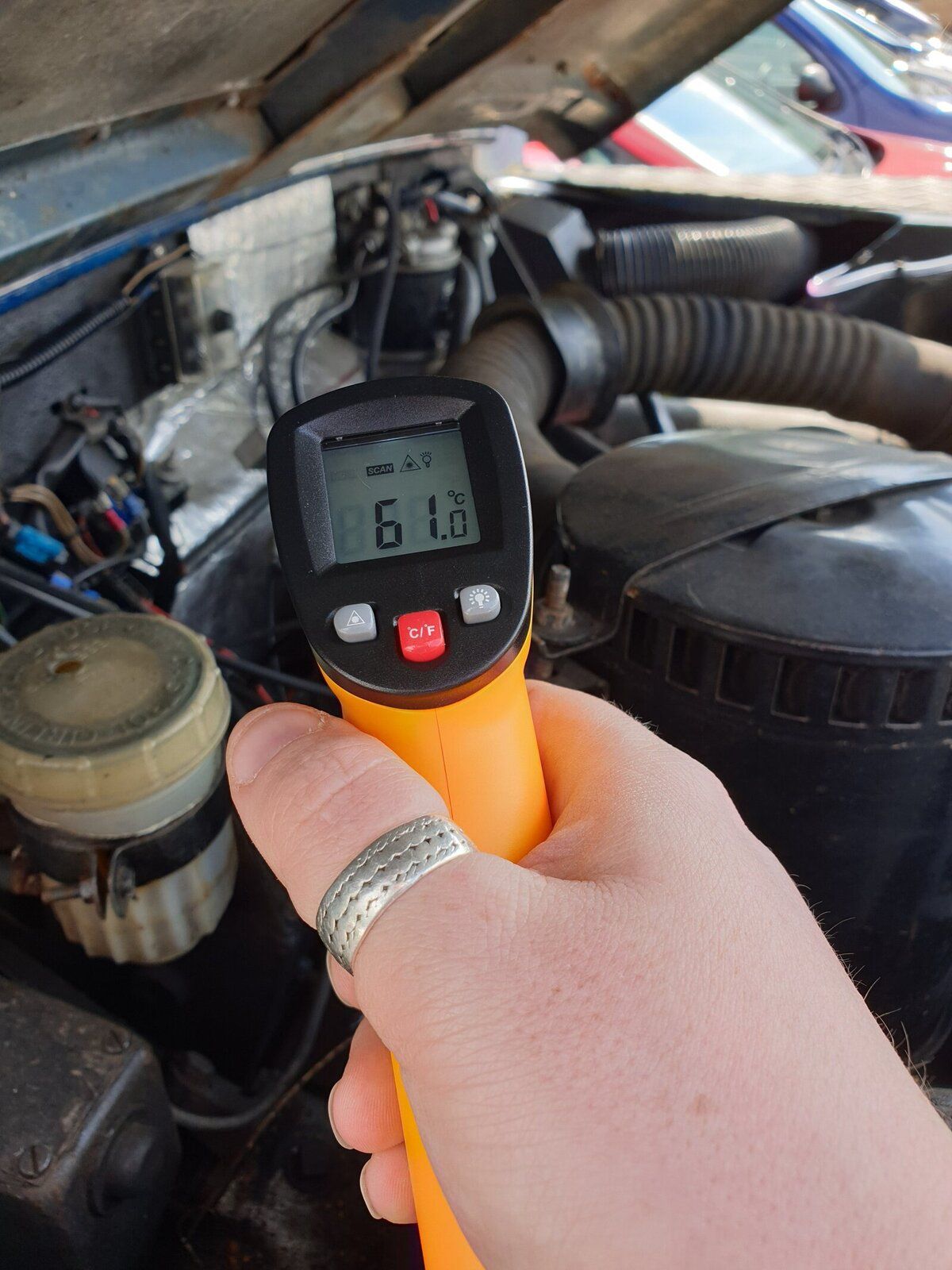

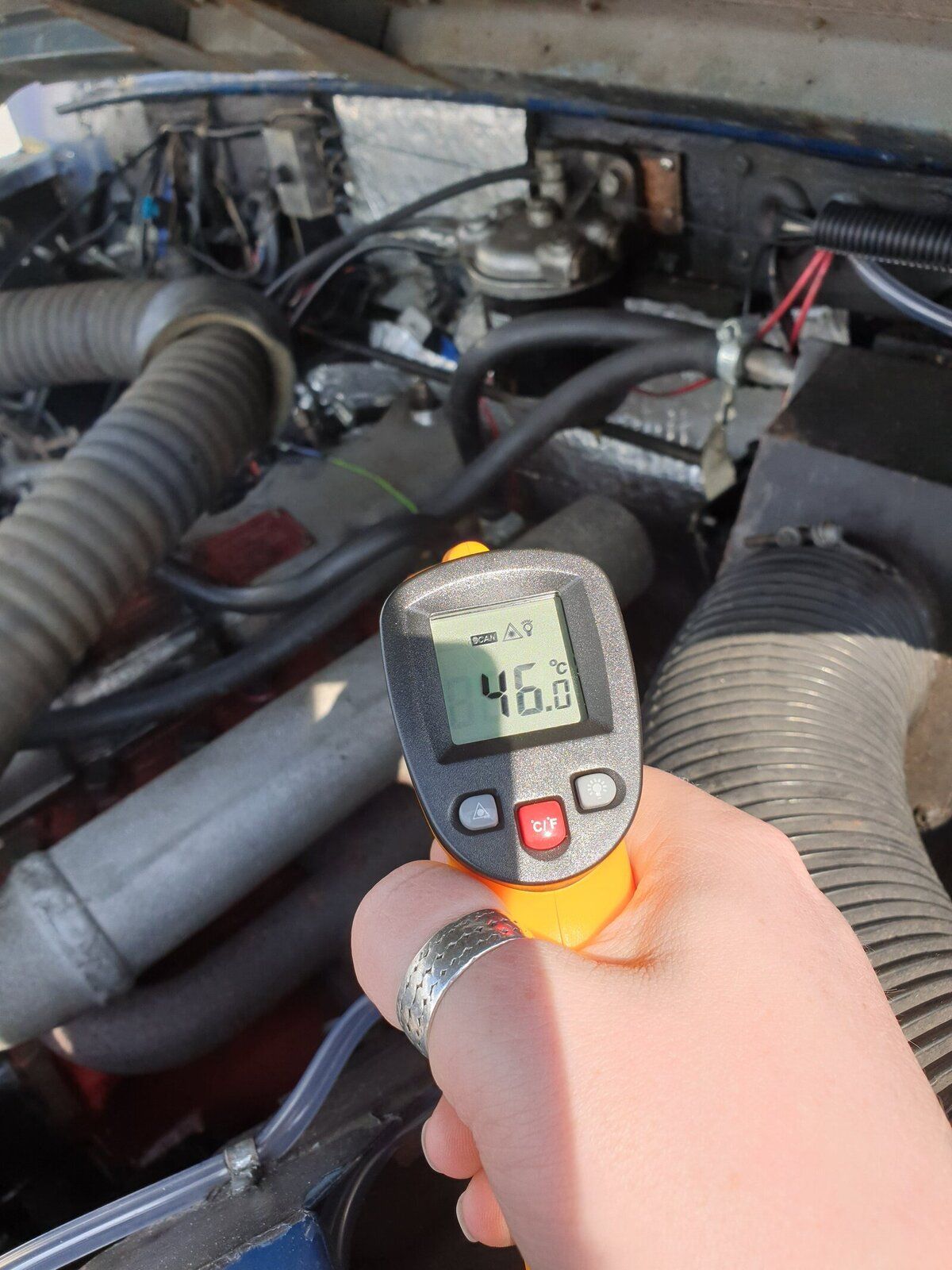

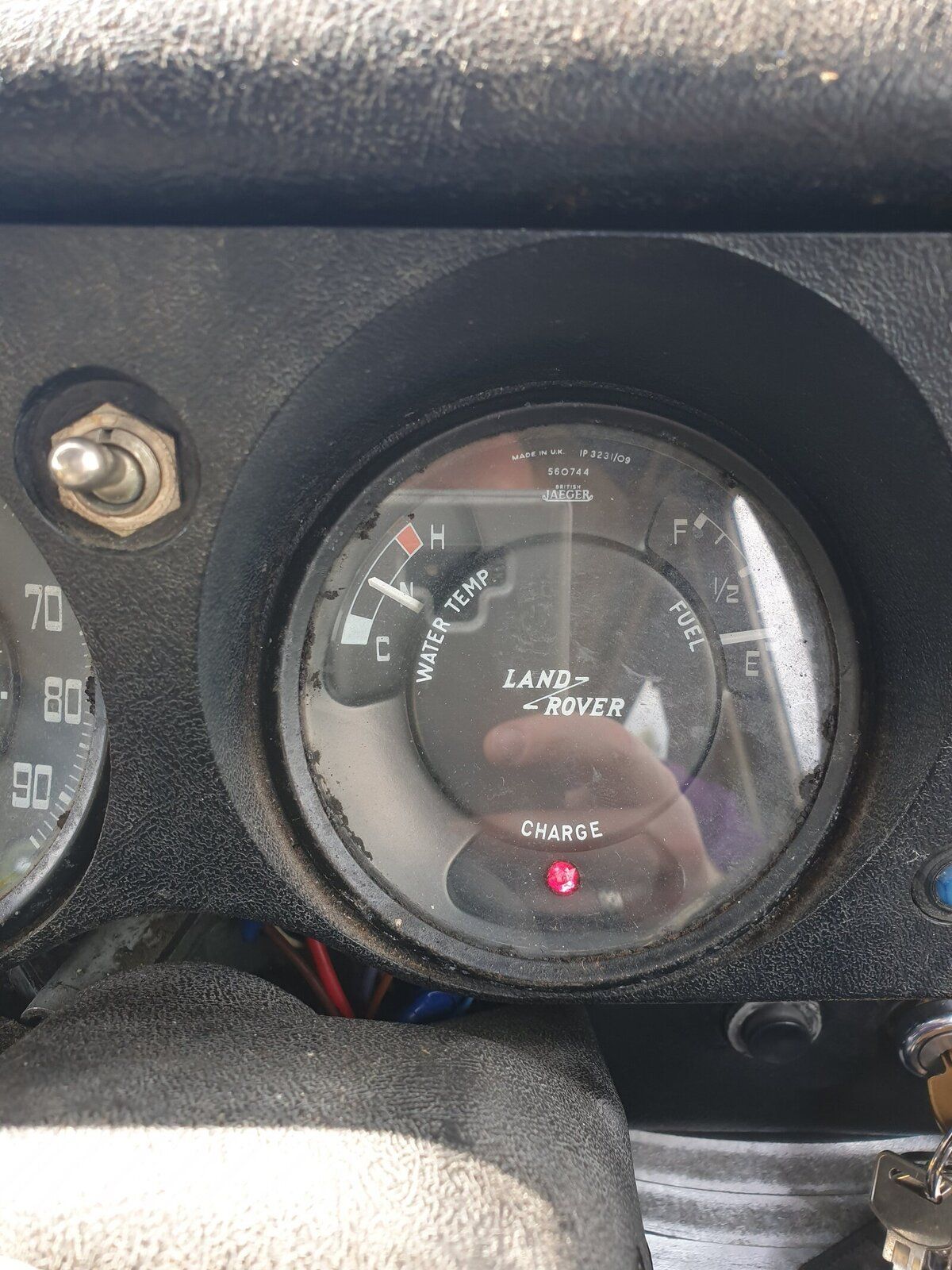

bought a infra red sensor. Various pics below showing readings from various places with the dial reading and then with the heater on



Attachments

•

  218 KB · Views: 128
•

  242.1 KB · Views: 118
•

  184.5 KB · Views: 106
•

  218.3 KB · Views: 113
•

  268.1 KB · Views: 117
•

  228.5 KB · Views: 130
•

  180.8 KB · Views: 110
•

  335.5 KB · Views: 132
•

  326.4 KB · Views: 143

neilly

Well-Known Member

• May 11, 2019

• #43

If you are going to use one of those , make sure you read the instruction manual and understand about the emissivity and the cone of reading / distance / area.

Cheers



Stormintrooper

Active Member

• May 11, 2019

• #44

And another after a minute or two of engine off



Attachments

•

  302.9 KB · Views: 112

Stormintrooper

Active Member

• May 11, 2019

• #45

I tried the reading close up and at distance



neilly

Well-Known Member

• May 11, 2019

• #46

Stormintrooper said:

I tried the reading close up and at distance

Click to expand...

I prefer a surface touch probe, gives more accurate results.

The IR ones are great as a comparison against measured known good results. ie Preventative maintenance checks.

Cheers



jamesmartin

Well-Known Member

• May 11, 2019

• #47

check alt out put and voltage to gauge



Stormintrooper

Active Member

• May 11, 2019

• #48

jamesmartin said:

check alt out put and voltage to gauge

Click to expand...

Alt output. 13.3 idle 13.95 revs

Regulator output hovers between 10.0 and 10.3



N

nickjaxe

Well-Known Member

• May 17, 2019

• #49

You to far away from the point at which your trying to measure...around the thermostat housing area in a good start.



J

Jacksprat

Member

• Oct 5, 2021

• #50

Hi Stormintrooper, did you get to the bottom of this? Thanks
