The description says the Hantek works as a storage scope, is that correct? I have a 4 channel 100Mhz scope but no ability to store traces for analysis so the Hantek could be of interest.
There's a button to take a screenshot but not sure about video, I can fire it up and check if it's video you need?
Datatek
Well-Known Member
Screen shot is probably sufficient to analyse the FOB output for example.

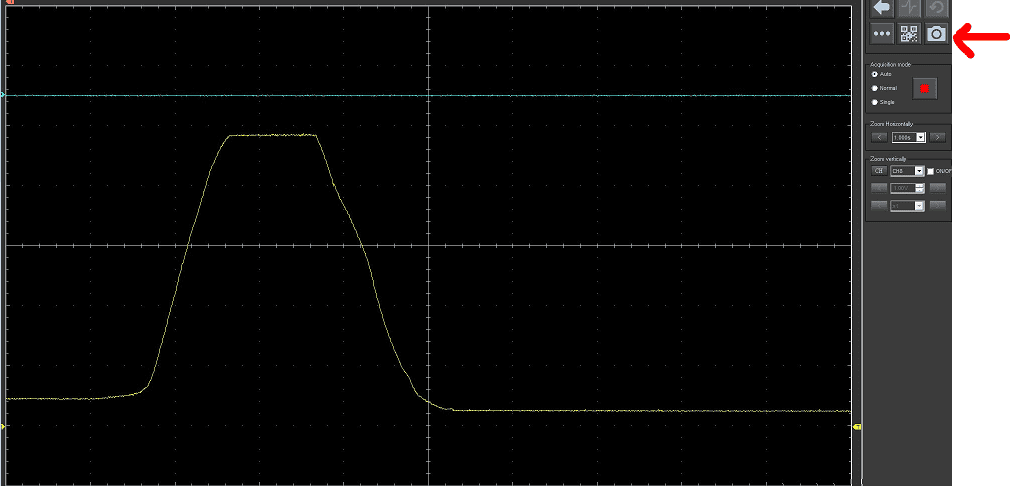

That saves as this
What is the time scale on that trace please?
Just noticed top right it says 10ms which is a bit slow.

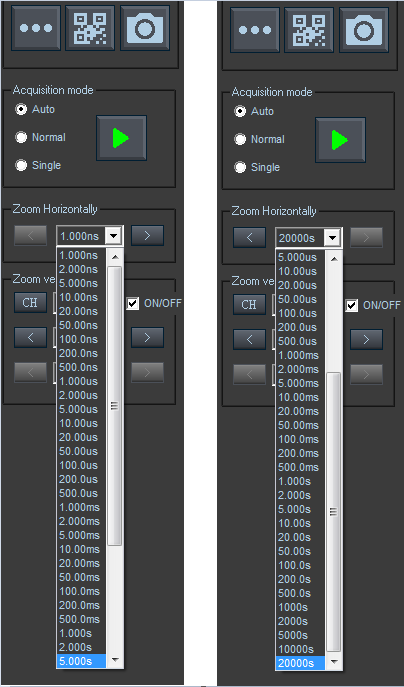

I think was for an oudio signal but you can select time and voltage/division.
Datatek
Well-Known Member
Thank you, I shall look at that next year. Now I have finished the interior renovations here I will have more time to play.
If I remember correctly you can save a running trace, or one-shot, but in either case it saves the trace buffer. The file seems to be just a text file with all the data points, so could easily be charted in Excel. Strangely to load data, it wants a CSV file, so the save & load are incompatible. !!
Keith,
Ask for one for Xmas ?
Example file attached.
Keith,
Ask for one for Xmas ?
Example file attached.
Datatek
Well-Known Member
I'm afraid that string of numbers do not mean a lot to me.
Too expensive for a Christmas present. I need to look at what is available, I looked some time ago and found nothing that did what I wanted at a price I was prepared to pay.

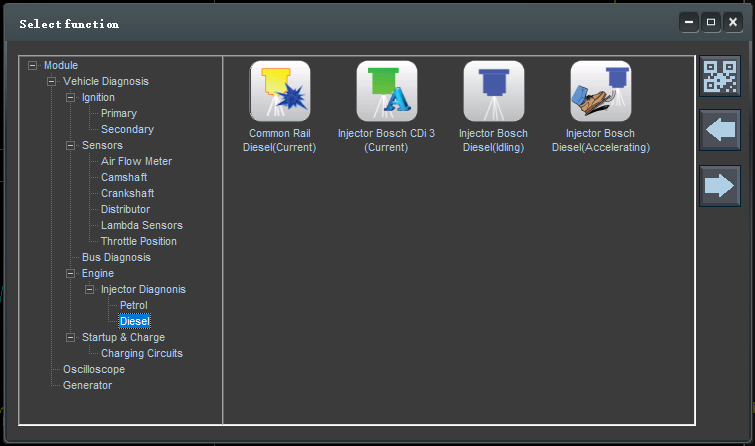

What functions do you need Keith ? There are quite a few pre-configured engine modes, that can be adapted for whatever ans saved as custom config files.

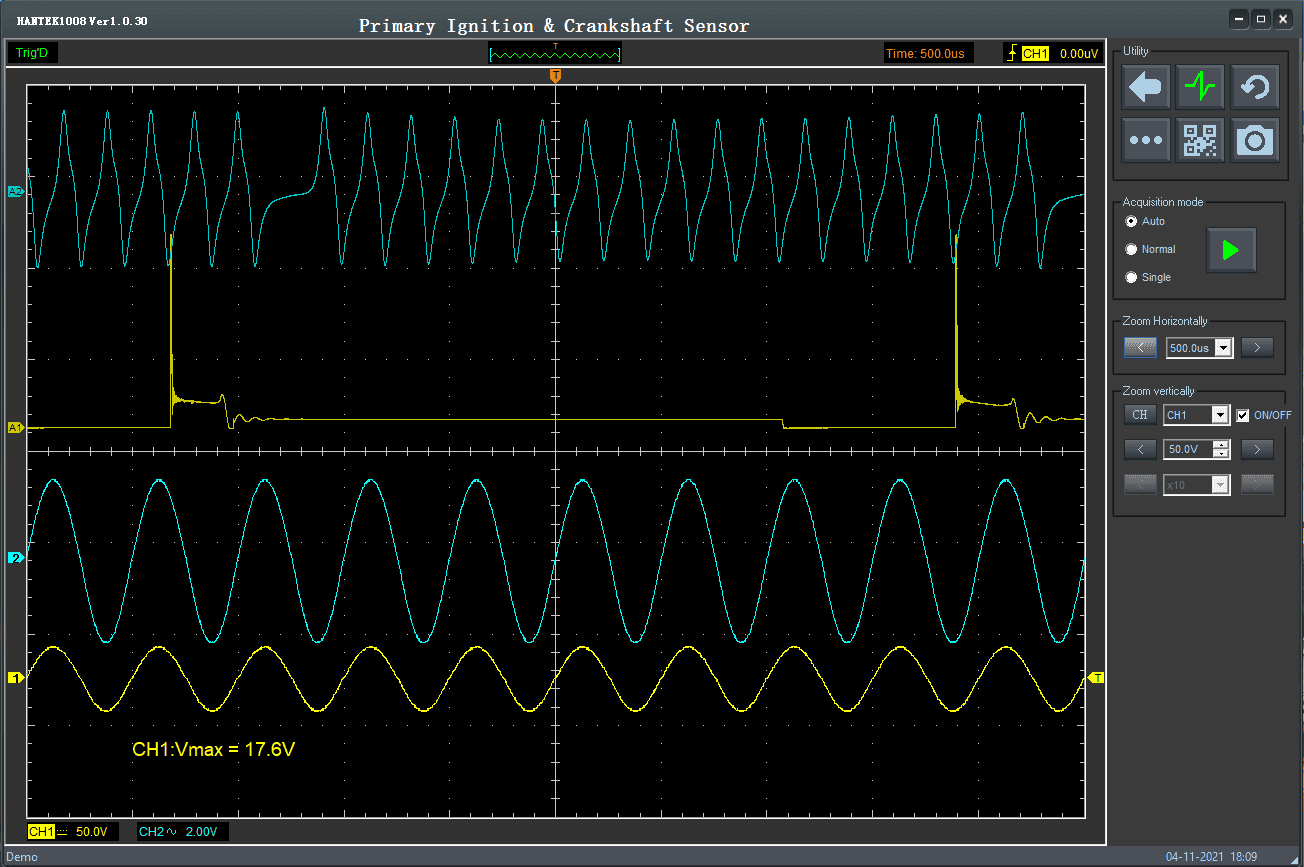

Here's an example with the scope in demo mode. Top two traces are reference to what most cars should look like (these can be switched off). Bottom two traces are the unit showing sine waves because the hardware is disconnected. This is what I used for Spark Lead causing misfire.
Here's an example with the scope in demo mode. Top two traces are reference to what most cars should look like (these can be switched off). Bottom two traces are the unit showing sine waves because the hardware is disconnected. This is what I used for Spark Lead causing misfire.
