bigvinnie
Active Member
Right today i measuered my 110 and one of the wolf tum,s at work to compare the differences in height.
My 110 is 23 inches high from centre of hub to the bottom of the wheel arch. This is all round my vehicle.
Now a 110 wolf is 19 inchs at the front but 22 at the rear. Wolfs do sit higher at the back due to weight and towing requirements.
Wolf and Kes what height are you pair running at? I,m looking at just doing the springs first and seeing how that effects my ride/handling, before i look at shocks.
Going to phone round tommrrow for springs as ma 110 has the self leveling damper?
no doubt that will through spanners in the work with what types of spring to go for.
My 110 is 23 inches high from centre of hub to the bottom of the wheel arch. This is all round my vehicle.
Now a 110 wolf is 19 inchs at the front but 22 at the rear. Wolfs do sit higher at the back due to weight and towing requirements.
Wolf and Kes what height are you pair running at? I,m looking at just doing the springs first and seeing how that effects my ride/handling, before i look at shocks.
Going to phone round tommrrow for springs as ma 110 has the self leveling damper?
no doubt that will through spanners in the work with what types of spring to go for.
kes86
Active Member
Can't do imperial measuring over 6" it messes with my brain all that 12" is 1' stuff. But just did a quick calc.
550mm / 25mm = 22" all all round with lift springs.
Now it's about 515mm which is about 20.5" ish with HD Britpart std height springs.
Don't forget mine is a 90 and the 110s do look like they sit higher at the back as standard.
550mm / 25mm = 22" all all round with lift springs.
Now it's about 515mm which is about 20.5" ish with HD Britpart std height springs.
Don't forget mine is a 90 and the 110s do look like they sit higher at the back as standard.
bigvinnie
Active Member
Well just spoke to Dave at Famous Four very helpfull.
Ordered normal ride height front springs and non self leveling damper rear spings .
Should be here by monday and by late week i should be at normal height, unless the dampers need to go as well!
Will post pics before and after! ......bloody money trap 150 quid beer tokens gone!
Ordered normal ride height front springs and non self leveling damper rear spings .
Should be here by monday and by late week i should be at normal height, unless the dampers need to go as well!
Will post pics before and after! ......bloody money trap 150 quid beer tokens gone!
bigvinnie
Active Member

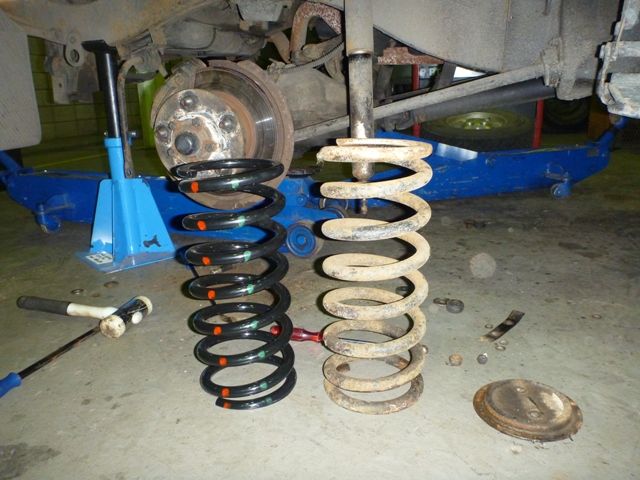

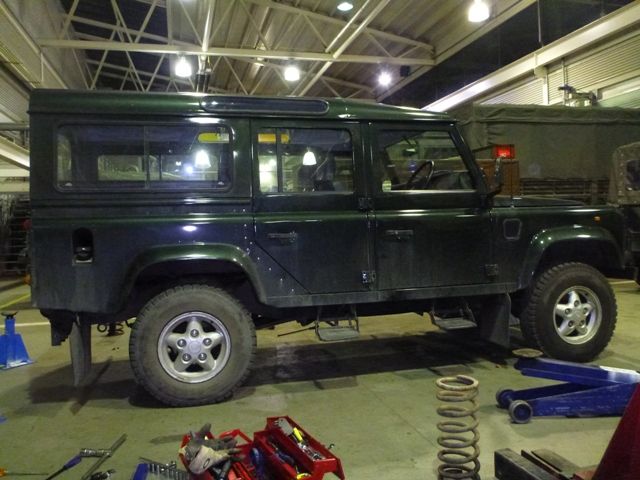

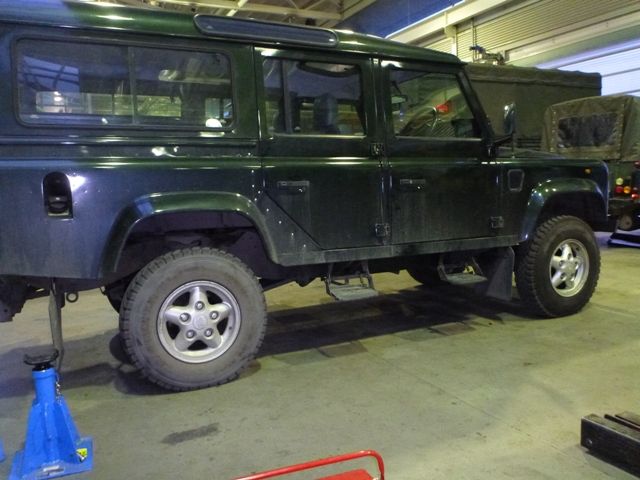

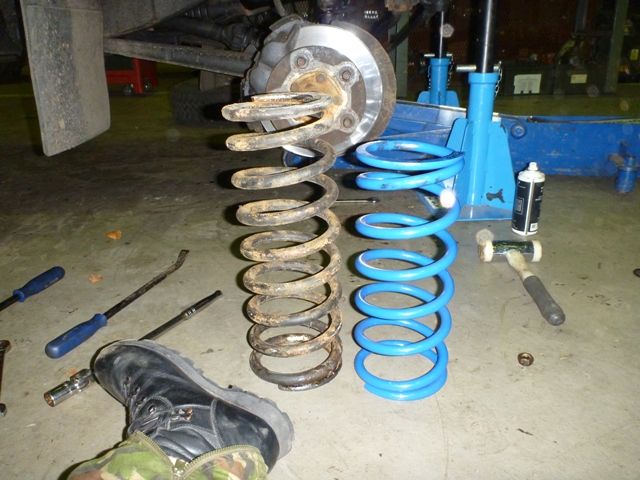

Right last night i removed the old springs. As promised there is some photos for Wolf and Kes.
Changed them without removing the shocks, the front ones proved difficult but came out wea some wrestling.
The rear ones, well the drivers side took an hour to remove, bloody self leveling ram caused me loads of grief,
Anybody in north yorkshire want some HD 2 inch lift springs?
Changed them without removing the shocks, the front ones proved difficult but came out wea some wrestling.
The rear ones, well the drivers side took an hour to remove, bloody self leveling ram caused me loads of grief,
Anybody in north yorkshire want some HD 2 inch lift springs?
Attachments
bigvinnie
Active Member

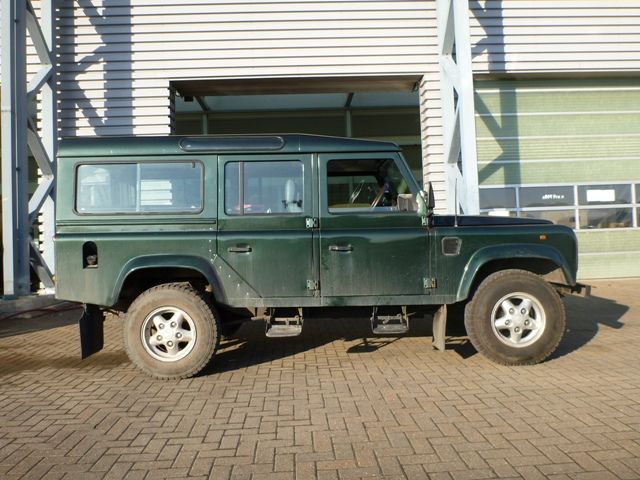

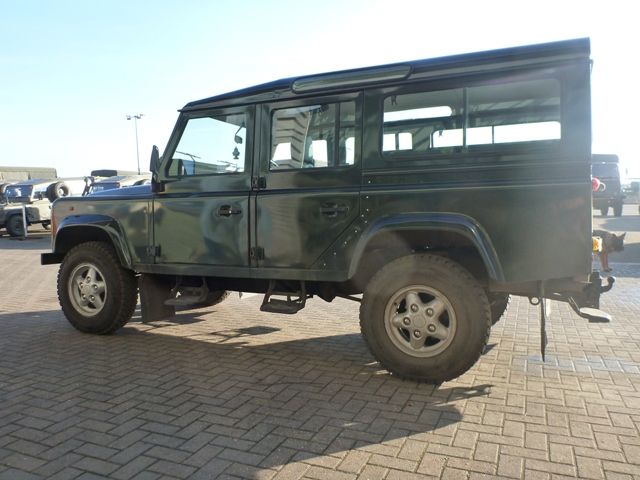

I think it looks much better to. Plus i,ve got some boost alloys wea 235/85/16s comming so should fill nicely.
She handels much better and some of the transfer box noises have gone!
. But i,ve noticed i need some new antiroll bar bushes next!Only down side is the drivers side is sitting slightly lower than the other, hopefully this is the springs bedding in or somethings a miss!
the_wolf
Well-Known Member
It does look good and it if handles much better then that's a bonus. What's it like to drive now?
I believe that the drivers side spring is ever so slightly longer to compensate for the weight there (no derogatory remarks intended ). Did you put the correct springs on the correct corners?
I believe that the drivers side spring is ever so slightly longer to compensate for the weight there (no derogatory remarks intended
). Did you put the correct springs on the correct corners?
bigvinnie
Active Member
It does look good and it if handles much better then that's a bonus. What's it like to drive now?
I believe that the drivers side spring is ever so slightly longer to compensate for the weight there (no derogatory remarks intended
She handles much better. no more leaning when going down back roads to work! Hitting bumps aint as harsh.
I got allmarks on the back fitted correctly. The front springs were the same size and length, the old 2 " springs were the same length to, and any of the springs we fit at work are both the same length, or have i missed a trick here?
bigvinnie
Active Member
Balls in ma rush to change all the springs whilst on duty i,ve placed one of the fronts springs the wrong wea round!
I think i,m right in saying the "cone/tail end" is lower and the "flat end" with the 2 coils close together is placed uppermost!
An other learning curve!...............need to pay more attention and not rush jobs whilst on duty!
I think i,m right in saying the "cone/tail end" is lower and the "flat end" with the 2 coils close together is placed uppermost!
An other learning curve!...............need to pay more attention and not rush jobs whilst on duty!
bigvinnie
Active Member
Working on your own vehicle in the queens time!? That's shocking
Well it was working on ma toy or shouting at wee baw bags doing wrong on camp!
Has that sorted the problem of the drivers side appearing to sit lower then?
I haven,t had a chance yet to swap it round, this week looks tied up and at the weekend i,ve some quick fixes/part replacements to do outside the house.........i,ll let you know though how it goes!
