pete12345 · May 12, 2020

hi all can I remove the rear radius arm aswell as the front one on the same side or best to replace front 1st

jamesmartin · May 12, 2020

yes if chassis is well supported

pete12345 · May 12, 2020

Thanks yer it's all well supported 2 jacks and 6 axle stands

pete12345 · May 12, 2020

On the very back of the radius arm there's a bolt does that have a small bush also all that rubber bit how do you get that out there 2 small screw things but mine are rusted so much was wondering I've they were special tool for removing

romanrob · May 12, 2020

Hi Pete, add a photo maybe - just to be sure which bits you're talking about, else we'll head off on a tangent

pete12345 · May 12, 2020

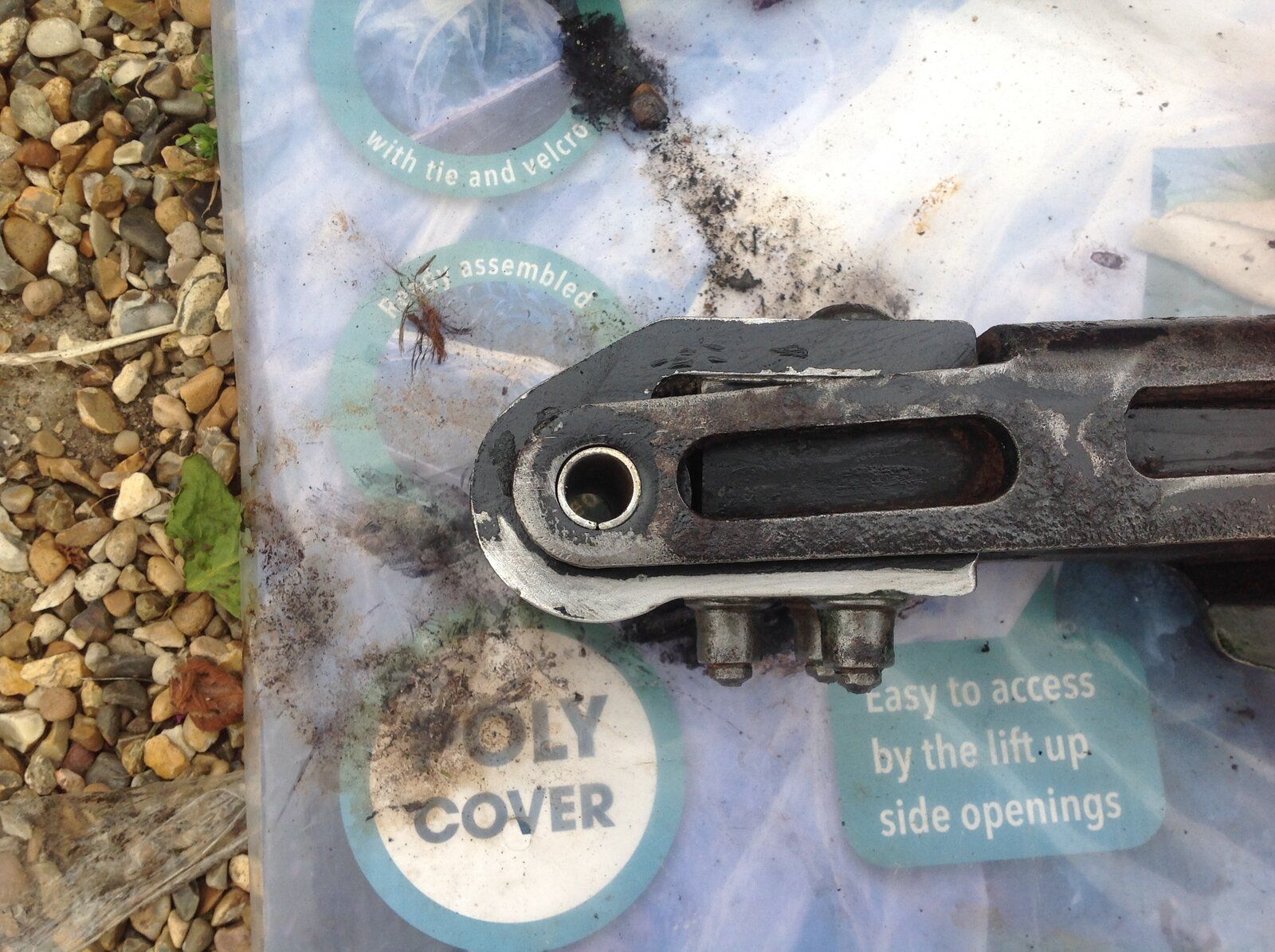

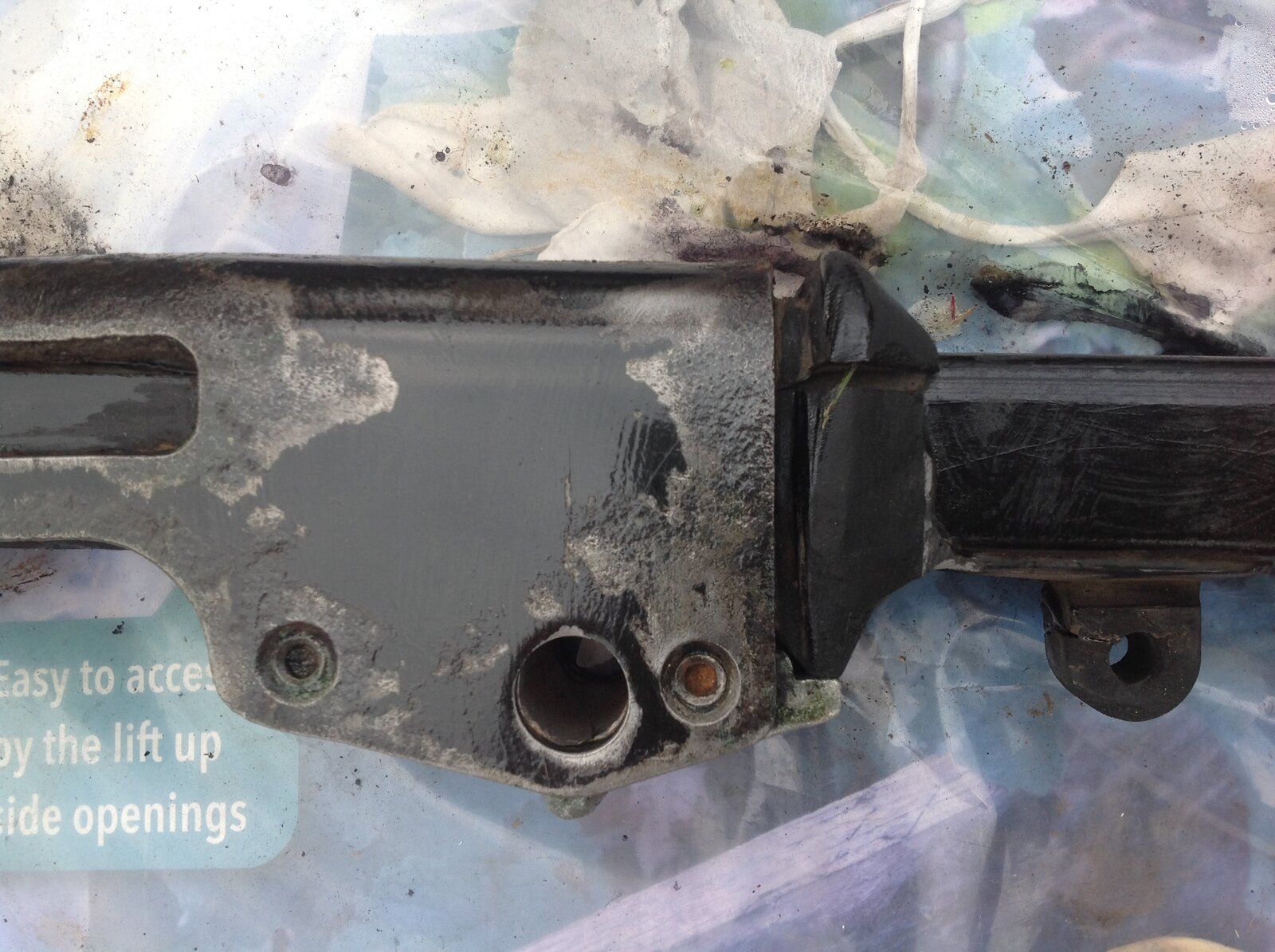

Here's the offending part cheers

pete12345 · May 13, 2020

Any advice much appreciated looked at new bushes but there doesn't seem to be them ones anywhere

gstuart · May 13, 2020

Is this the kind of thing

https://www.ebay.co.uk/itm/Range-Ro...501244?hash=item56a0b67bbc:g:fKgAAOSw2j9bM2i9

plus parts manual

http://new.lrcat.com/#!/1234/87921/88248/6943/88257

alas the more experienced members will be able to advice there any good

RangeRoller dt · May 13, 2020

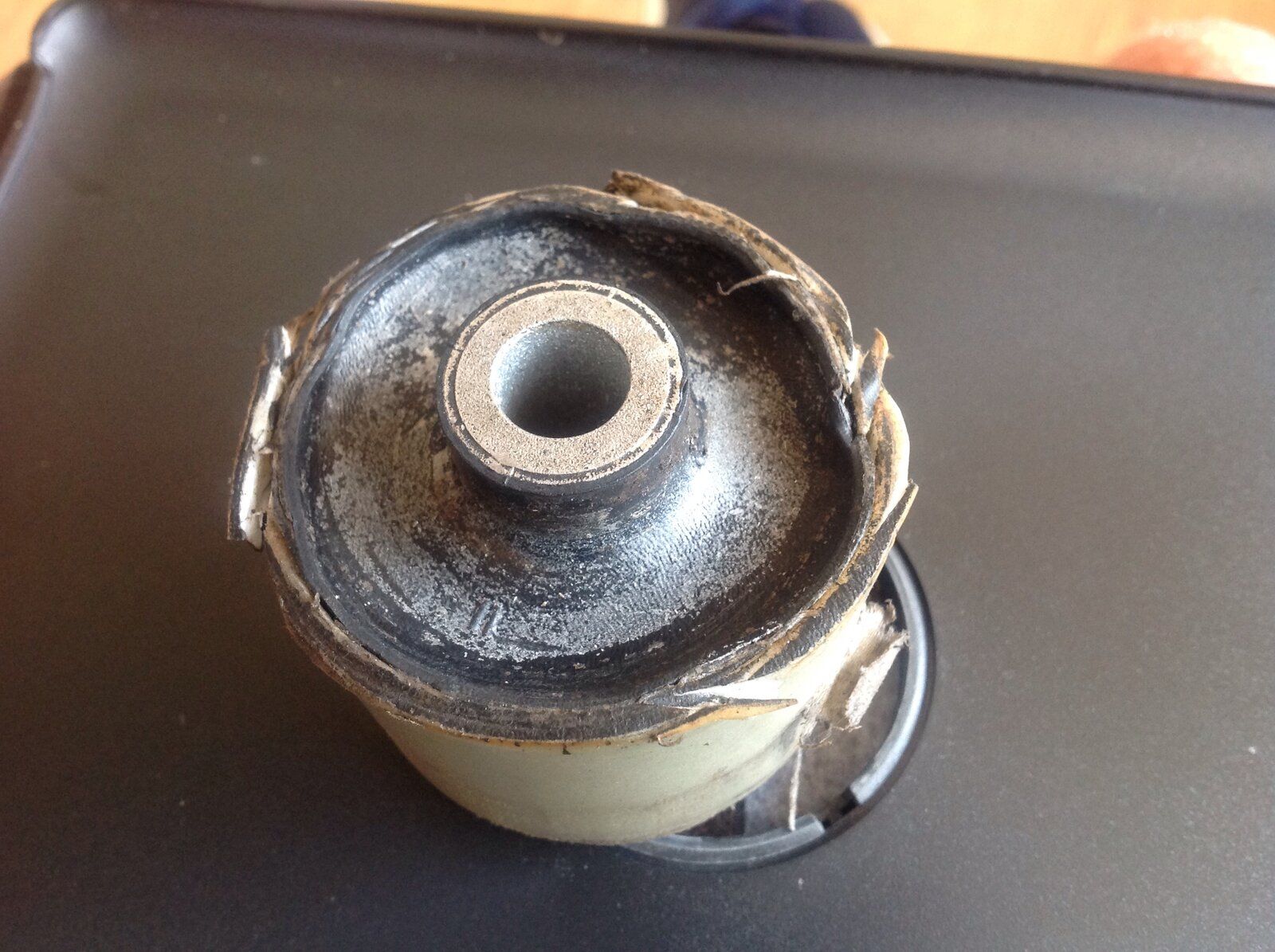

I snapped one rear when I went over, new one had that bit on there already.

wammers · May 13, 2020

pete12345 said:
On the very back of the radius arm there's a bolt does that have a small bush also all that rubber bit how do you get that out there 2 small screw things but mine are rusted so much was wondering I've they were special tool for removing

They are part of the assembly and should not be removed. Fit genuine bushes only NOT poly bushes.

pete12345 · May 13, 2020

Thanks chaps no wonder I can't find them and already got genuine son order then to find someone with a big enough press to get them in

pete12345 · May 14, 2020

Any good tips for getting the new bushes in they look to big do I need to file a small edge on them to start them off

RangeRoller dt · May 14, 2020

Stick them in the freezer for few days and use jubilee clips to squeeze them in one saint on here did.

pete12345 · May 14, 2020

Ok ta very much

Grrrrrr · May 15, 2020

pete12345 said:
Any good tips for getting the new bushes in they look to big do I need to file a small edge on them to start them off

A bit of fairy liquid can help. If using a press then do it slowly with a little rest every so often.

pete12345 · May 15, 2020

I'm going to take them to a local garage so hopefully he will no the tricks of the trade

pete12345 · May 16, 2020

And for the next problem can anyone else tell me the correct part number for the two front radius arm bushes on 1999 p38a the part I got is ANR3332 and the fella in the garage said they don't fit when trying to push them in for me

wammers · May 16, 2020

pete12345 said:
And for the next problem can anyone else tell me the correct part number for the two front radius arm bushes on 1999 p38a the part I got is ANR3332 and the fella in the garage said they don't fit when trying to push them in for me

That is the correct part number and the bloke at the garage is a muppet. Special tool needed to compress bush as it it being pressed in. What a bloody plonker he is.

pete12345 · May 16, 2020

Would a large jubilee clip do the job as it goes in or do I need that special tool cheers

wammers · May 16, 2020

pete12345 said:
Would a large jubilee clip do the job as it goes in or do I need that special tool cheers

Yes. The O/D of the bush will be around 61.5 mm the I/D of the radius arm hole is 60mm. Clean it up and apply some grease. Put jubilee clip on about 3 mm from end of bush and tighten until bush enters hole once engaged in press remove clip and press in.
