brianp38dse
Well-Known Member
On mine the bolts had corroded to the inner of the bush so just cut them with a hacksaw, fortunately i had all new nuts and bolts for all the bushes in the complete set i got off a member on here
Got nearly one side done today..... At 159,000 miles and 27 years the hub assembly bolts, the rear caliper bolts, and the rear mud shield bolts had rusted solid. Heat and hammering got them all off, but I've mangled some of the heads, so I'm going to order new before tightening it all back up. It'll pay me back in a few years when I'm trying to get them off again!

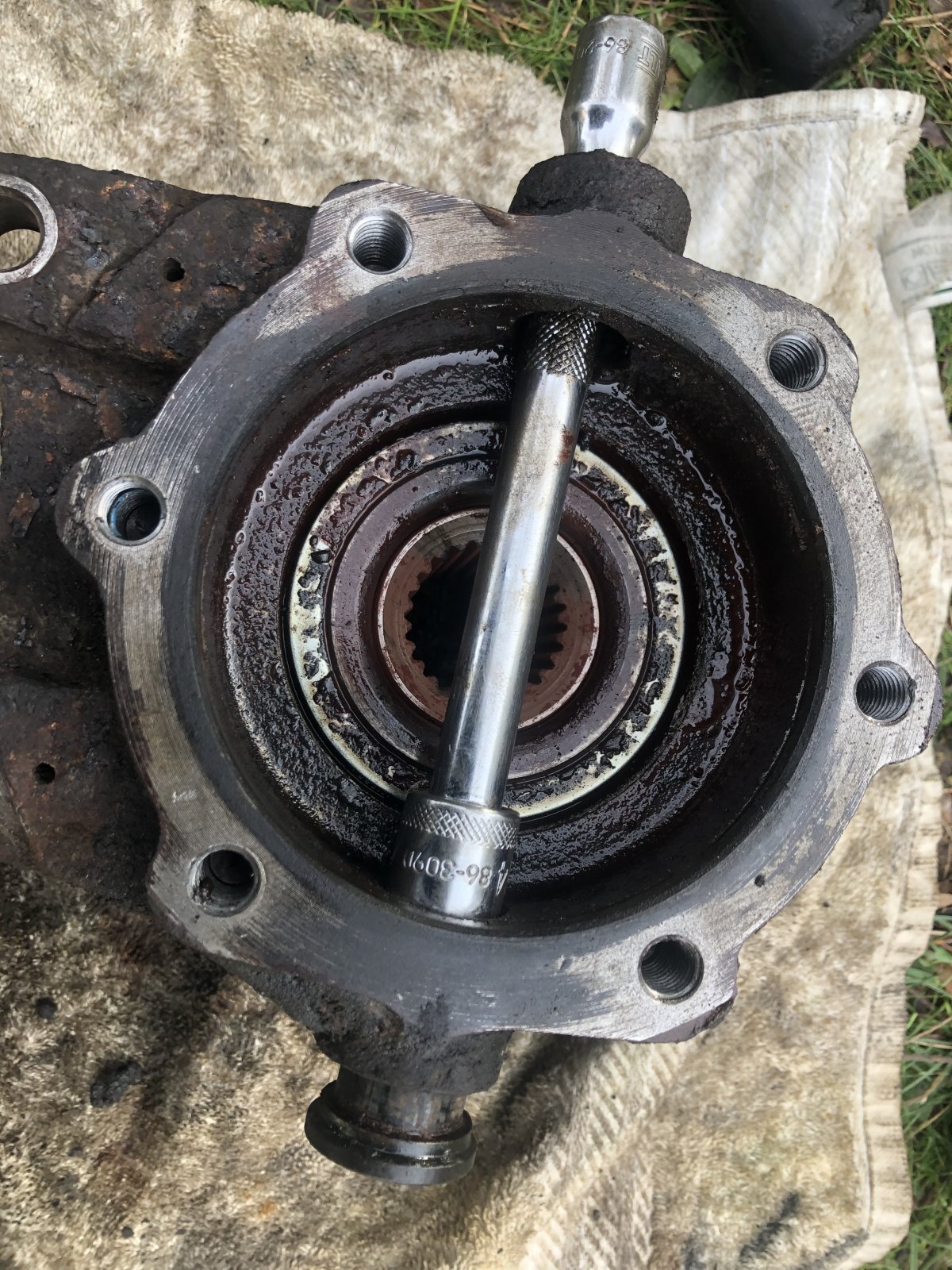

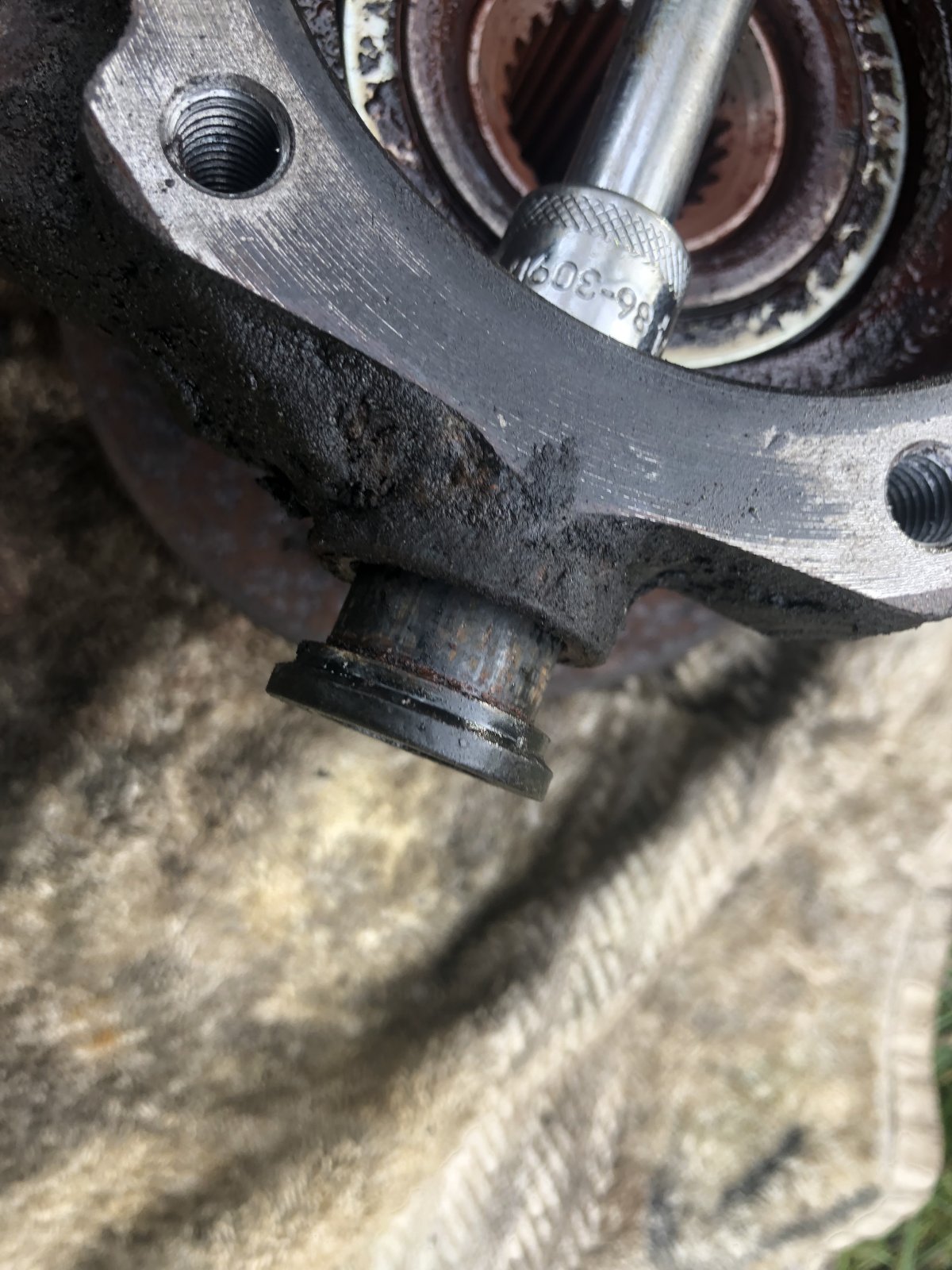

Anyway, the Eurospares hub has gone on okay. The holes are in the right place, and everything lined up without any fettling required. I've never done rears before, but you don't get the blanking plug or the abs sleeve (and rubber seal) with the Eurospares hub assemblies. I had to drift them out of the original with a suitable socket and extension. They went in the new one cleanly though.
The old one was FUBAR, grinding, graunching, grumbling and full of rust by the looks of it. Strangly I couldn't feel any of that with the wheel on though....
When I've got it all back together, we'll see what we see. Looking forward to pressing the old ones apart to see if any of it is salvagable!
Anyway, the Eurospares hub has gone on okay. The holes are in the right place, and everything lined up without any fettling required. I've never done rears before, but you don't get the blanking plug or the abs sleeve (and rubber seal) with the Eurospares hub assemblies. I had to drift them out of the original with a suitable socket and extension. They went in the new one cleanly though.
The old one was FUBAR, grinding, graunching, grumbling and full of rust by the looks of it. Strangly I couldn't feel any of that with the wheel on though....
When I've got it all back together, we'll see what we see. Looking forward to pressing the old ones apart to see if any of it is salvagable!
Finished the other side of the car just now.... Apart and back together in just over 2 hours. It's soooo much easier when the rusted bolts play ball!! Still going to replace all the bolts with new, the ones holding the mud shield on were just little spikes of rust really!
Once my new bolts arrive I'll torque everything up and we'll see how it drives.
Once my new bolts arrive I'll torque everything up and we'll see how it drives.
How are the Eurospares bearing going after a year ?
I'm getting a rumble on mine about 60-65mph, mainly from the seat & floor, but not through the steering wheel. Feels like either rear wheels need balancing, or the bearings on their way out. Tell-tale might be the leak from rear offside axle seal ?
I'm getting a rumble on mine about 60-65mph, mainly from the seat & floor, but not through the steering wheel. Feels like either rear wheels need balancing, or the bearings on their way out. Tell-tale might be the leak from rear offside axle seal ?
All good so far. Nothing at all to report over 6000 miles.... so I'm going to take that as a win!
I kept my old LR hubs, so if you want to buy Timken bearings you can have my hubs and press the new bearings together before you start if you want? Just give me your old ones back when you've done the job.
Unless you've had it apart recently, I'd get new hub assembly bolts, new mud shield bolts, and caliper bolts, and BRING THE HEAT. Mine was rusted solid, but came apart easy enough with Mr Blowtorch. Most of the bolt heads were furbar'd though.
I kept my old LR hubs, so if you want to buy Timken bearings you can have my hubs and press the new bearings together before you start if you want? Just give me your old ones back when you've done the job.
Unless you've had it apart recently, I'd get new hub assembly bolts, new mud shield bolts, and caliper bolts, and BRING THE HEAT. Mine was rusted solid, but came apart easy enough with Mr Blowtorch. Most of the bolt heads were furbar'd though.
Last edited:
Grrrrrr
Technician, Bodgit & Scarper Ltd
Might be worth me trying with yours. Mine are bound to fail at some stage.
Just got the offside rear hub off the car. Could not feel any play either on the car or mounted in the bench vice. Bearing feels ok-ish, but the axle seal is really loose on the drive shaft, so gotta replace that.
Cannot see any obvious way to support the hub in my press, so it's gonna be the Eurospare hub option for now.
Cannot see any obvious way to support the hub in my press, so it's gonna be the Eurospare hub option for now.
Datatek
Well-Known Member
It's can't be the figure with VAT added.
Last edited:
Chinese tariffs ?
Grrrrrr
Technician, Bodgit & Scarper Ltd
No, that's what I thought. VAT + some sort of import tariff and then a delivery charge on top.
But also remembered I need various rear bushes for wife's freelander, so added those. Maybe the delay is a benefit after all !!
