I remember a post where the P38 owner could hear the relays click/operate but in fact the contacts were defective.
Datatek
Well-Known Member
Any smell of burning in the fuse box?
tomcat59alan
Well-Known Member
The thermal switch is mounted on the end plate of the electric motor, with the brushes.
Datatek
Well-Known Member
Mine is on the fuse box2 compressor, both not running, but everything else looking ok. My money is on a duff relay
thanks
2 compressor, both not running, but everything else looking ok. My money is on a duff relay or something equally silly.
ok what is an duff relay, I always associate duff with the Simpsons xD
Datatek
Well-Known Member
Duff = defective or faulty. A relay tester can show that the relay is OK as it only draws a little current but the relay can still be faulty.
oh yeah that make sense thank you!
tomcat59alan
Well-Known Member
Check out the compressor connector block, the contacts may need cleaning and squeezing a bit to make a better connection. My compressor stopped a while ago and the problem was burn male spades Clean and contact cleaner sorted it.
Sorry UK "slang" DUFF = Defective.
I do hope you get to the bottom of this problem.
Perfect name for American beer. Well done The Simpsons.
Have we suggested the white connectors in the A-post yet?
Other slang is availableSorry UK "slang" DUFF = Defective.
I do hope you get to the bottom of this problem.
tomcat59alan
Well-Known Member
If you earth the orange wire in the comp.connector block and the comp runs the thermal switch is faulty.
nope which white connectors?

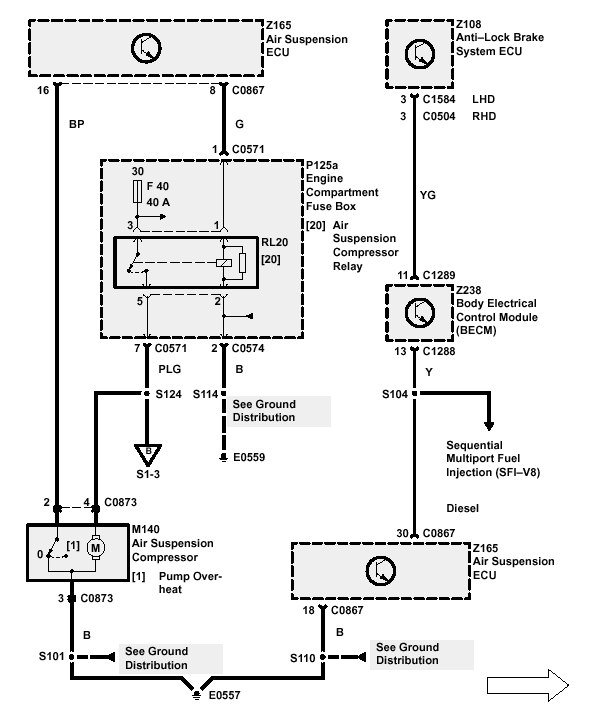

Here is where the "duff" relay is located
I only say this because if you bridge the relay the pump runs, so I think the contact in the relay is "gefickt".
View attachment 262509
HAHA yeah the "gefickt" (in english: "fu ck ed") is absolutely brilliant ;D so you mean it help when I spray PCB Cleaner into the fuse box?
Datatek
Well-Known Member
No, fuse box overheat is a fairly common problem due to failed solder joints and loose connectors. They can be repaired if you are good with a soldering iron.
I would swap the R20 relay with one of its siblings just to see if it suddenly springs into life.
oh okay.. Is this difficult to disassemble?
I already done that and nothing happenedI would swap the R20 relay with one of its siblings just to see if it suddenly springs into life.
