Jock85 · Jun 8, 2020

kermit_rr said:
The possibility was a snapped camshaft,

Ah right, so my identifications are wrong. Mistakenly I thought the rockers were on the camshaft when I glanced a pic of the engine on Rave but now you point that out I can understand that the camshaft drives the pushrods which now explains the pistons still moving. I take it this isn't that common? Assuming it appears to just be a broken camshaft, how much do you think to sort it in parts?A camshaft from Bearmach is only £75 quid but its the extras that often add up.

marjon said:
I feel it’s about to get very expensive sorry.

No worries! What's life without the bumps! Maybe it'll be a learning experience

Jock85 · Jun 8, 2020

I've got nothing to lose at this point anyway so hopefully I can get visual of the camshaft without having to buy any special tools and then investigate the extent of the damage with borescope, leak down test etc.

jamesmartin · Jun 8, 2020

a cam shaft ,gaskets and possibly hyd tappets, youll see when its apart

Shippers · Jun 8, 2020

Jock85 said:
I've got nothing to lose at this point anyway so hopefully I can get visual of the camshaft without having to buy any special tools and then investigate the extent of the damage with borescope, leak down test etc.

Inlet manifold off no special tools needed...easy job...

Shippers · Jun 8, 2020

Pics when you do lift manifold off would be interesting!...

Jock85 · Jun 8, 2020

Shippers said:
Pics when you do lift manifold off would be interesting!...

Absolutely!

Shippers · Jun 8, 2020

Jock85 said:
Absolutely!

I can hear the Scottish accent as you typed that word...from a fellow Scot in the Algarve...cheers... Rob...

Jock85 · Jun 8, 2020

Ooft, the Algarve. That sounds a bit of alright.
Aye, we do love our landies too!

Shippers · Jun 8, 2020

As you know now you'll get loads of advice and help on here when you start the job...and no question is a stupid one we all have been there!!...

Marshall8hp · Jun 9, 2020

Camshaft, 16 lifters, timing case gasket, water pump gasket (you might as well take it off and have a look at it whist the timing case is on the bench), rocker cover gaskets, inlet manifold gasket and seals, timing chain, sump gasket, cam lube, bits for anything else you decide to pull off while you are at it, but that is the bare minimum.

Sump off is a must at there is likely to be some metal in there from the break.

There are other options of course but you might consider buying a kit like this https://rimmerbros.com/Item--i-ERR5250K2

Jock85 · Jun 9, 2020

Marshall8hp said:
Camshaft, 16 lifters, timing case gasket, water pump gasket (you might as well take it off and have a look at it whist the timing case is on the bench), rocker cover gaskets, inlet manifold gasket and seals, timing chain, sump gasket, cam lube, bits for anything else you decide to pull off while you are at it, but that is the bare minimum.

Sump off is a must at there is likely to be some metal in there from the break.

There are other options of course but you might consider buying a kit like this https://rimmerbros.com/Item--i-ERR5250K2

That's great. Thanks very much

Jock85 · Jun 18, 2020

Jock85 · Jun 18, 2020

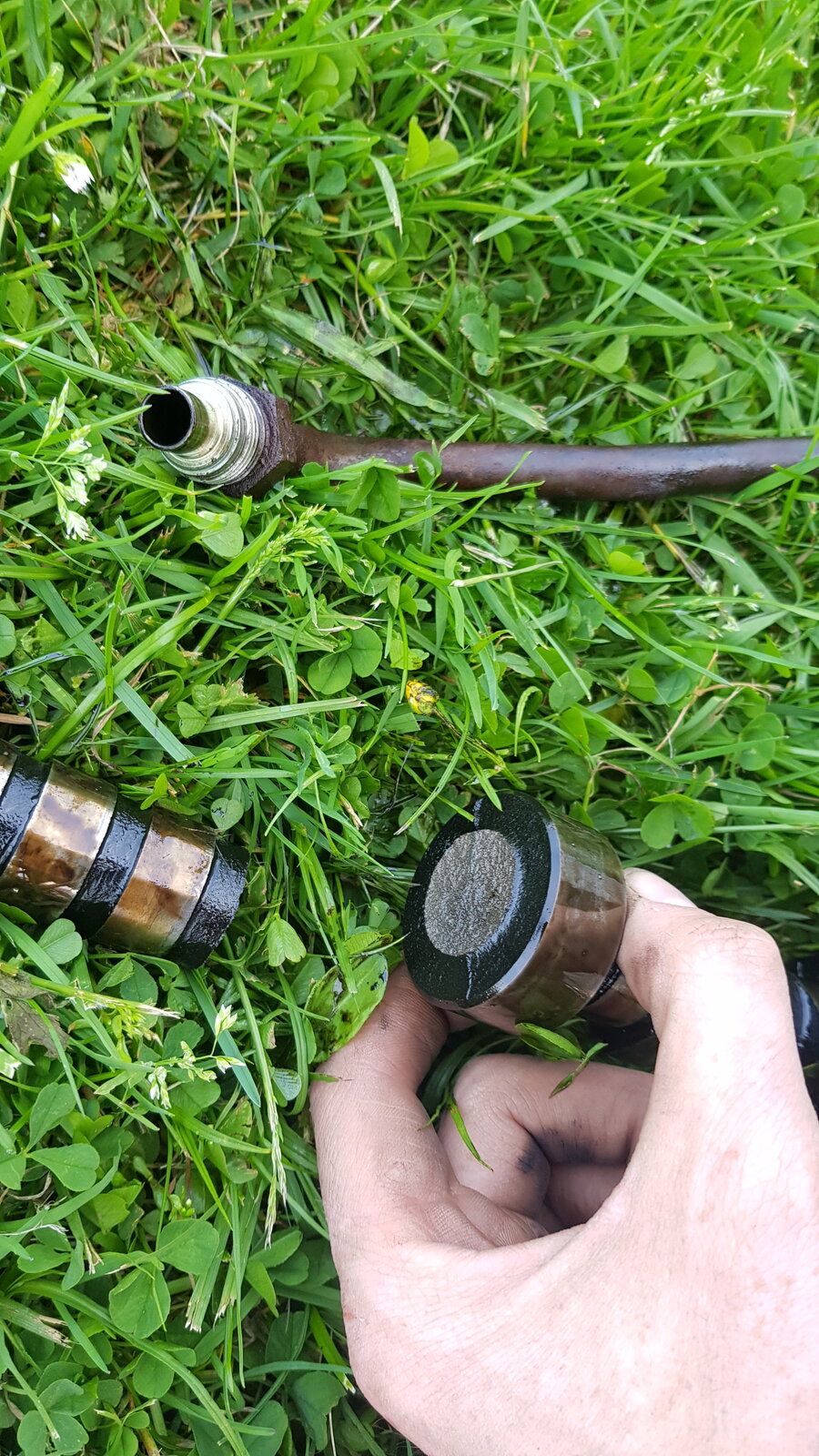

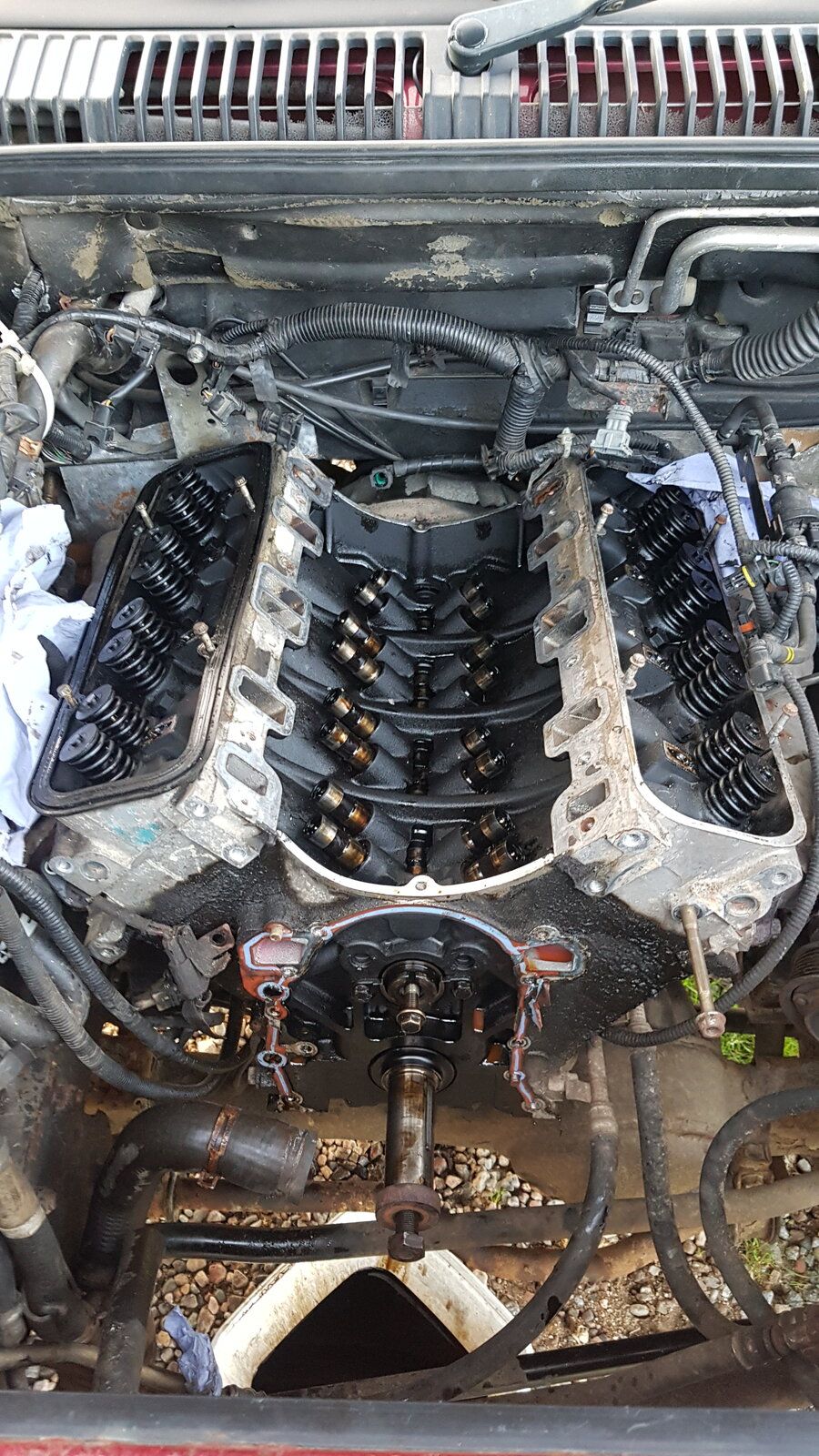

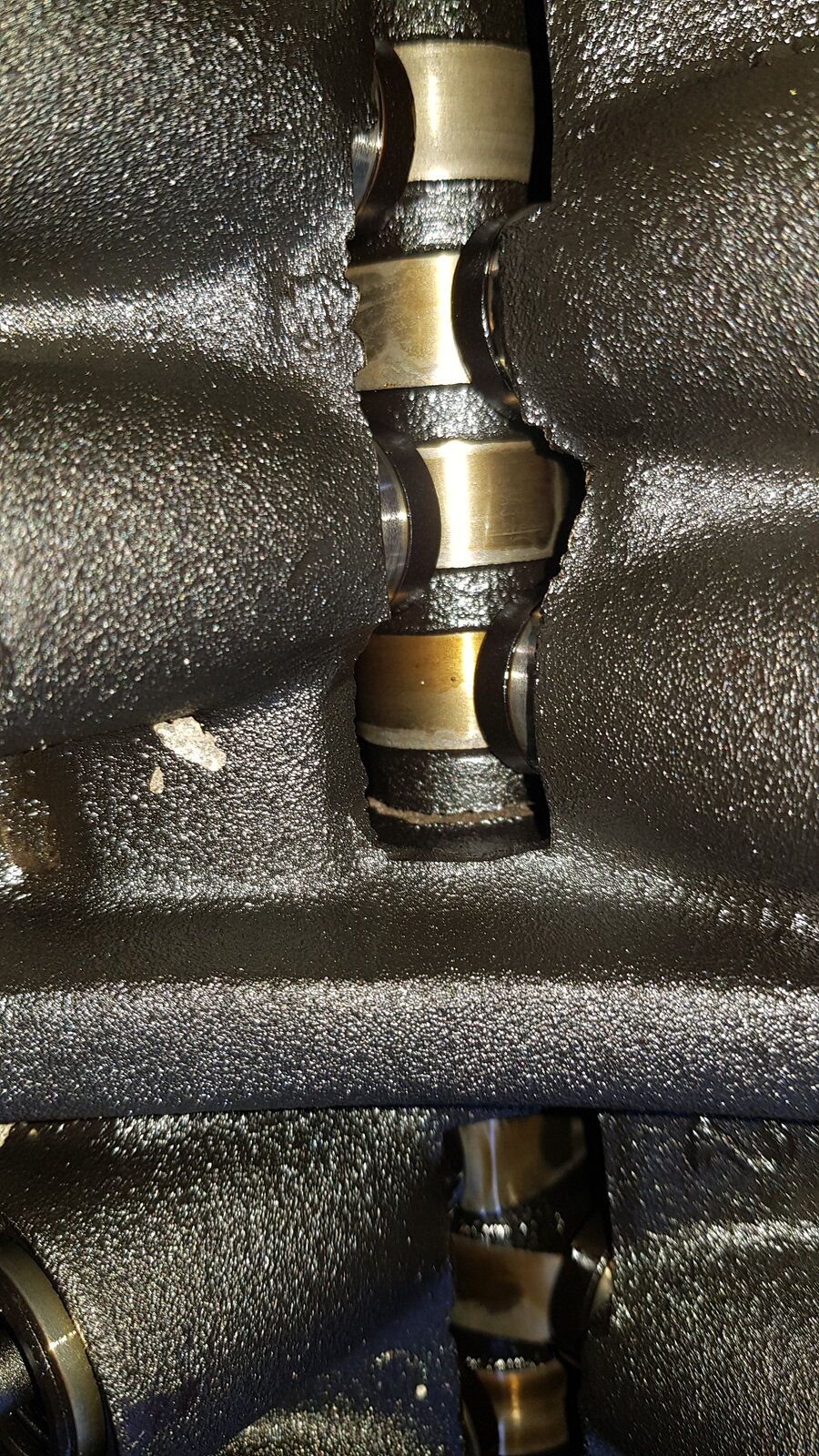

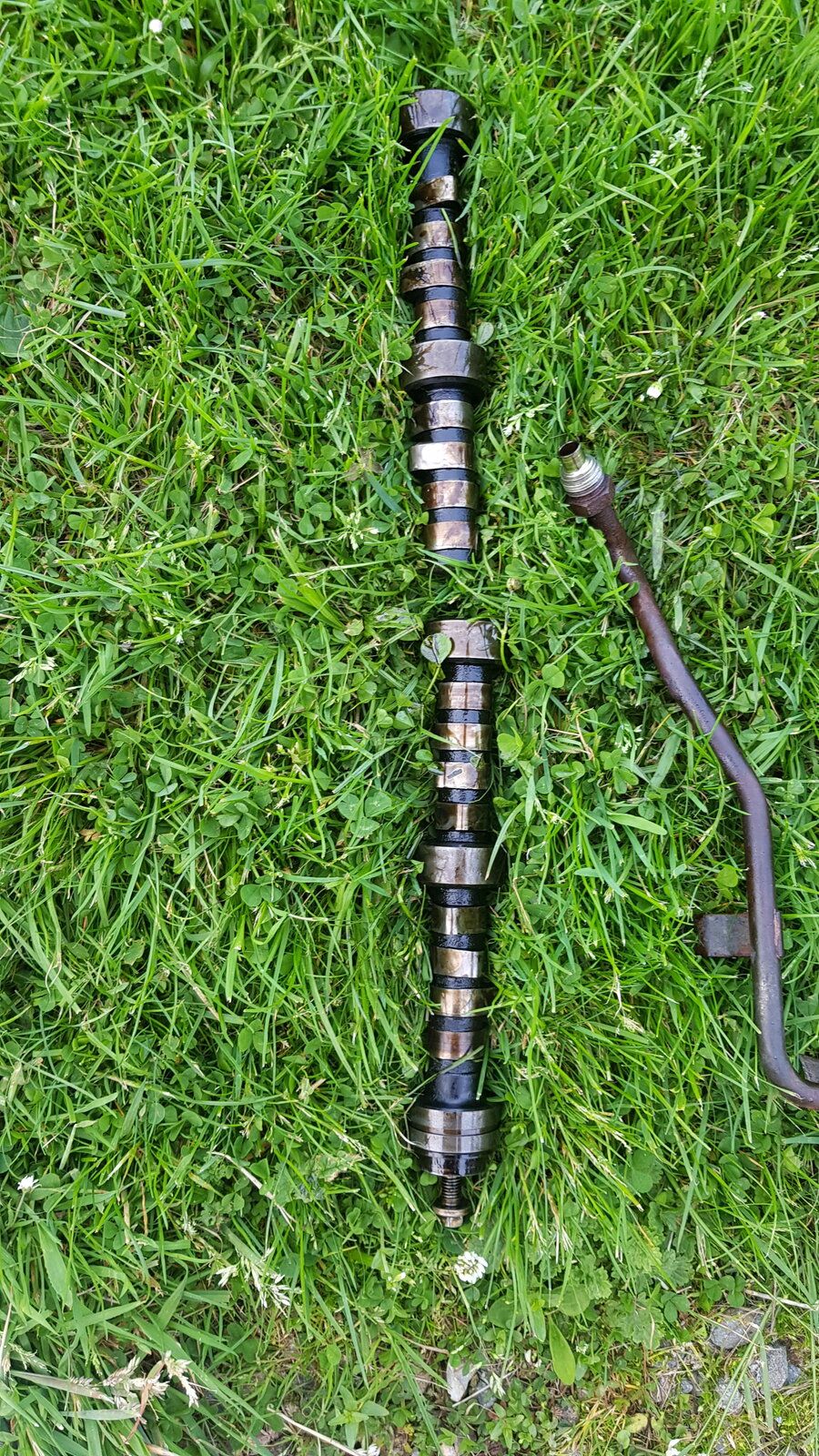

Thought you might be interested in an update. Impressed it ran at all. Can find any evidence of metal in sump and I'm just hoping the valves aren't damaged. Reckon I should do a leak test as is before getting a new cam?

Shippers · Jun 18, 2020

Jock85 said:
View attachment 212584 View attachment 212586 View attachment 212588 View attachment 212589

Well there you go..

oakey · Jun 18, 2020

ooooops its all broke
Nice clean break tho

Jock85 · Jun 18, 2020

Shippers said:
Well there you go..

Yup and at least it was a clean break.

kermit_rr · Jun 18, 2020

That camshaft looks well worn when ignoring the break!
If all the valves look closed, I'd take the gamble and put a new camshaft in. Don't forget all new lifters too

Shippers · Jun 18, 2020

Jock85 said:
Yup and at least it was a clean break.

certainly looks might be easy fix...hope all goes well with leak down test...would be great if heads dont need lifted...watched today a youtuber Samcrac sort a RR whose timing set wrongly by garage trashed one head with bent valves he only refinished one head...cant wait for the next vlog he is a Merkin with a specialist mate who has a nifty tourque wrench though not only digital but you can set the degree of tightening head bolts as well...

Jock85 · Jun 18, 2020

kermit_rr said:
That camshaft looks well worn when ignoring the break!
If all the valves look closed, I'd take the gamble and put a new camshaft in. Don't forget all new lifters too

They all appeared level and from what I could see there were no impact marks on the pistons so I'm of the same mind to give it bash.

kermit_rr said:
Don't forget all new lifters too

On the list. Along with about 20 other things. Seized oil cooler pipes had me raging...

Jock85 · Jun 18, 2020

Shippers said:
certainly looks might be easy fix...hope all goes well with leak down test...would be great if heads dont need lifted...watched today a youtuber Samcrac sort a RR whose timing set wrongly by garage trashed one head with bent valves he only refinished one head...cant wait for the next vlog he is a Merkin with a specialist mate who has a nifty tourque wrench though not only digital but you can set the degree of tightening head bolts as well...

Was watching that the other day too. Hard thing for the previous owner to find out as he seemed to look after it. I would be delighted not to have to dig any deeper than I have so heres the heads stay put. I'm supposed to prepping my mk1 golf for paint so maybe I can get back to that over the next few days
