andyfreelandy
Well-Known Member
Useful addition to the diagnostic kit the PScan logging function.
Kerlaan
Active Member
So is https://www.landyzone.co.uk/land-rover/2005-td4-giving-p1e30-error-code.344738/#post-4537329 going to match your P1e30? Dodgy connection/wiring/boost control solenoid valve opening up the EGR when you don't want it? This will be interesting.... Good luck tomorrow!
andyfreelandy
Well-Known Member
Thanks !

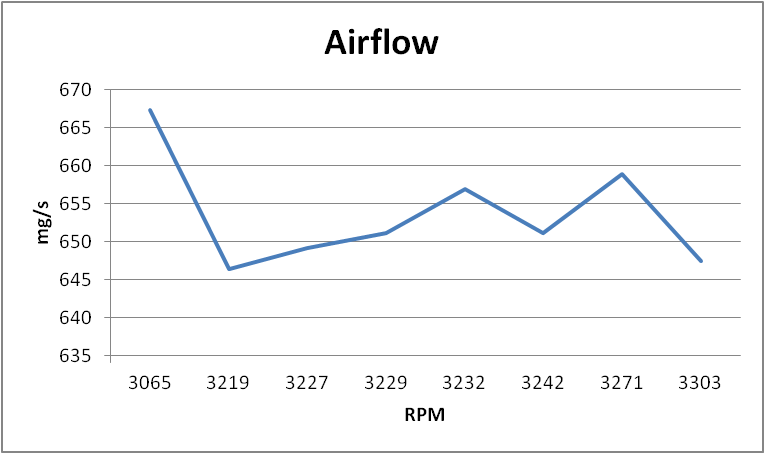

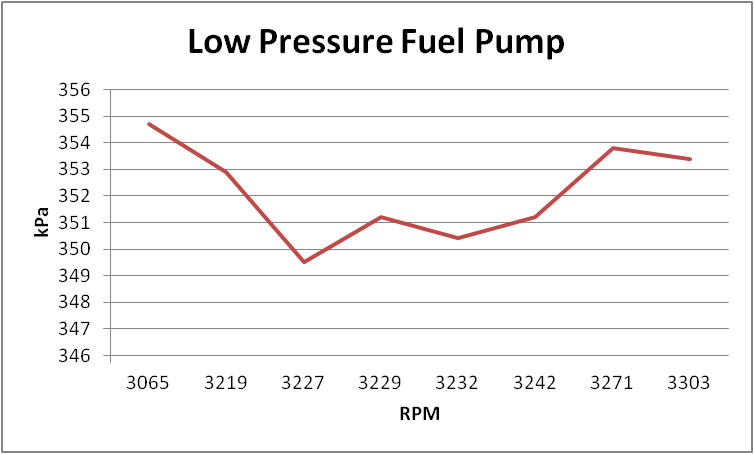

Not quite (but nearly). I took readings with fault on, vehicle very flat to drive but not excessively smoky. Same hill, around 3k RPM on slight incline.
See MM Final.pdf.
Then checked hoses, large and small, removed MAP sensor and all looked clean, removed connector and noted green deposits !! Cleaned connector pins with switch cleaner and hey off we go !! Interesting that fault code showed P1e30 SHORT circuit to V Batt !! Open circuit may have been more helpful.
See MM Final1.pdf.

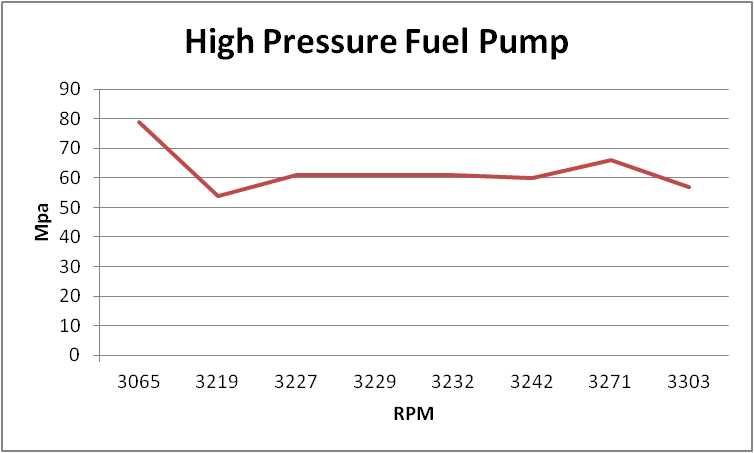

I expected the manifold pressure demand and actual figures to align when repaired, but LOOK at the HP fuel pressure simply due to increased boost !!
Vehicle flies now and I hardly got my hands dirty !!
andyfreelandy
Well-Known Member
Really appreciate everyone's contributions - might as well enjoy finding a fault !!!
Kerlaan
Active Member
I am so pleased that you got to the root cause of the problem. This is very interesting and certainly parked into my subconscious for future reference.
A final question please @andyfreelandy? You are using pscan? Pleased with it? Have you comparison with other tools please?
andyfreelandy
Well-Known Member
Good question! I have a range of kit built up over the years. I have an icarsoft i930 that reads codes and live data but all other functions are not much use. It reads the abs if I tell it that the car is a later 2004 model. The auto box and other settings return rubbish data. I have raised it with icarsoft support and, apart from run the update, they offer no support, nor does the update solve anything.
I have a WOW and Delphi clone which does lots of different makes and so useful in this respect. They also allow activation of the CCU functions on the Landy, windows, tailgate, wipers etc.
The Pscan is the only one that I have that reads everything (that I have used so far). It does engines, auto box, security, CCU, abs, key identification, and it is the only one that logs live data to do what I did above. Very useful to have in one box.
Possibly the main benefit is that the support on forum and via the producer is good and I have emailed directly for help. Pscan (Philip) is on this forum regularly too. Very helpful.
I have fed back a few niggles, like starting the engine can cause a disconnection and it is better to run engine before logging on, but he is on to all that. Things like that can put people off as they don't like being delayed in the task!!
The nice thing about the icarsoft is that you can keep it in the glove box for any potential engine troubles, but it really isn't worth £100 or whatever they are now. Buy a second hand one perhaps.
All in all Pscan is very good if you treat it as a unit that we, as a group, can improve by feedback. A development tool that will only become better by regular users who know what they are looking for in such a tool.
I thoroughly recommend it with the above caveat.
Thanks for your input to the forum and the expertise that you bring to it.
