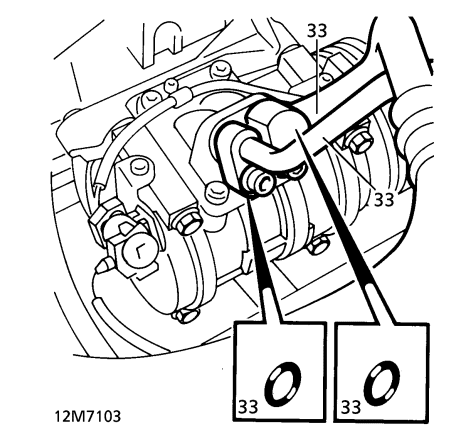

I am looking at replacing the O rings that sit between the Air Con compressor and the hi and low pressure pipes. I have checked LRCAT and it just lists the parts as sizes and does not show which of these parts is connects the compressor and pipes together. Is anyone able to advise of the size of the rings of step 33 in the diagram below?
plumbfisher
Active Member
I've struggled to get the right part numbers too. What I ended up doing was going to a main dealer, getting them to give me the part numbers of all the possible variants, and order the lot. Then when it comes to spanner time you will certainly have one that is right. The cost of them is minimal. Same with all the other O rings in the system.
Good luck
Good luck
Hi

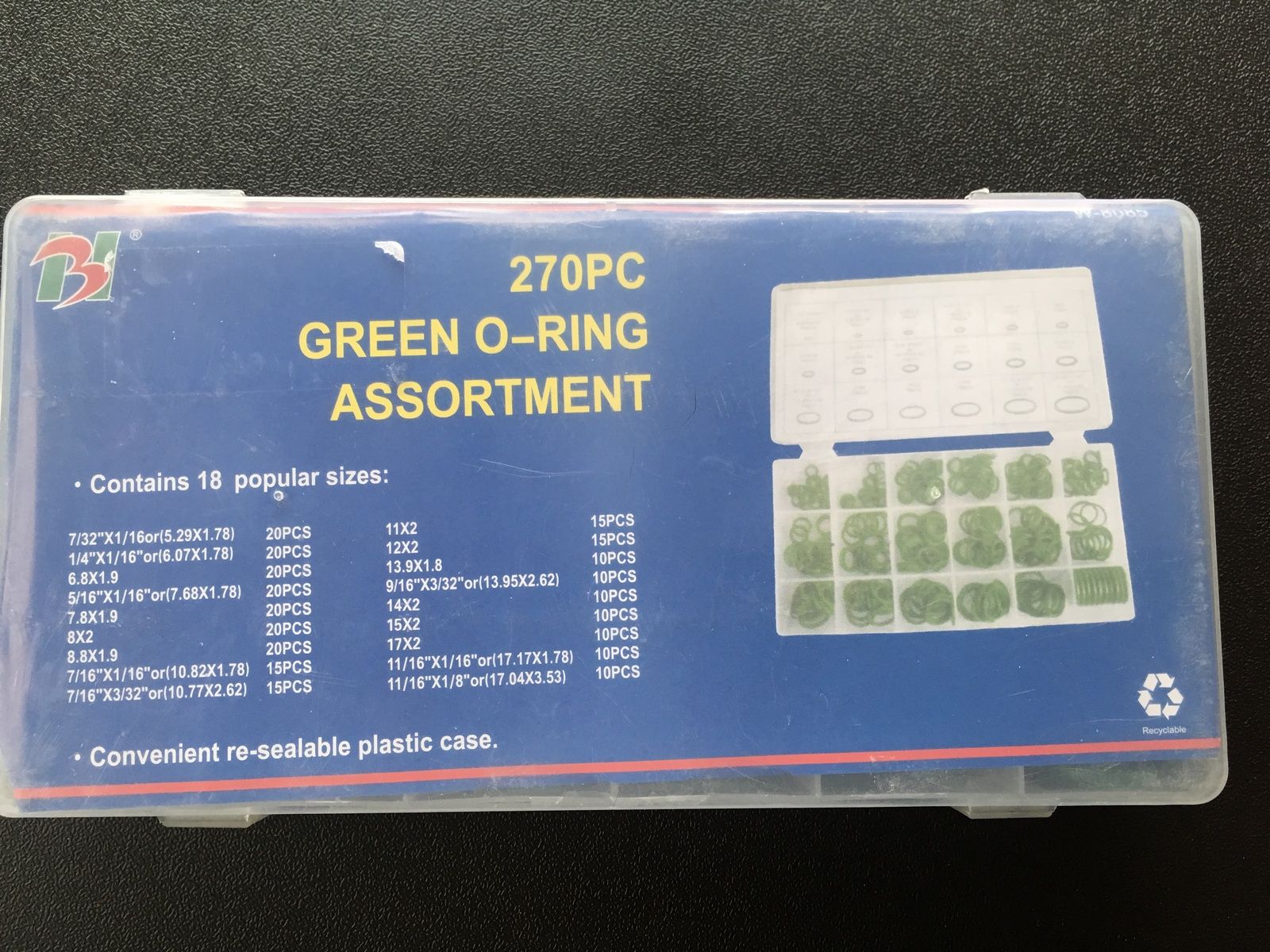

I personally bought O ring kits, alas though don’t know if they have the size ur after
dimensions at the bottom of the link page
https://www.brit-car.co.uk/product....harge____range_rover___defender___discovery_2
https://www.brit-car.co.uk/product.php/97366/0/o_ring_air_con_pump_suction_p38_range_rover
https://www.advancedfactors.co.uk/35162-air-conditioning-rubber-o-ring-assortment-225pc-102549-p.asp
Hope that helps
I personally bought O ring kits, alas though don’t know if they have the size ur after
dimensions at the bottom of the link page
https://www.brit-car.co.uk/product....harge____range_rover___defender___discovery_2
https://www.brit-car.co.uk/product.php/97366/0/o_ring_air_con_pump_suction_p38_range_rover
https://www.advancedfactors.co.uk/35162-air-conditioning-rubber-o-ring-assortment-225pc-102549-p.asp
Hope that helps
Last edited:
killerhaggis
Member

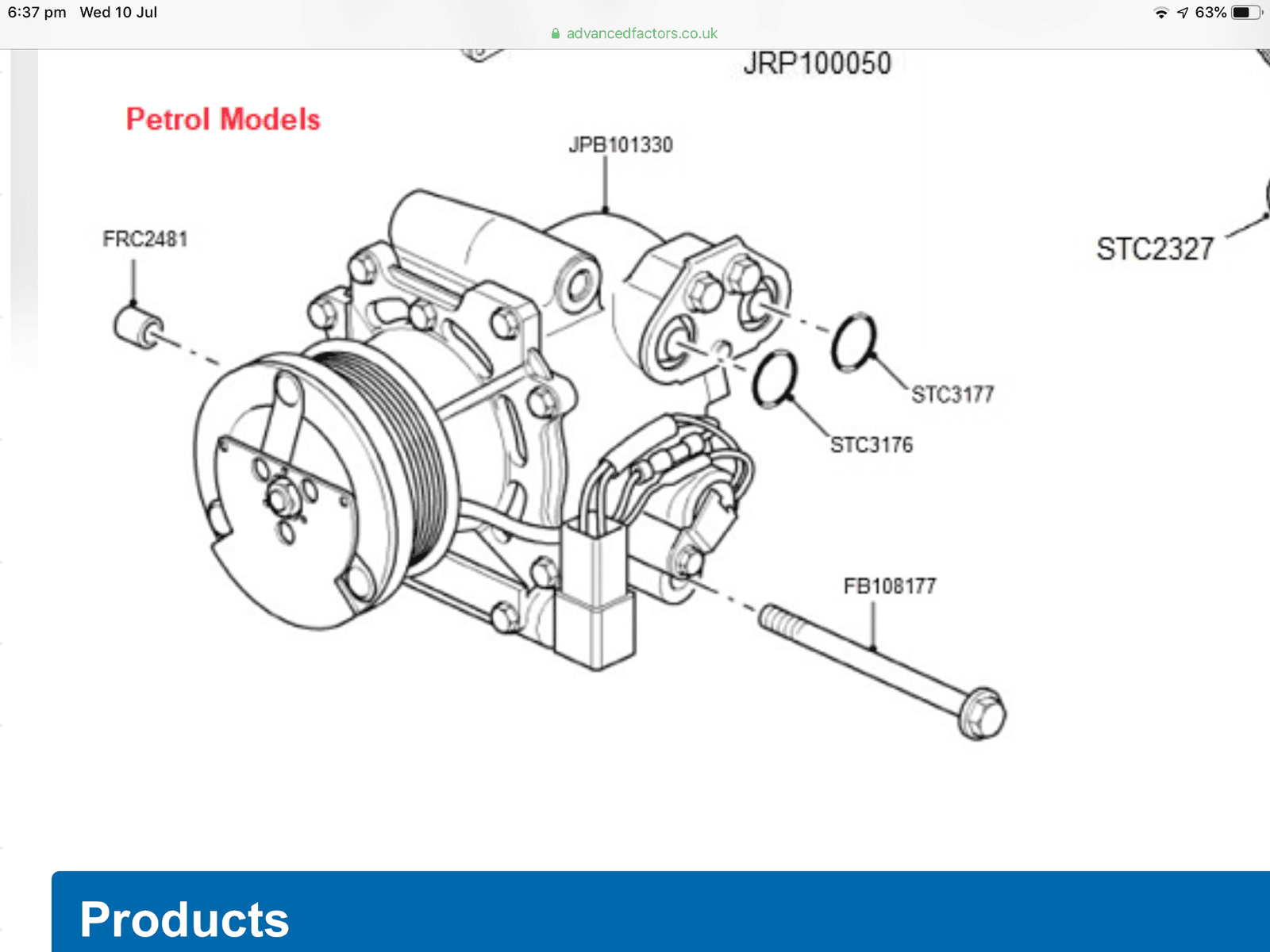

Could these be the ones you are after? on is discharge side the other on the suction
https://www.brit-car.co.uk/shopimages/products/normal/S/STC/STC3177.jpg
STC3177 - O RING AIR CON PUMP DISCHARGE - RANGE ROVER - DEFENDER - DISCOVERY 2
Supplier: Land Rover | Type: Genuine | Product: STC3177
https://www.brit-car.co.uk/shopimages/products/normal/S/STC/STC3176.jpg
STC3176 - O RING AIR CON PUMP SUCTION P38 RANGE ROVER
Supplier: Land Rover | Type: Genuine | Product: STC3176
https://www.brit-car.co.uk/shopimages/products/normal/S/STC/STC3177.jpg
STC3177 - O RING AIR CON PUMP DISCHARGE - RANGE ROVER - DEFENDER - DISCOVERY 2
Supplier: Land Rover | Type: Genuine | Product: STC3177
https://www.brit-car.co.uk/shopimages/products/normal/S/STC/STC3176.jpg
STC3176 - O RING AIR CON PUMP SUCTION P38 RANGE ROVER
Supplier: Land Rover | Type: Genuine | Product: STC3176
killerhaggis
Member
Great Minds.... lol
Indeed, bought the sets of O rings because some of the O rings each are £6-7 which I refuse to pay
Currently doing my ac condensor on my D3 and O ring costs were stupid
I am getting the car ready for it MOT as it has expired. I tried to get the system regassed last summer but there was a substantial leak in the system and the hiss was coming from the compressor area. I thought that the leak would more likely be the O rings rather than the compressor so was going to replace and then see if system was airtight when going for the MOT.
How can anyone charge that amount for 50p or less O'ring?
Buy the assortment kit. Sizes are listed here https://allbrit.de/epc.cfm?PAGE=F01010&CAR=L7&SPRACHE=EN but it doesn't say which of the five o-rings go where !!
