Mate, ive got the exact same problem, last weekend I had the engine out again to check it over, cant find anything wrong, the reason I had it out is because I was worried it was the big ends, as I had mixed them up previously and wasnt 100% about them.
I've since matched them well, oil gap is within tolerance and I am happy with the rest of the build, but I still have the rattle!

Last edited:
wow re-build brothers, the course of landy ownership never runs smooth.

I have had new pistons fitted with new pins so I hope its not an issue as tbh I am unsure of the machine shops methods now having got my now defunct heads back in bits (nothing kept in order) after 9 weeks.

It will be interesting to see what the problem is before I embark on re-assembly!

fett said:
no small end to renew, they floating pins.

what brand tappets did you fit?
Click to expand...

Floating pin uses bush, press fit does not use bush.
Then did you keep the conrod and piston matched?
Did you dismantle the rocker shafts? and made sure they were assembled correctly?
Mate if you think I am probing to much just tell me to shut up....ok

Well I did mix the caps up but I'm pretty damn sure they are right as I checked the gaps. It's definitely bottom end

What....you mixed the conrod caps?? Waaaaa that is a bummer, you found your fault then. They are extremely precise. You are unfortunately going to remove the heads and pistons and conrods to sort this, the good thing is you don't have to remove the engine again.

rangy35 said:
What....you mixed the conrod caps?? Waaaaa that is a bummer, you found your fault then. They are extremely precise. You are unfortunately going to remove the heads and pistons and conrods to sort this, the good thing is you don't have to remove the engine again.
Click to expand...

I had ago at sorting them by feel before, wasn't right so I've since had it out and re-done them all and there good now as I've checked the oil gaps, but still the same rattle!

Right quick update, just undone all bug end bearing, no really bad ones. Only thing i could find is one has a scour mark
ImageUploadedByTapatalk 21374774585.431427.jpg
ImageUploadedByTapatalk 21374774594.874316.jpg

Going to put it back together and see if it goes away. im not taking the engine back out that car again

rangy35 said:
Floating pin uses bush, press fit does not use bush.
Then did you keep the conrod and piston matched?
Did you dismantle the rocker shafts? and made sure they were assembled correctly?
Mate if you think I am probing to much just tell me to shut up....ok
Click to expand...

Hang on, I had to get my new pistons and pins pressed in at the machine shop but they still float about, just not enough to come out so what do you mean?

ben, re your pic, I doubt that would have caused the knock as the rest of the surface is intact.

fett said:
ben, re your pic, I doubt that would have caused the knock as the rest of the surface is intact.
Click to expand...

Yeah im baffled , checked all torque settings aswell nothings shifted so done it all back up and was going to run it tonight to see but the key snapped! and me or my dad have thrown away the spare :/ going to get a few more cut tomorrow :(

fett said:
Hang on, I had to get my new pistons and pins pressed in at the machine shop but they still float about, just not enough to come out so what do you mean?
Click to expand...

The fact that the piston is floating on the wrist pin, is not a floating pin. The quickest way to determine which one you have is, do you have circlip's holding the wrist pin in tact then you have a floating pin, if no circlip's its press fit.

See easy peasy......... 😉

bencorkill said:

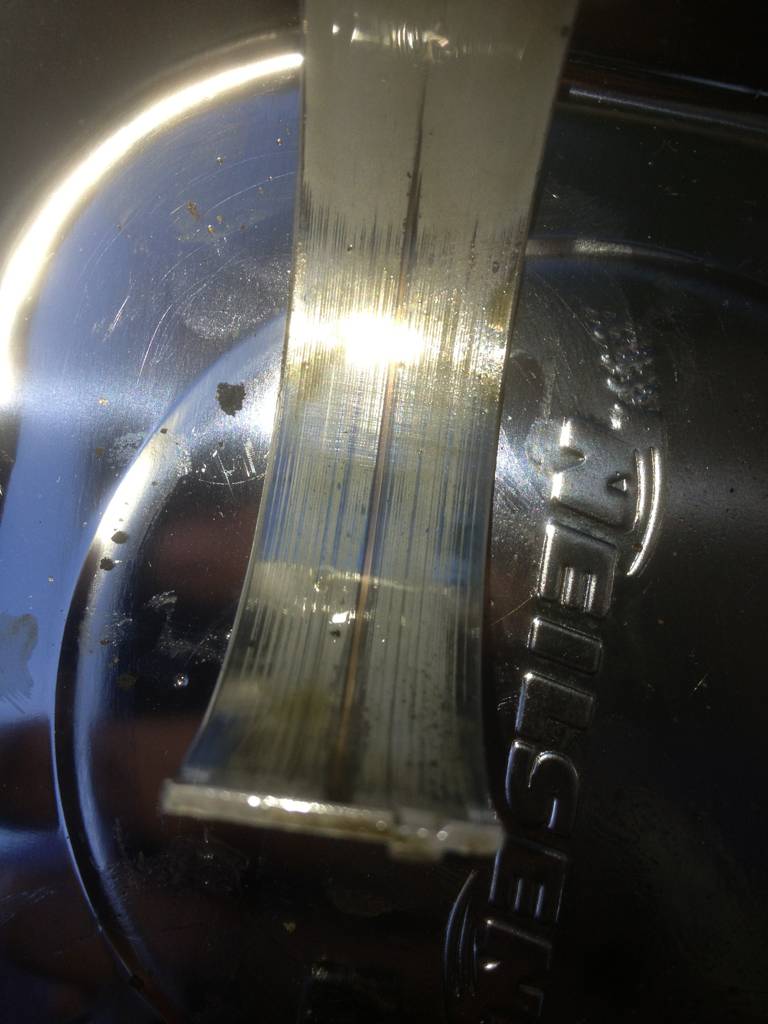

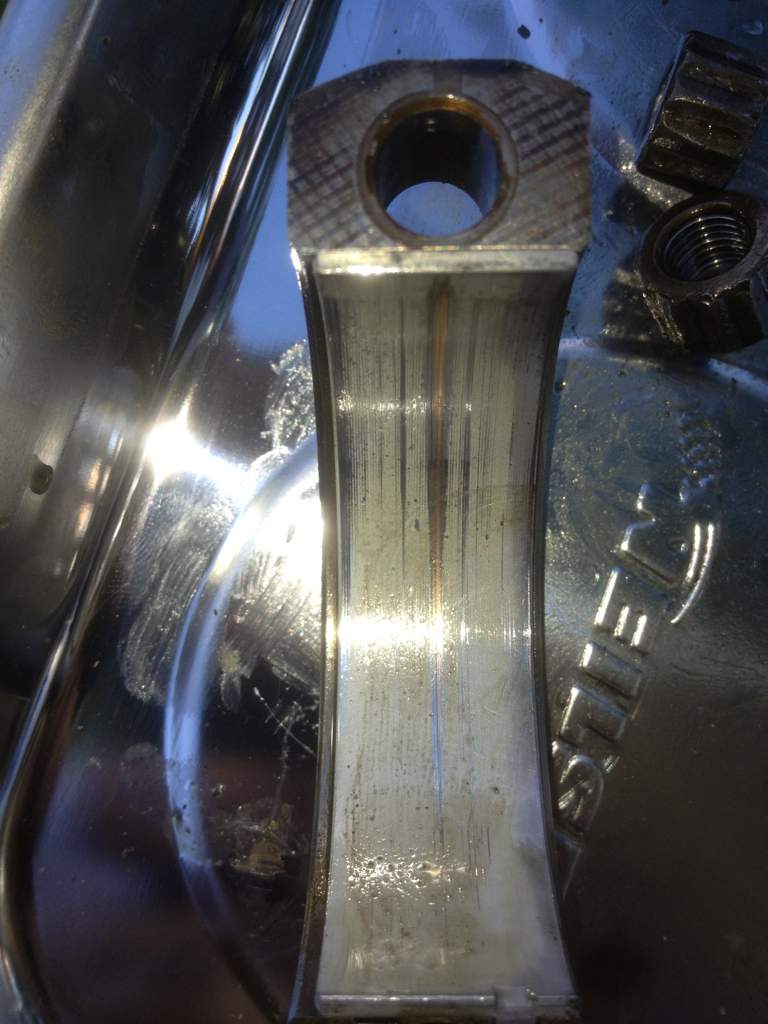

Right quick update, just undone all bug end bearing, no really bad ones. Only thing i could find is one has a scour mark
View attachment 48319
View attachment 48320

Going to put it back together and see if it goes away. im not taking the engine back out that car again
Click to expand...

The score marks is a sign of dirt/machine swarf going through the engine. The shiny bits is contact with the crank.
I know you already assembled the engine but did you check the mains?

rangy35 said:
The score marks is a sign of dirt/machine swarf going through the engine. The shiny bits is contact with the crank.
I know you already assembled the engine but did you check the mains?
Click to expand...

Yeah check mains last night aswell, or atleast bottom 1/2

Were they ok?
You are sure the noise is from the bottom of the engine? Did you by any chance try and push and pull on the big ends, did they feel solid, after you re fitted them.

rangy35 said:
The score marks is a sign of dirt/machine swarf going through the engine. The shiny bits is contact with the crank.
I know you already assembled the engine but did you check the mains?
Click to expand...


No circlips and no bush, which should be the same as other rv8, hence no little end bush to change.

SORTED IT!!!! engine is was fine! Its the bloody cat rattling must have got damaged or had something dropped down it haha!
