That is a tough question, I would suggest flushing the complete system while you are at it, that said, about two litres would do the job, don't use brake fluid from a open container and what that means is if the seal is cracked don't use it, unless you are cracking the seal before you doing the job.

rangy35 said:
That is a tough question, I would suggest flushing the complete system while you are at it, that said, about two litres would do the job, don't use brake fluid from a open container and what that means is if the seal is cracked don't use it, unless you are cracking the seal before you doing the job.
Click to expand...

System is completely empty , gonna buy new stuff today :)

Quick update, no pics sorry keep forgetting :( oil pump is primed and ready, front cover and water pump fitted. Every thing is on except for inlet , dizzy, aircon pump and alternator,hopefully drop the engine back in this week an have it running if all ha gone to plan :)

ImageUploadedByTapatalk 21373395728.681890.jpg

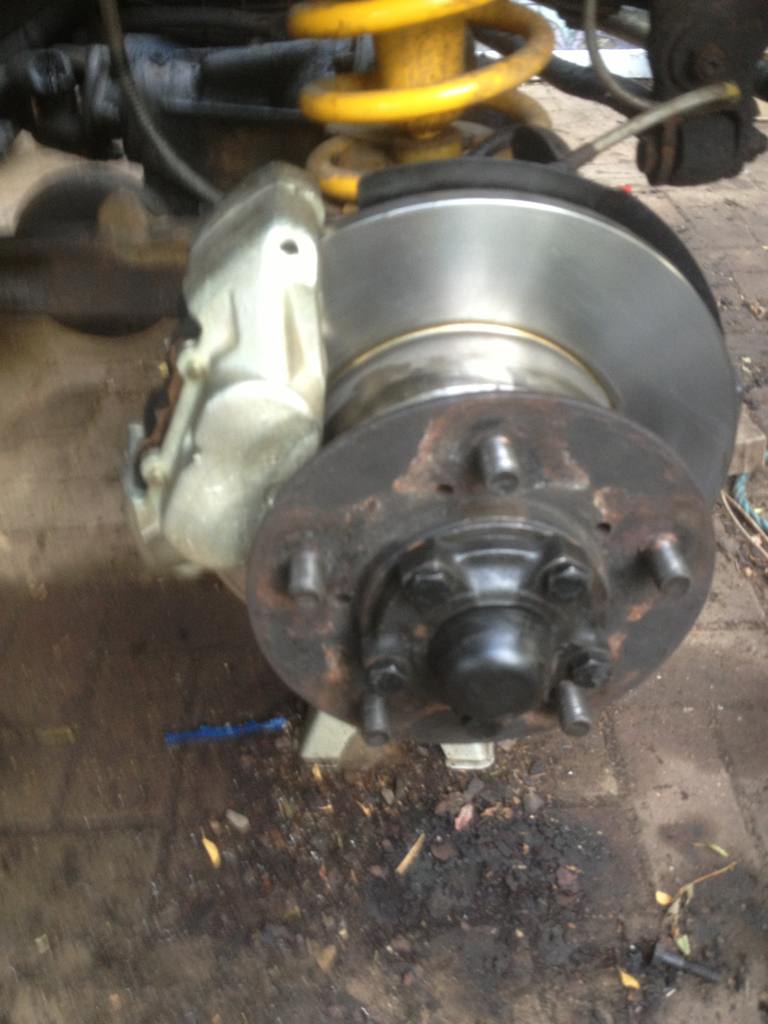

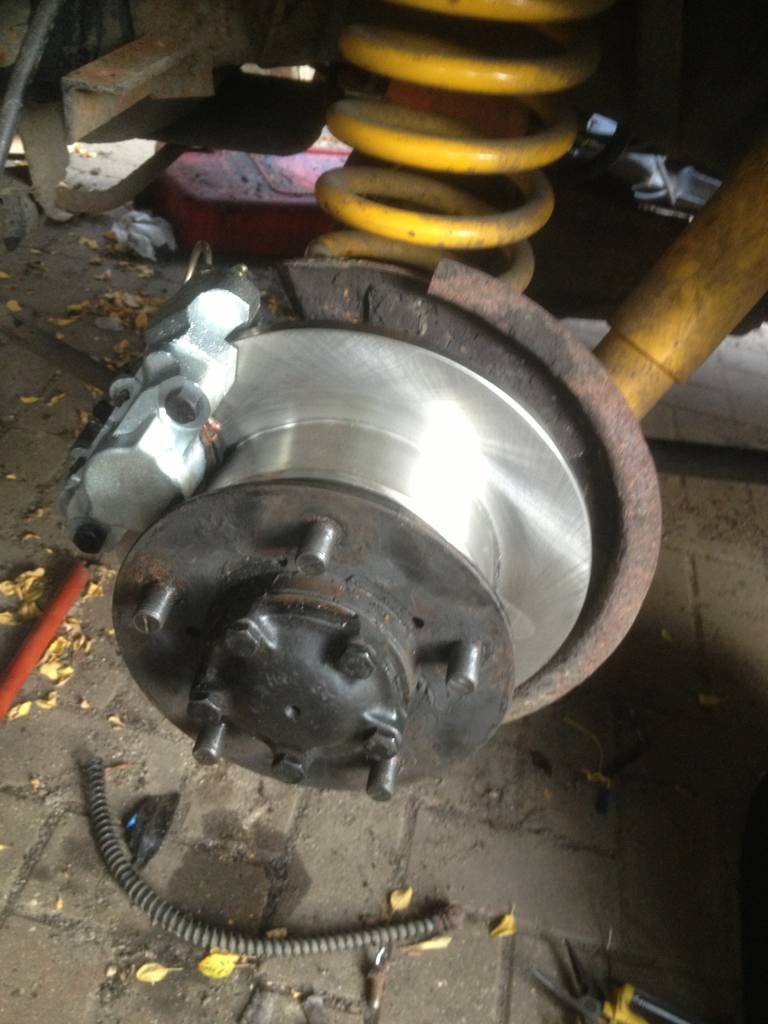

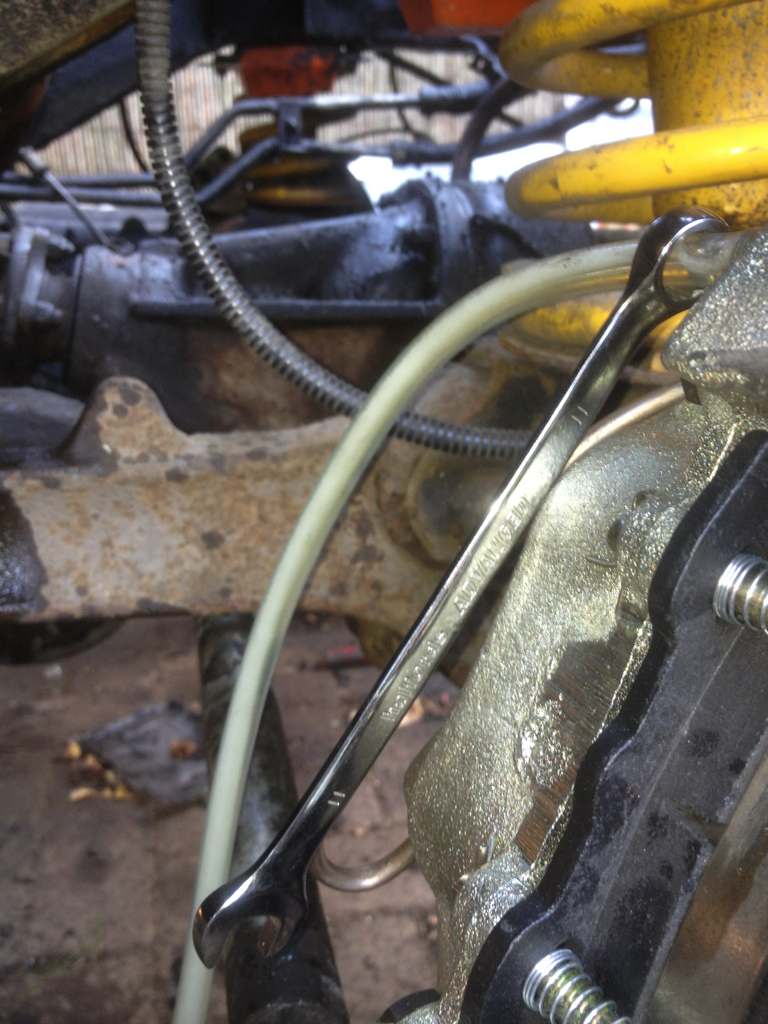

Milky brake fluid, all brakes now good,
ImageUploadedByTapatalk 21373395762.307467.jpg

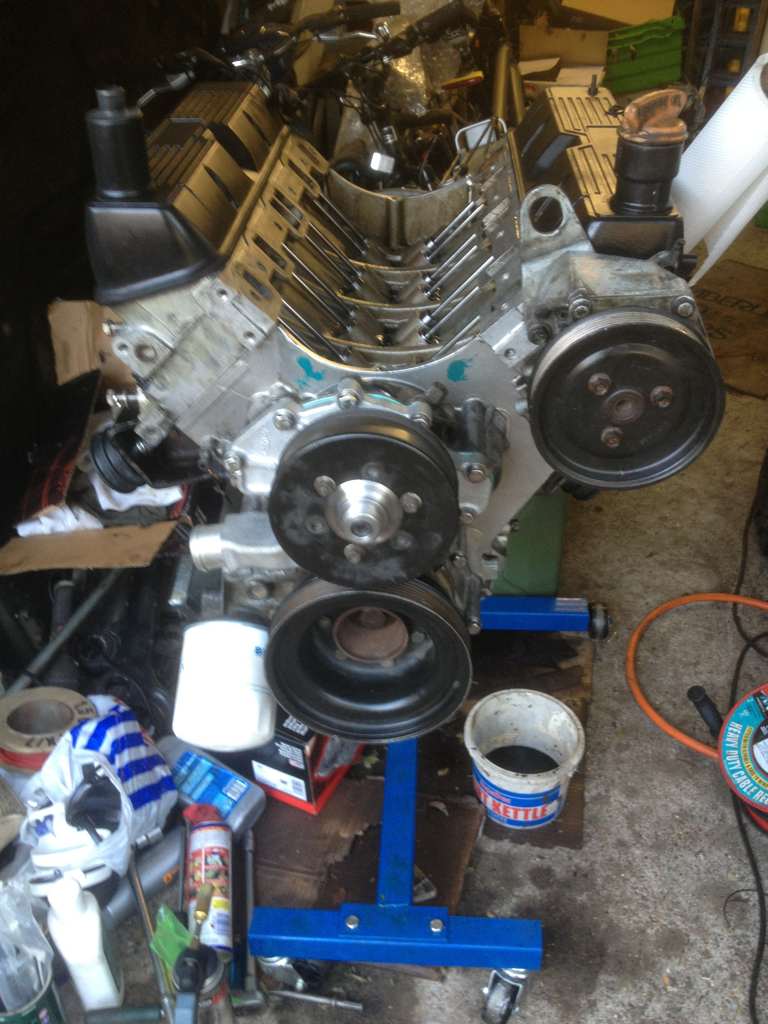

Engine nearly ready!
ImageUploadedByTapatalk 21373395786.723503.jpg
ImageUploadedByTapatalk 21373395813.235639.jpg

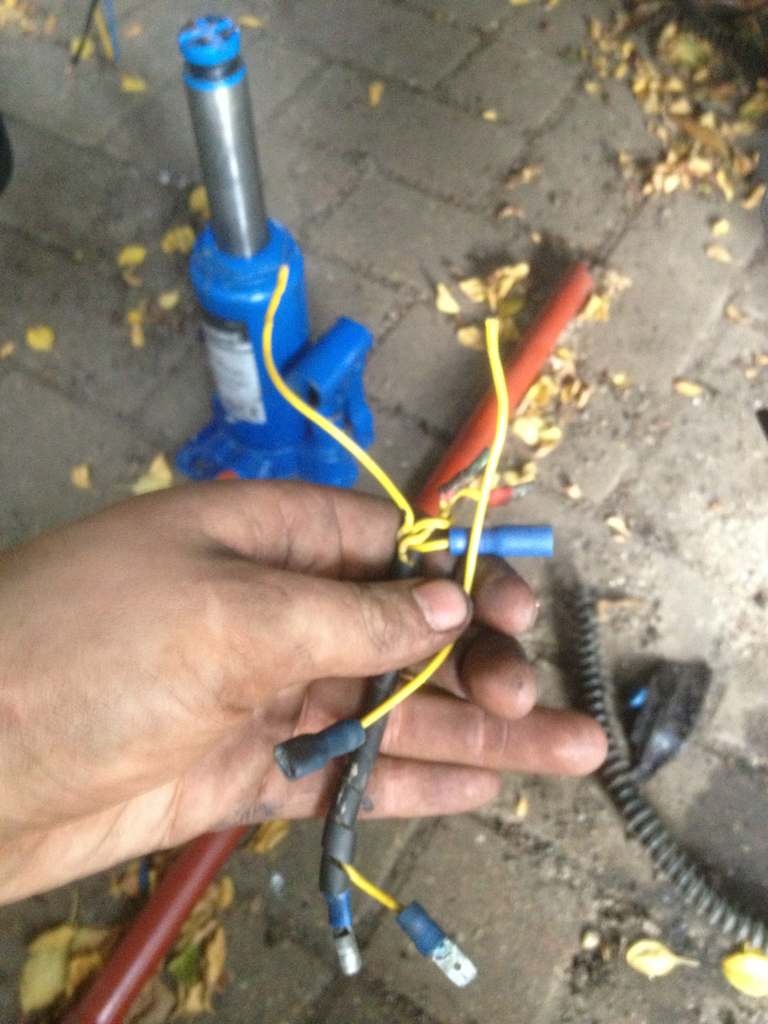

Right now me needs some help! Fuel pump wiring time, some one at some idiotic point in there life has replaced fuel pump plug with......
ImageUploadedByTapatalk 21373395888.861517.jpg

(Not me btw)

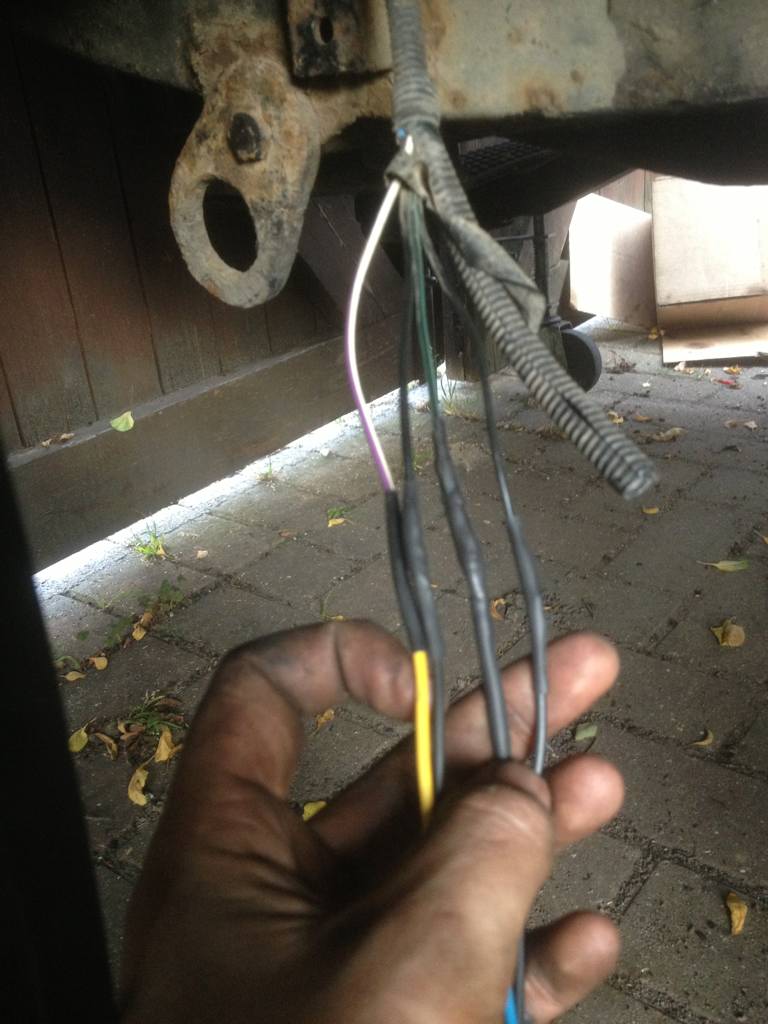

So now i have traced the wires back to original colours and put new wires on in different colours
ImageUploadedByTapatalk 21373395961.593097.jpg

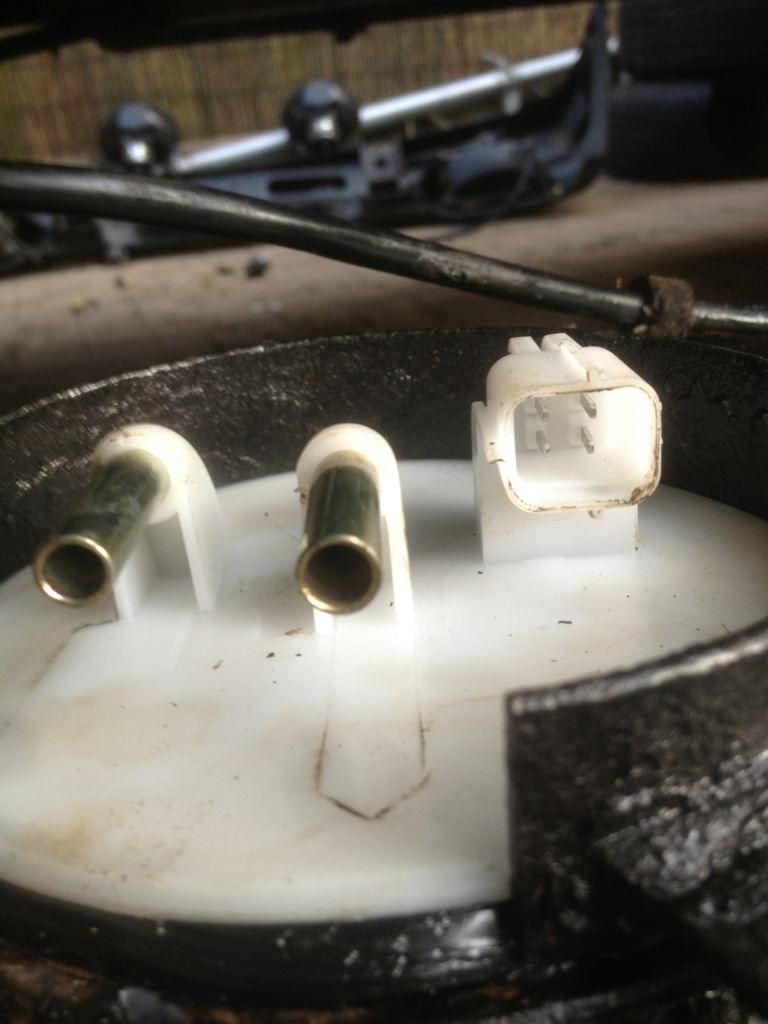

Now the question is, can i easily get a plug that will fit in to the fuel pump? and what wires go to what connectors? I couldn't see anything in manual when i had a glance, but must be in there some where my guess is
Thickest black is earth for pump, smaller black is for feed to fuel gauge, then white and purple with be feed for fuel pump, and green and black will be feed for gauge?

Just need to know how they located in to the fuel pump plug , any pics/links much appreciated :)

looks like 2 earths maybe, i can check what is what tomorrow if you want, but yea one is for pump power and the other is gauge.
you can test the gauge with a mutil meter on resistance.. get someone to shake the vehicle while you sense it.

discomark10 said:
looks like 2 earths maybe, i can check what is what tomorrow if you want, but yea one is for pump power and the other is gauge.
you can test the gauge with a mutil meter on resistance.. get someone to shake the vehicle while you sense it.
Click to expand...

So the resistance would be across the earth plug and input for the gauge? will try that tomorrow, yeah if you have a chance would be much appreciated :) cheers

bencorkill said:
So the resistance would be across the earth plug and input for the gauge? will try that tomorrow, yeah if you have a chance would be much appreciated :) cheers
Click to expand...

it will be 2 of the pins on the pump/sender the fun is finding which 2.
the other thing you can do it test for 12v when the ignition comes on, that should be the pump live, i think the sender is a lower voltage (i think pos the white/purple)

discomark10 said:
it will be 2 of the pins on the pump/sender the fun is finding which 2.
the other thing you can do it test for 12v when the ignition comes on, that should be the pump live, i think the sender is a lower voltage (i think pos the white/purple)
Click to expand...

Found the 2 that are or the gauge, just need to know what goes on top/bottom plug for power , can work out once fuels in the tank

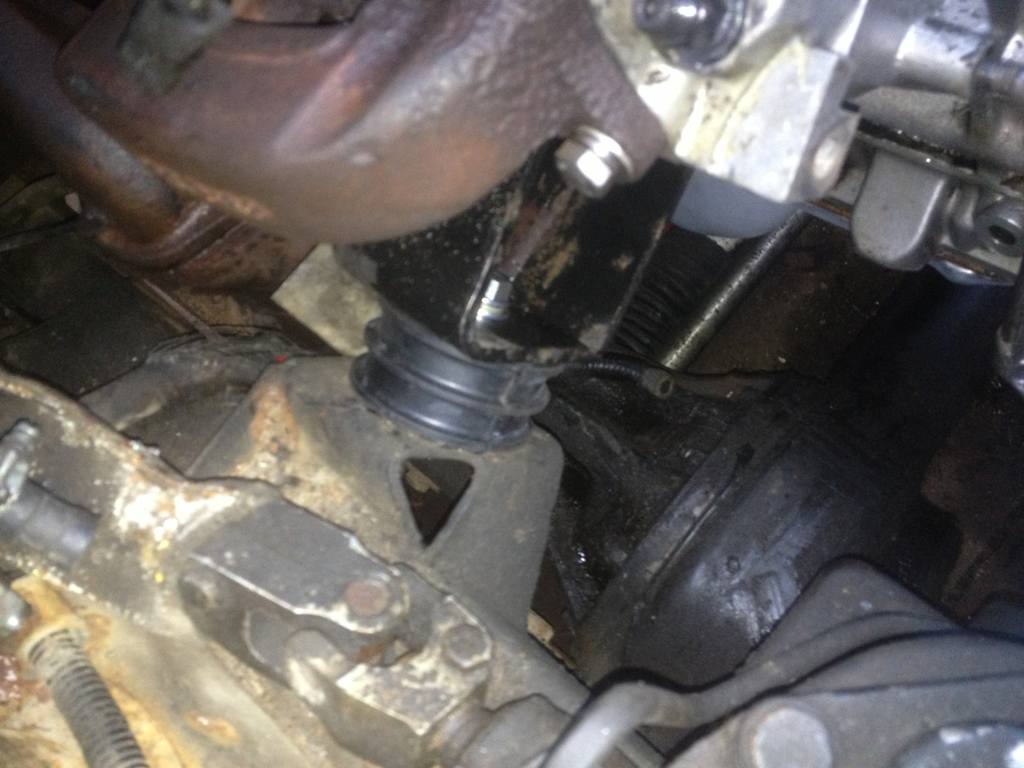

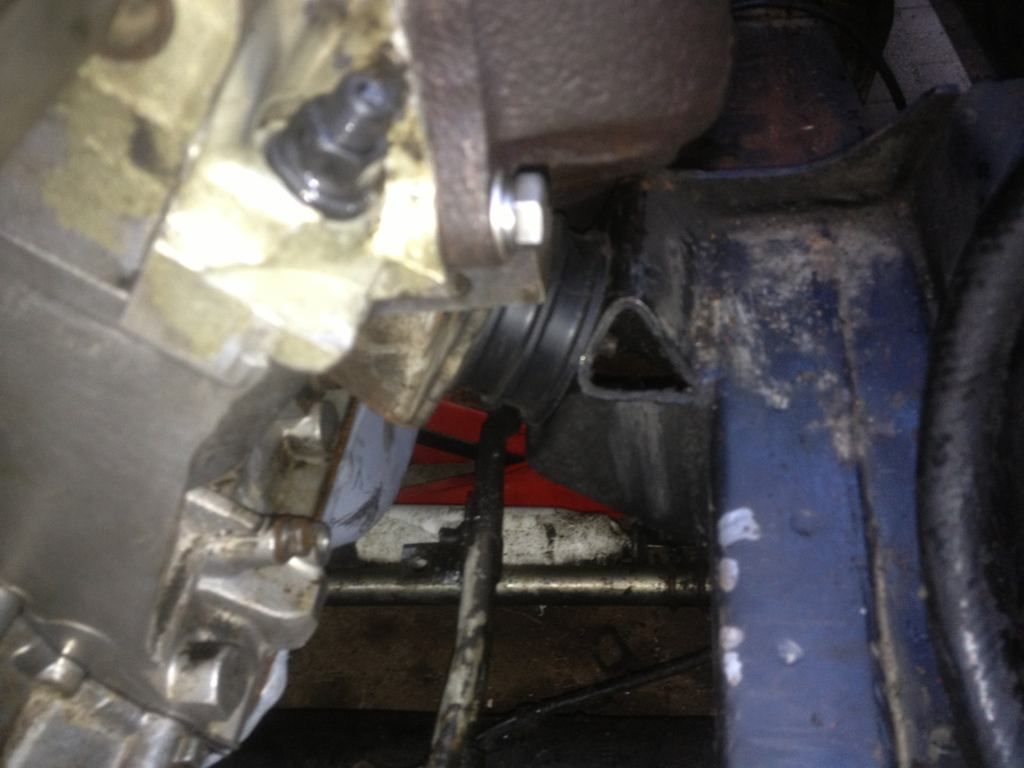

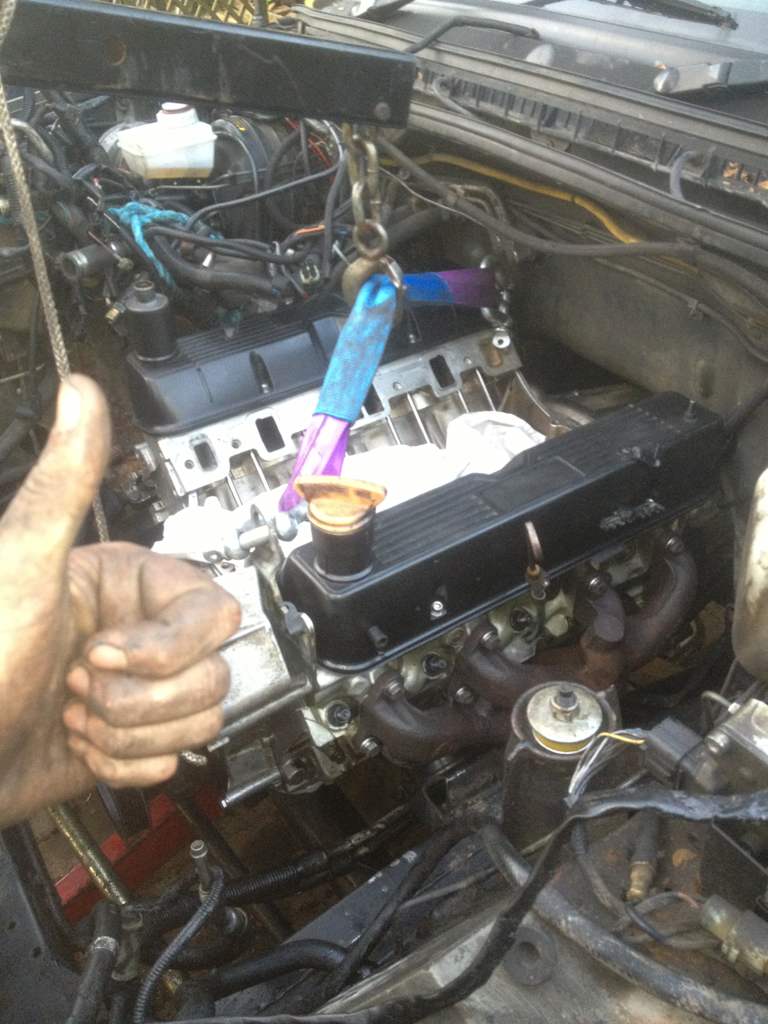

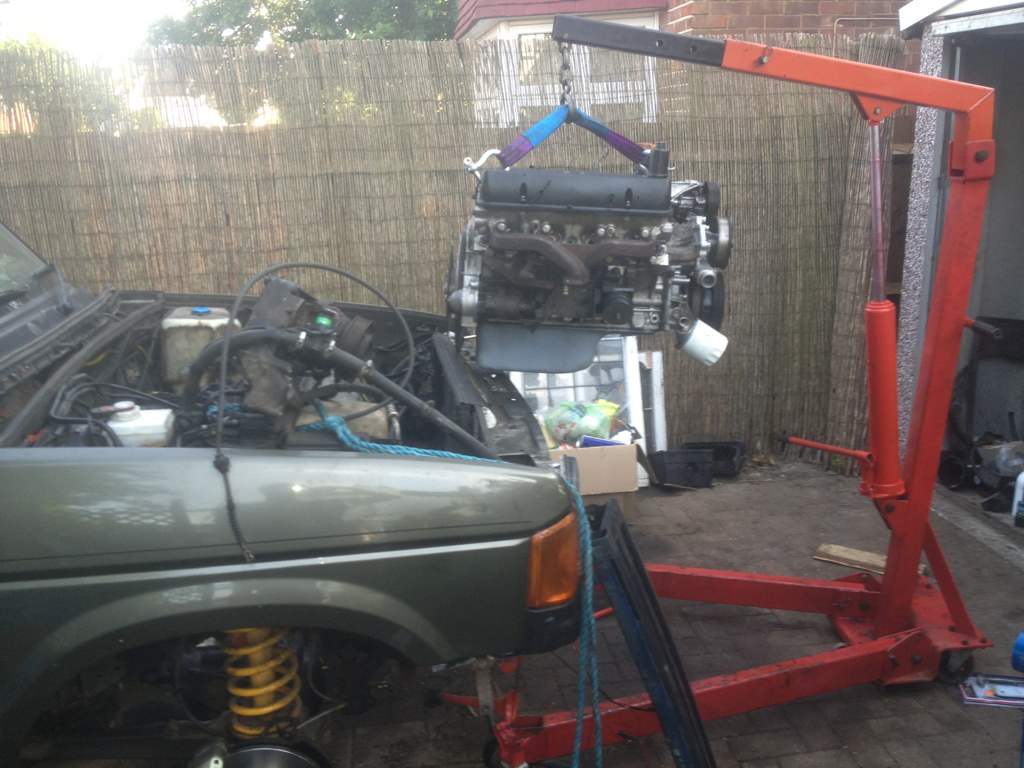

ENGINE IN !

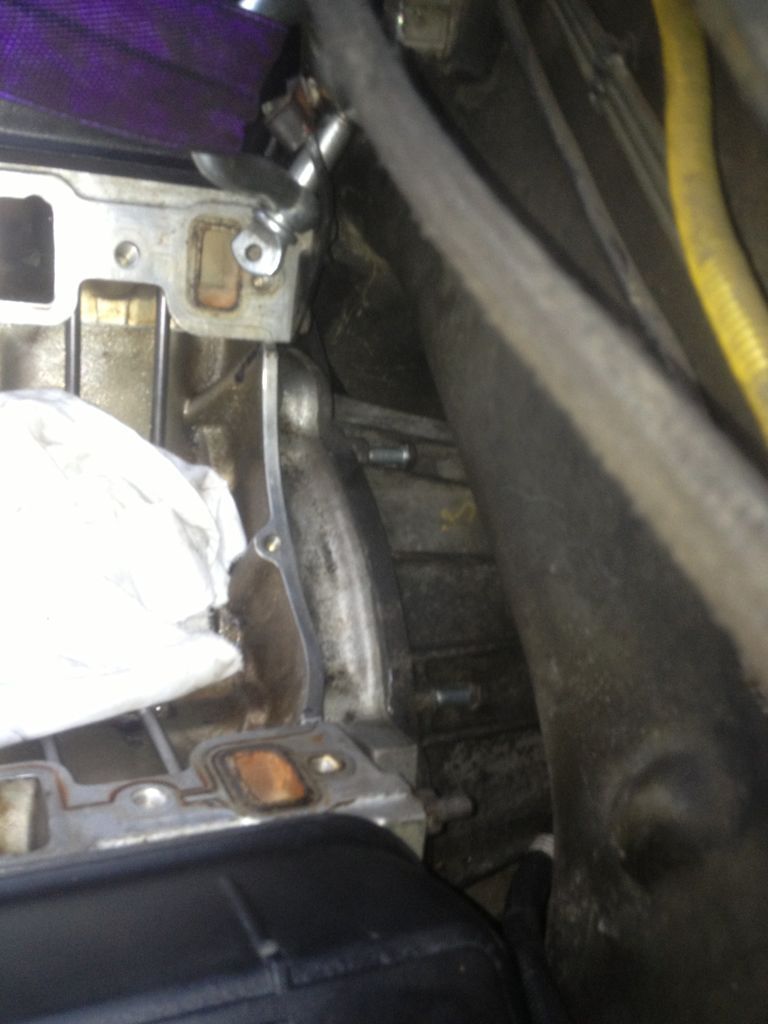

At exactly 8:52PM today heard the most satisfying noise of my life so far! The gear box and engine mating!
ImageUploadedByTapatalk 21373573253.117165.jpg
ImageUploadedByTapatalk 21373573265.888107.jpg
ImageUploadedByTapatalk 21373573282.073353.jpg
ImageUploadedByTapatalk 21373573301.620808.jpg
ImageUploadedByTapatalk 21373573310.527995.jpg

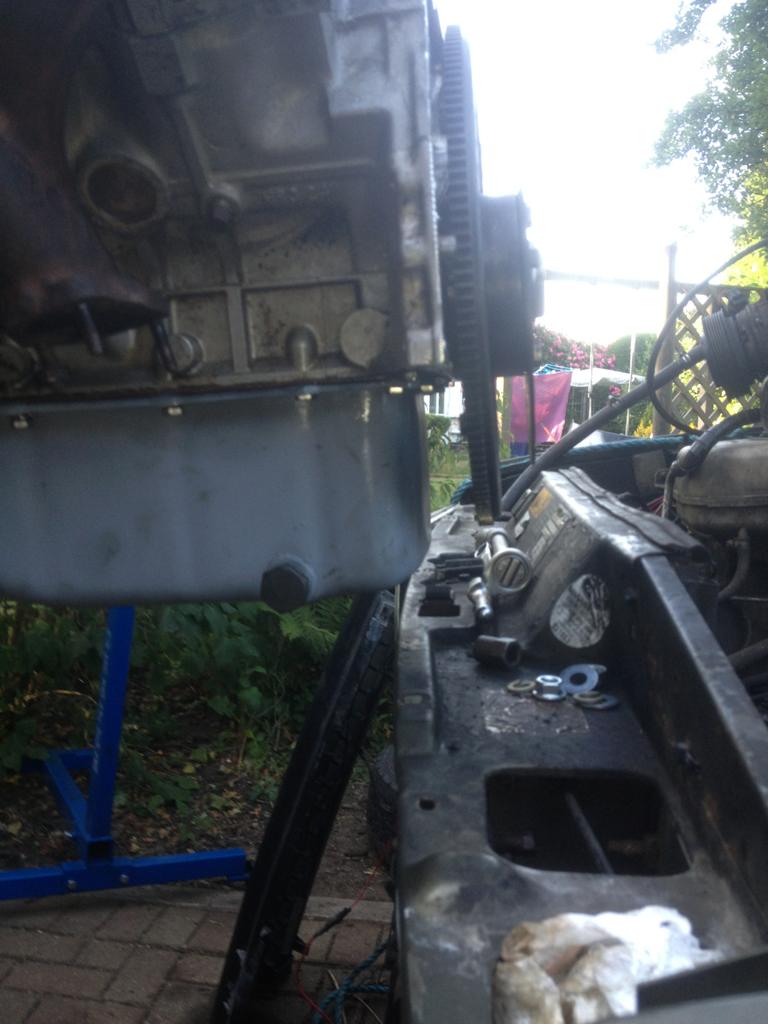

Had a problem at beginning of engine not lifting high enough ImageUploadedByTapatalk 21373573338.720170.jpg

So i put the car almost on the ground, the discs where like a cm off the ground, then once it was in jacked car back up and put on its wheels :D
