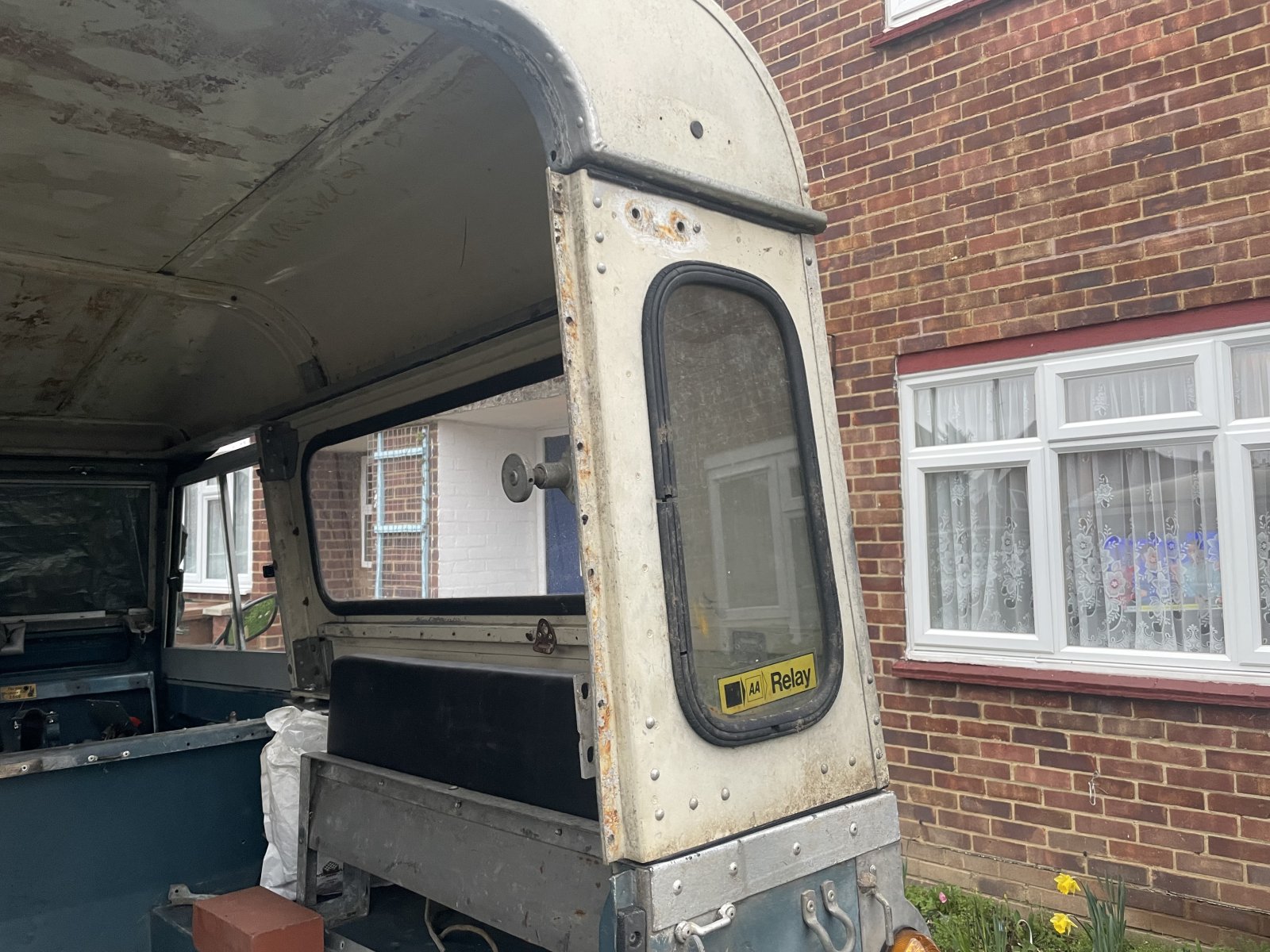

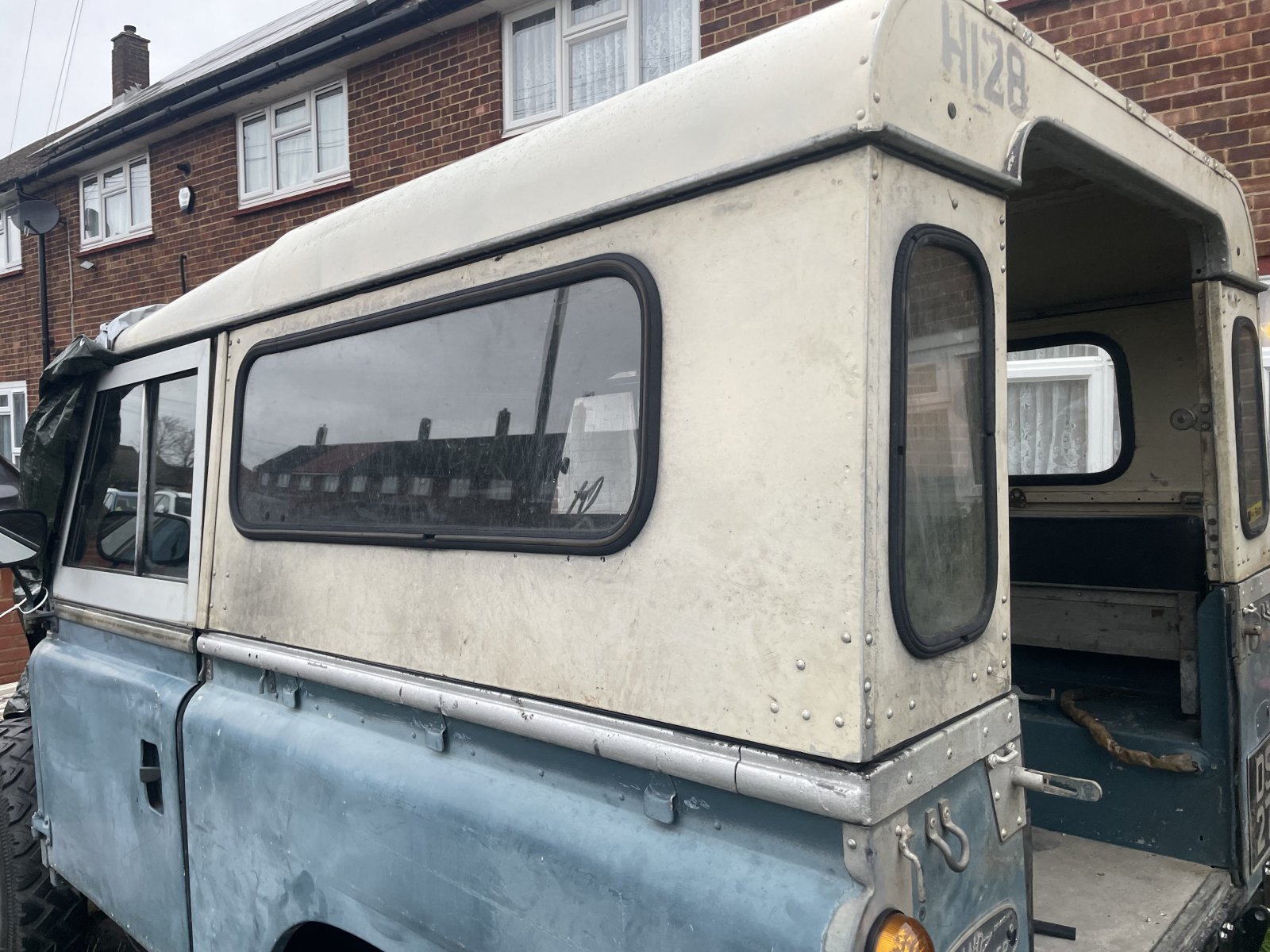

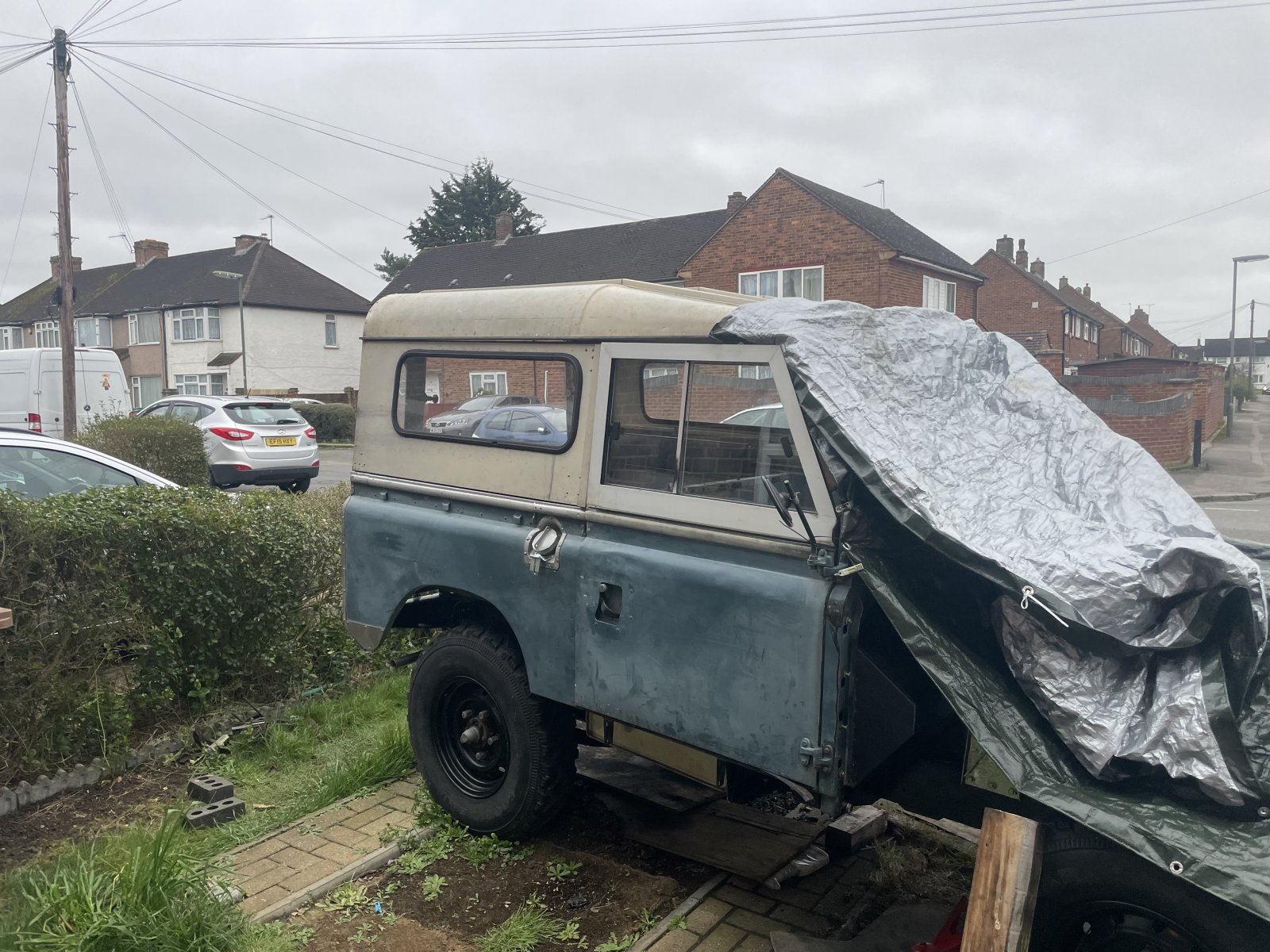

The roof and sides are on fixes with all new rubbers all around top and bottom, and new stainless steel nuts an bolts, looking more like a Land Rover again!


Attachments

  • IMG_0299.JPG
    371.3 KB · Views: 91
  • IMG_0300.JPG
    244.3 KB · Views: 82
  • IMG_0301.JPG
    358.6 KB · Views: 79
  • IMG_0302.JPG
    315.3 KB · Views: 80
Sorry for the lack of updates, but I have been waiting for this t be done, I wanted to keep the original steering wheel and had to get this made, I just picked it up, and it looks and fits great, costs a few £££ but I think it's worth it so it looks pukka, its make of hardened steel so its up to the job, now I can progress a bit more If we start getting better weather as well, Its being built on my front garden, so I rely on the weather.


Attachments

  • IMG_0315 - Copy.JPG
    IMG_0315 - Copy.JPG
    362 KB · Views: 78
  • IMG_0316 - Copy.JPG
    IMG_0316 - Copy.JPG
    314.9 KB · Views: 83
  • IMG_0317 - Copy.JPG
    IMG_0317 - Copy.JPG
    297.5 KB · Views: 73
  • IMG_0318 - Copy.JPG
    IMG_0318 - Copy.JPG
    306.8 KB · Views: 76
  • IMG_0319 - Copy.JPG
    IMG_0319 - Copy.JPG
    478.7 KB · Views: 73

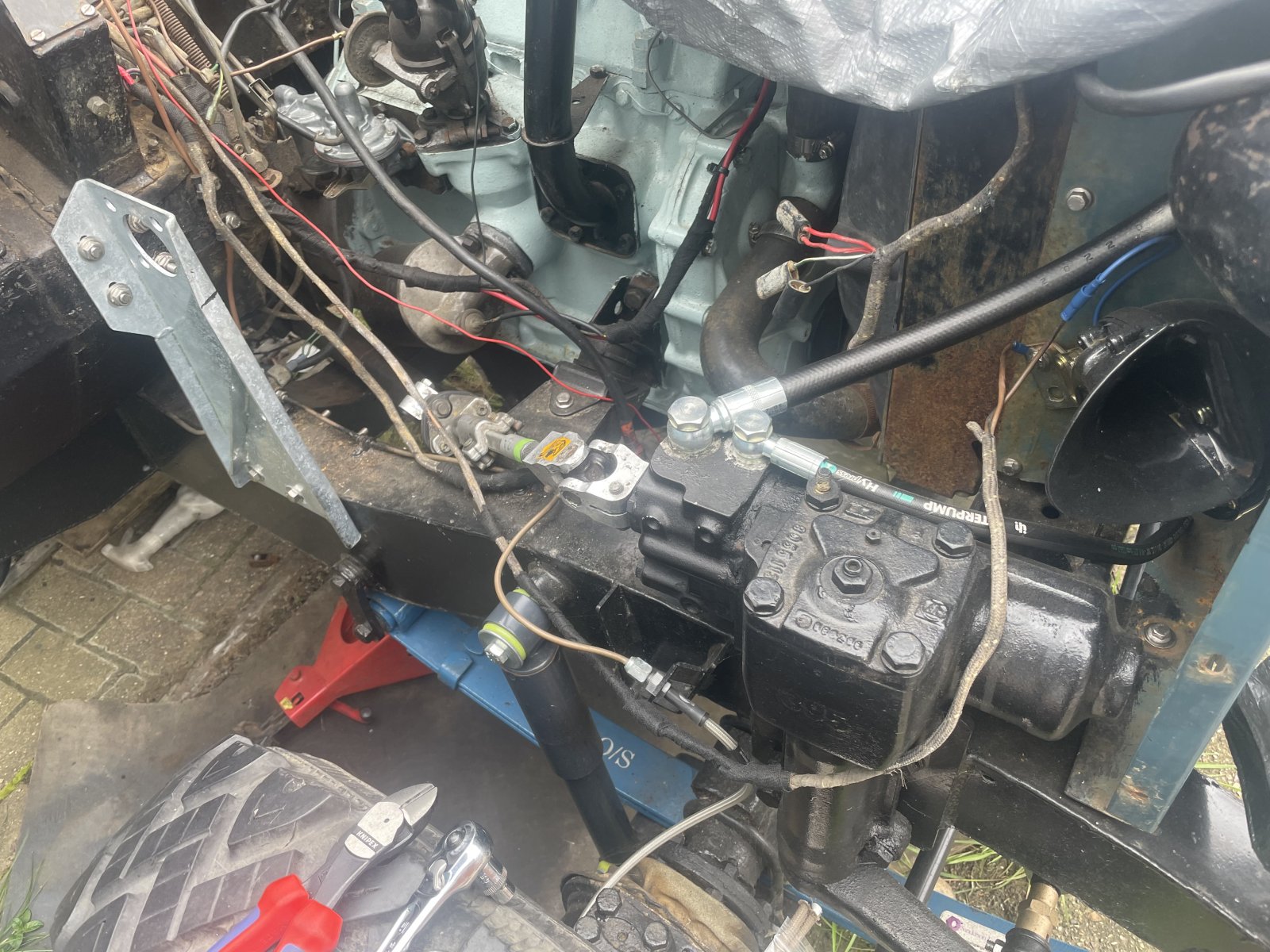

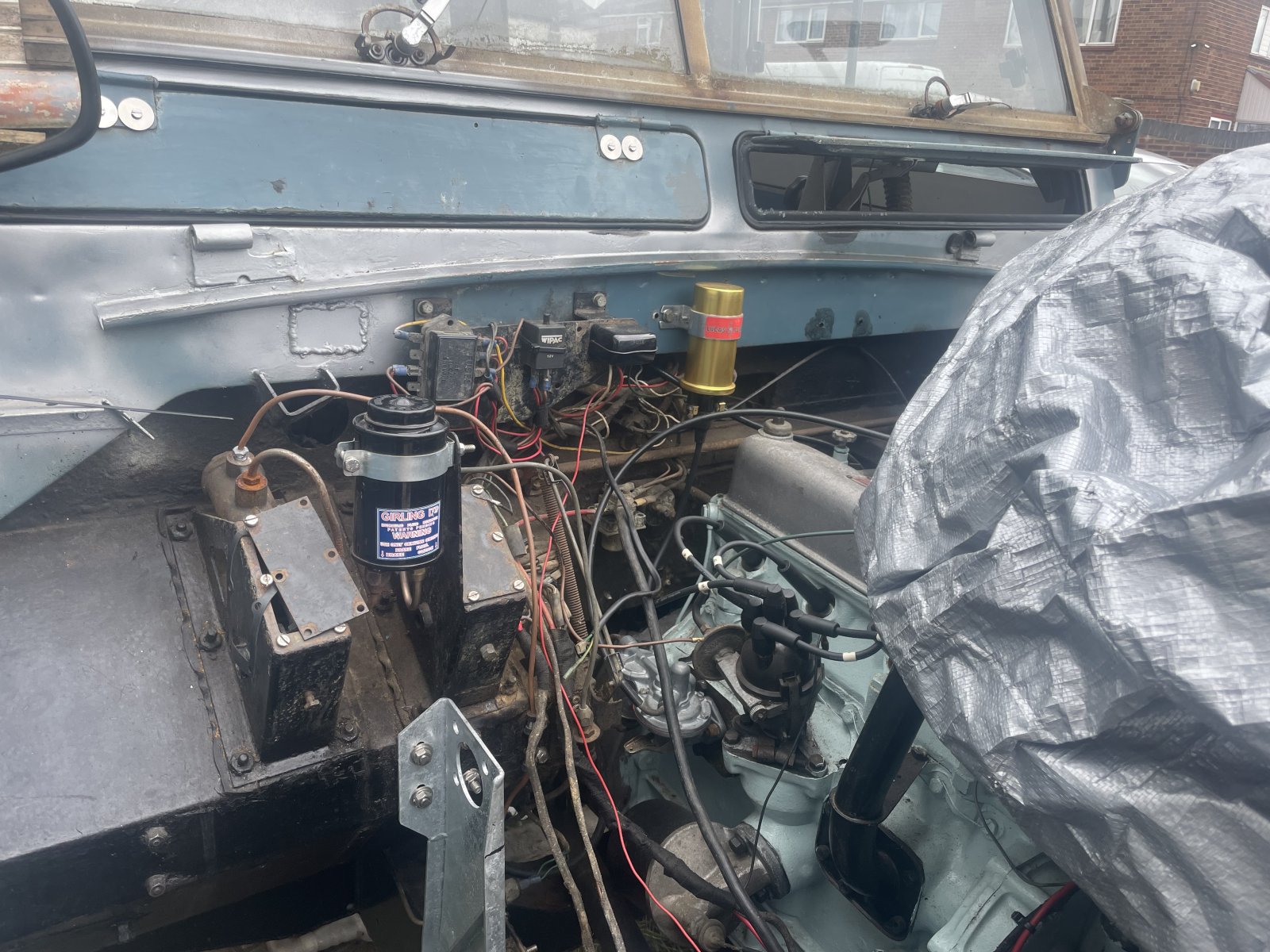

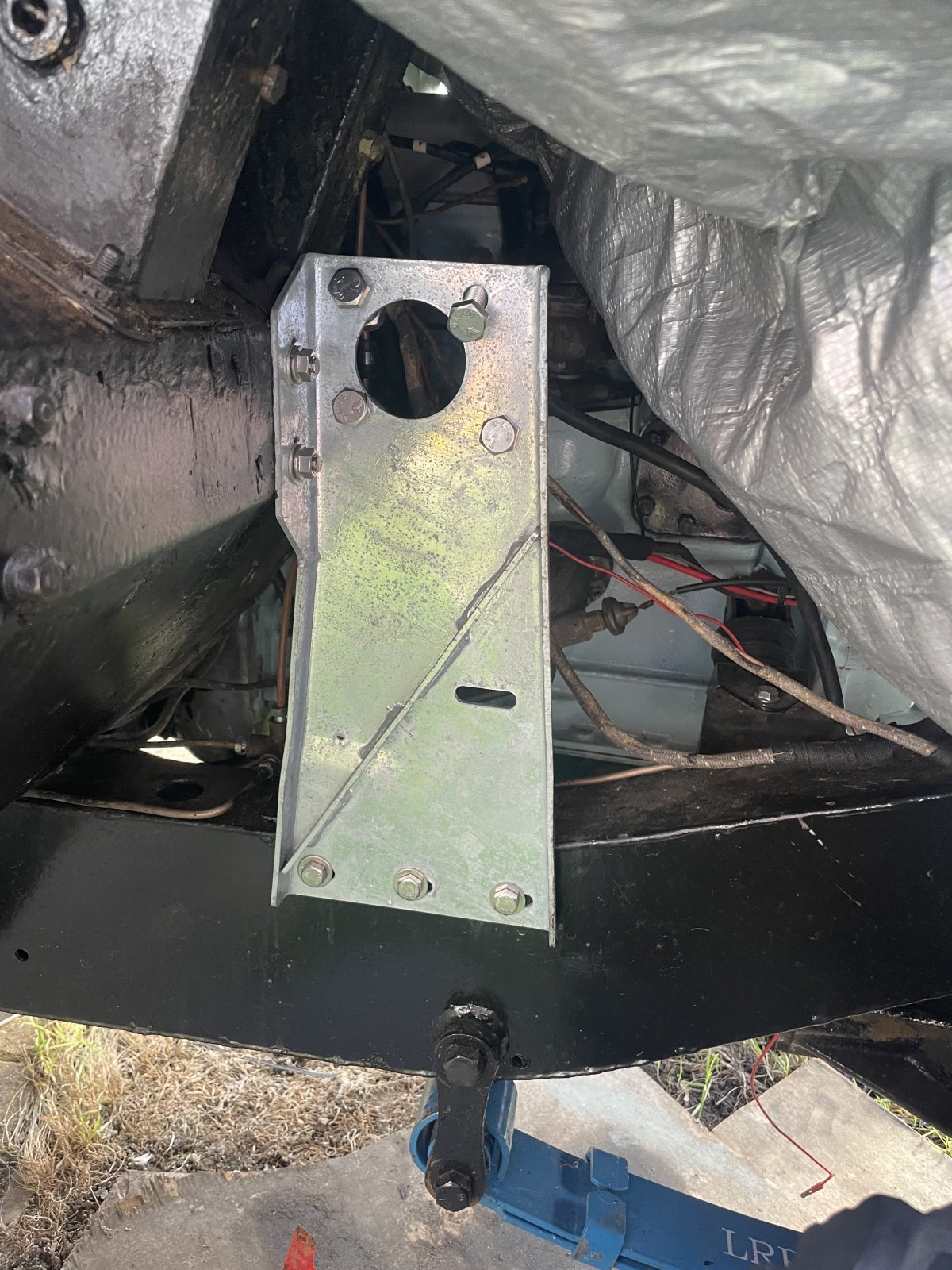

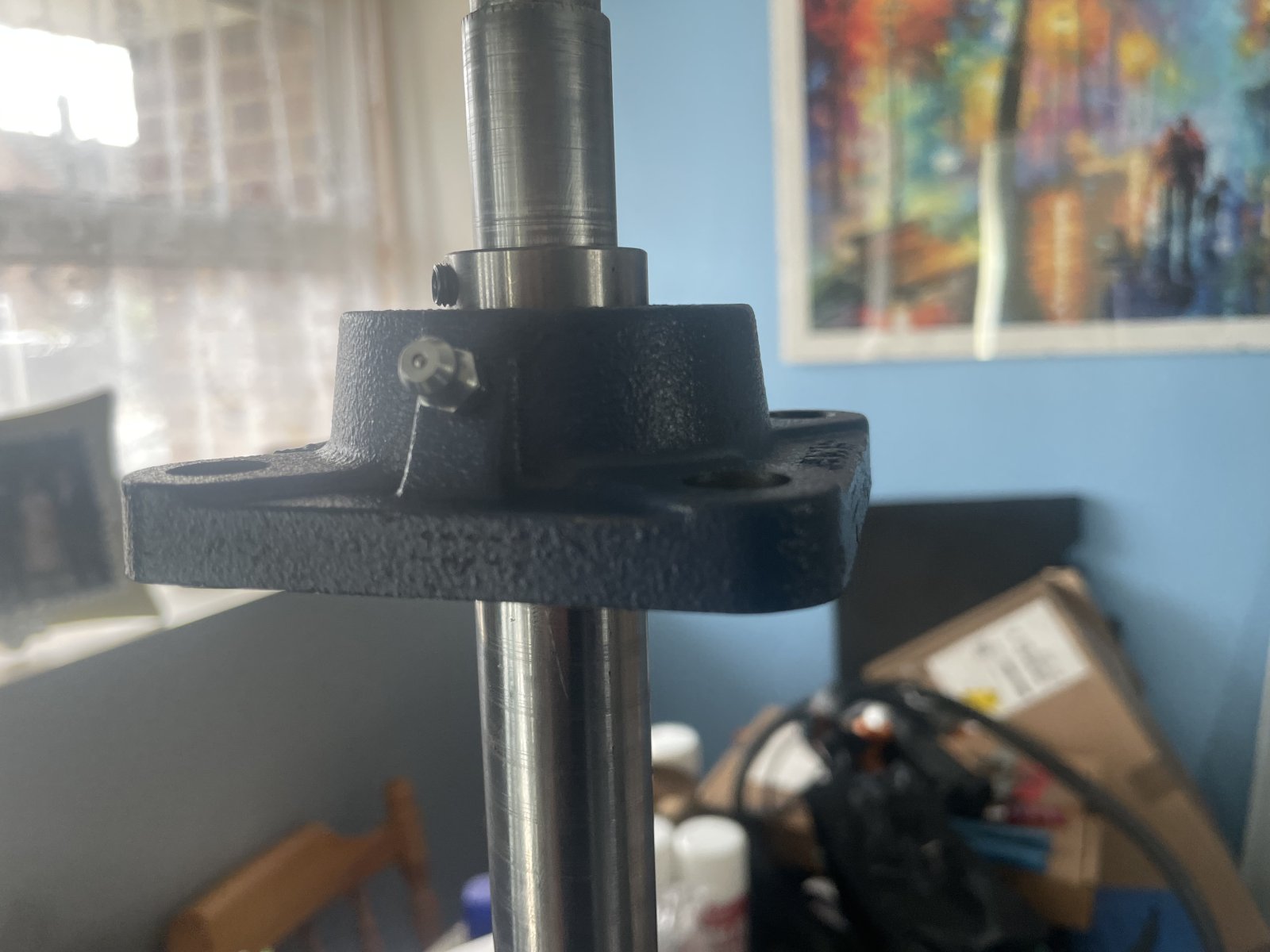

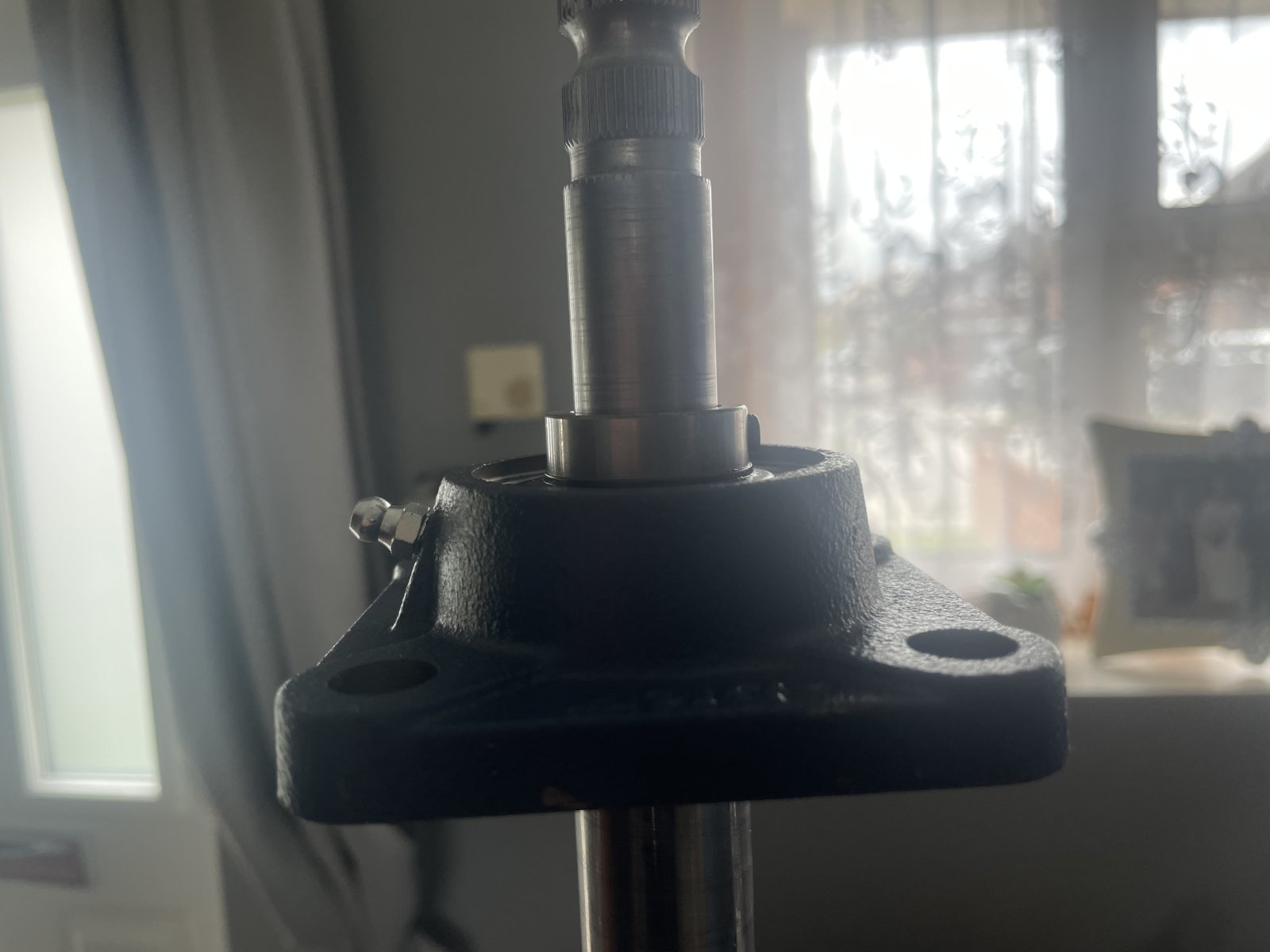

A bit more done with the steering and electrics and hydronic piping, I'm useless with sparks, so I have to check everything 5 times, and put it (hopefully) right, then check it again!! Orders the red starter cable for the battery, going to put it under the pax seat, getting 3m so should be enough? Test trial the steering and put the bearing on for the steering rod, have to sand and paint some of it before I fit it (with galv spray)


Almost done, Just needs testing out, that's the biggest job, the big thing is I still have the original steering wheel and that the whole idea of it all, it looks like it should!


Attachments

  • SAM_0141.JPG
    342 KB · Views: 83
  • SAM_0142.JPG
    340.3 KB · Views: 80
  • SAM_0143.JPG
    342.9 KB · Views: 92
  • SAM_0144.JPG
    341.9 KB · Views: 90
  • SAM_0146.JPG
    340.7 KB · Views: 91
  • SAM_0145.JPG
    339.3 KB · Views: 89
Nearly done now, few more weekends I hope, just sorting mostly electrics out now! Putting LED light all around (apart from the headlights)

IT’s looking great. I’m just finishing my S3 rebuild. A 1971 now with a 200tdi and a galv chassis and bulkhead. It’s taken me a year of working evenings and weekends. Electrics took ages because I added several relays to reduce the load on all the old switches. A bit more sound proofing to do and that should be it.

Iain


Attachments

  • IMG_5929.jpeg
    724.3 KB · Views: 57

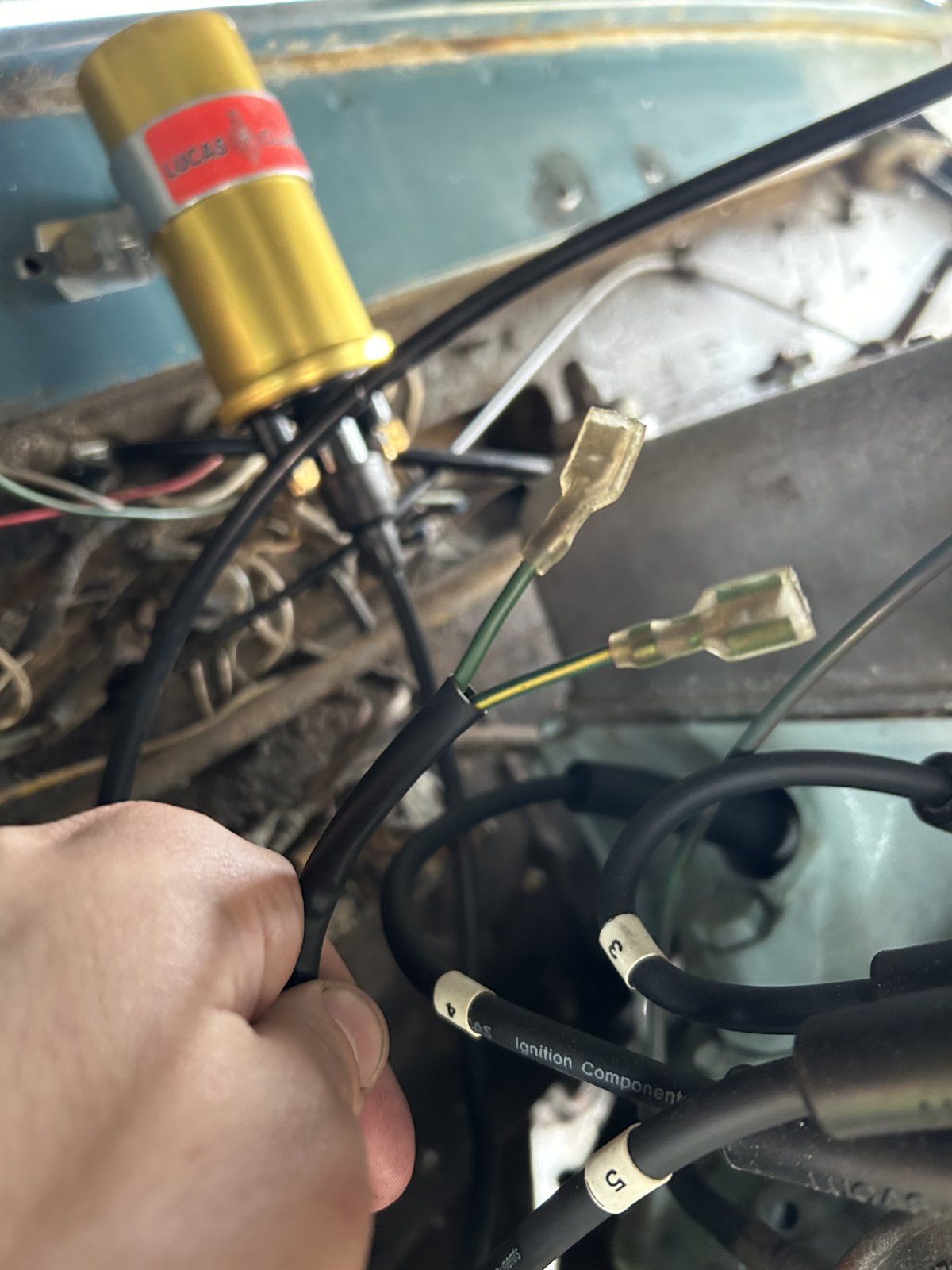

It's taken us a long time, because we are crap with electrics!! Anyone know that the Green is for and the G/yellow ????


Dopey said:
It's taken us a long time, because we are crap with electrics!! Anyone know that the Green is for and the G/yellow ????

View attachment 316511
Click to expand...
So the solid green one is a switched and fused live, usually feeding something like a brake light switch or a wiper motor switch. I’ve seen green/yellow used for either the heater motor or the oil pressure switch in some wiring looms. Good luck!

Iain

Steg750 said:
So the solid green one is a switched and fused live, usually feeding something like a brake light switch or a wiper motor switch. I’ve seen green/yellow used for either the heater motor or the oil pressure switch in some wiring looms. Good luck!

Iain
Click to expand...
Just trace the other end of the G/Y and see where it goes, or which dash panel switch is still missing connections after you’ve wired everything else.

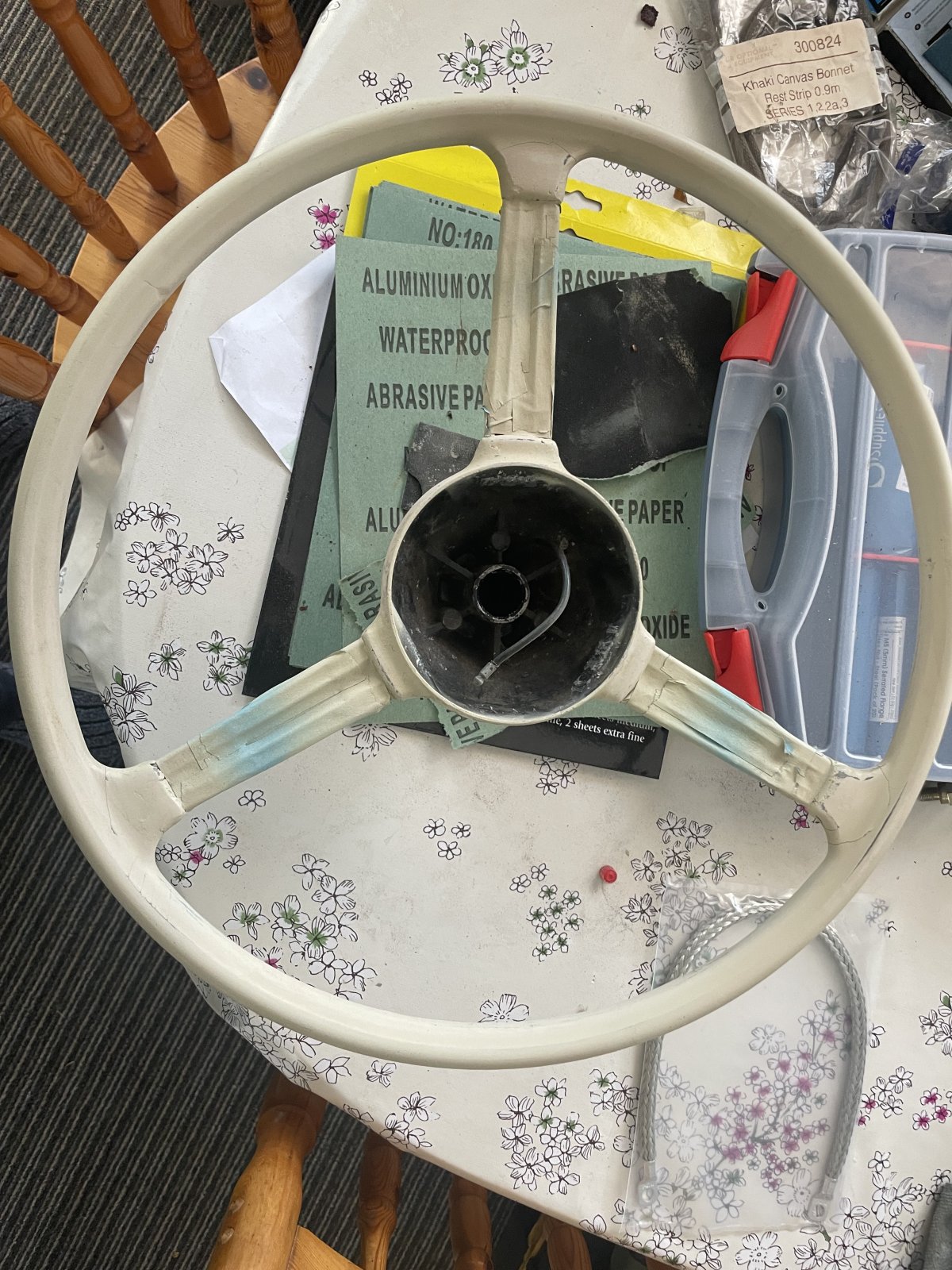

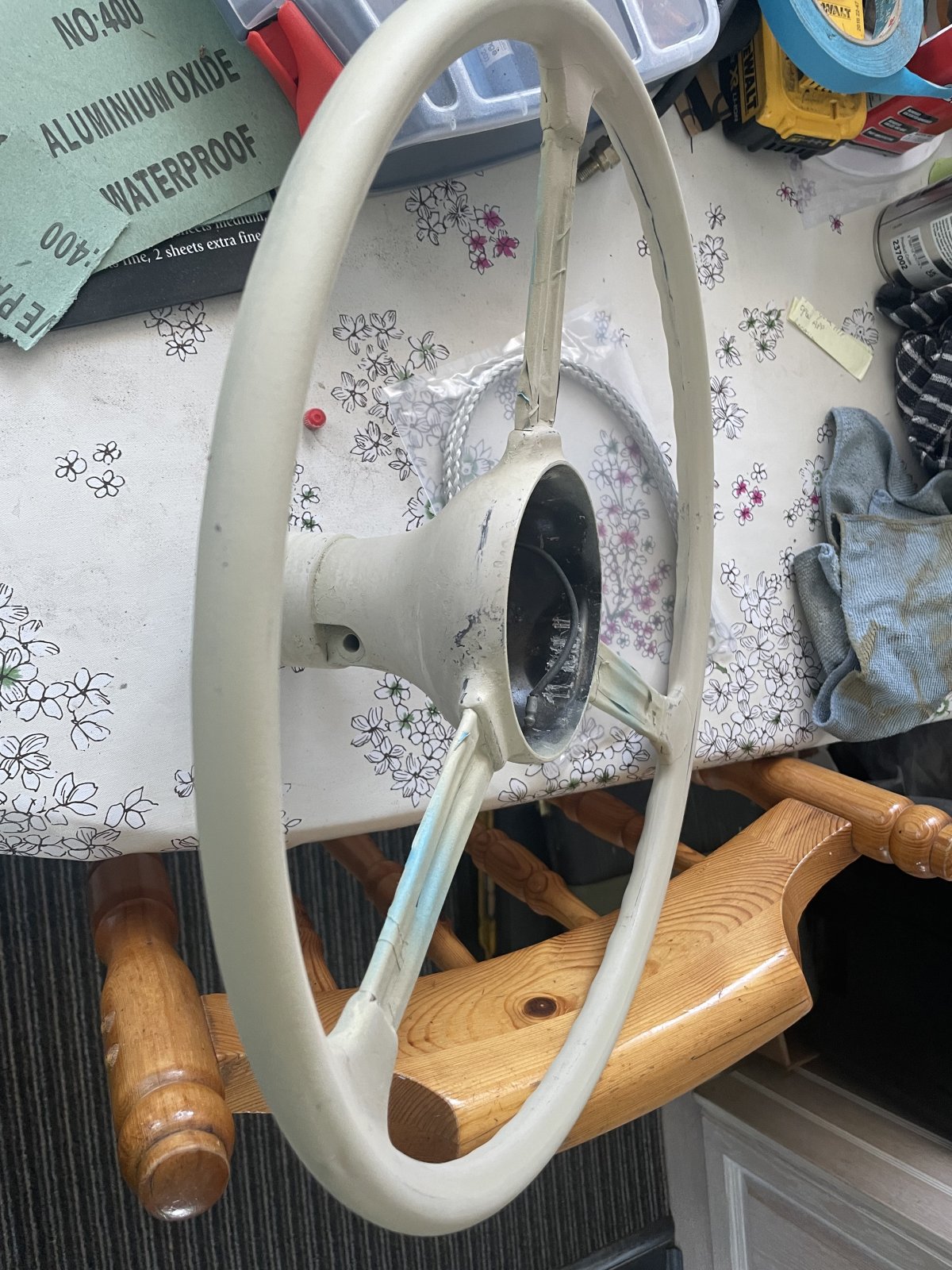

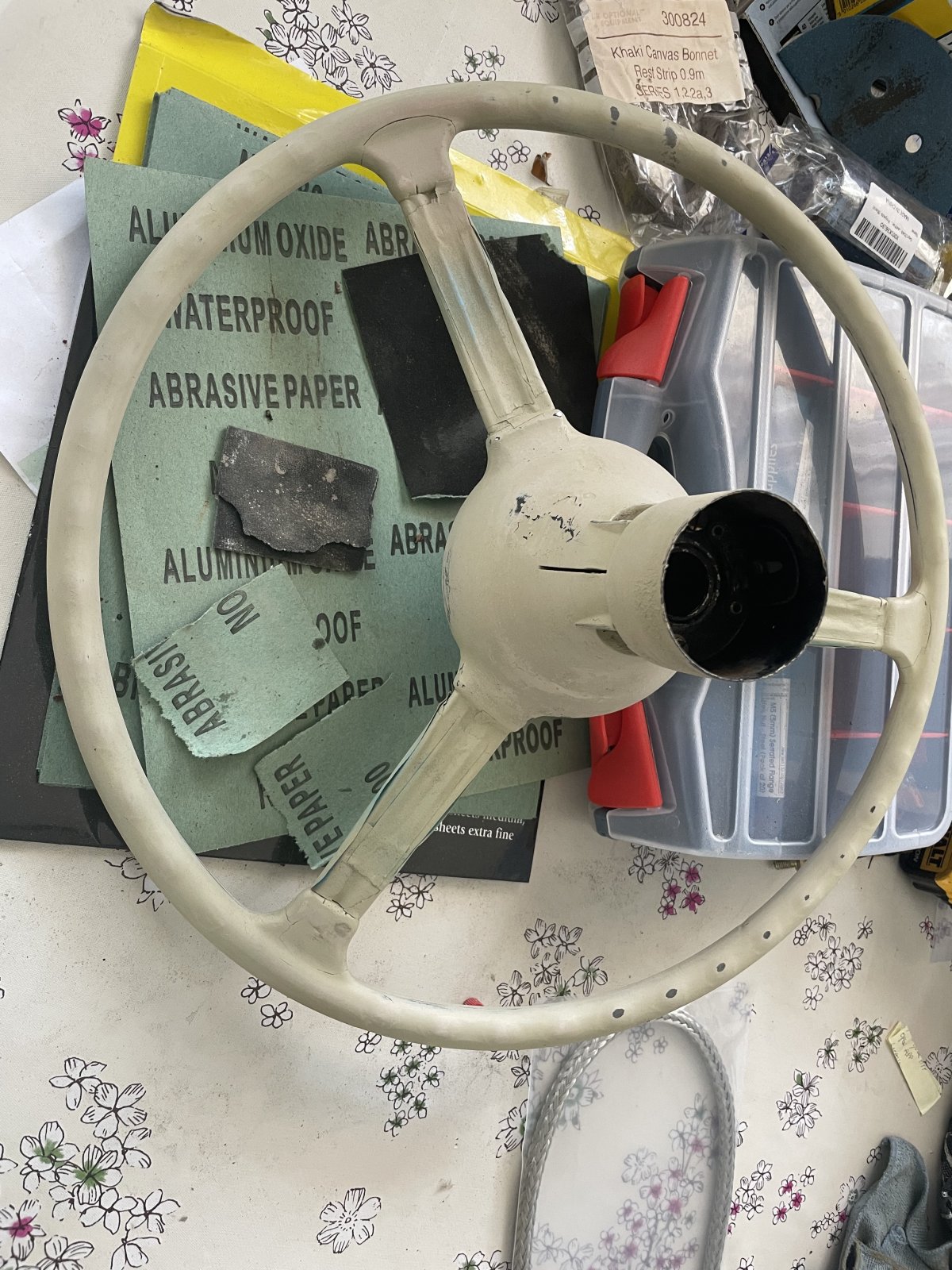

Starting on my steering wheel now, took the old cover off and threw it away, got a new leather one and going to stitch it on, but after I prime it, rub it down, fill the cracks in, and prime it again, put some black gloss on and then cover it again


Attachments

  • IMG_0347.JPG
    402.6 KB · Views: 74
  • IMG_0348.JPG
    415 KB · Views: 54
  • IMG_0349.JPG
    385.9 KB · Views: 55

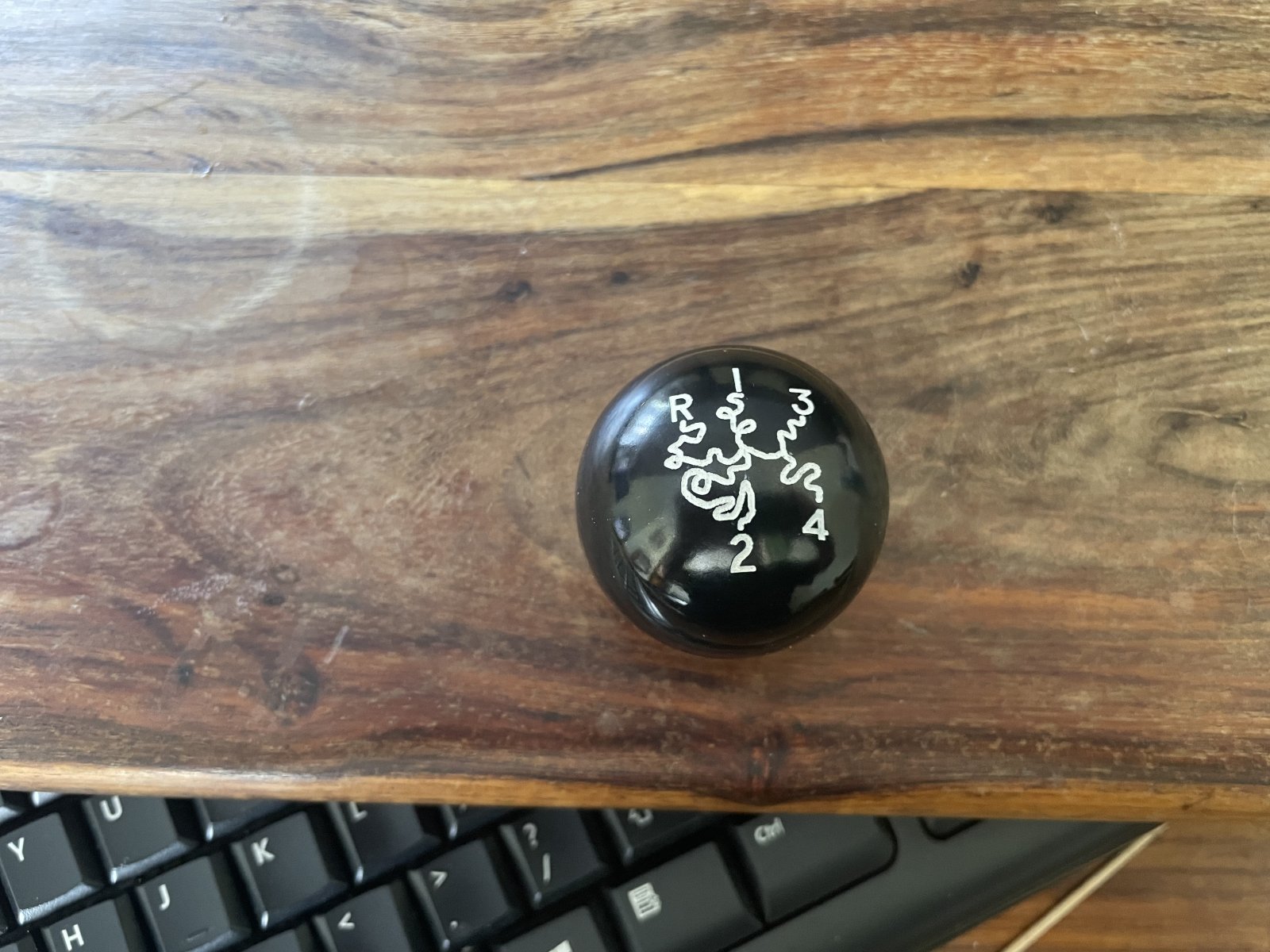

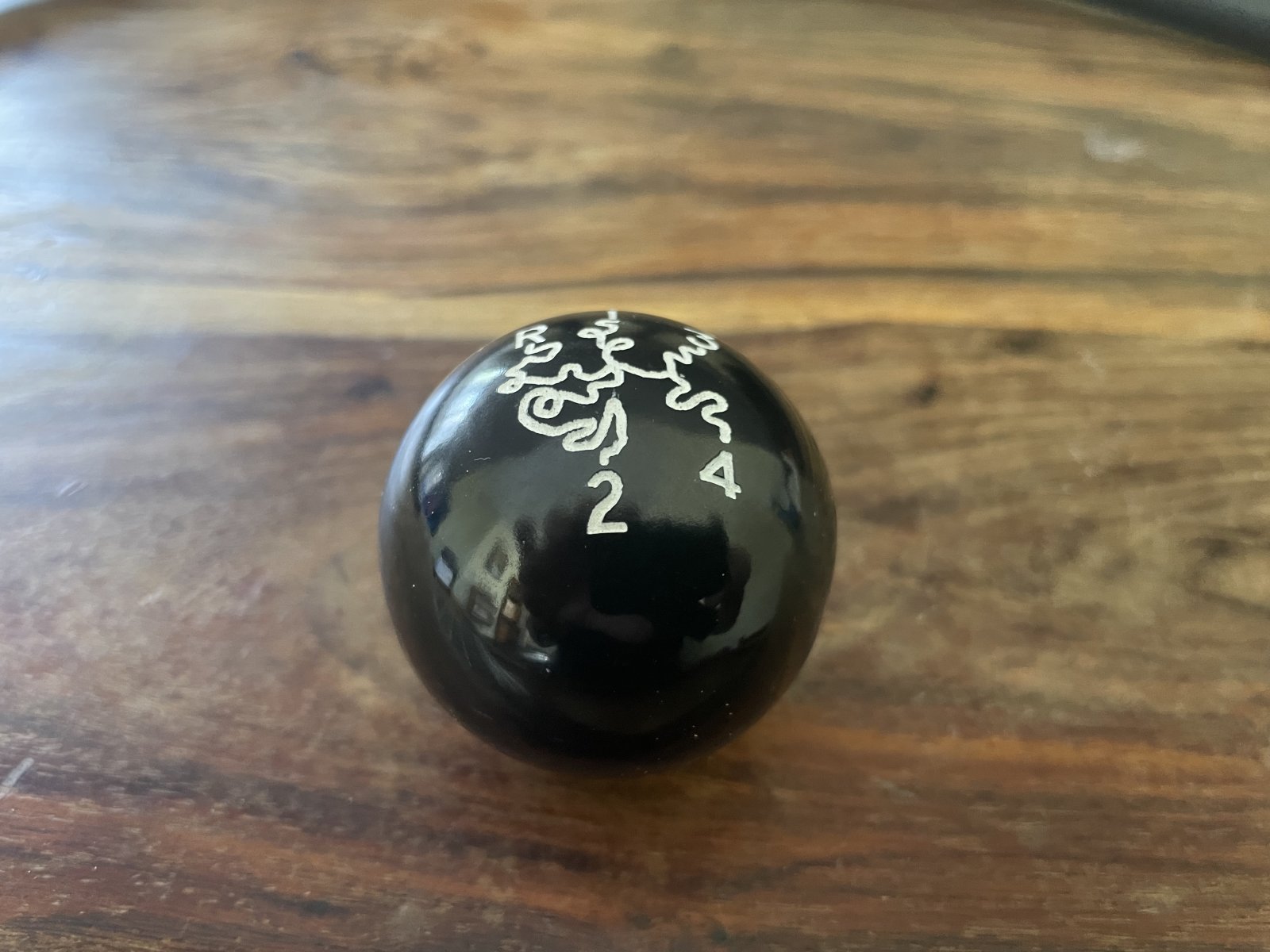

Don't ask how much, but I got this for her.... I ordered a round one for a series 2, BUT they sent me a round one for a series 3 (It had NO thread in it) I don't know If I should return it or not? I can always put some Araldite in the hole, but I am not sure!


Attachments

  • IMG_0345.JPG
    273.4 KB · Views: 75
  • IMG_0346.JPG
    202.7 KB · Views: 75
Continuing with the steering wheel, filled the hair like cracks, spray filler/primer sand down again.... and again, Ordered black gloss and lacquer from amazon, going to spray it again 2morrow, fingers X these things are starting to cost a LOT of money, very bad ones go for £250

Just sprayed the wheel black gloss, will do the back 2morrow, very satisfying job


Attachments

  • SAM_0149.JPG
    341.4 KB · Views: 62
  • SAM_0148.JPG
    341.6 KB · Views: 62
  • SAM_0147.JPG
    342.2 KB · Views: 57
Did the back and decided not to lacquer it, don't see the point, it's acrylic gloss, next job is to put the leather cover on with the fancy stitching, see how I manage that, bet I make a pig's ear out of it!


Attachments

  • SAM_0150.JPG
    346.4 KB · Views: 59
  • SAM_0151.JPG
    341.1 KB · Views: 62
  • SAM_0152.JPG
    336.9 KB · Views: 62
  • SAM_0153.JPG
    337.6 KB · Views: 60
